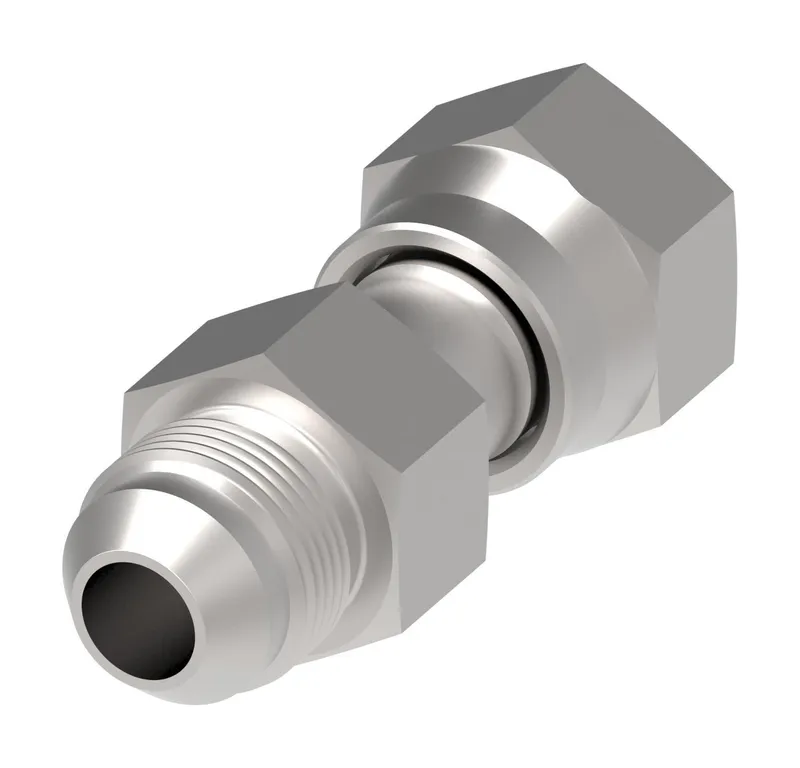

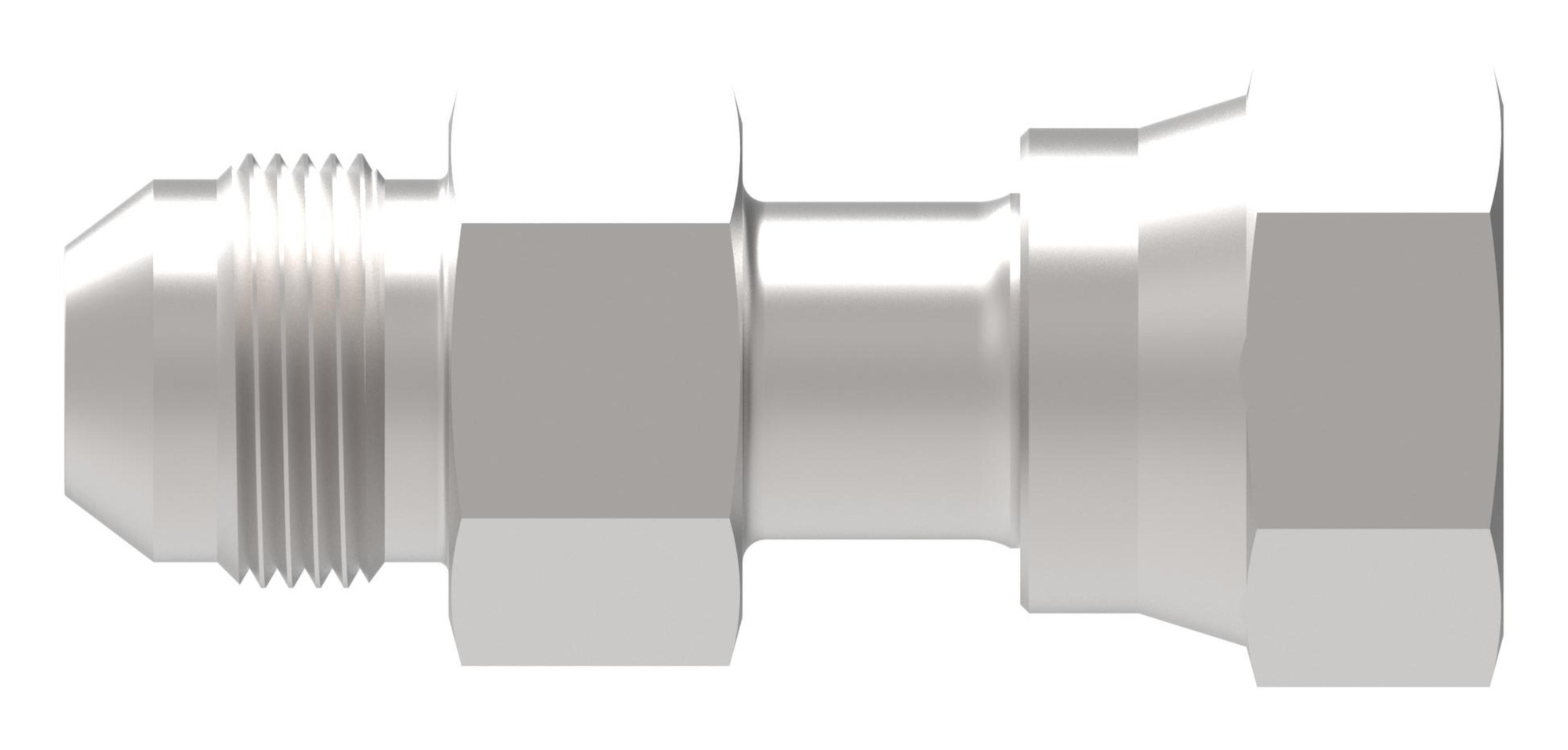

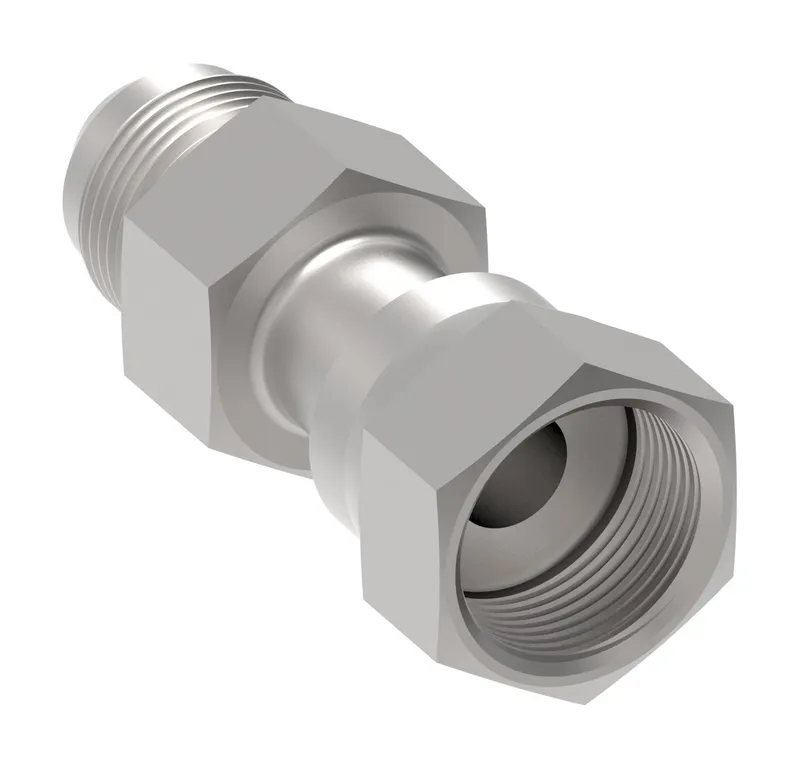

Adptr ORS & SAE37 04 F ORS x 04 M SAE37

Name: Adptr ORS & SAE37 04 F ORS x 04 M SAE37
Brand: Danfoss (Drives)
SKU: FF2209T0404S

MPN: FF2209T0404S · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Adapters and swivel joints
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FF2209T0404S be shipped?

FF2209T0404S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FF2209T0404S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FF2209T0404S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FF2209T0404S, subject to availability and destination.

Danfoss Adptr ORS & SAE37 04 F ORS x 04 M SAE37, manufacturer part number FF2209T0404S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146189417
Brand	Danfoss
End Type 1	Female ORFS swivel
End Type 2	Male 37 degree
Finish plating	Zinc
Hex size 1 IN	0.688
Hex size 1 MM	17.500
Hex size 2 IN	0.625
Hex size 2 MM	15.900
Item type	Adapter-straight
Product material	Carbon steel
Thread sealant	No
Thread size 1	9/16-18 UNF
Thread size 2	7/16-20 UNF
Tube outside diameter 1 IN	0.250
Tube outside diameter 1 MM	6.4
Tube outside diameter 2 IN	0.250
Tube outside diameter 2 MM	6.4
Working temp max C	121
Working temp max F	250
Working temp min C	-40
Working temp min F	-40
