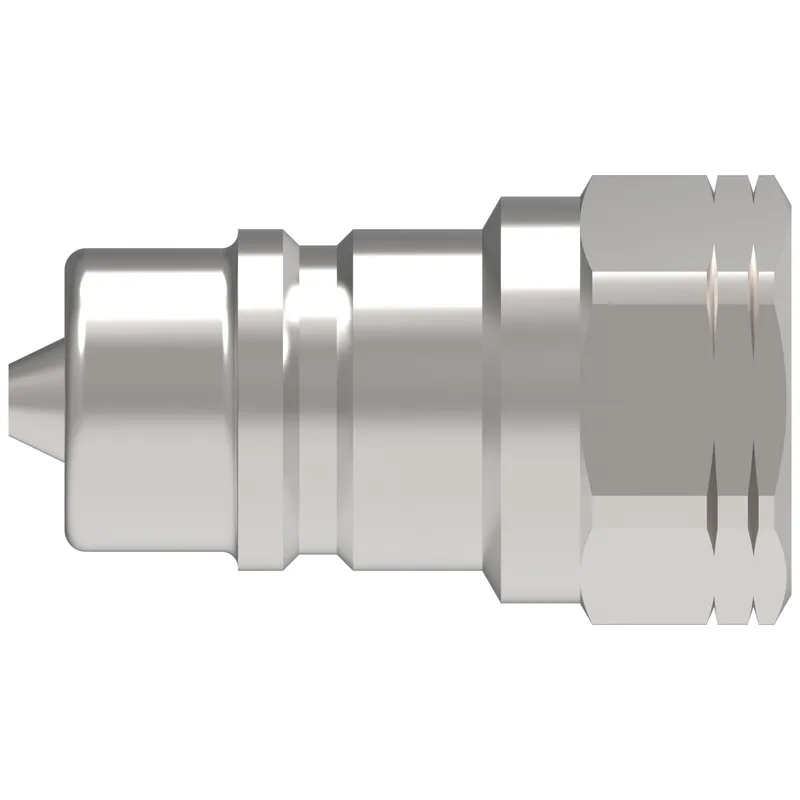

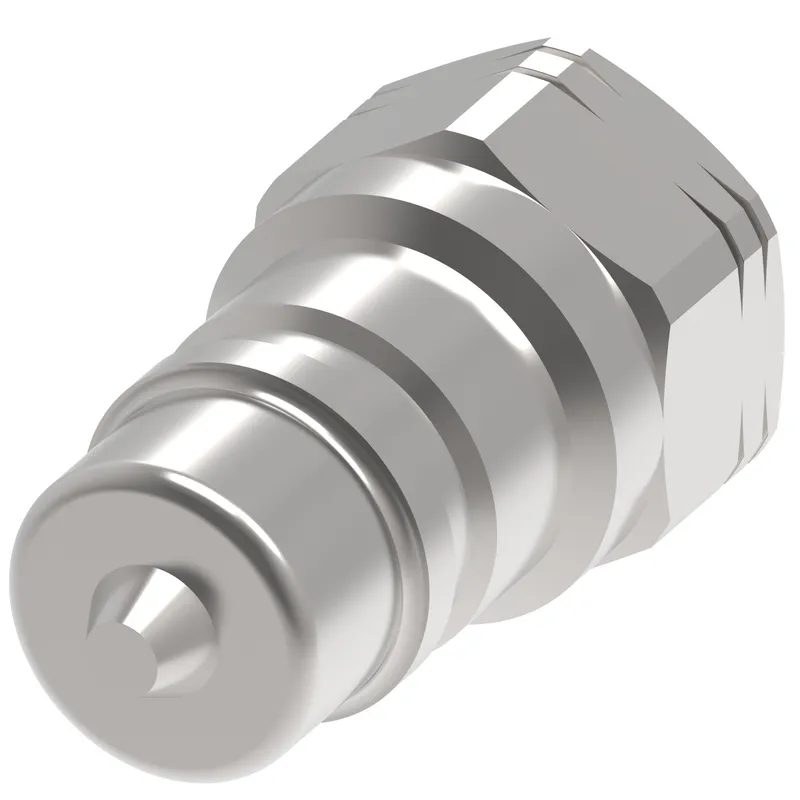

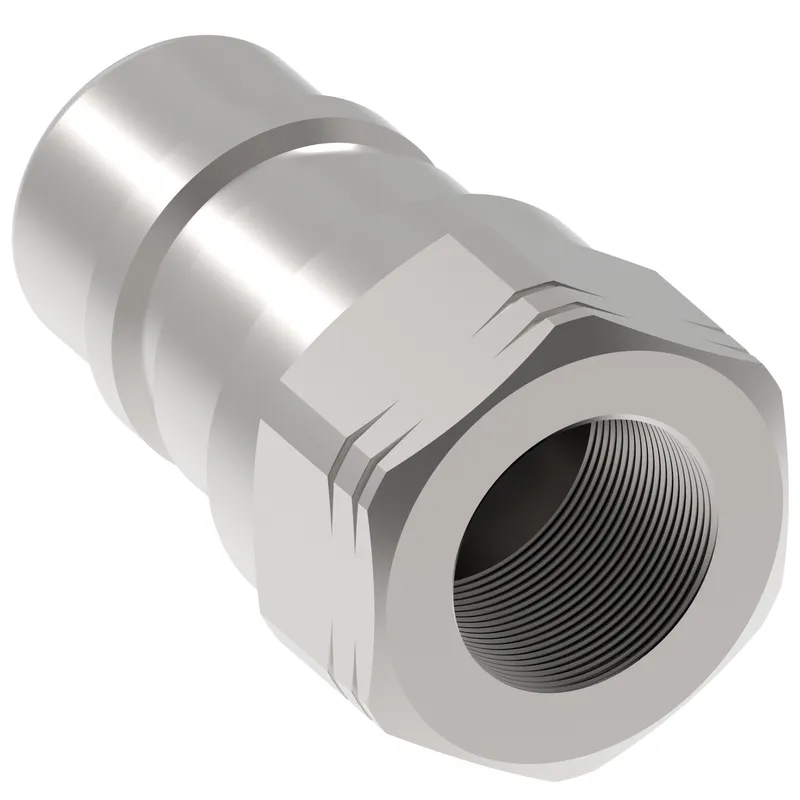

Cplng, 5600 SERIES MALE, STEEL
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss Hansen® quick disconnect couplings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FD56-1072-16-16 be shipped?
FD56-1072-16-16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FD56-1072-16-16 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FD56-1072-16-16 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FD56-1072-16-16, subject to availability and destination.
Danfoss Cplng, 5600 SERIES MALE, STEEL, manufacturer part number FD56-1072-16-16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146037985 |
| Air inclusion max cc | 14.20 |
| Air inclusion max in3 | 0.87 |
| Angle shape | Straight |
| Body size | 1" |
| Burst pressure min bar | 827 |
| Burst pressure min psi | 12000 |
| Connection style | Manual connect |
| End size 2 | 1-5/16" |
| End Type 1 | Male push to connect |
| End Type 2 | Female 37 degree swivel |
| Finish plating | Zinc |
| Flow rate GPM | 50.00 |
| Flow rate LPM | 189.27 |
| Fluid compatibility | Oil |
| Fluid loss cc | 14.20000 |
| Fluid loss in3 | 0.86700 |
| Hex size 1 IN | 1.620 |
| Hex size 1 MM | 41.148 |
| Item type | Male half |
| Latch type | Push/pull |
| Product material | Carbon steel |
| Seal material | Fluorocarbon (FKM) |
| Valve type | 2 way |
| Working pressure max psi | 4000 |
| Working pressure max BAR | 276.00 |
| Working temperature max C | 204 |
| Working temperature max F | 400 |
| Working temperature min C | -26 |
| Working temperature min F | -15 |
