COUPLING,5600,F,1",CS,-10NPTF,FKM
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss Hansen® quick disconnect couplings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FD56-1064-08-10 be shipped?
FD56-1064-08-10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FD56-1064-08-10 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FD56-1064-08-10 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FD56-1064-08-10, subject to availability and destination.

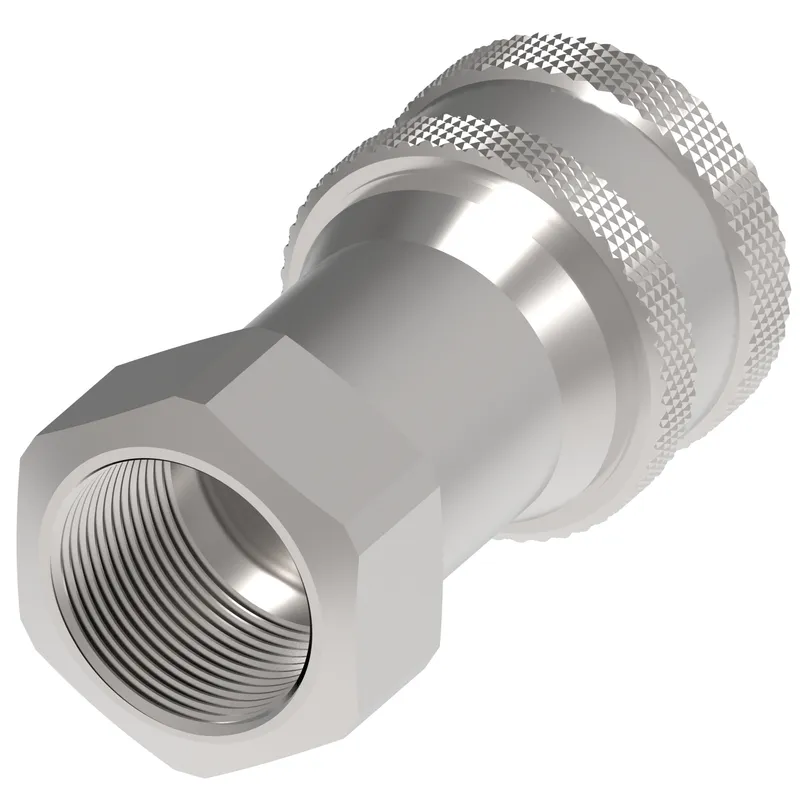

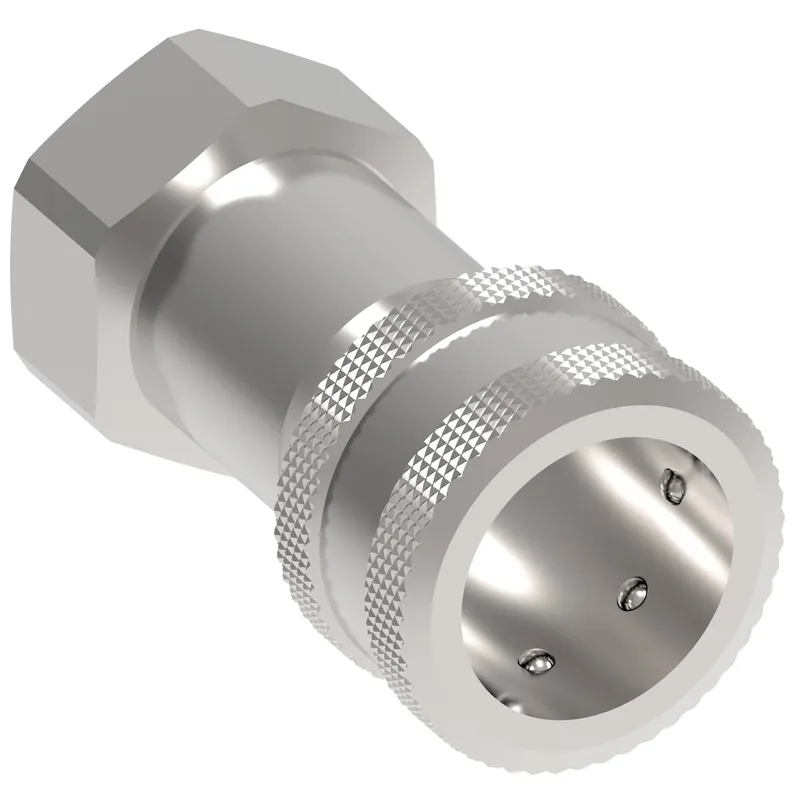

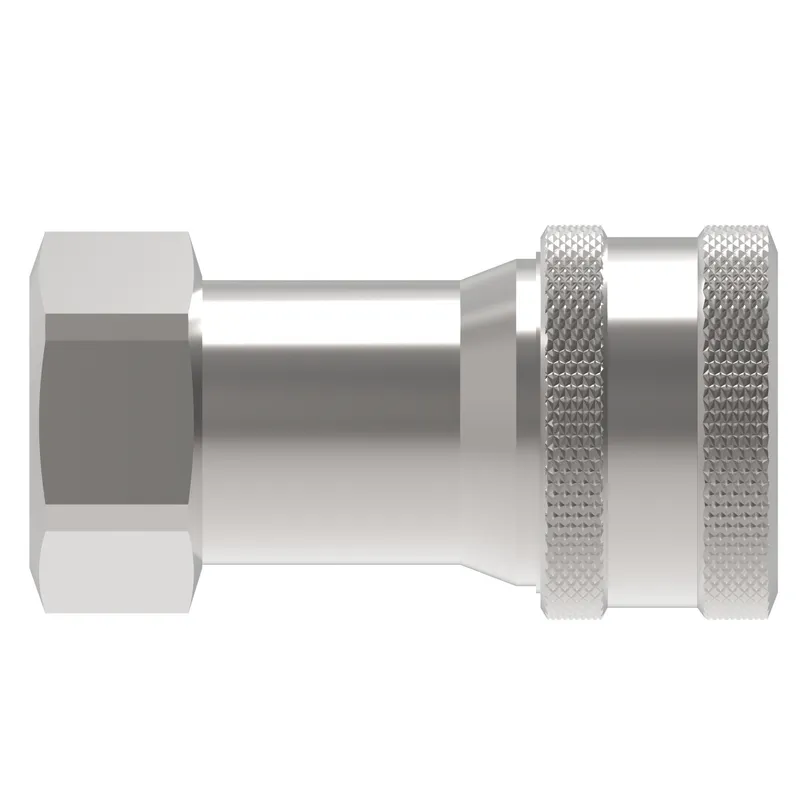

Danfoss COUPLING,5600,F,1",CS,-10NPTF,FKM, manufacturer part number FD56-1064-08-10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146037831 |
| Angle shape | Straight |
| Body size | 1" |
| Certifications | ISO 7241-1 Series A |
| End size 1 | -10 |
| End Type 1 | Female pipe (NPTF) |
| Finish plating | Zinc trivalent |
| Fluid compatibility | Hydraulic fluid |
| Hex size 1 IN | 1.190 |
| Item type | Female half |
| Latch type | Push/pull |
| Product length in | 2.610 |
| Product material | Carbon steel |
| Seal material | Fluorocarbon (FKM) |
| Thread size 1 | 5/8-10 NPT |
| Valve type | 2 way |
| Working pressure max psi | 4000 |
| Working temperature max F | 400 |
| Working temperature min F | -15 |
