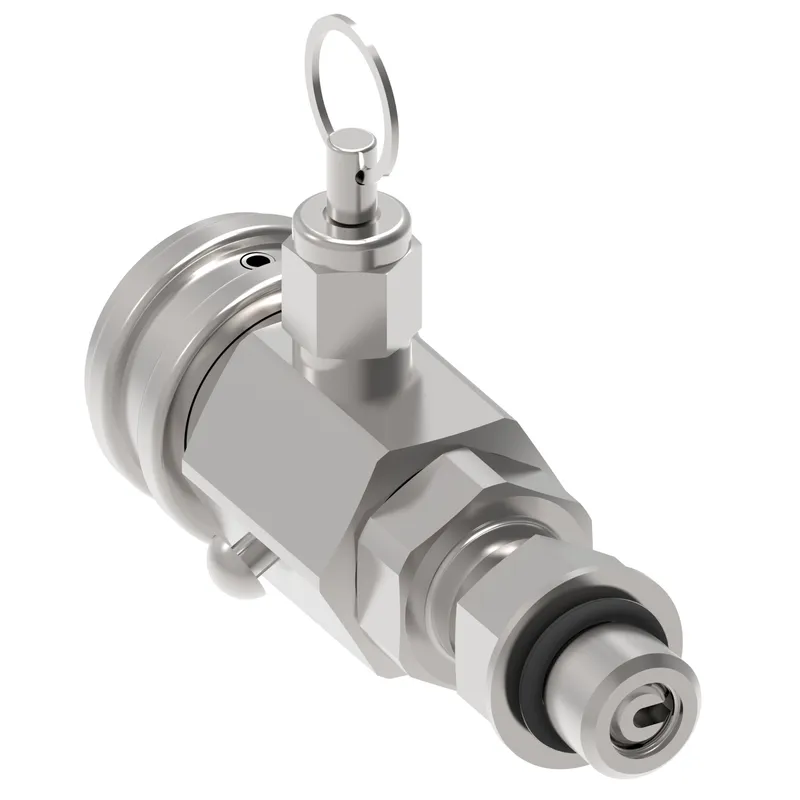

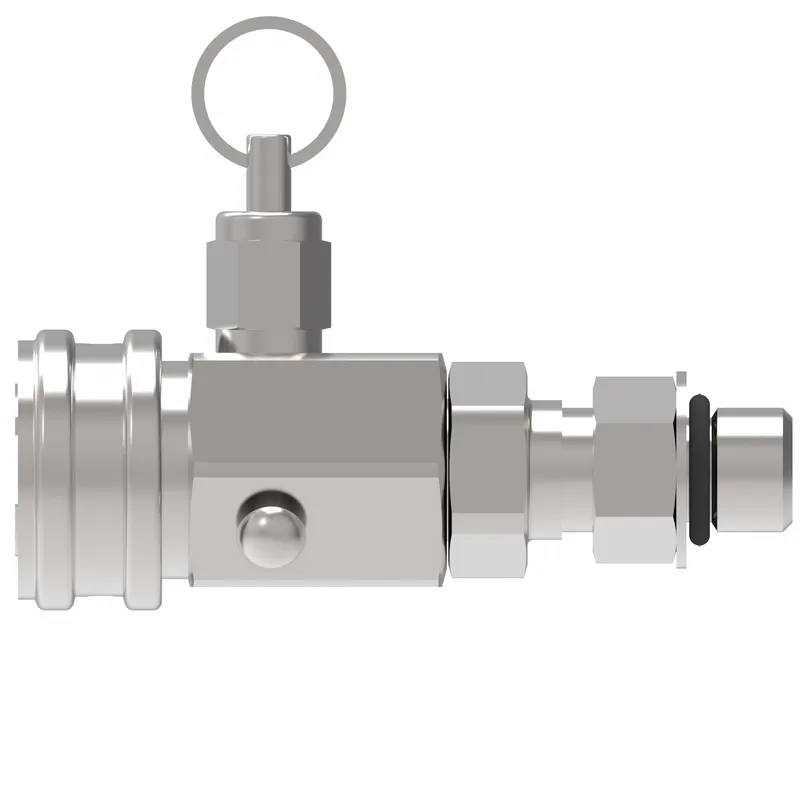

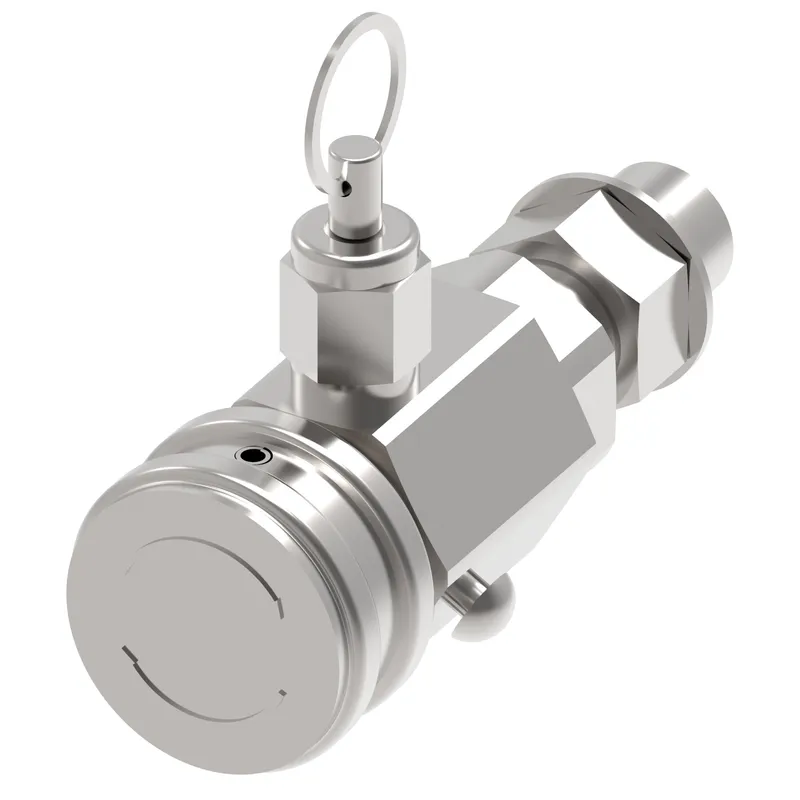

COUPLING,FD15,C,N/A,CS,-4MUN,NBR

Name: COUPLING,FD15,C,N/A,CS,-4MUN,NBR
Brand: Danfoss (Drives)
SKU: FD15-1002-04

MPN: FD15-1002-04 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FD15-1002-04 be shipped?

FD15-1002-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FD15-1002-04 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FD15-1002-04 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FD15-1002-04, subject to availability and destination.

Danfoss COUPLING,FD15,C,N/A,CS,-4MUN,NBR, manufacturer part number FD15-1002-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146037503
Angle shape	Straight
Body size	N/A
Brand	Danfoss
Compliances	MIL-V-81940/2-1
End size 1	-4
End Type 1	Male SAE flareless
Finish plating	Corrosion resistant plating
Fluid compatibility	Engine oil, Oil, Transmission fluid
Hex size 1 IN	0.690
Item type	Complete
Latch type	Screw to connect
Product material	Brass, Carbon steel
Seal material	Nitrile (NBR)
Sub brand	Hansen
Thread size 1	7/16-20 UNF
Valve type	2 way
Working pressure max psi	300
Working temperature max F	275
Working temperature min F	-65
