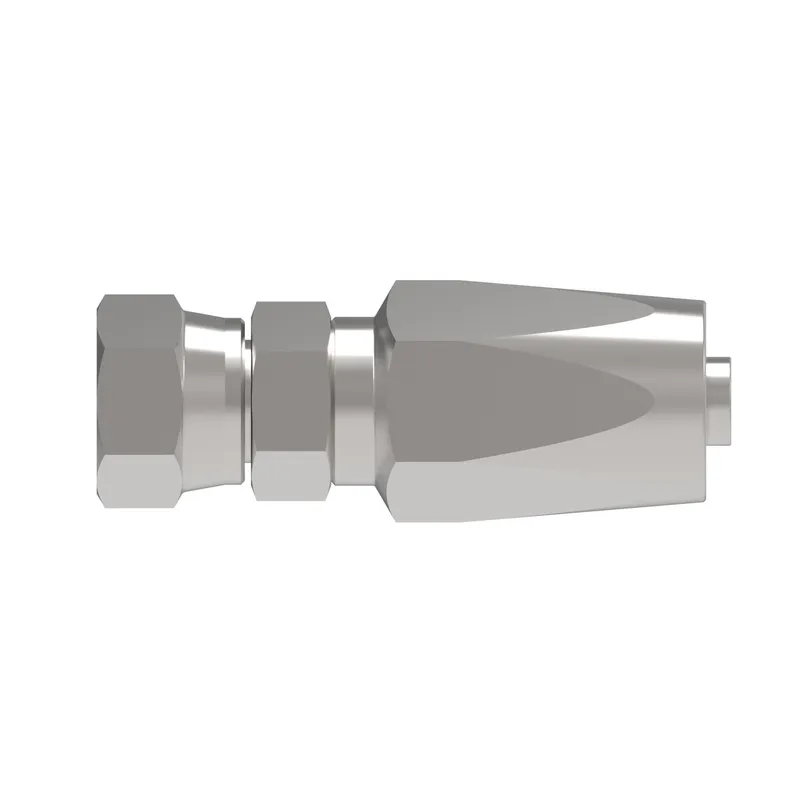

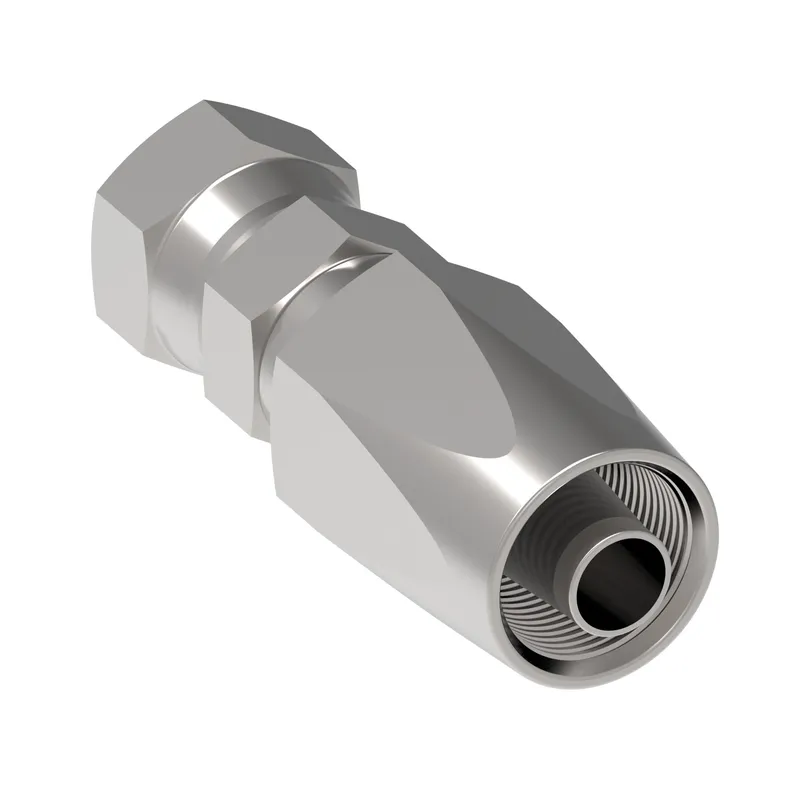

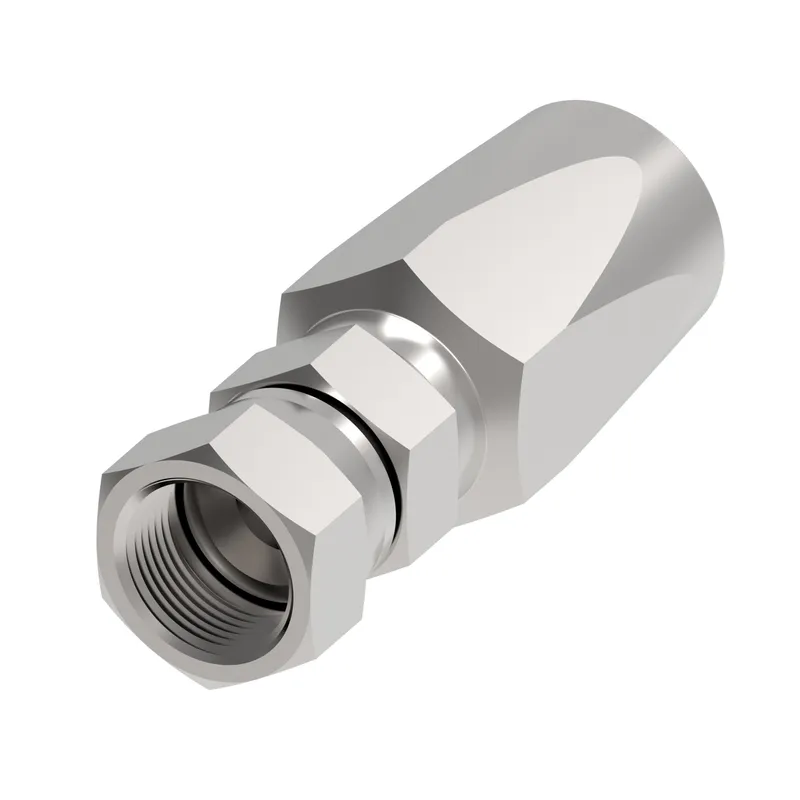

HOSE FTG, FC/10, JIC-F/10, CS, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Marine and military |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FC9800-1010S be shipped?
FC9800-1010S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FC9800-1010S in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FC9800-1010S and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FC9800-1010S, subject to availability and destination.
Danfoss HOSE FTG, FC/10, JIC-F/10, CS, STR, manufacturer part number FC9800-1010S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.362 |
| A dimension MM | 59.994 |
| Angle shape | Straight |
| Compatible hose ID IN | 0.620 |
| Compatible hose ID MM | 15.875 |
| Compatible hoses | FC173 |
| Construction Style | Reusable |
| End size 1 | -10 |
| End size 2 | -6 |
| End type 1 | Female 37 degree swivel |
| End type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hex size 1 IN | 0.984 |
| Hex size 1 MM | 25.000 |
| Hex size 2 IN | 0.984 |
| Hex size 2 MM | 25.000 |
| Hose cut off factor IN | 1.391 |
| Hose cut off factor MM | 35.348 |
| Hose size | -10 |
| Inside diameter IN | 0.420 |
| Inside diameter MM | 10.668 |
| Matr grp for sales restriction | Country Excluded Products |
| Product height in | 1.150 |
| Product height mm | 29.210 |
| Product length in | 2.620 |
| Product length mm | 66.548 |
| Product material | Carbon steel |
| Product width in | 1.000 |
| Product width mm | 25.400 mm |
| Thread sealant | No |
| Thread size 1 | 7/8-14 UNF |
