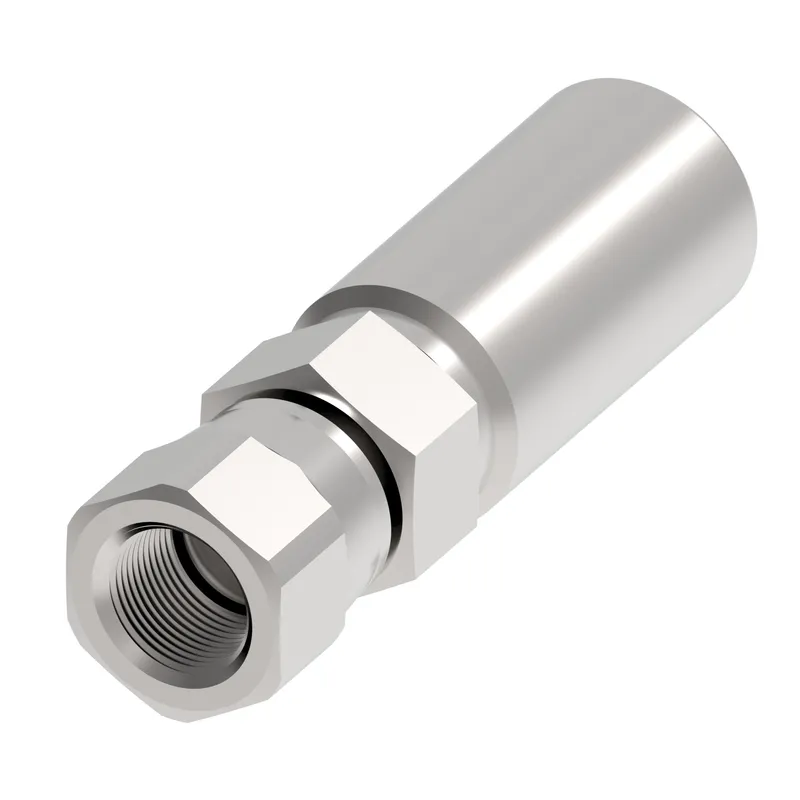

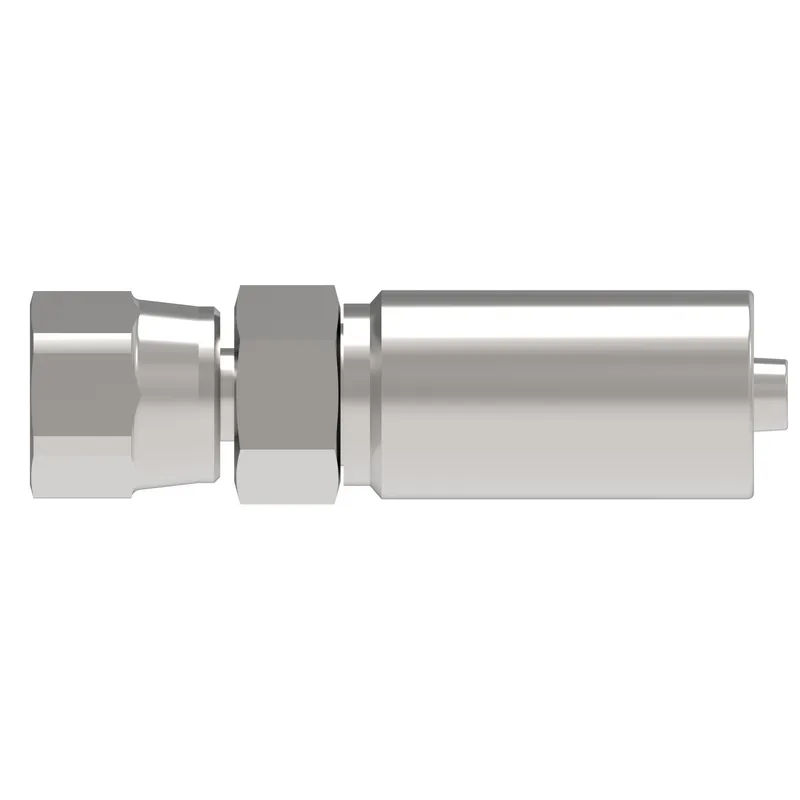

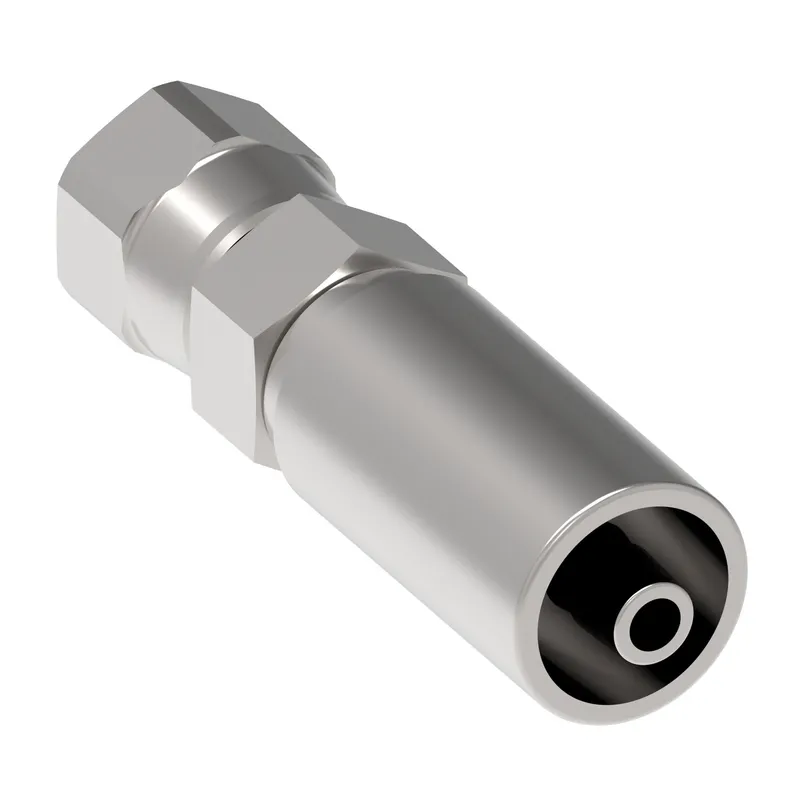

Danfoss FC5810-0808-259 – HOSE FTG, FC/08, JIC-F/08, AP, STR

Name: Danfoss FC5810-0808-259 – HOSE FTG, FC/08, JIC-F/08, AP, STR
Brand: Danfoss (Drives)
SKU: FC5810-0808-259

MPN: FC5810-0808-259 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Thermoplastic hydraulic hose and fittings
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FC5810-0808-259 be shipped?

FC5810-0808-259 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FC5810-0808-259 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FC5810-0808-259 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FC5810-0808-259, subject to availability and destination.

Danfoss HOSE FTG, FC/08, JIC-F/08, AP, STR, manufacturer part number FC5810-0808-259. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.110
A dimension MM	78.994
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible hoses	37AL, 3130, 3740, FC370
Compatible tube OD IN	0.50
Compatible tube OD MM	12.700
Construction Style	Crimp
End size 1	-8
End size 2	-8
End type 1	Female 37 degree swivel
End type 2	Line/hose/tube
Finish plating	Dura-Kote
Hex size 1 IN	0.944
Hex size 1 MM	24.000
Hex size 2 IN	0.866
Hex size 2 MM	22.000
Hose cut off factor IN	1.460
Hose cut off factor MM	37.000
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.652
Product height in	1.080
Product height mm	27.432
Product length in	3.110
Product length mm	78.994
Product material	316 Stainless steel
Product width in	1.000
Product width mm	25.400 mm
Thread sealant	No
Thread size 1	3/4-16 UNF
Tube OD 1 IN	0.500
Tube OD 1 MM	12.700
Working pressure max BAR	276
Working pressure max PSI	4000
