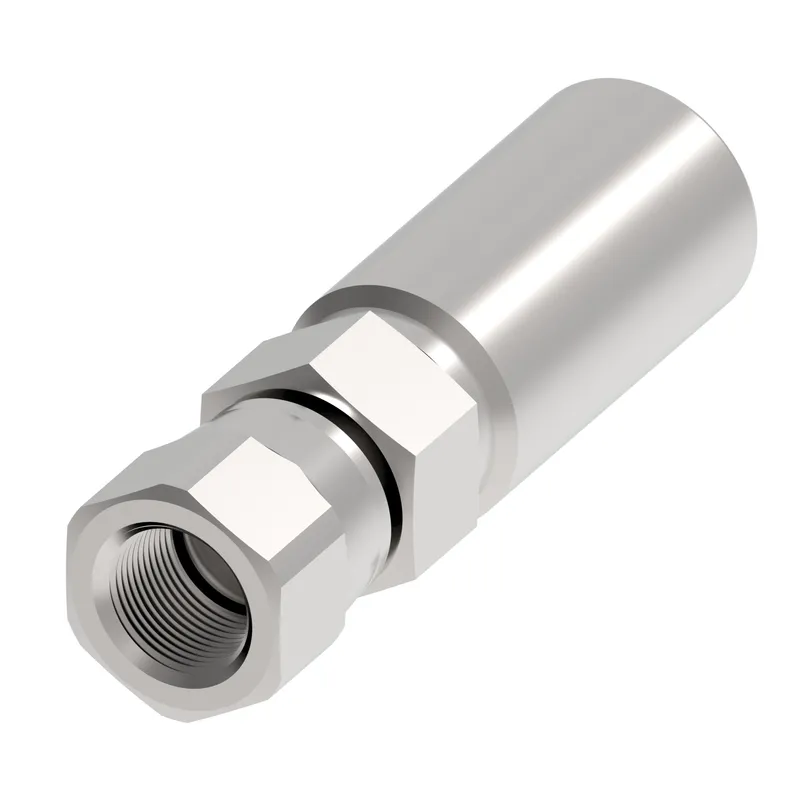

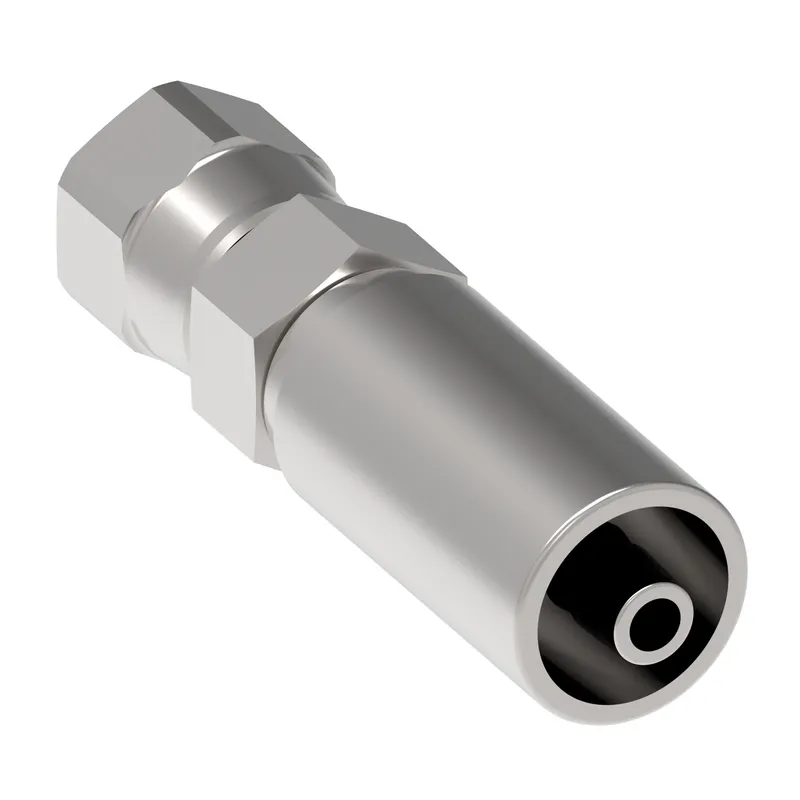

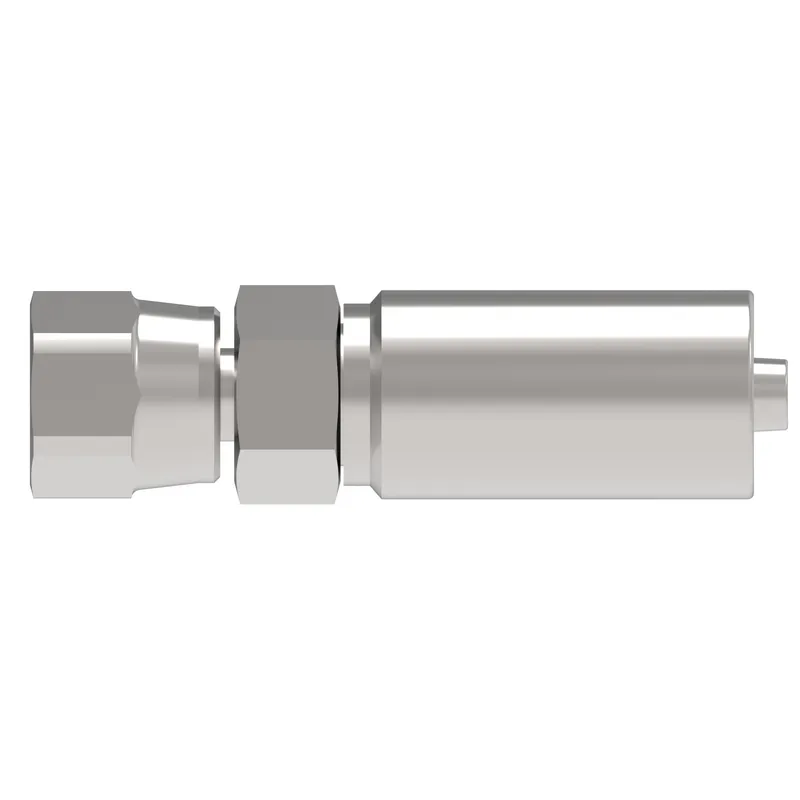

HOSE FTG, FC/04, JIC-F/04, CS, STR

MPN: FC5810-0404S · Brand: Danfoss (Drives)
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryThermoplastic hydraulic hose and fittings
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FC5810-0404S be shipped?

FC5810-0404S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FC5810-0404S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FC5810-0404S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FC5810-0404S, subject to availability and destination.

Danfoss HOSE FTG, FC/04, JIC-F/04, CS, STR, manufacturer part number FC5810-0404S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146145185
A dimension IN2.370
A dimension MM60.200
Angle shapeStraight
Compatible hose ID IN0.250
Construction StyleCrimp
End size 1-4
End type 1Female 37 degree swivel
Finish platingZinc plating
Hex size 1 IN0.629
Hex size 1 MM16.000
Hex size 2 IN0.629
Hex size 2 MM16.000
Hose cut off factor IN1.468
Hose cut off factor MM37.300
Inside diameter IN0.150
Inside diameter MM3.800
Product height in0.720
Product height mm18.288
Product length in2.370
Product length mm60.198
Product materialCarbon steel
Product width in0.690
Product width mm17.526 mm
Thread sealantNo
Thread size 17/16-20 UNF
