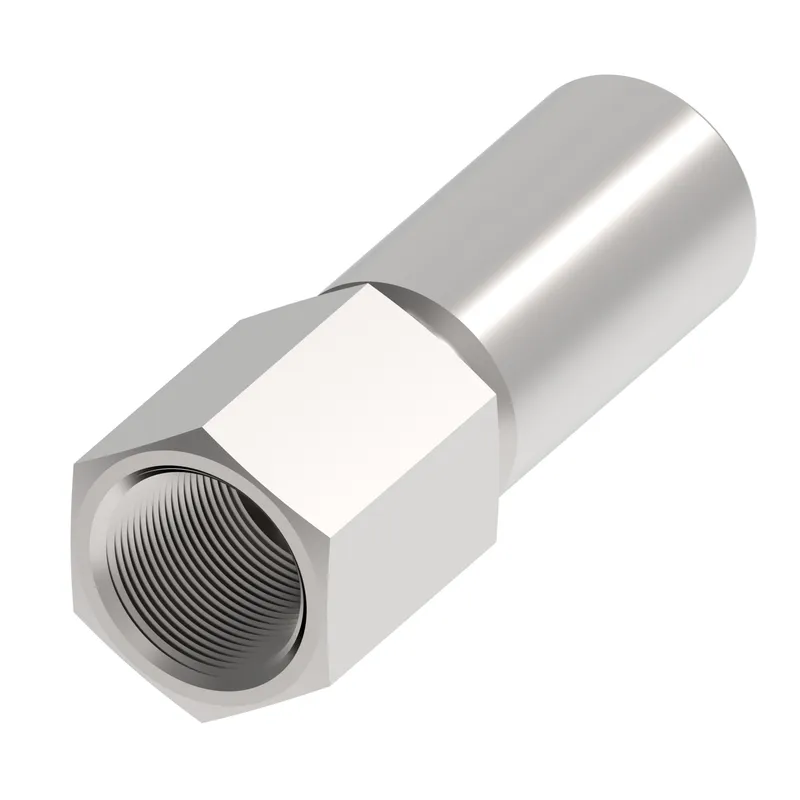

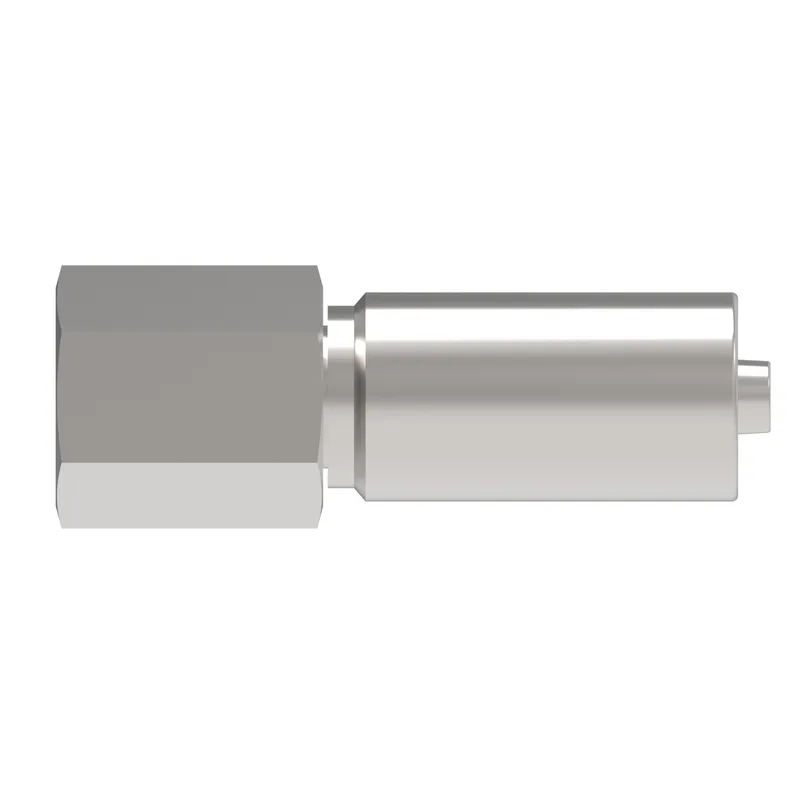

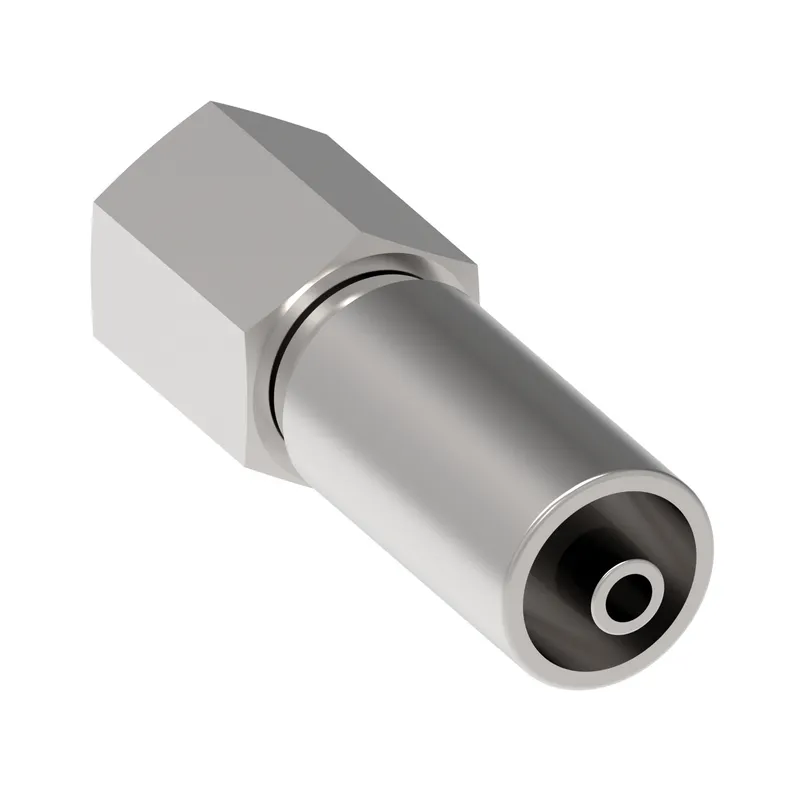

HOSE FTG, FC/04, NPTF-M/04, CS, STR

Name: Danfoss FC5806-0404S – HOSE FTG, FC/04, NPTF-M/04, CS, STR
Brand: Danfoss (Drives)
SKU: FC5806-0404S

MPN: FC5806-0404S · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Thermoplastic hydraulic hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FC5806-0404S be shipped?

FC5806-0404S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FC5806-0404S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FC5806-0404S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FC5806-0404S, subject to availability and destination.

Danfoss HOSE FTG, FC/04, NPTF-M/04, CS, STR, manufacturer part number FC5806-0404S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.230
A dimension MM	56.600
Angle shape	Straight
Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Compatible hoses	37AL, 3130, 3740, FC370
Construction Style	Crimp
End size 1	-4
End type 1	Male pipe (NPTF)
End type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	0.748
Hex size 1 MM	19.000
Hose cut off factor IN	1.330
Hose cut off factor MM	33.800
Hose size	-4
Inside diameter IN	0.150
Inside diameter MM	3.800
Product height in	0.870
Product height mm	22.098
Product length in	2.230
Product length mm	56.642
Product material	Carbon steel
Product width in	0.750
Product width mm	19.050 mm
Thread sealant	Yes
Thread size 1	1/4-18 NPTF
Working pressure max BAR	655
Working pressure max PSI	9100
