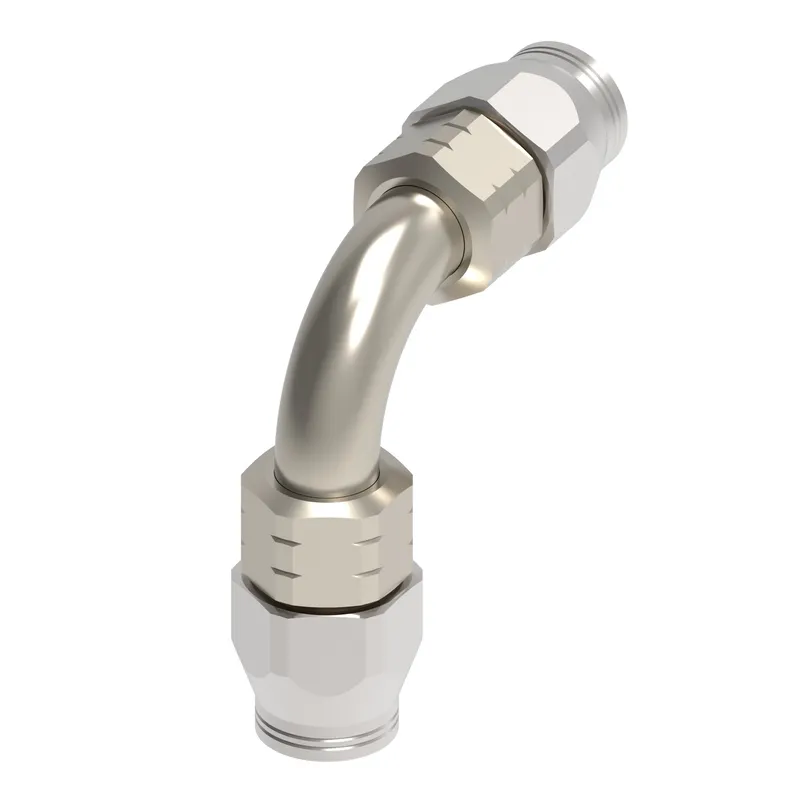

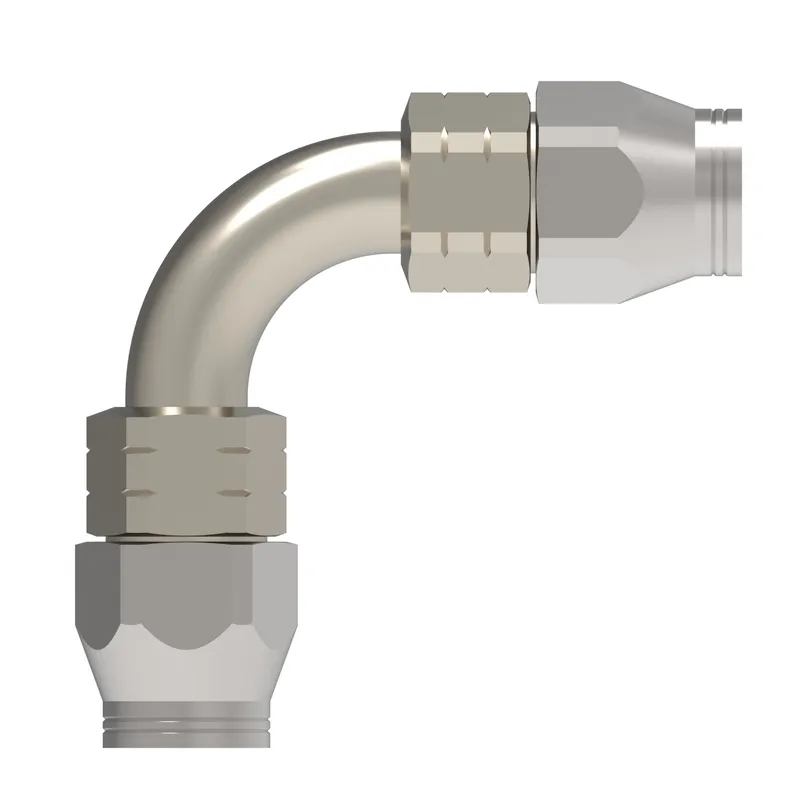

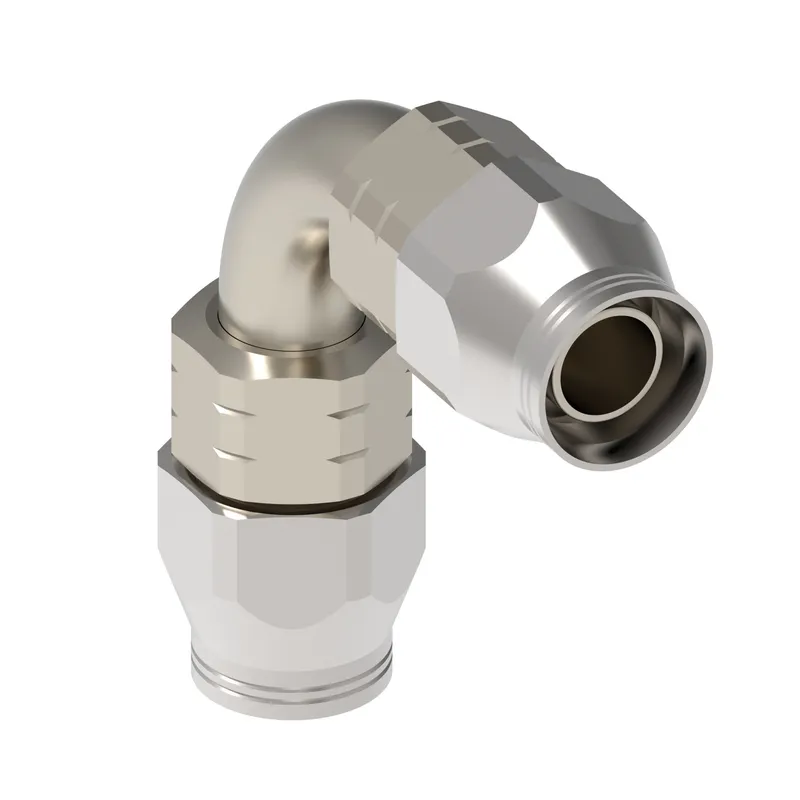

HOSE FTG, FC/24, P3/24, AP, 90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Marine and military |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FC5307-2424-253 be shipped?
FC5307-2424-253 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FC5307-2424-253 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FC5307-2424-253 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FC5307-2424-253, subject to availability and destination.
Danfoss HOSE FTG, FC/24, P3/24, AP, 90D, manufacturer part number FC5307-2424-253. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 4.240 |
| A dimension MM | 107.696 |
| Angle shape | 90 Degree |
| Compatible hose ID IN | 1.500 |
| Compatible hose ID MM | 31.750 |
| Compatible hoses | 2808 |
| Construction Style | Reusable |
| Drop dimension IN | 5.000 |
| Drop dimension MM | 116.00 |
| End size 1 | -24 |
| Hex size 1 IN | 2.244 |
| Hex size 1 MM | 57.000 |
| Hex size 2 IN | 2.250 |
| Hex size 2 MM | 57.150 |
| Hose cut off factor IN | 3.610 |
| Hose cut off factor MM | 91.694 |
| Hose size | -24 |
| Inside diameter IN | 0.560 |
| Inside diameter MM | 14.224 |
| Product height in | 5.700 |
| Product height mm | 144.780 |
| Product length in | 5.700 |
| Product length mm | 144.780 |
| Product material | 316 Stainless steel |
| Product width in | 2.250 |
| Product width mm | 57.150 mm |
| Thread sealant | No |
