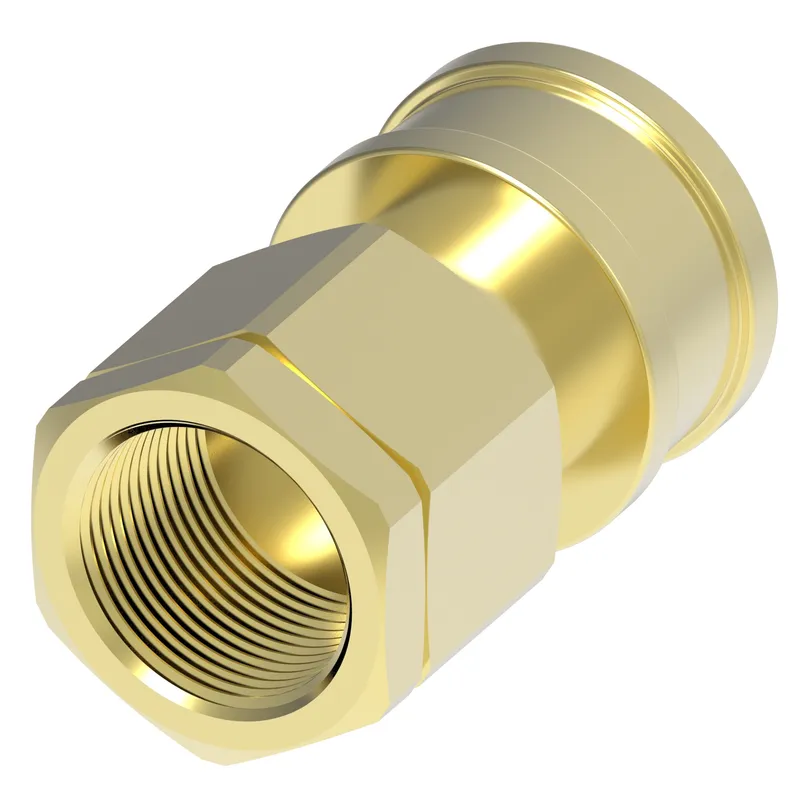

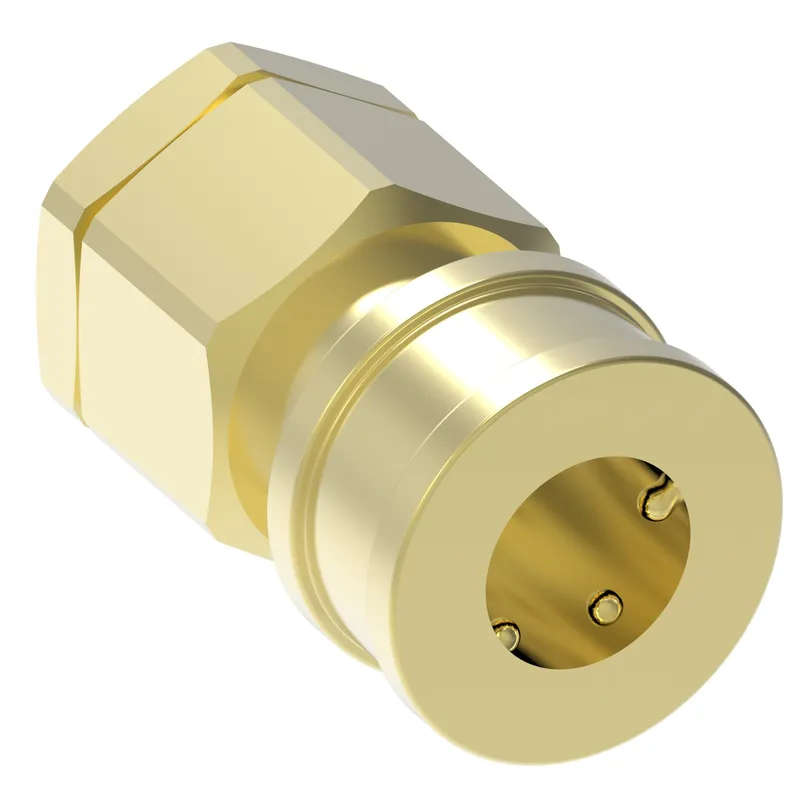

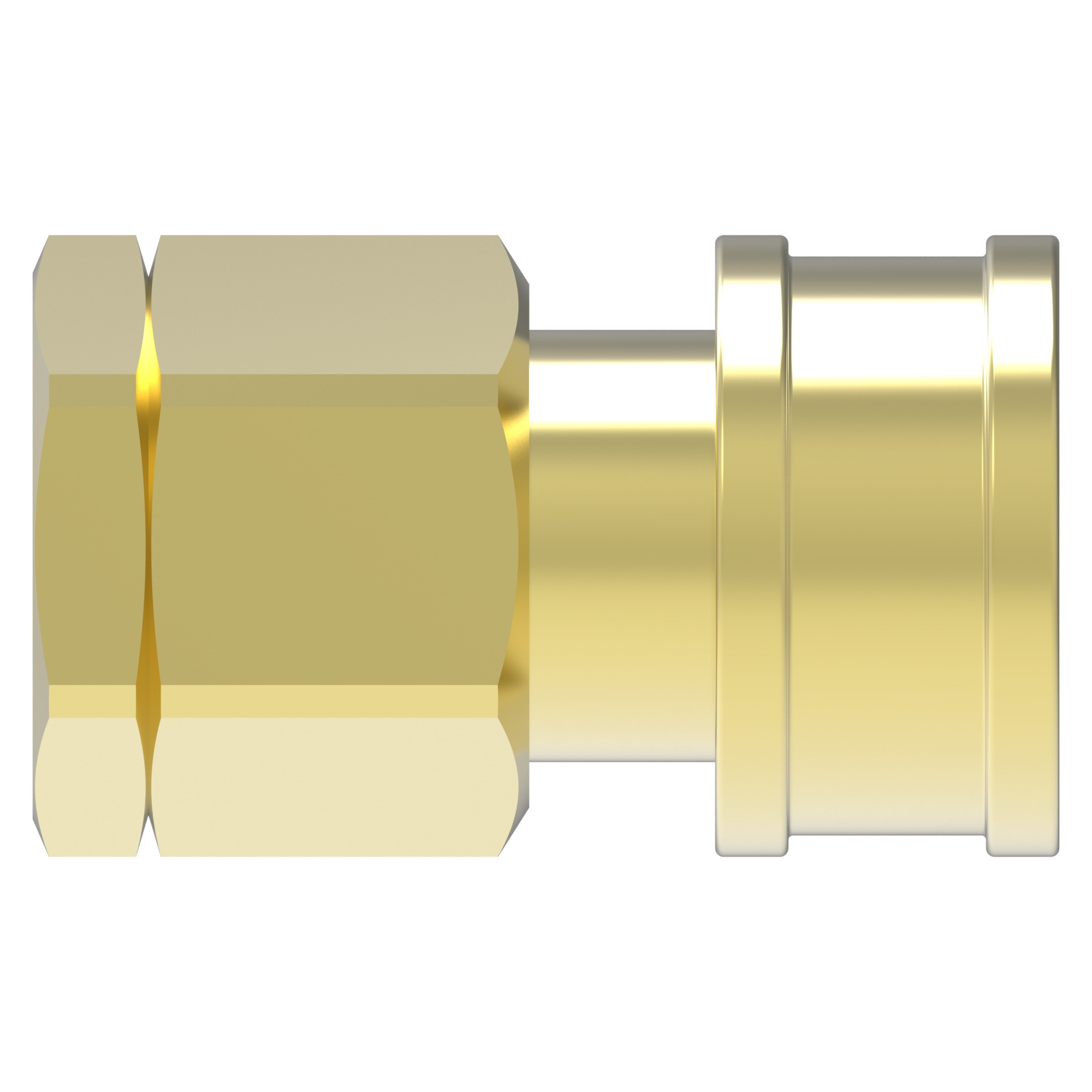

COUPLING,HK,F,1/4,B,-4BSPP,NBR

Name: COUPLING,HK,F,1/4,B,-4BSPP,NBR
Brand: Danfoss (Drives)
SKU: B2H16BS146

MPN: B2H16BS146 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can B2H16BS146 be shipped?

B2H16BS146 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up B2H16BS146 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for B2H16BS146 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for B2H16BS146, subject to availability and destination.

COUPLING,HK,F,1/4,B,-4BSPP,NBR - B2H16BS146

Specifications

EAN/UPC	678146161246
Air inclusion max cc	1.20
Air inclusion max in3	0.07
Angle shape	Straight
Application	Agriculture, Chemical, Construction, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Nuclear, Oil and gas, Transportation, Trucks
Body size	1/4
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-4
End size 2	-4
End Type 1	Female Push to Connect
End Type 2	Female BSPP swivel
Flow rate GPM	3.00
Flow rate LPM	11.36
Fluid compatibility	Hydraulic fluid
Fluid loss cc	0.90000
Fluid loss in3	0.05500
Hex size 1 IN	0.750
Hex size 1 MM	19.050
Item type	Female half
Latch type	Push/pull
Product length in	2.310
Product material	Brass
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Thread size 1	G 1/4
Thread size 2	G 1/4
Valve type	2 way
Working pressure max psi	2700
Working pressure max BAR	186.00
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
