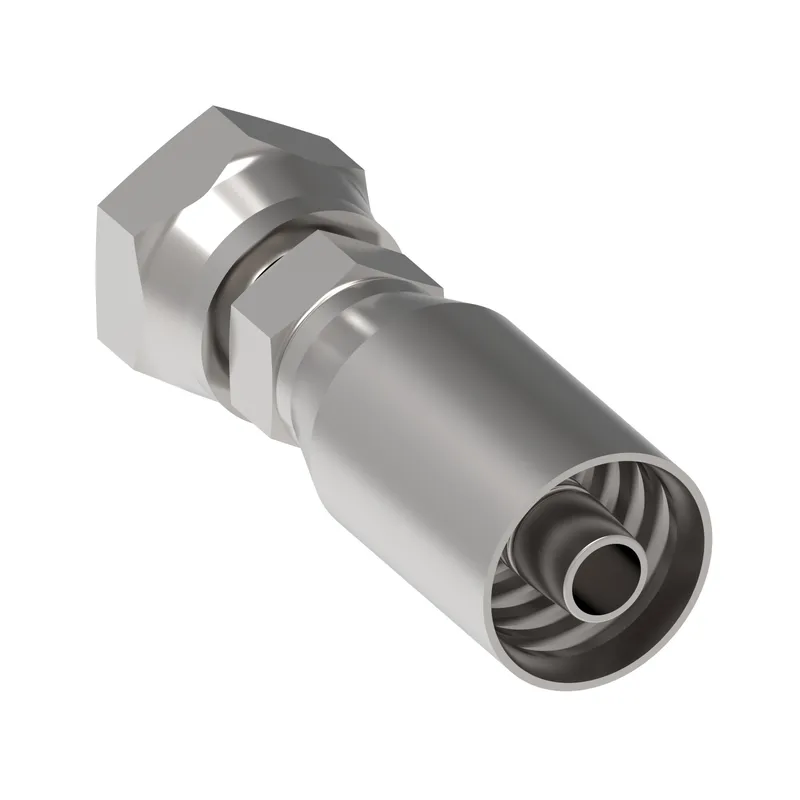

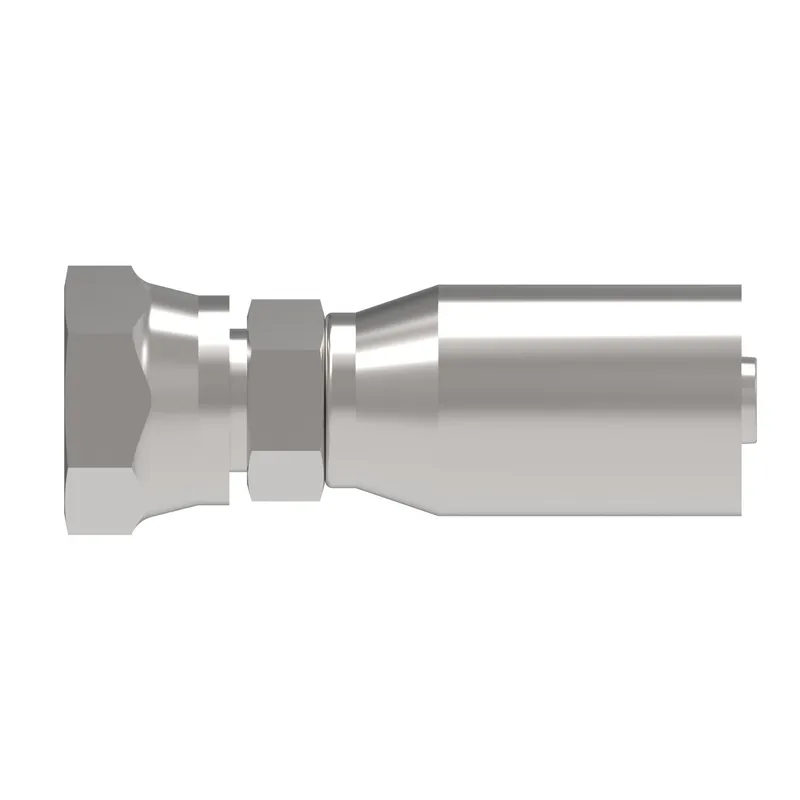

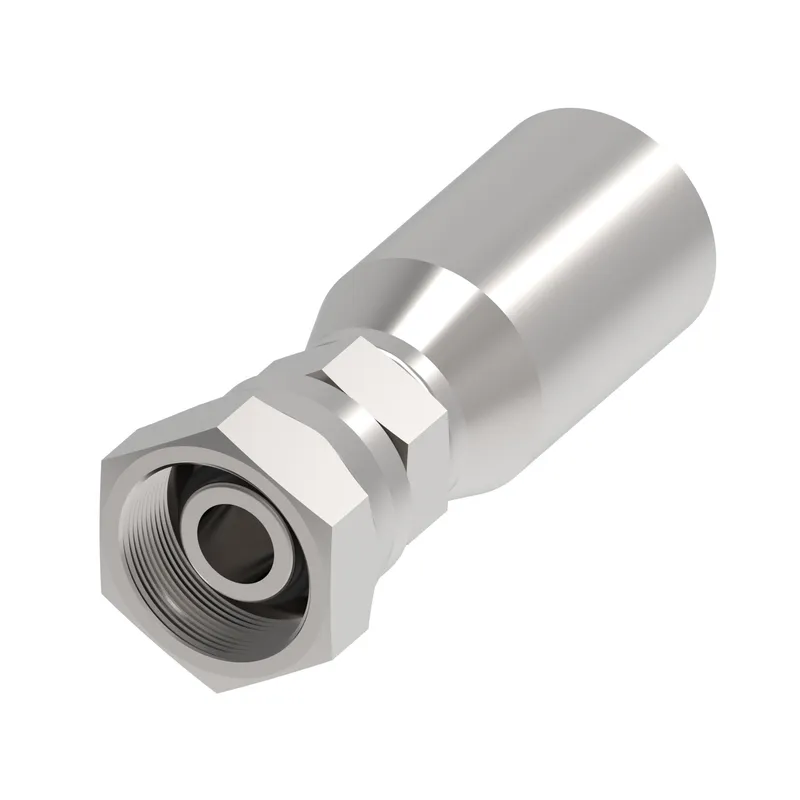

HOSE FTG, SS/20, DKOL/06, AP, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thermoplastic hydraulic hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 9ML06-20JS00 be shipped?
9ML06-20JS00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 9ML06-20JS00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 9ML06-20JS00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 9ML06-20JS00, subject to availability and destination.
Danfoss HOSE FTG, SS/20, DKOL/06, AP, STR, manufacturer part number 9ML06-20JS00. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.660 |
| A dimension MM | 67.500 |
| Angle shape | Straight |
| Brand | Synflex by Danfoss |
| Compatible hose ID IN | 1.250 |
| Compatible hose ID MM | 9.652 |
| Compatible hoses | 30CT (Size dependent), 3440, 34BA (Size dependent), 34PW (Size dependent), 3630 (Size dependent), 3E80 (Size dependent), 3R80 (Size dependent) |
| Construction Style | Crimp |
| End size 1 | -6 |
| End type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 IN | 0.708 |
| Hex size 1 MM | 18.000 |
| Hex size 2 IN | 0.944 |
| Hex size 2 MM | 24.000 |
| Hose cut off factor IN | 1.350 |
| Hose cut off factor MM | 34.200 |
| Hose size | -6 |
| Inside diameter IN | 0.280 |
| Inside diameter MM | 7.200 |
| Product height in | 1.090 |
| Product height mm | 27.686 |
| Product length in | 2.660 |
| Product length mm | 67.564 |
| Product material | 316 Stainless steel |
| Product width in | 0.950 |
| Product width mm | 24.130 mm |
| Seal material | Nitrile (NBR) |
| Thread sealant | No |
| Thread size 1 | M20X1.5 |
| Working pressure max BAR | 330 |
| Working pressure max PSI | 4800 |
