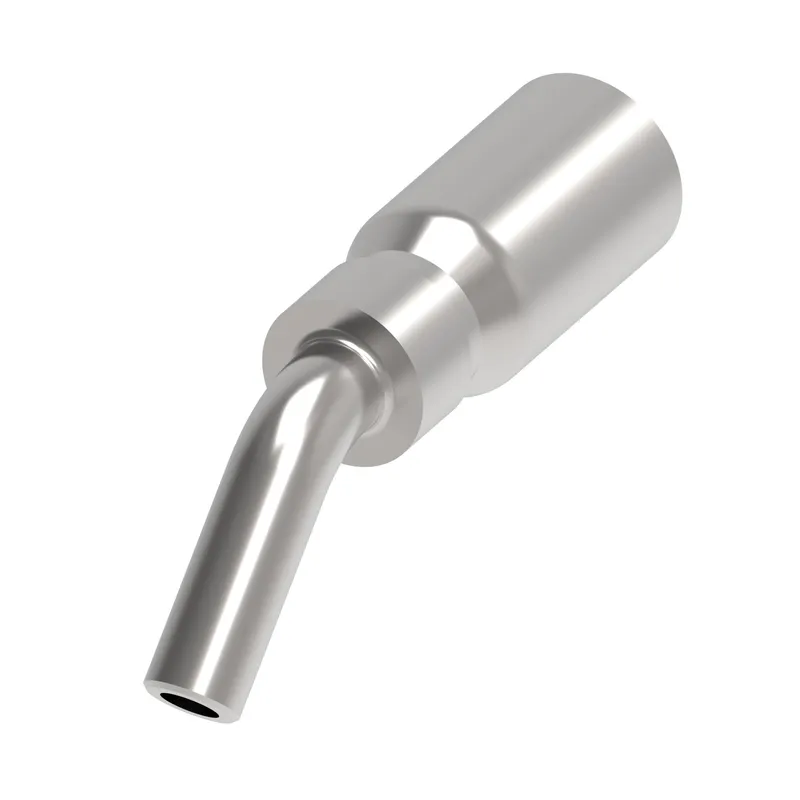

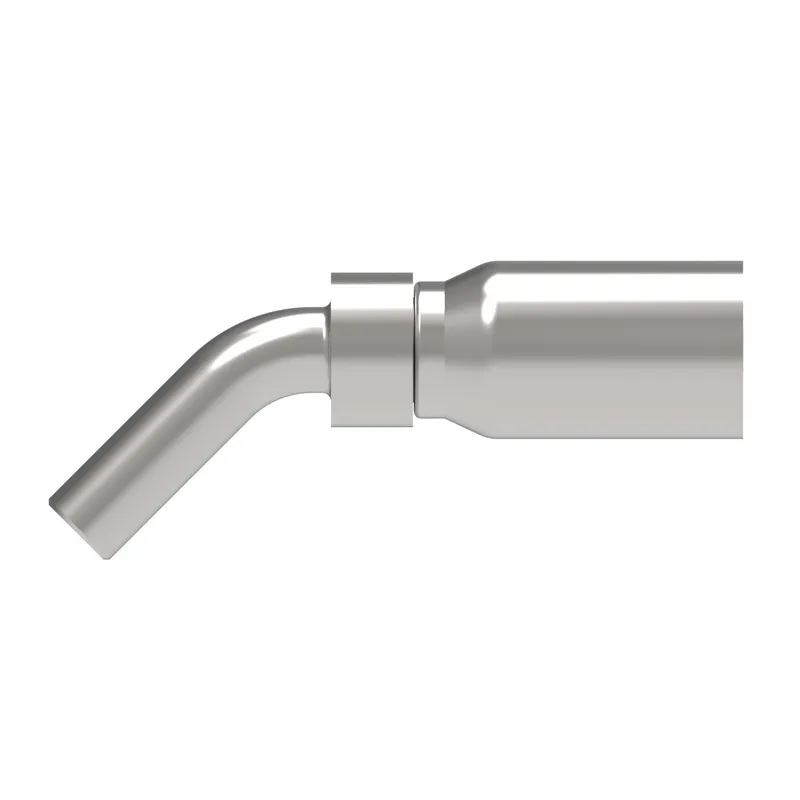

HOSE FTG, SS/10, LM/04, CS, 45D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thermoplastic hydraulic hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 9MH04-10N040 be shipped?
9MH04-10N040 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 9MH04-10N040 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 9MH04-10N040 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 9MH04-10N040, subject to availability and destination.
Danfoss HOSE FTG, SS/10, LM/04, CS, 45D, manufacturer part number 9MH04-10N040. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 3.040 |
| A dimension MM | 77.200 |
| Angle shape | 45 Degree |
| Brand | Synflex by Danfoss |
| Compatible hose ID IN | 0.620 |
| Compatible hose ID MM | 6.350 |
| Construction Style | Crimp |
| Drop dimension IN | 1.000 |
| Drop dimension MM | 21.00 |
| End size 1 | -4 |
| Finish plating | Dura-Kote |
| Hose cut off factor IN | 1.950 |
| Hose cut off factor MM | 49.600 |
| Hose size | -4 |
| Inside diameter IN | 0.160 |
| Inside diameter MM | 4.000 |
| Product height in | 1.430 |
| Product height mm | 36.322 |
| Product length in | 3.040 |
| Product length mm | 77.216 |
| Product material | Carbon steel |
| Product width in | 0.810 |
| Product width mm | 20.574 mm |
| Thread sealant | No |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | 40 |
| Working temperature min F | 40 |
