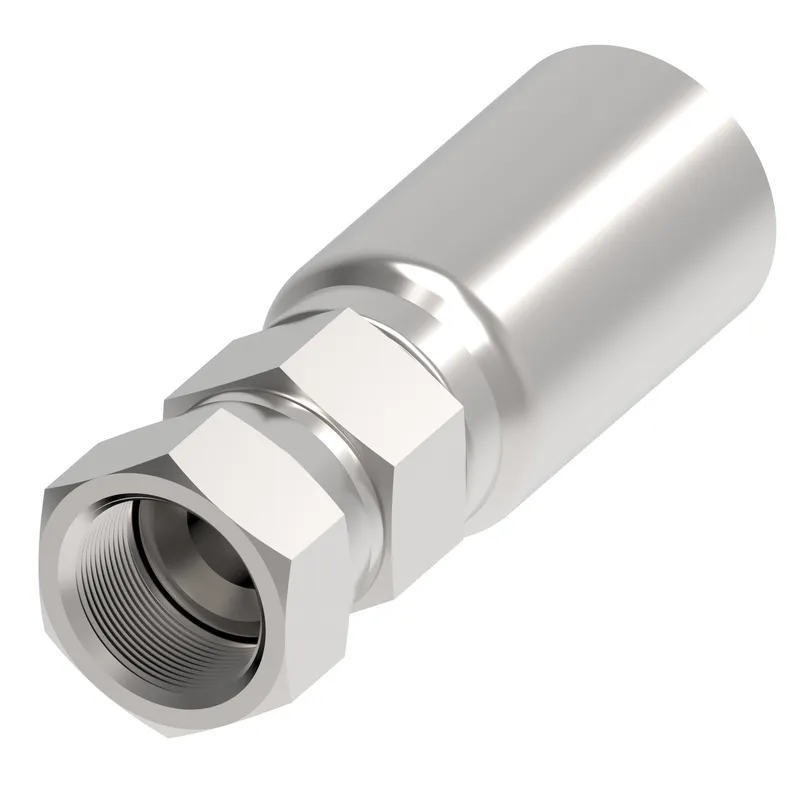

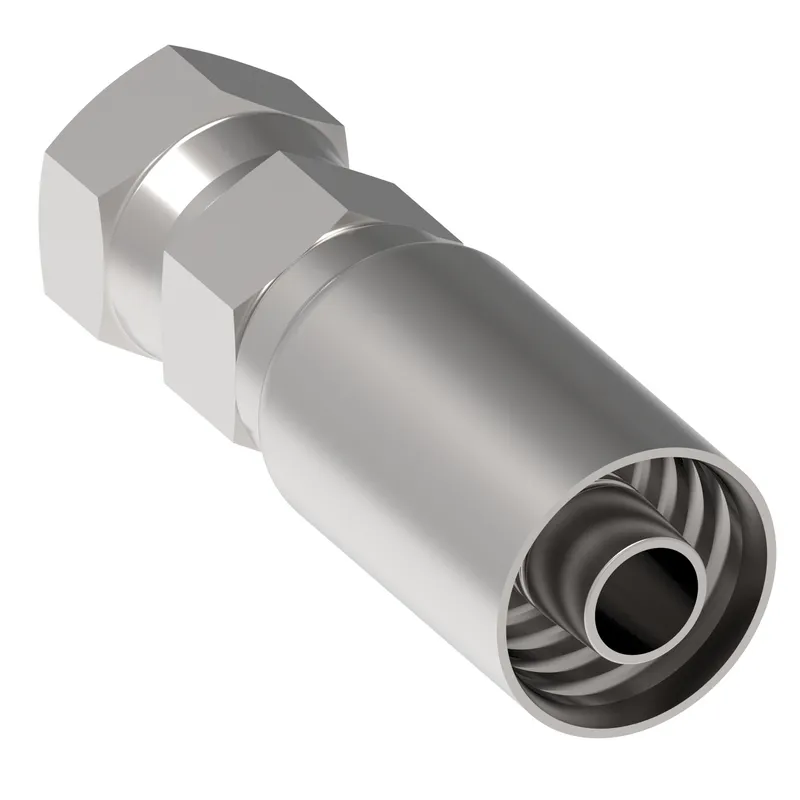

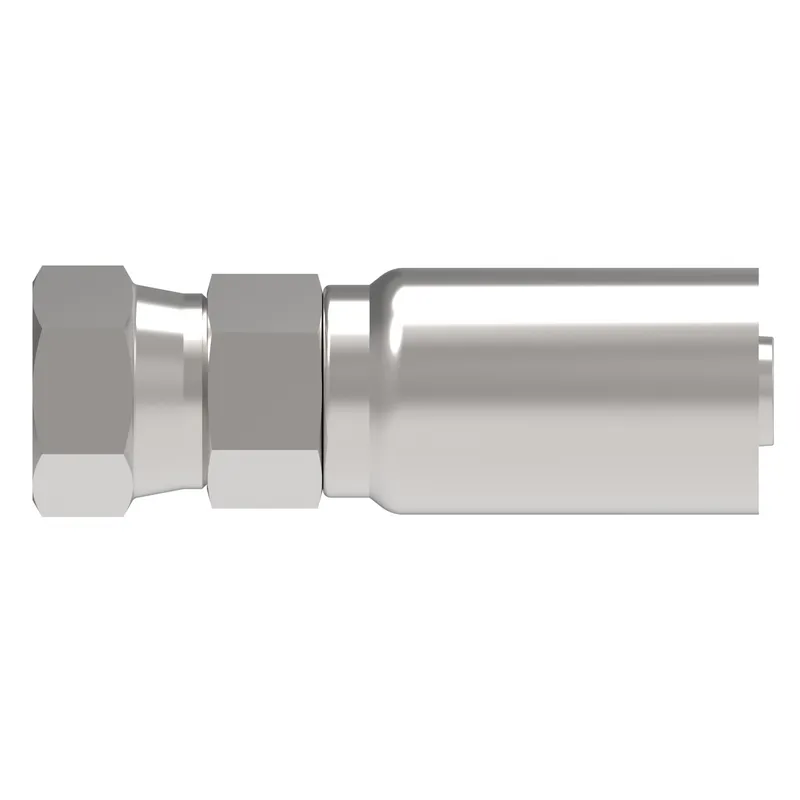

HOSE FTG, SV/04, JIC-F/04, CS, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thermoplastic hydraulic hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 90V04-045400-0 be shipped?
90V04-045400-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 90V04-045400-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 90V04-045400-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90V04-045400-0, subject to availability and destination.
Danfoss HOSE FTG, SV/04, JIC-F/04, CS, STR, manufacturer part number 90V04-045400-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 639789337412 |
| A dimension IN | 2.530 |
| A dimension MM | 64.300 |
| Angle shape | Straight |
| Compatible hose ID IN | 0.250 |
| Construction Style | Crimp |
| End size 1 | -4 |
| End type 1 | Female 37 degree swivel |
| Finish plating | Zinc plating |
| Hex size 1 IN | 0.629 |
| Hex size 1 MM | 16.0 |
| Hex size 2 IN | 0.629 |
| Hex size 2 MM | 16.0 |
| Hose cut off factor IN | 1.450 |
| Hose cut off factor MM | 36.800 |
| Inside diameter IN | 0.140 |
| Inside diameter MM | 3.600 |
| Product height in | 0.080 |
| Product height mm | 2.032 |
| Product length in | 2.150 |
| Product length mm | 54.610 |
| Product material | Carbon steel |
| Product width in | 0.080 |
| Product width mm | 2.032 mm |
| Thread sealant | No |
| Thread size 1 | 7/16-20 UNF |
| Working temperature max C | 66 |
| Working temperature max F | 150 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
