Ftng (perm), thermo MALE PIPE
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thermoplastic hydraulic hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 90H03-021000-0 be shipped?
90H03-021000-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 90H03-021000-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 90H03-021000-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90H03-021000-0, subject to availability and destination.

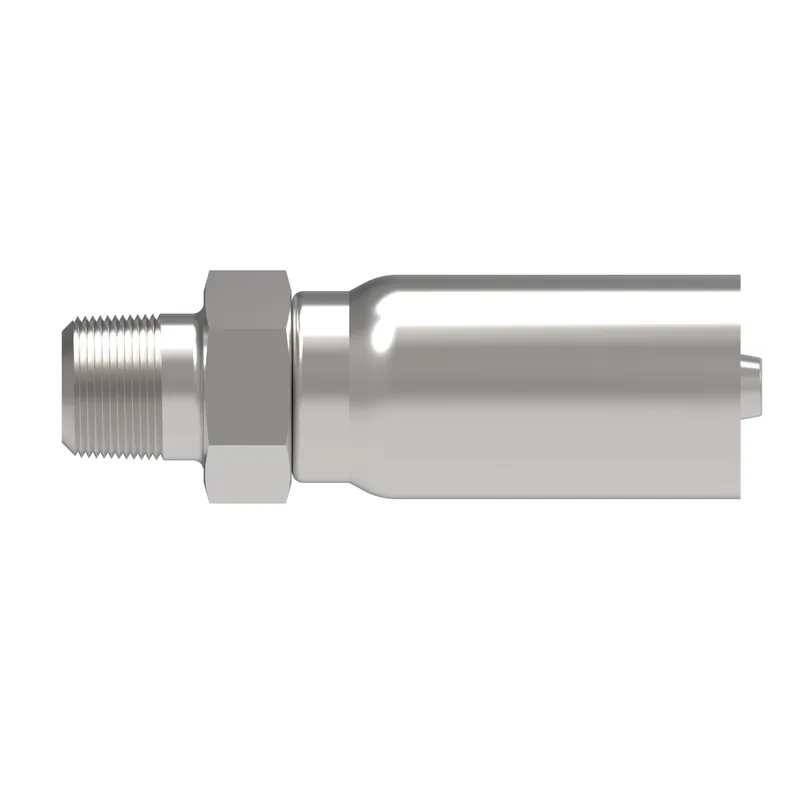

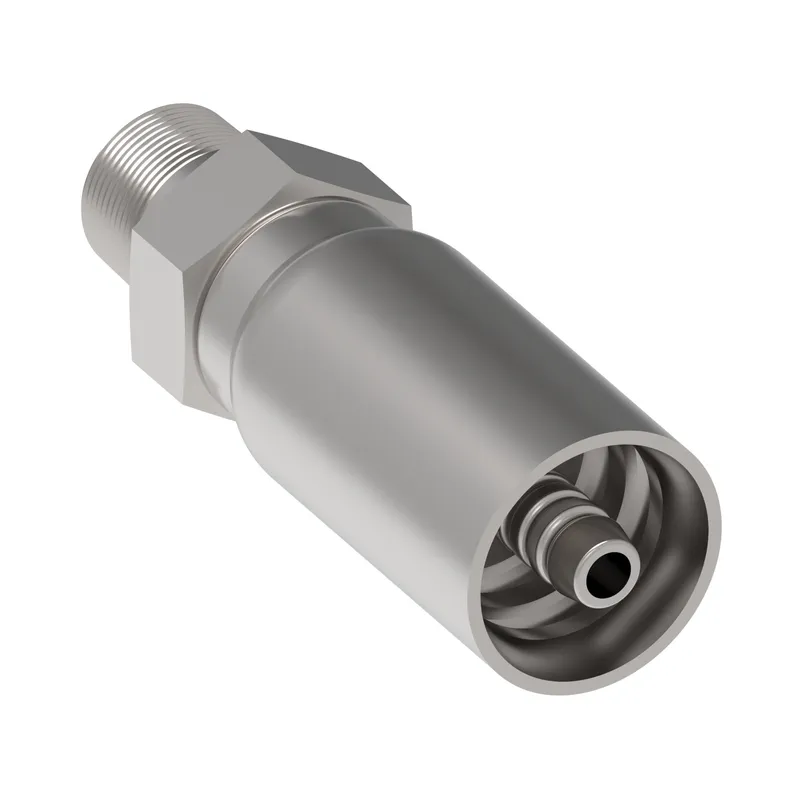

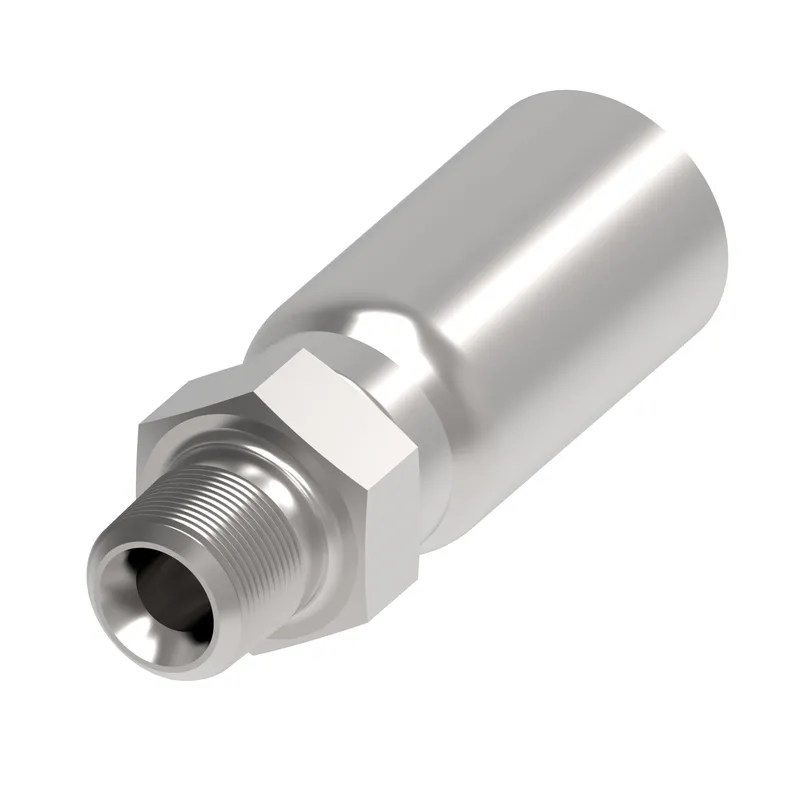

Danfoss Ftng (perm), thermo MALE PIPE, manufacturer part number 90H03-021000-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 639789325624 |
| Angle shape | Straight |
| Brand | Synflex by Danfoss |
| Compatible hose ID IN | 0.130 |
| Compatible hose ID MM | 3.302 |
| Compatible hoses | 3440 (Size dependent), 3630 (Size dependent), 3E80 (Size dependent), 3R80 (Size dependent) |
| Compatible tube OD IN | 0.13 |
| Compatible tube OD MM | 3.302 |
| Construction Style | Swage |
| End size 1 | -2 |
| End type 1 | Male pipe (NPT) |
| Hex size 1 IN | 0.560 |
| Hex size 1 MM | 14.224 |
| Hose cut off factor IN | 1.060 |
| Hose cut off factor MM | 26.924 |
| Hose size | -2 |
| Inside diameter IN | 0.110 |
| Inside diameter MM | 2.794 |
| Product material | Carbon steel |
| Thread sealant | No |
| Tube OD 1 IN | 0.130 |
| Tube OD 1 MM | 3.302 |
| Working pressure max BAR | 689.00 |
| Working pressure max PSI | 10000.00 |
