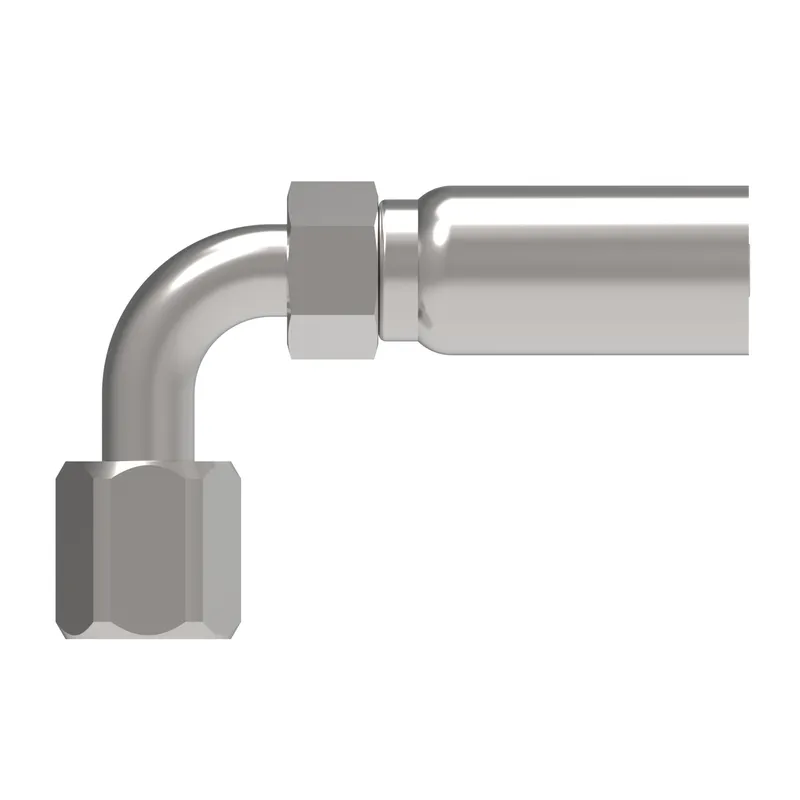

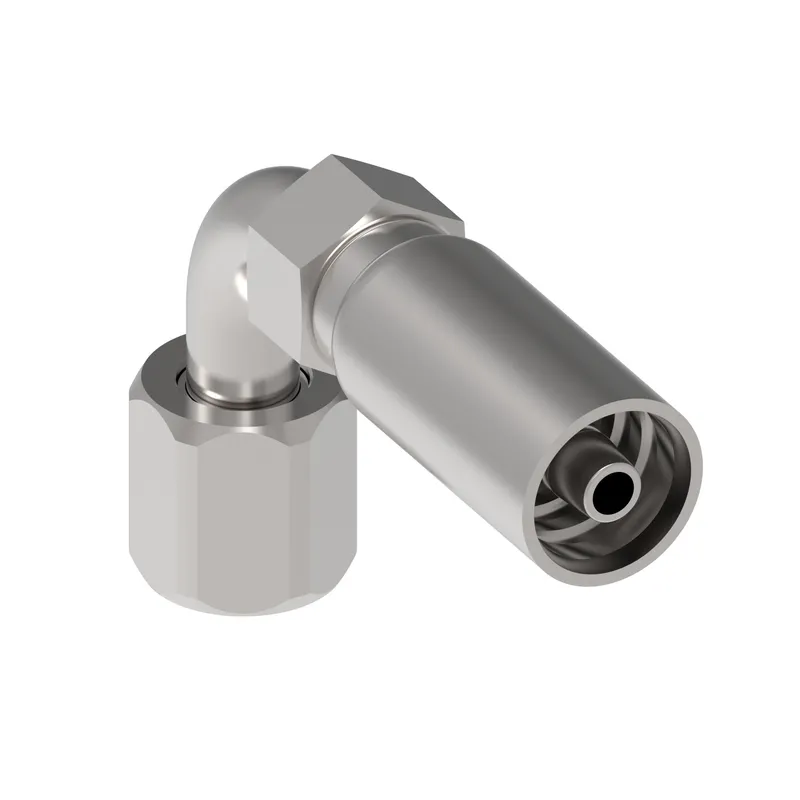

HOSE FTG, 4T/08, JIC-M/10, CS, 90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thermoplastic hydraulic hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 90308-1055S0-0 be shipped?
90308-1055S0-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 90308-1055S0-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 90308-1055S0-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90308-1055S0-0, subject to availability and destination.
Danfoss HOSE FTG, 4T/08, JIC-M/10, CS, 90D, manufacturer part number 90308-1055S0-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 639789325525 |
| A dimension IN | 3.120 |
| A dimension MM | 79.250 |
| Angle shape | 90 Degree |
| Compatible hose ID IN | 0.630 |
| Compatible hose ID MM | 16.002 |
| Compatible hoses | 37AL, 25CT, 30CT (Size dependent), 3130, 3440 (Size dependent), 3580, 3630 (Size dependent), 3740 (Size dependent), 3800 (Size dependent), 3R30 |
| Construction Style | Crimp |
| Drop dimension IN | 1.625 |
| Drop dimension MM | 41.3 |
| End size 1 | -10 |
| End type 1 | Female 37 degree swivel |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.125 |
| Hex size 1 MM | 28.0 |
| Hex size 2 IN | 1.000 |
| Hex size 2 MM | 25.0 |
| Hose cut off factor IN | 1.625 |
| Hose cut off factor MM | 41.280 |
| Hose size | -10 |
| Inside diameter IN | 0.391 |
| Inside diameter MM | 9.930 |
| Product height in | 1.630 |
| Product height mm | 41.402 |
| Product length in | 3.060 |
| Product length mm | 77.724 |
| Product material | Carbon steel |
| Product width in | 1.000 |
| Product width mm | 25.400 mm |
| Thread sealant | No |
| Thread size 1 | 7/8-14 UNF |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
