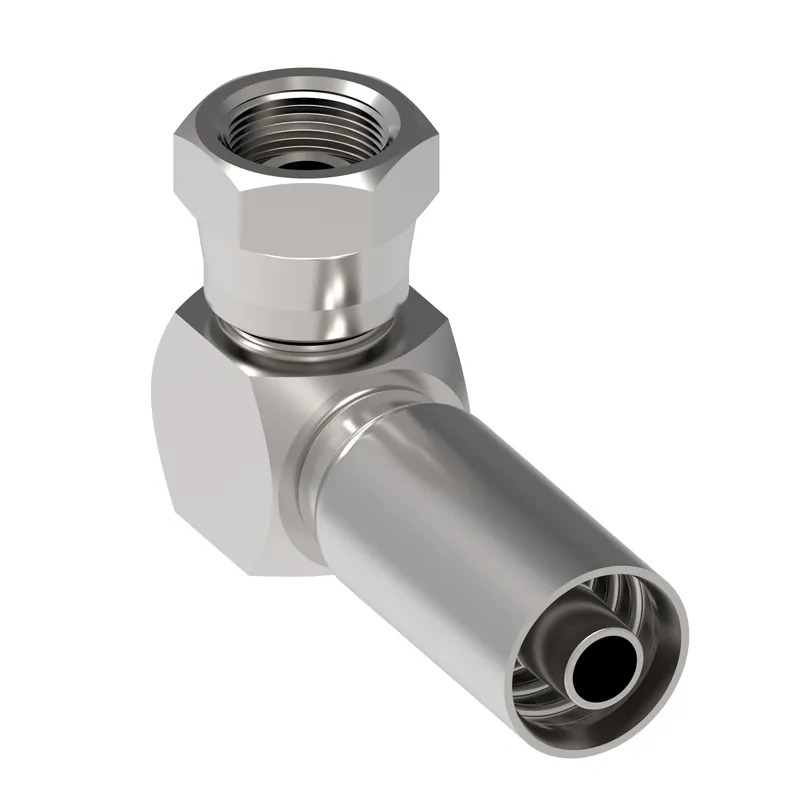

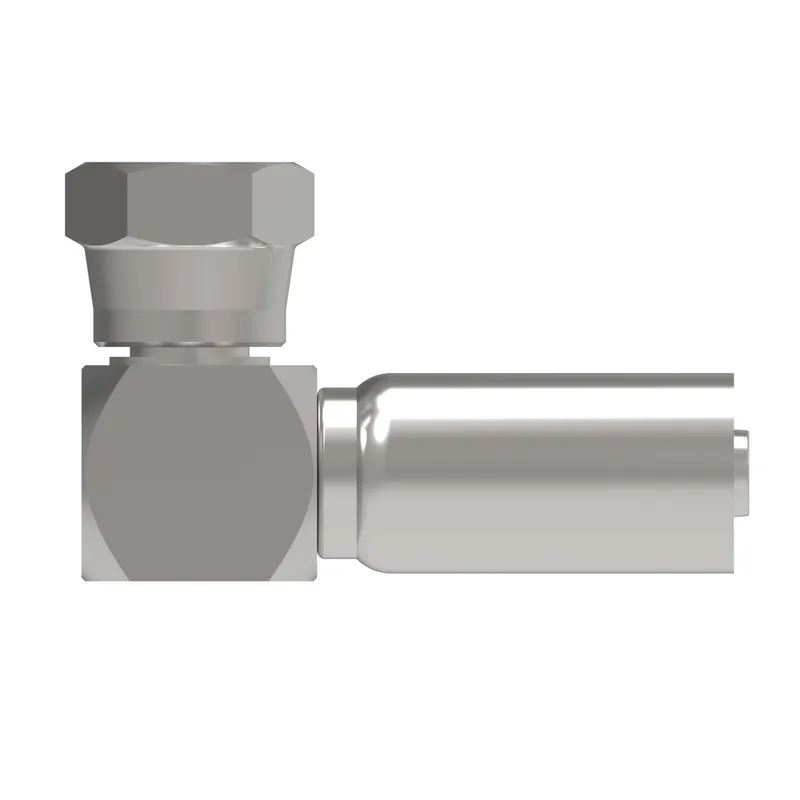

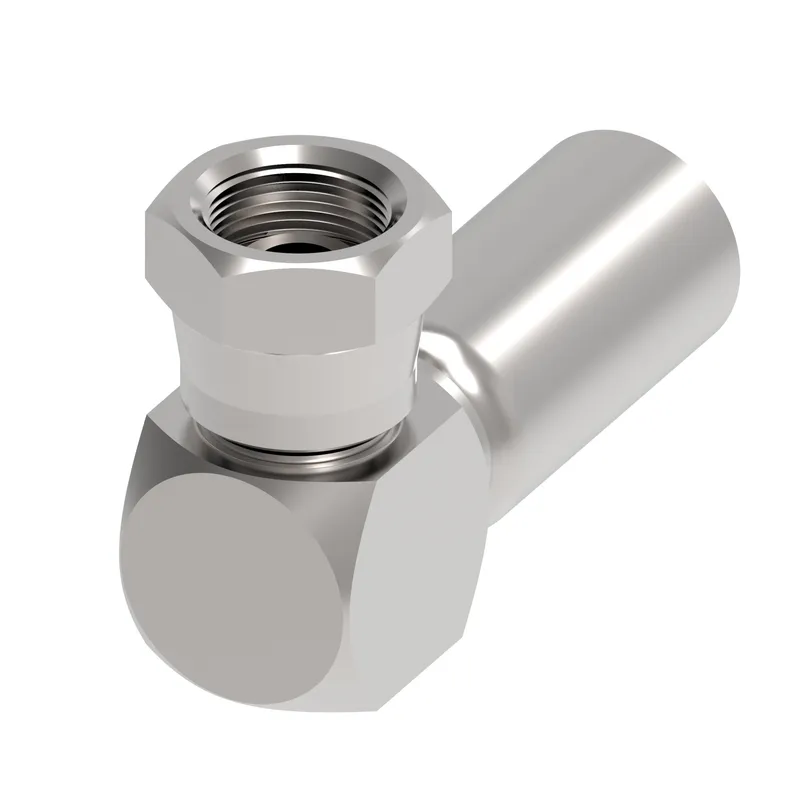

Ftng (perm) 60D Male Cone, Elbow
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Thermoplastic hydraulic hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 90306-06B0B0-0 be shipped?
90306-06B0B0-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 90306-06B0B0-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 90306-06B0B0-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90306-06B0B0-0, subject to availability and destination.
Danfoss Ftng (perm) 60D Male Cone, Elbow, manufacturer part number 90306-06B0B0-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 639789352811 |
| Angle shape | 90 Degree |
| Brand | Synflex by Danfoss |
| Compatible hoses | 37AL, 30CT (Size dependent), 3130, 3440 (Size dependent), 3580, 3630 (Size dependent), 3740 (Size dependent), 3800 (Size dependent), 3R30 |
| Construction Style | Swage |
| End size 1 | -6 |
| End type 1 | Female ORFS swivel |
| Hex size 1 IN | 0.880 |
| Hex size 1 MM | 22.352 |
| Hose cut off factor IN | 0.950 |
| Hose cut off factor MM | 24.130 |
| Inside diameter IN | 0.9500 |
| Inside diameter MM | 24.1300 |
| Product material | Carbon steel |
| Thread sealant | No |
| Working pressure max BAR | 86 |
| Working pressure max PSI | 1250 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
