V2020 1F11S11S 11AA30, V2020 1F11S11S 11AA30
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial vane pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 850332-1 be shipped?
850332-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 850332-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 850332-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 850332-1, subject to availability and destination.

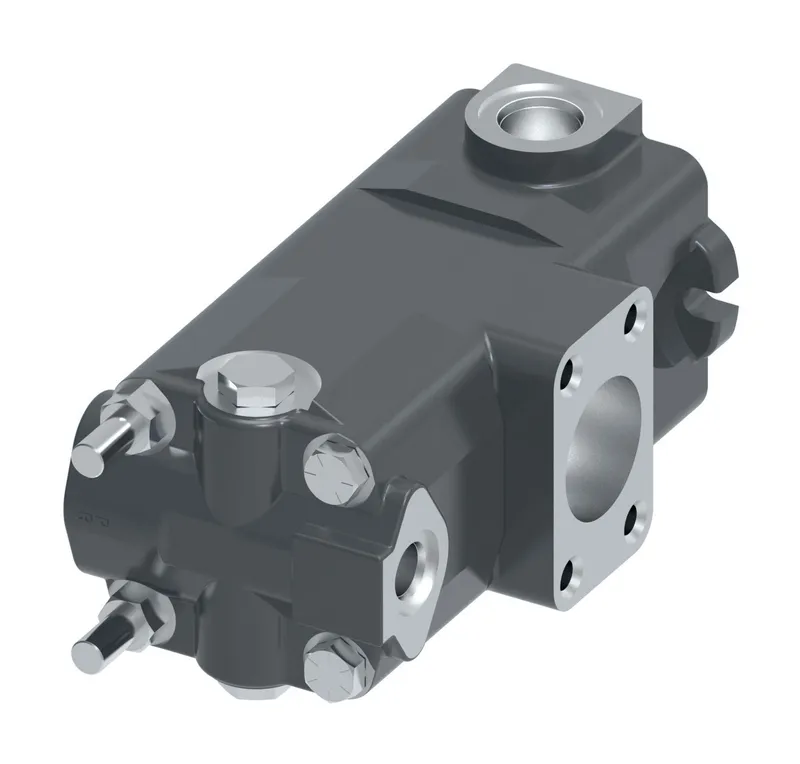

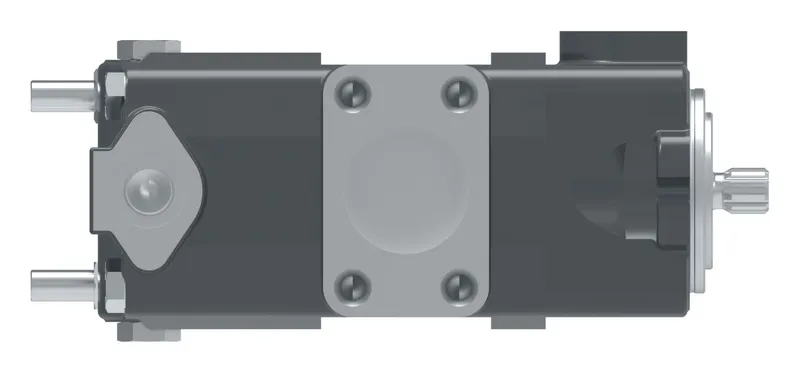

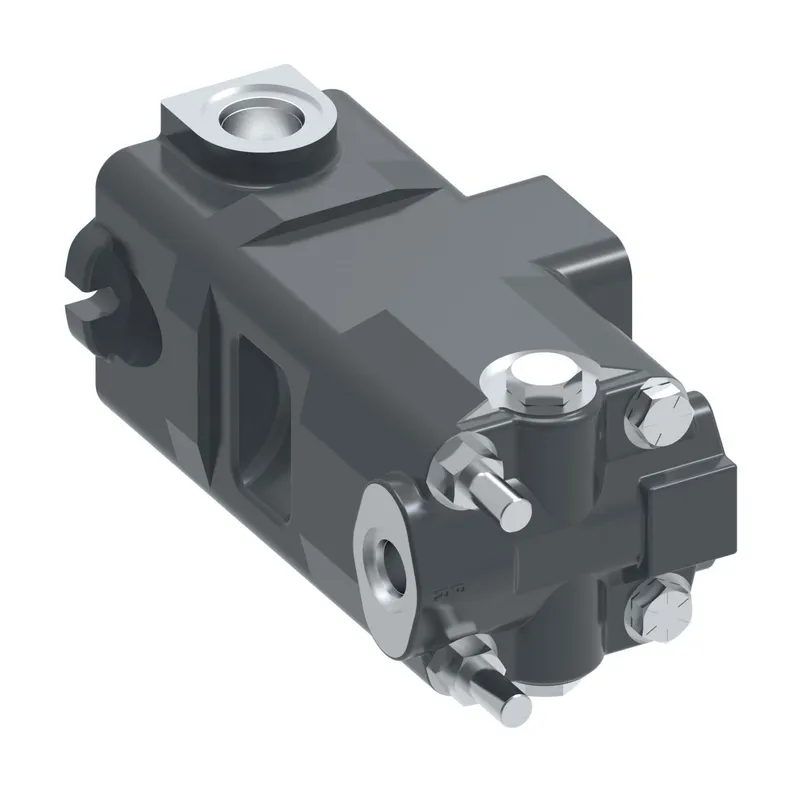

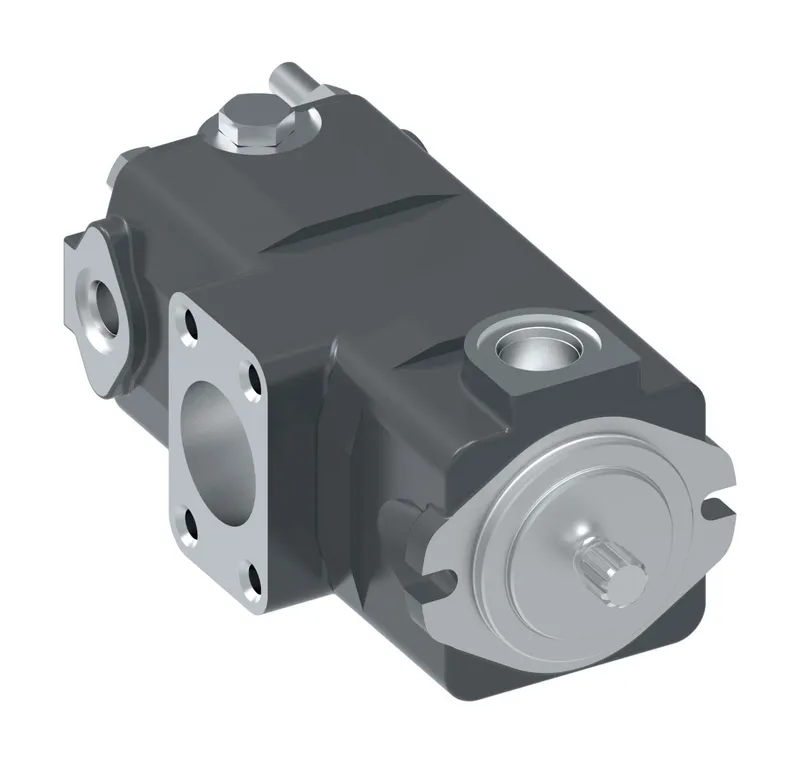

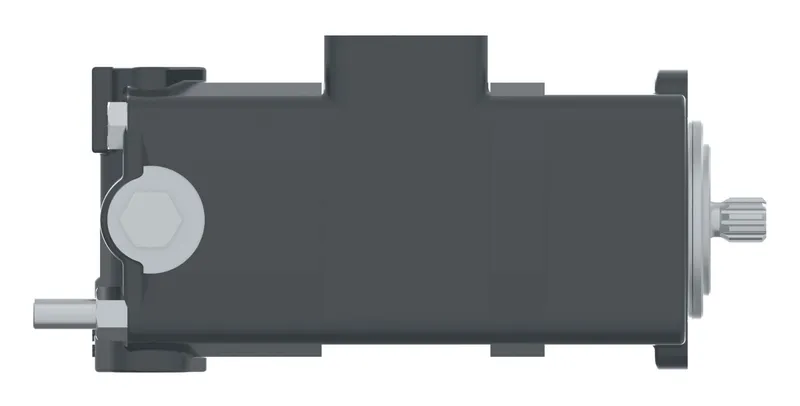

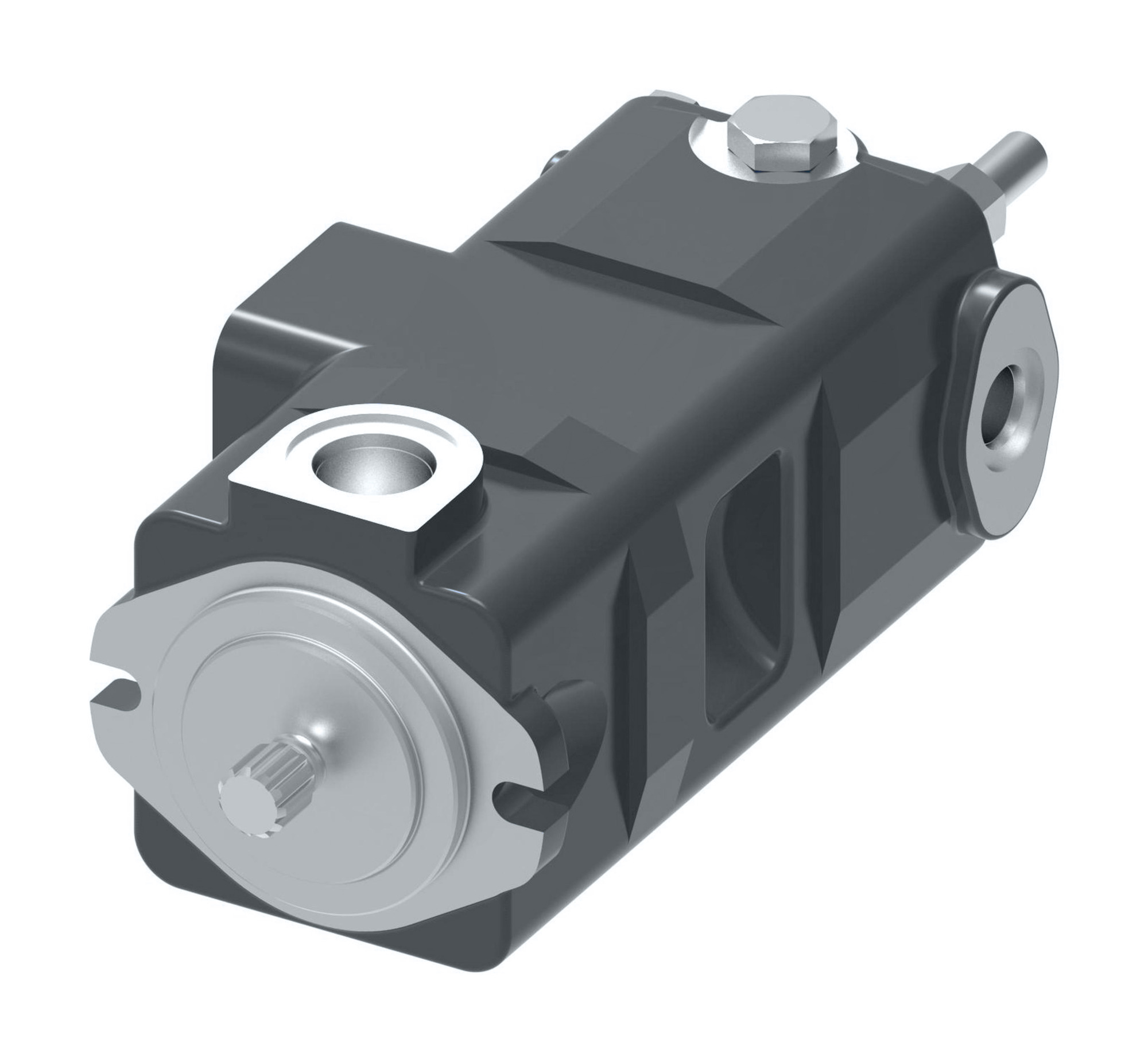

Danfoss V2020 1F11S11S 11AA30, V2020 1F11S11S 11AA30, manufacturer part number 850332-1. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| PUMP TYPE | VANE PUMP |
| Series | DOUBLE SQUARE VANE PUMP |
| Mounting type | 2 BOLT FLANGE SAE-B SIZE |
| INLET PORT TYPE | 4 BOLT FLANGE |
| RING CAPACITY COVER SIDE | 11 GPM |
| RING CAPACITY SHAFT END | 11 GPM |
| OUTLET PORT TYPE SHAFT END | 1.0625-12 UN-2B THREAD |
| Shaft type | 13 TEETH 16/32,MAJOR DIA-.749, EXTENSION-1.625 |
| OUTLETCOVER PORT ORIENTATION | OUTLET#2: OPPOSITE TO INLET PORT, OUTLET#1:OPPOSITE TO INLET PORT |
| OUTLET PORT TYPE COVER SIDE | COVER STANDARD - 1.062-12 UN-2B THRD, F COVER - PRESSURE PORT -.750-16 UN-2B THRD, TANK PORT-1.0625-12 UN-2B THRD |
| DESIGN CODE | 30-DESIGN CODE |
| Shaft rotation | RH CW ROTATION VIEWED FROM SHAFT END |
| Brand | Vickers by Danfoss |
| IPM FRAME SIZE | V2020 Double Pump |
| Model Code 1 | V2020 1F11S11S 11AA30 |
