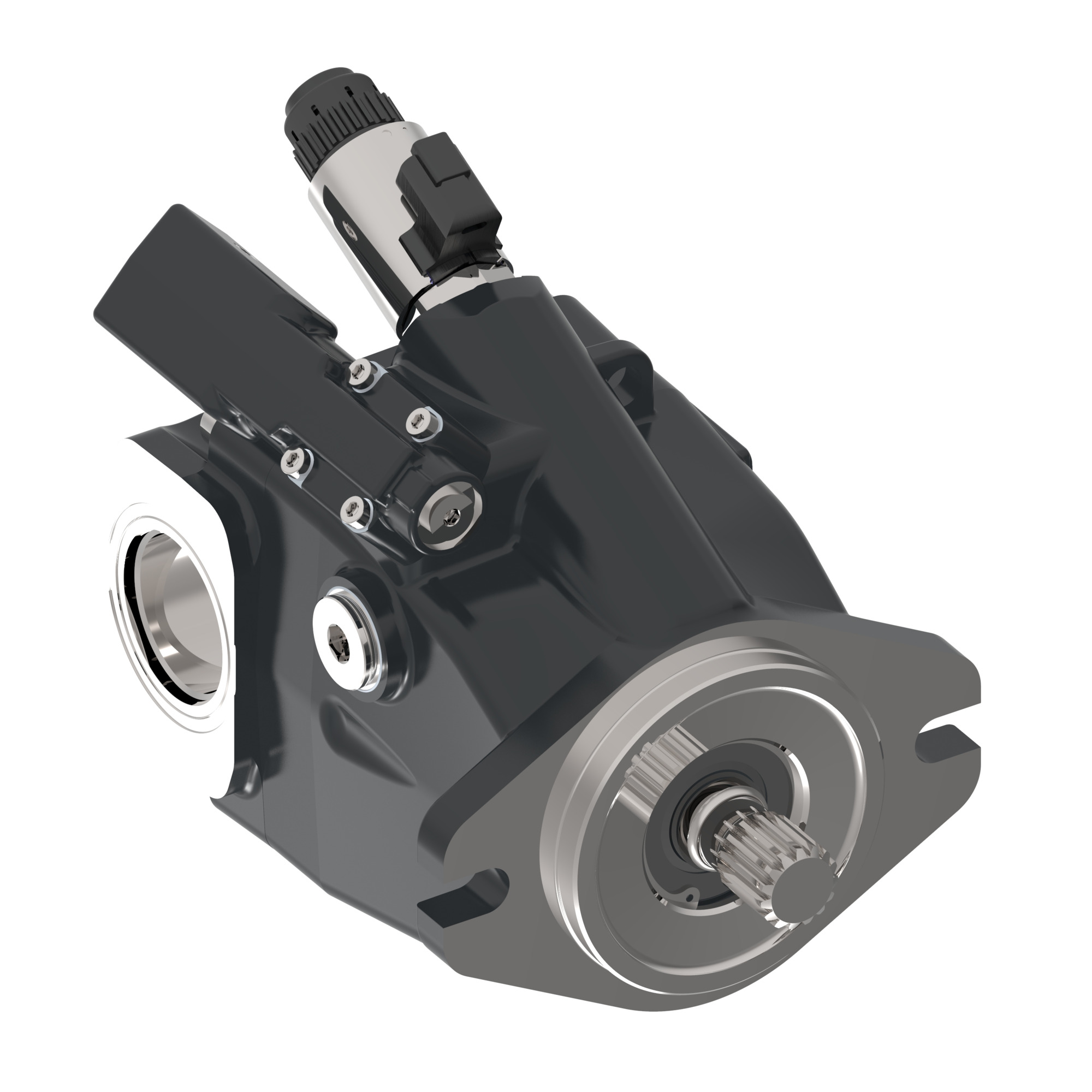

PUMP-VAR DISPL, CW S45PVOC_K2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Series 45 open-circuit axial piston pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 83110999 be shipped?
83110999 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 83110999 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 83110999 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83110999, subject to availability and destination.
Danfoss PUMP-VAR DISPL, CW S45PVOC_K2, manufacturer part number 83110999. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Frame | K2 frame axial piston open circuit pump |
| Rotation | Clockwise rotation |
| Displacement and load life | 30 cc/rev - 260 bar maximum continuous rated pressure |
| Control type | Pressure compensated [PC pressure range: 100-280 bar, LS pressure range: 10-40 bar] |
| Pressure compensator setting | 120 bar [1740 psi] |
| Load sensing setting | Not applicable |
| Torque limiter setting | Not applicable |
| Choke orifice | None |
| Gain orifice | Standard orifice |
| Shaft, auxiliary flange, and endcap | 0.875 inch straight key shaft long, no auxiliary, axial, inlet: O-ring Boss port (1.875 inch thread), outlet: O-ring Boss port(1.3125 inch thread) |
| Shaft seal, front flange, and housing ports | Single Viton shaft seal, SAE-B 2-bolt flange, SAE O-ring ports |
| Displacement limiter | Adjustable displacement limiter set to max flow |
| Special hardware | Special hardware - none |
| Special features | Black paint, Danfoss tag |
| Proposition 65 | Cancer and Reproductive Harm |
