PUMP-VAR DISPL CW H1P045R
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mobile closed-circuit piston pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 83033623 be shipped?
83033623 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 83033623 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 83033623 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83033623, subject to availability and destination.

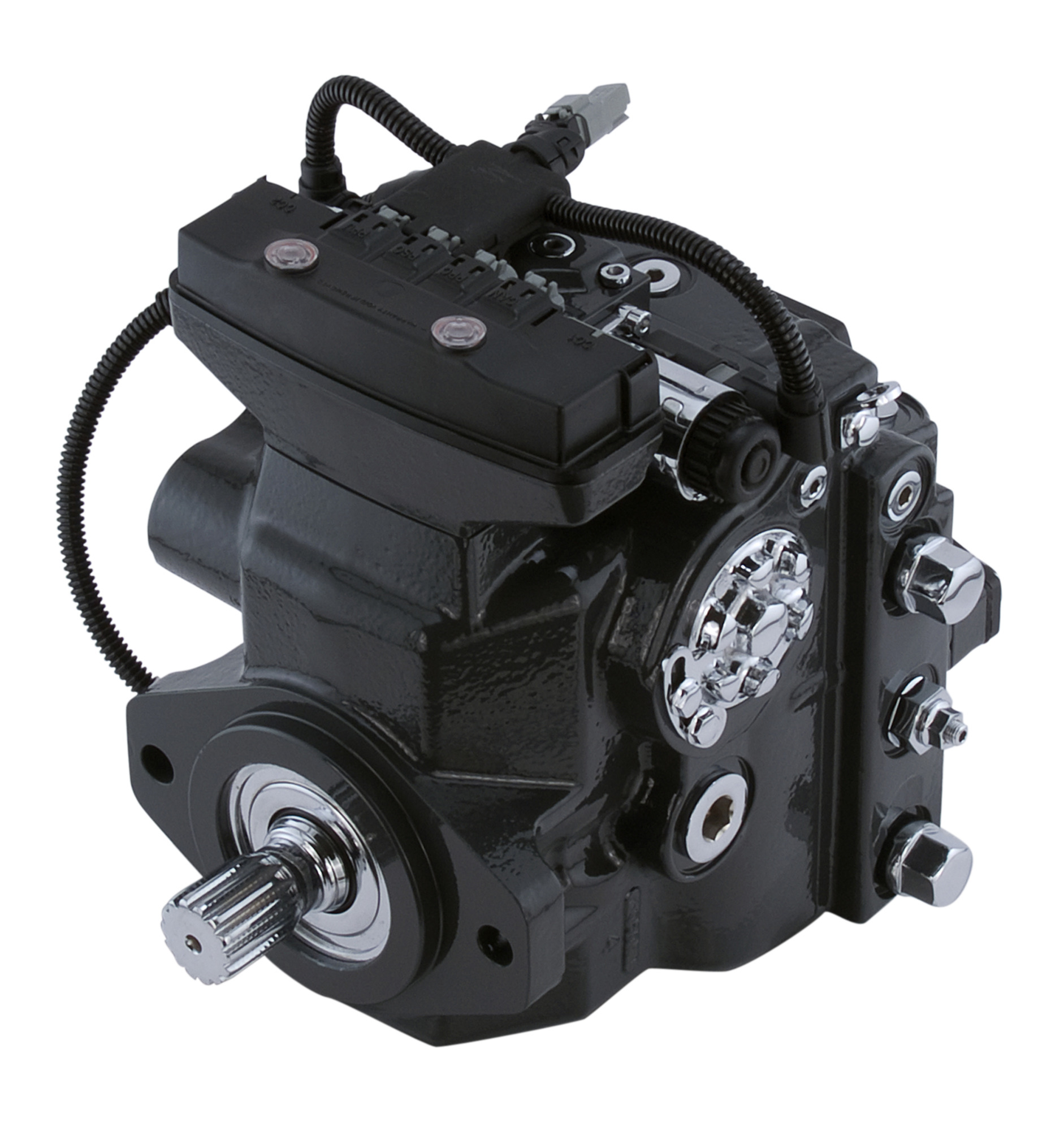

Danfoss PUMP-VAR DISPL CW H1P045R, manufacturer part number 83033623. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Series | H1 - Series |
| Product type | Variable pump |
| Frame Size | 45cc/rev max/variable displacement |
| Rotation | Right hand - clockwise |
| Product version | Product version A |
| Configuration of ports | ANSI O-ring boss port configuration |
| Control | Electrical displacement control, 12V Deutsch DT04-2P connector, manual override |
| Orifices | P = none, A+B = 0.8mm, TA+TB = none |
| Displacement limitation | No limiters electrical displacement control/forward neutral reverse control |
| Endcap type | Twin port, O-ring, suction filter, high pressure relief valve only (use “J” pressure protection) |
| Mounting flange | SAE B 2 bolt flange (for installation of pump, M12 screws and hardened washers must be used) |
| Input shaft | 13 tooth, 16/32 |
| Auxiliary pad | No auxiliary pad |
| Protection type side A | High pressure relief valve only |
| High pressure setting side A | 300 bar |
| Protection type side B | High pressure relief valve only |
| High pressure setting side B | 300 bar |
| Charge pump | 12cc/rev |
| Filtration | Suction filtration |
| Charge relief pressure setting | 20 bar charge pressure relief valve |
| Special hardware features | Electrical displacement control/forward neutral reverse control/ manual displacement control valve plate, without handle |
| Paint and nametag | Black paint, Danfoss tag A |
| Settings | Default, no special settings |
| Proposition 65 | Cancer and Reproductive Harm |
