KBCG5-3-160D-Z-T-M1-4-A-PC7-H1-11, KBCG53160DZTM14APC7H111
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 828AN00012A be shipped?
828AN00012A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 828AN00012A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 828AN00012A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 828AN00012A, subject to availability and destination.

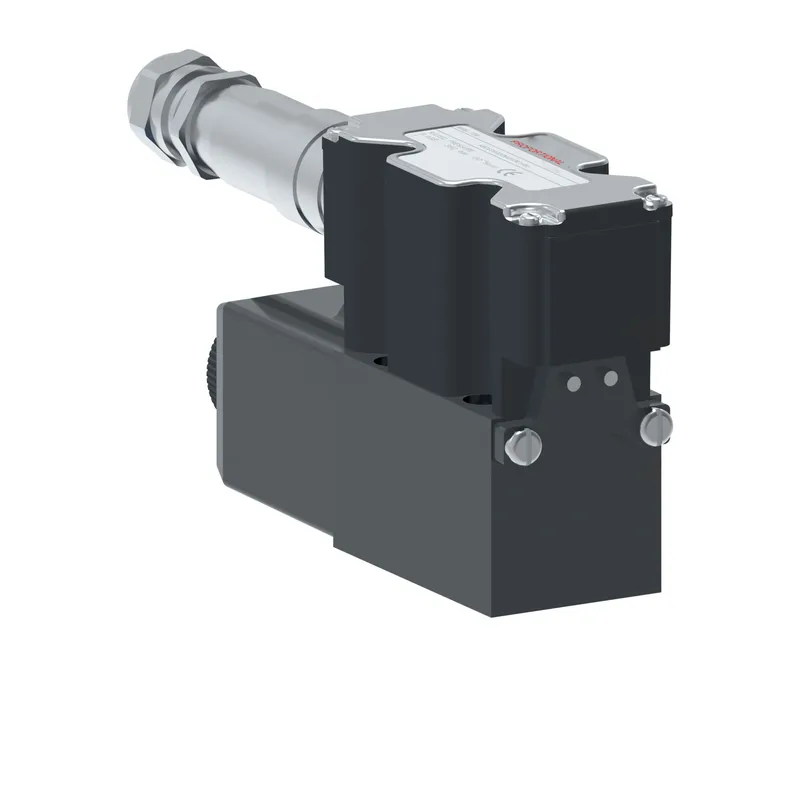

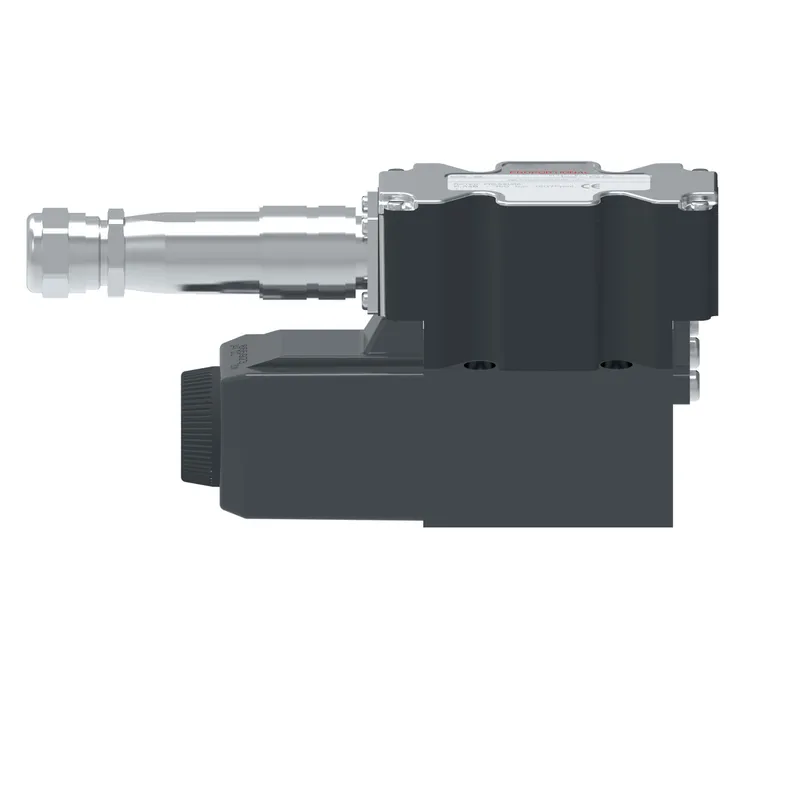

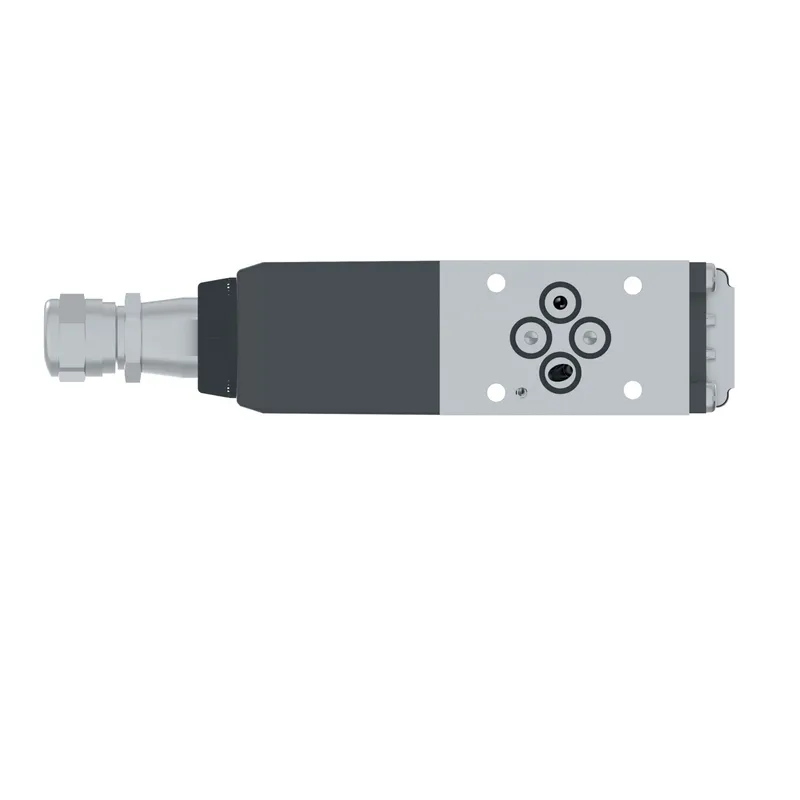

Danfoss KBCG5-3-160D-Z-T-M1-4-A-PC7-H1-11, KBCG53160DZTM14APC7H111, manufacturer part number 828AN00012A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Actuation Type | Solenoid controlled |
| Brand | Vickers by Danfoss |
| Build orientation | Solenoid at B port end |
| Coil voltage | 24 Volt DC |
| Command input | +/- 10V control signal |
| Communication protocol | None |
| Design Series | 11 Series |
| Electrical Connection | Electrical (PC7) 7 pin connector without plug |
| Feedback sensor | No |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |
| Interface | ISO6264-03-04 |
| Manual override | None |
| Maximum flow LPM | 40.0 |
| Maximum flow USGPM | 10.6 |
| Maximum pressure BAR | 350 |
| Maximum pressure PSI | 5000 |
| Model Code 1 | KBCG53160DZTM14APC7H111 |
| On board electronics | Yes |
| Performance | High |
| Pilot drain | Internal |
| Pressure rating BAR | 160 |
| Pressure rating PSI | 2320 |
| Product height in | 4.010 |
| Product height mm | 101.854 |
| Product length in | 9.500 |
| Product length mm | 241.300 |
| Product width in | 1.810 |
| Product width mm | 45.974 |
| ProFX compatible | No |
| Ramp | Fast |
| Reducer module | No |
| Reverse flow check | No |
| Seal type | Viton |
| Special features | None |
| Spool Type | None |
| Stage | Two stage |
| Symmetric flow | Yes |
| Tank port rating BAR | 10 |
| Tank port rating PSI | 145 |
| Valve Mount Type | Subplate |
| Valve type | Pilot operated pressure relief |
| Working temp max C | 70 |
| Working temp max F | 158 |
| Working temp min C | -20 |
| Working temp min F | -4 |
