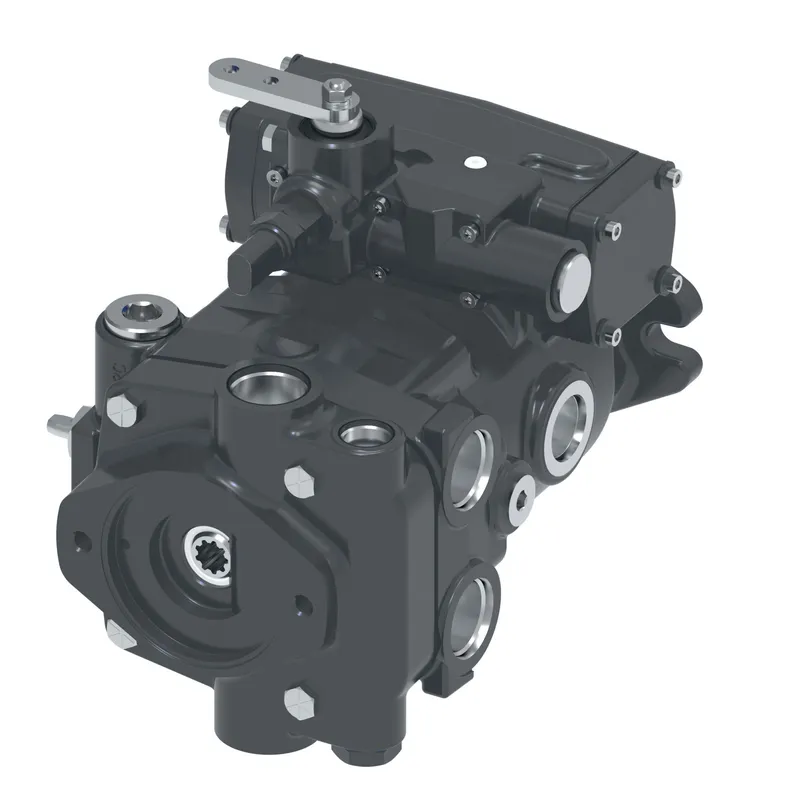

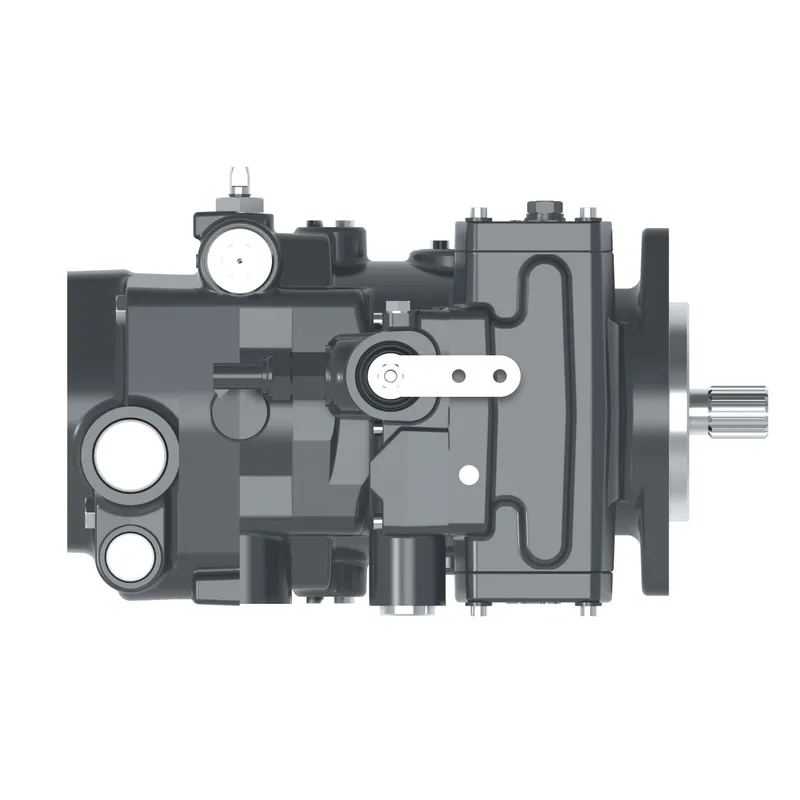

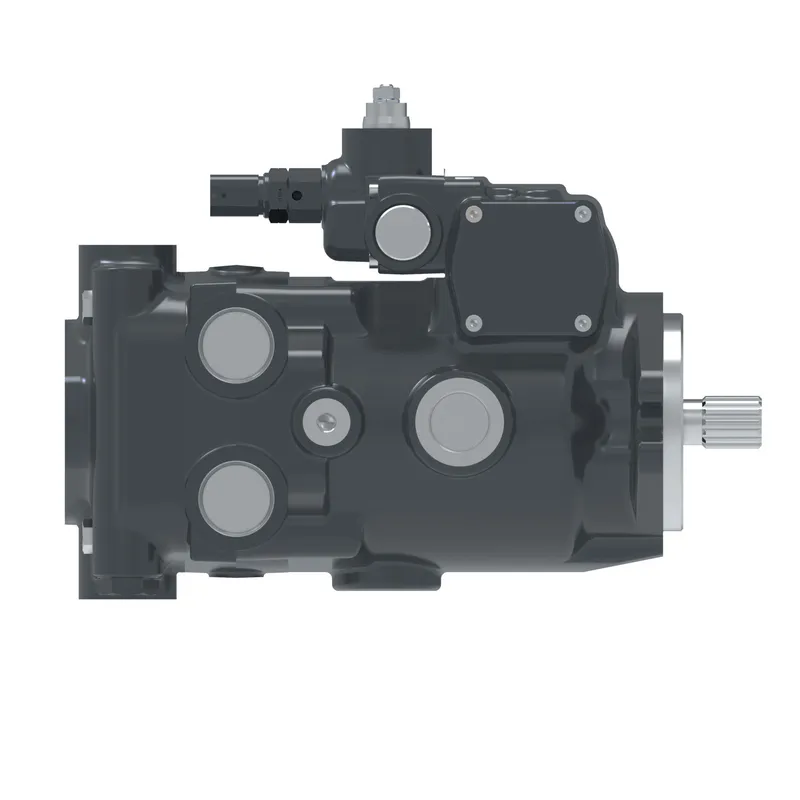

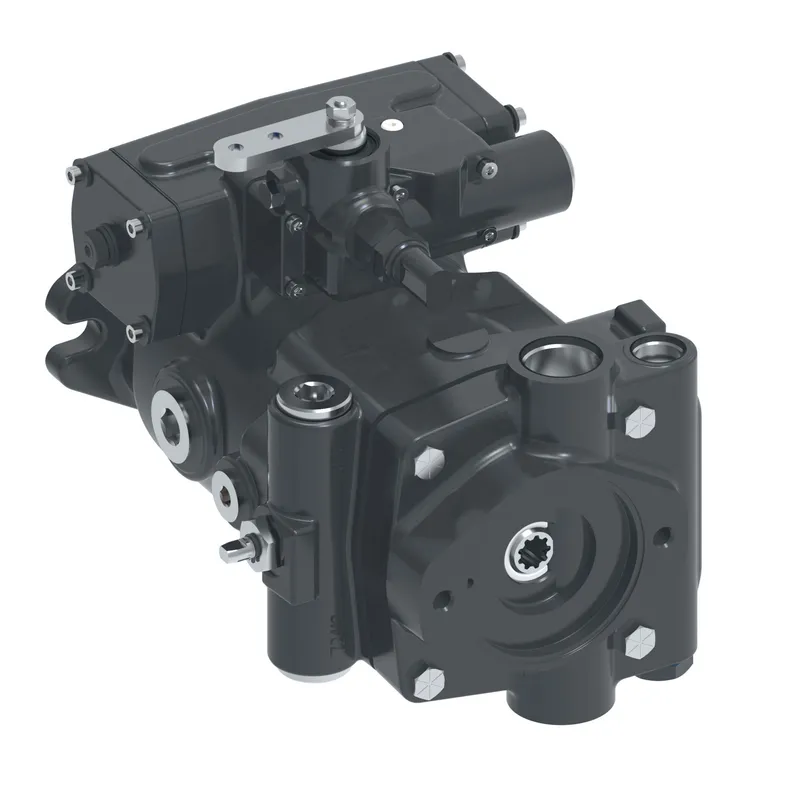

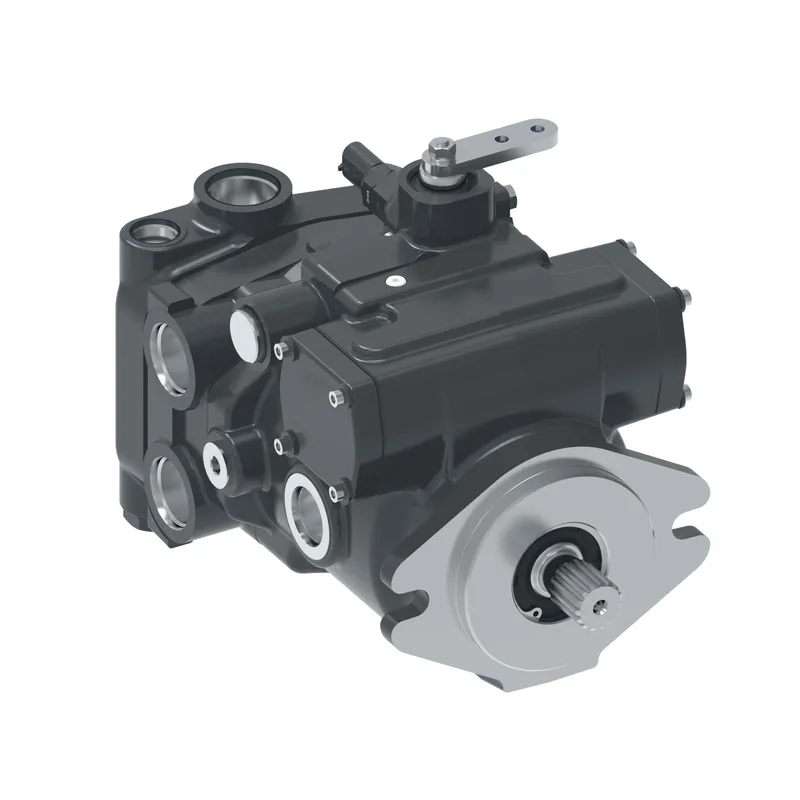

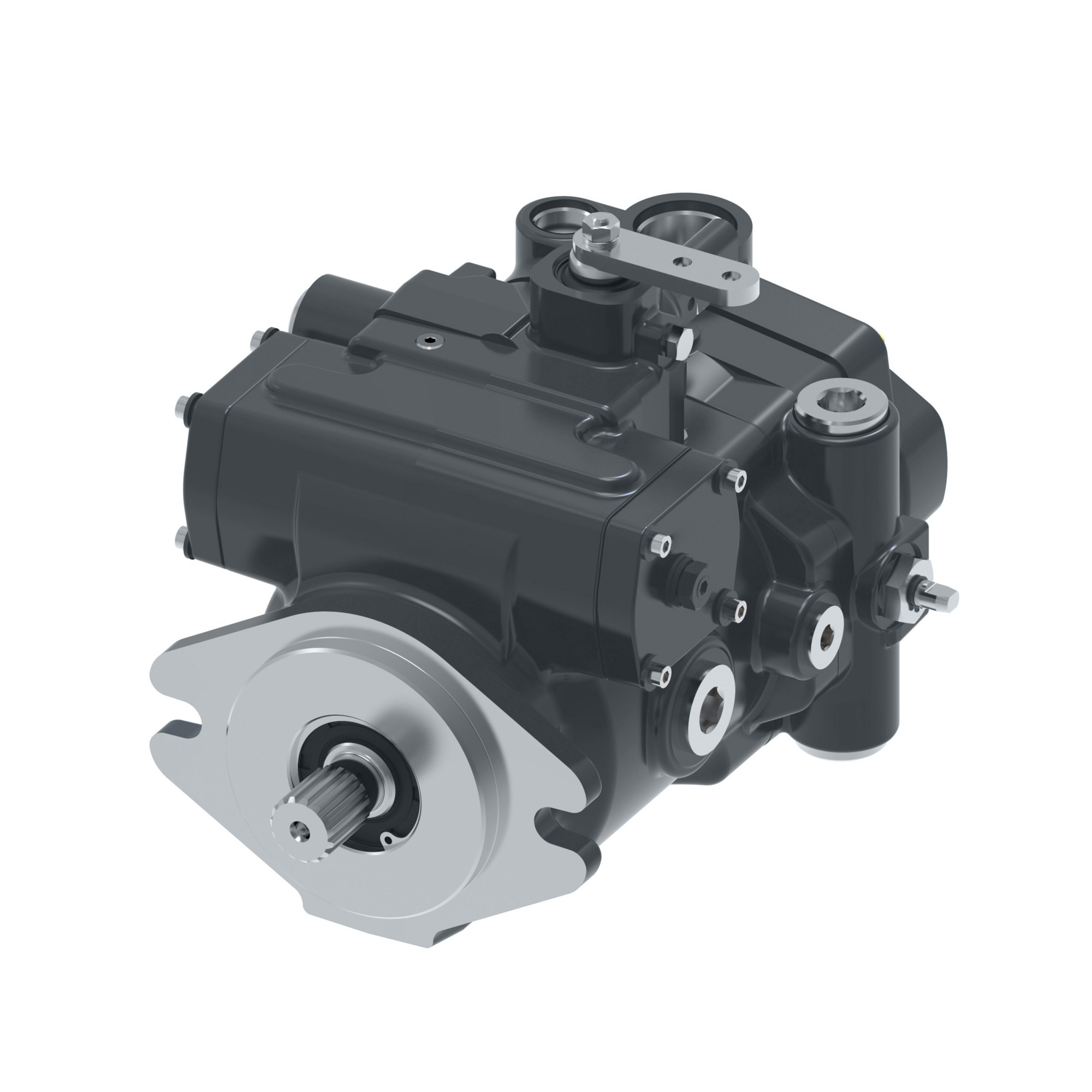

2.48 SERVO CNTRLD VAR DISPLACEMENT PUMP, AADRAAA24EE1NN0HA0CB00A000D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mobile closed-circuit piston pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 72400-STC-04 be shipped?
72400-STC-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 72400-STC-04 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 72400-STC-04 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 72400-STC-04, subject to availability and destination.
Danfoss 2.48 SERVO CNTRLD VAR DISPLACEMENT PUMP, AADRAAA24EE1NN0HA0CB00A000D, manufacturer part number 72400-STC-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Additional functions | No additional functions |
| Aux mounting features rear | [2-BOLT A] SAE flange series 82-2 |
| Aux port size and location | .750-16 UNF-2B SAE o-ring port - left (C1) & right(C2) sides (housing), both sides plugged |
| Brand | Danfoss |
| Charge pump | 13.8 cm3/r [.84 in3/r] with 1.3125-12 UN-2B SAE o-ring port for suction inlet (S) |
| CODE TITLE | 40.6 cm3/r [2.48 in3/r] servo controlled variabledisplacement pump |
| Control assembly | Hydraulic remote with 5-15 bar [72-217 lbf/in2] pilot pressure range, 2X .4375-20 UNF-2B SAE o-ring port |
| Control servo orf S1 and S2 | Diameter 0.81 [.032] |
| Control supply orifice P | Diameter 0.91 [.036] |
| CPRV setting and routing | 17.24-20.68 bar [250-300 lbf/in2] relieved to case; 1.3125-12 UN-2B SAE o-ring port for charge pressure discharge (C3) (to remotefilter), .875-14 UNF-2B SAE o-ring port for charge pressure inlet (C4) (return from filter) |
| Design code | D |
| Destroke valve | Not required |
| Drain port size and location | 1.0625-12 UN-2B SAE o-ring port - left (D1) & right (D2) sides, left side plugged; thru drain into rear auxiliary flange (D3) |
| Flow rate gpm | 38.6 |
| Flow rate lpm | 146.3 |
| Identification | Standard |
| Input shaft | 15 tooth 16/32 external, diameter 24.98 [.984], shaft extension 46 [1.81] |
| Input shaft rotation | Right hand rotation (ccw) |
| Main port size and location | 1.3125-12 UN-2B SAE o-ring port (A & B) - right side |
| Maximum output speed | 3600 |
| Maximum temperature C | 107.00 |
| Maximum temperature F | 225.00 |
| Model Code 1 | AADRAAA24EE1NN0HA0CB00A000D |
| Mounting Flange | 2-bolt-B |
| Output shaft | 9 tooth 16/32 internal, diameter 15.88 [.625], accepts shaft extension 31.8 [1.25] |
| Output torque lbf-in2 | 1578.8 |
| Output torque Nm | 178.4 |
| Paint | Primer per spec 209-13A |
| Product height in | 7.930 |
| Product height mm | 201.422 |
| Product length in | 12.630 |
| Product length mm | 320.802 |
| Product width in | 8.020 |
| Relief vlv set for main port A | 275.8 bar [4000 lbf/in2] |
| Relief vlv set for main port B | 275.8 bar [4000 lbf/in2] |
| Special control options | No special control options |
| Special features | No special features |
| Working pressure bar | 276 |
| Working pressure psi | 4000 |
