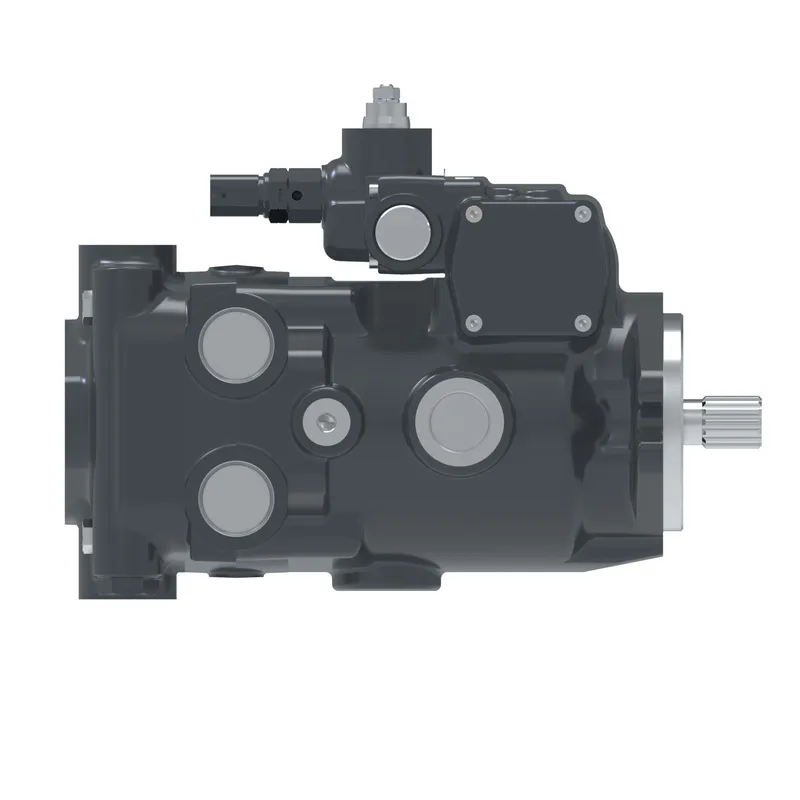

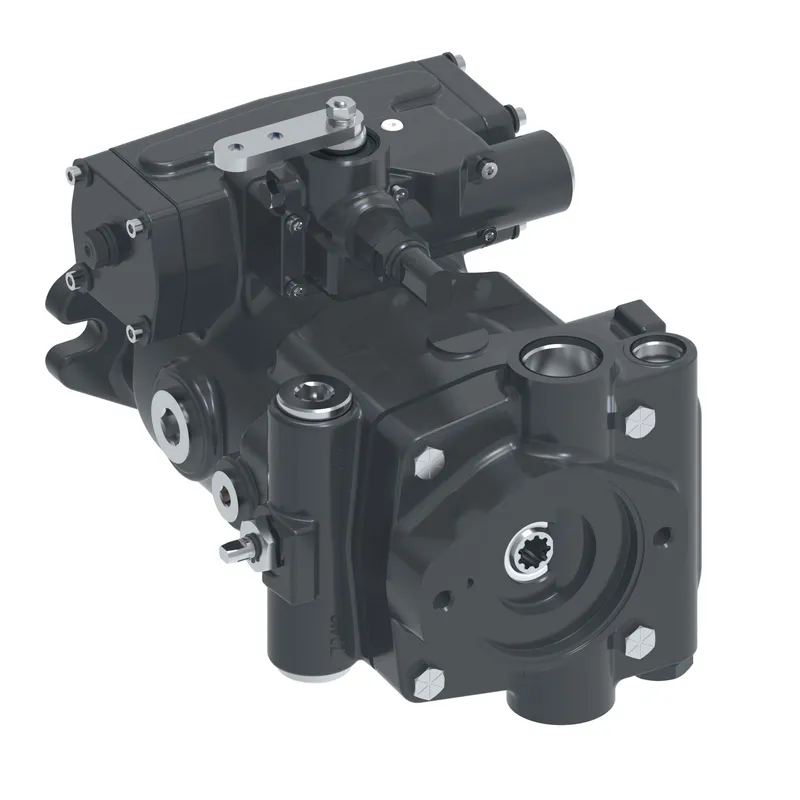

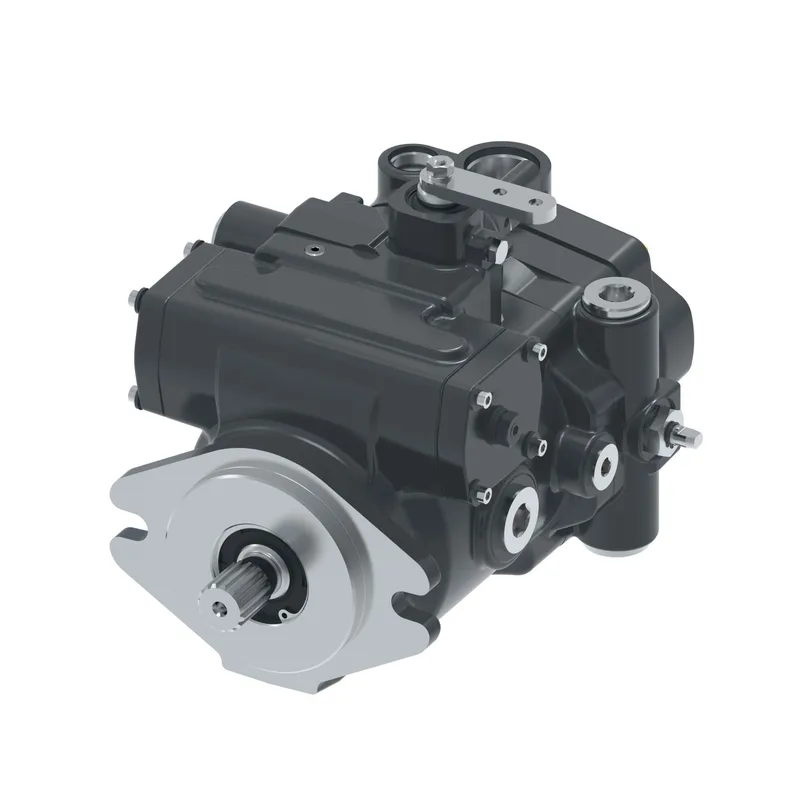

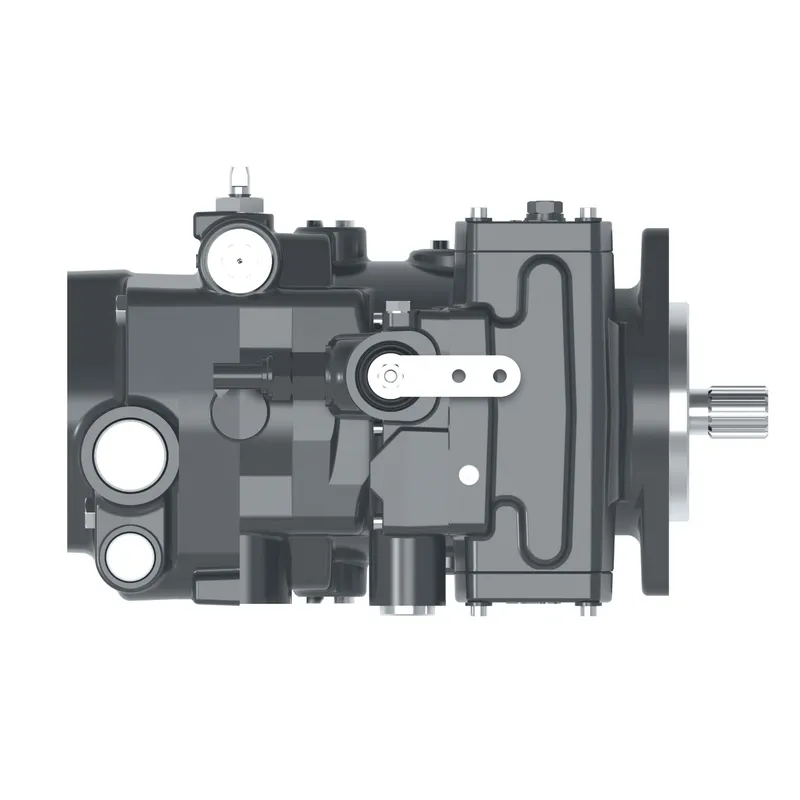

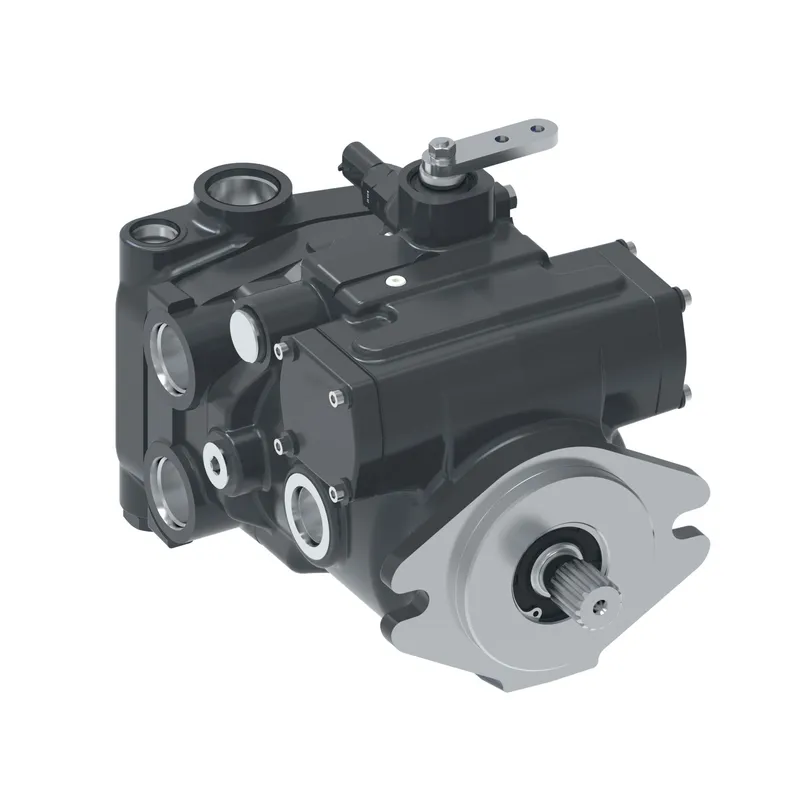

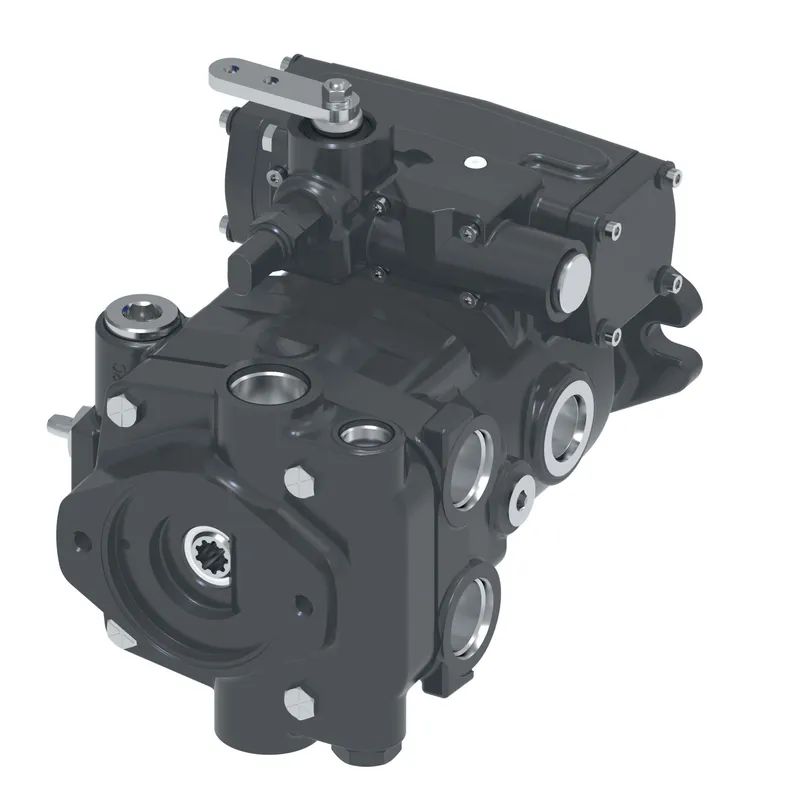

PUMP-VAR DISP, 72400PV49 CW, ACGRRFC23E61YY0MC0E000AEZ0D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mobile closed-circuit piston pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 72400-SRL-04 be shipped?
72400-SRL-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 72400-SRL-04 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 72400-SRL-04 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 72400-SRL-04, subject to availability and destination.
Danfoss PUMP-VAR DISP, 72400PV49 CW, ACGRRFC23E61YY0MC0E000AEZ0D, manufacturer part number 72400-SRL-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Additional functions | No additional functions |
| Aux mounting features rear | [2-BOLT A] SAE flange series 82-2, with cover plate |
| Aux port size and location | .750-16 UNF-2B SAE o-ring port - left (C1) & right(C2) sides (housing), both sides plugged |
| Brand | Danfoss |
| Charge pump | 13.8 cm3/r [.84 in3/r] with 1.3125-12 UN-2B SAE o-ring port for suction inlet (S) |
| CODE TITLE | 49.2 cm3/r [3.00 in3/r] servo controlled variabledisplacement pump |
| Control assembly | Manual control, wide band neutral |
| Control servo orf S1 and S2 | No control servo orifice |
| Control supply orifice P | Diameter 1.12 [.044] |
| CPRV setting and routing | 17.24-20.68 bar [250-300 lbf/in2] relieved to case |
| Design code | D |
| Destroke valve | Not required |
| Drain port size and location | .750-16 UNF-2B SAE o-ring port - left(D1) & right (D2) sides, right side plugged; thru drain into rear auxiliary flange (D3) |
| Flow rate gpm | 46.8 |
| Flow rate lpm | 177.0 |
| Identification | Standard |
| Input shaft | 15 tooth 16/32 external, diameter 24.98 [.984], shaft extension 46 [1.81] with M10 X 1.5-6H thread 17.8 [.70] deep |
| Input shaft rotation | Right hand rotation (ccw) |
| Main port size and location | 1.3125-12 UN-2B SAE o-ring port (A & B) - right side |
| Maximum output speed | 3600 |
| Maximum temperature C | 107.00 |
| Maximum temperature F | 225.00 |
| Model Code 1 | ACGRRFC23E61YY0MC0E000AEZ0D |
| Mounting Flange | 2-bolt-B |
| Output shaft | 11 tooth 16/32 internal, diameter 19.33 [.761] accepts shaft extension 31.8 [1.25] |
| Output torque lbf-in2 | 2423.6 |
| Output torque Nm | 273.8 |
| Paint | Primer per spec 209-13A |
| Product height in | 8.850 |
| Product height mm | 224.790 |
| Product length in | 13.240 |
| Product length mm | 336.296 |
| Product width in | 8.020 |
| Relief vlv set for main port A | 379.2 bar [5500 lbf/in2] |
| Relief vlv set for main port B | 379.2 bar [5500 lbf/in2] |
| Special control options | No special control options |
| Special features | Plastic cap on shaft spline for 15 tooth 16/32 external, diameter 24.98 [.984] |
| Working pressure bar | 350 |
| Working pressure psi | 5076 |
