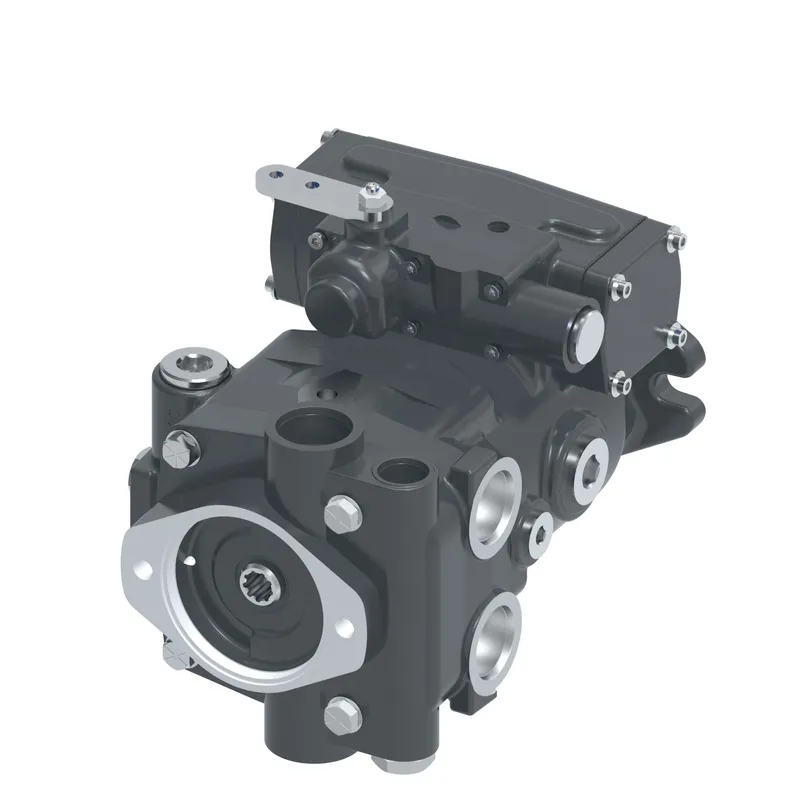

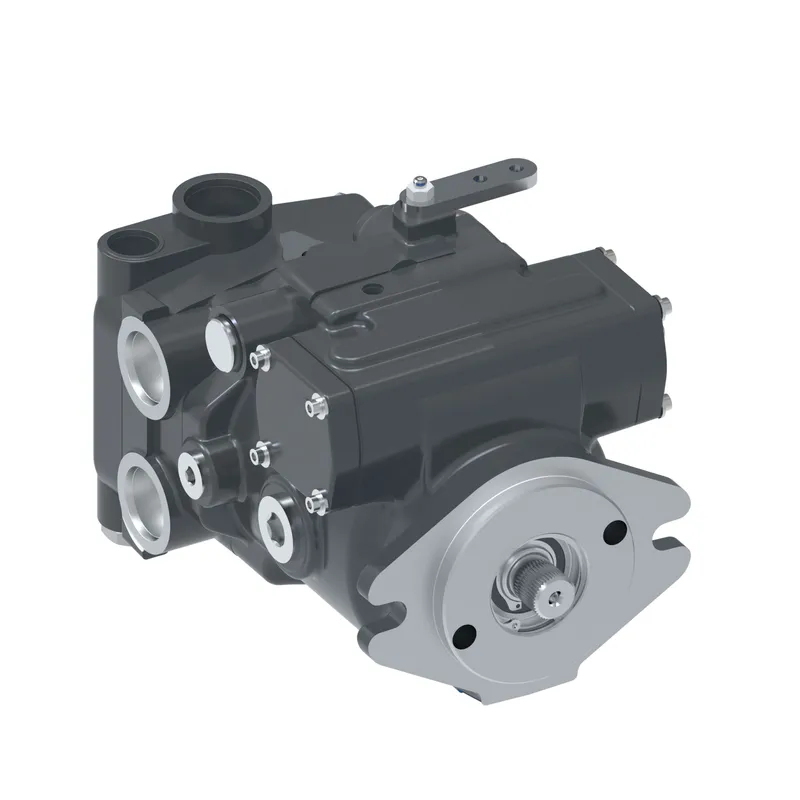

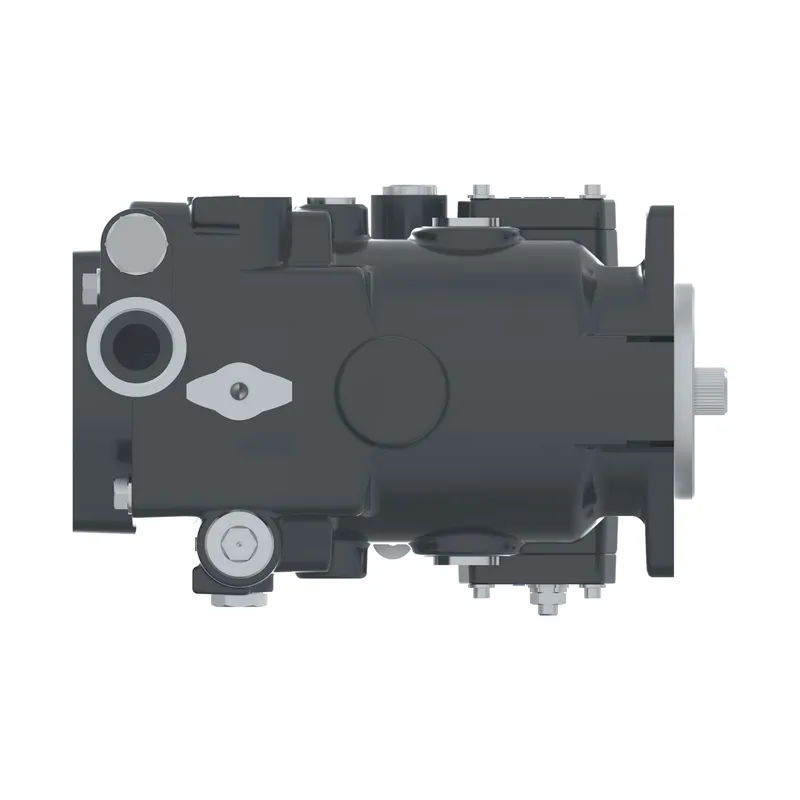

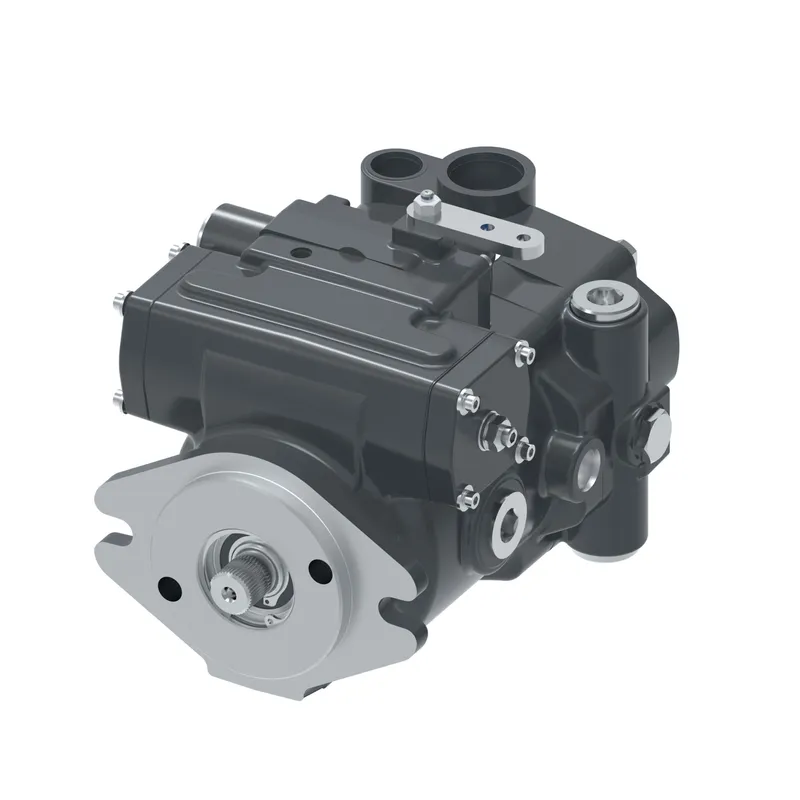

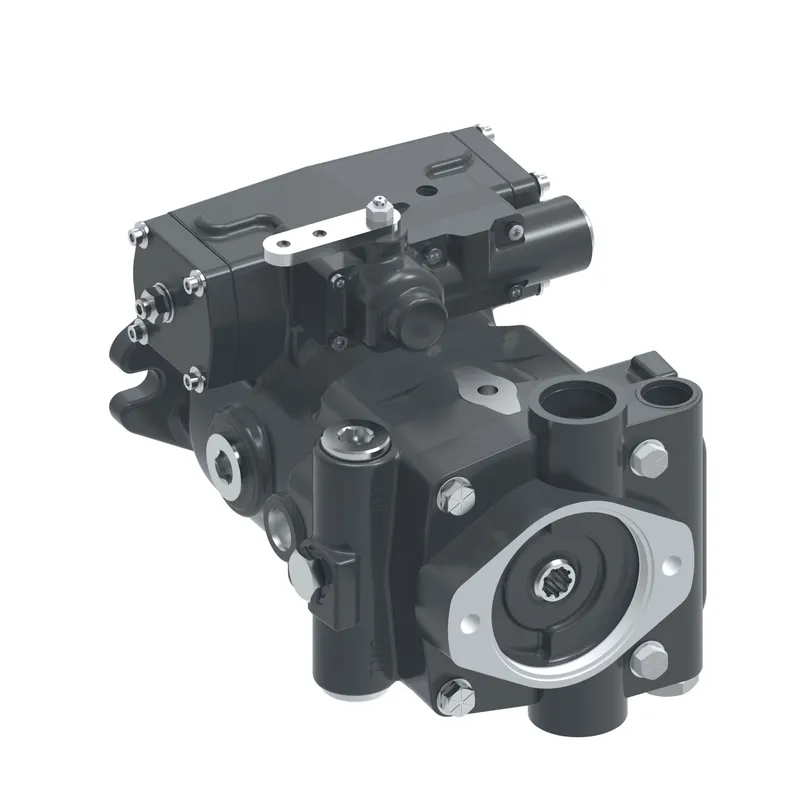

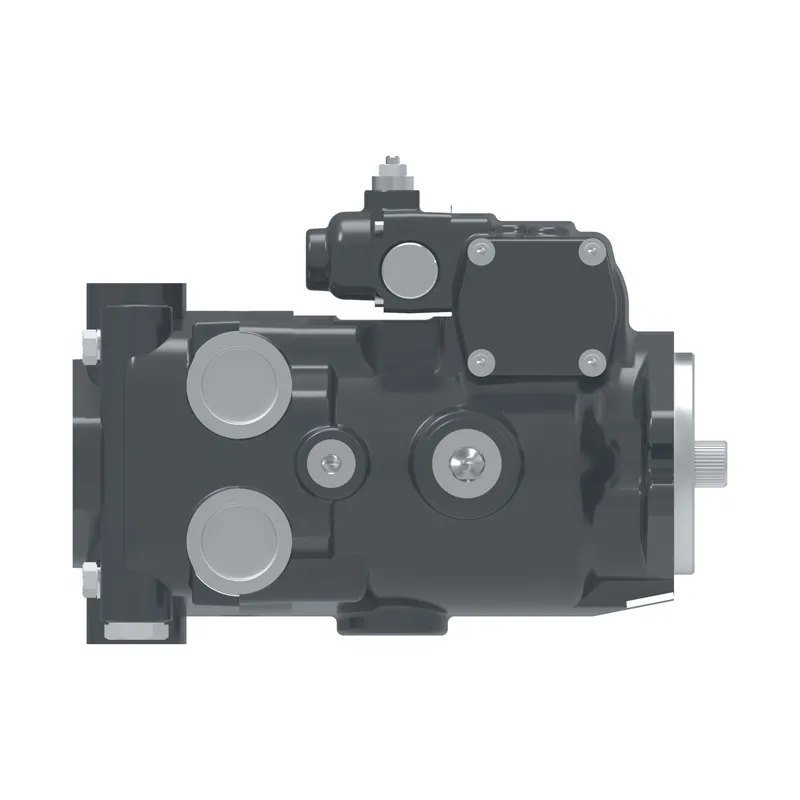

3.00 SERVO CNTRLLD VARIABLE DISP PUMP, ACJRBAD24DM1JJ0MA1B00BFAR0D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mobile closed-circuit piston pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 72400-RNL-04 be shipped?
72400-RNL-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 72400-RNL-04 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 72400-RNL-04 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 72400-RNL-04, subject to availability and destination.
Danfoss 3.00 SERVO CNTRLLD VARIABLE DISP PUMP, ACJRBAD24DM1JJ0MA1B00BFAR0D, manufacturer part number 72400-RNL-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Additional functions | No additional functions |
| Aux mount features (rear) | [2-bolt A] SAE flange series 82-2, with cover plate & mounting holes |
| Auxiliary port size & location | .750-16 UNF-2B SAE o-ring port - left (C1) & right (C2) sides (housing), left side plugged |
| Brand | Danfoss |
| Charge pump | 13.8 cm3/r [.84 in3/r] with 1.3125-12 UN-2B SAE o-ring port for suction inlet (S) |
| CODE TITLE | 49.2 cm3/r [3.00 in3/r] servo controlled variable displacement pump (rear tandem) |
| Control assembly | Manual control, wide band neutral, neutral lockout switch |
| Control servo orifice S1 & S2 | No control supply orifice |
| Control supply orifice (P) | Dia 0.81 [.032] |
| CPRV setting & routing | 17.24-20.68 bar [250-300 lbf/in2] relieved to case, 1.3125-12 SAE o-ring port for charge pressure discharge (C3) (to remotefilter), .875-14 UNF-2B SAE o-ring port for charge pressure inlet (C4) (return from filter) |
| Design code | D |
| Destroke valve | Destroke w/ 12 VDC coil & weather pack connector |
| Drain port size & location | 1.0625-12 UN-2B SAE o-ring port - left (D1) & right (D2) sides, left side plugged, thru drain into rear auxiliary flange (D3),thru drain into front mount(D4) |
| Flow rate gpm | 46.8 |
| Flow rate lpm | 177.0 |
| Identification | Standard |
| Input shaft | 41 tooth 48/96 ext, dia 22.22 [.875], shaft ext 24.4 [.96] |
| Input shaft rotation | Right hand rotation (cw) |
| Main ports size & location | 1.3125-12 UN-2B SAE o-ring port (A & B) - right side |
| Maximum output speed | 3600 |
| Maximum temperature C | 107.00 |
| Maximum temperature F | 225.00 |
| Model Code 1 | ACJRBAD24DM1JJ0MA1B00BFAR0D |
| Mounting flange | 2-bolt-B |
| Note | For more info, contact Danfoss |
| Output shaft | 9 tooth 16/32 internal dia 15.88 [.625], accepts shaft ext 31.8 [1.25] |
| Output torque lbf-in2 | 1551.8 |
| Output torque Nm | 175.3 |
| Paint | Yellow per spec 209-13BF |
| Product height in | 9.370 |
| Product height mm | 237.998 |
| Product length in | 12.390 |
| Product length mm | 314.706 |
| Product width in | 8.020 |
| Relief valve setting port A | 224.1 bar [3250 lbf/in2] |
| Relief valve setting port B | 224.1 bar [3250 lbf/in2] |
| Special control options | No special control options |
| Special features | Improved centering effort valve plate & reduced spring rate rotating kit |
| Working pressure bar | 224 |
| Working pressure psi | 3250 |
