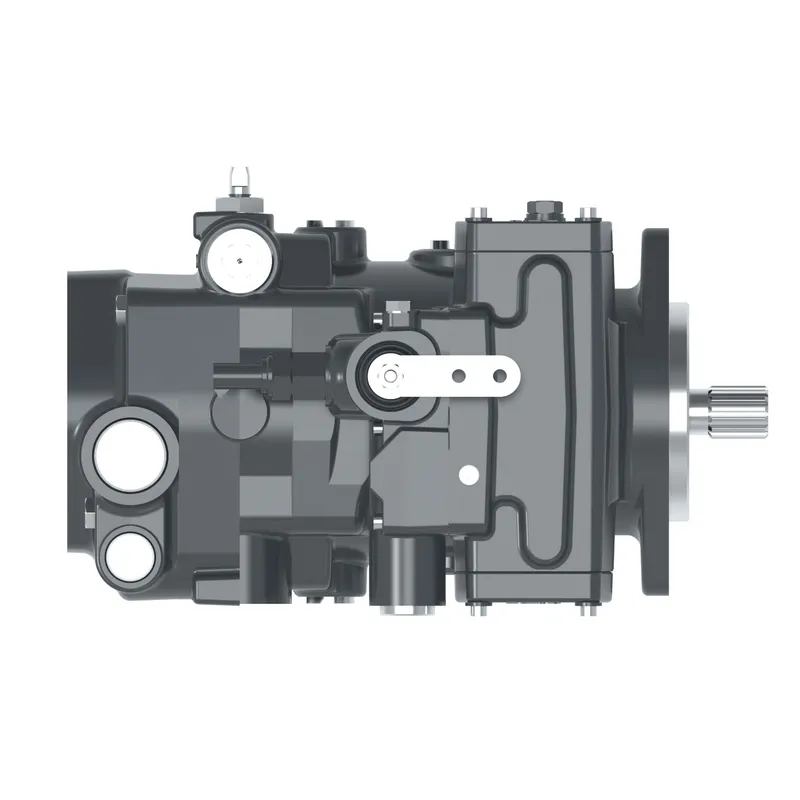

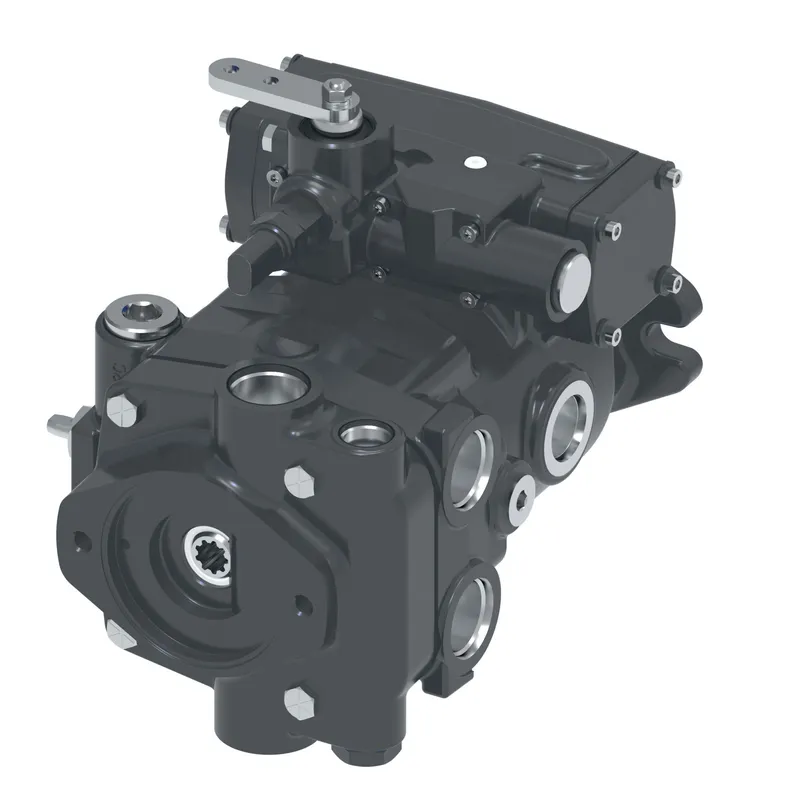

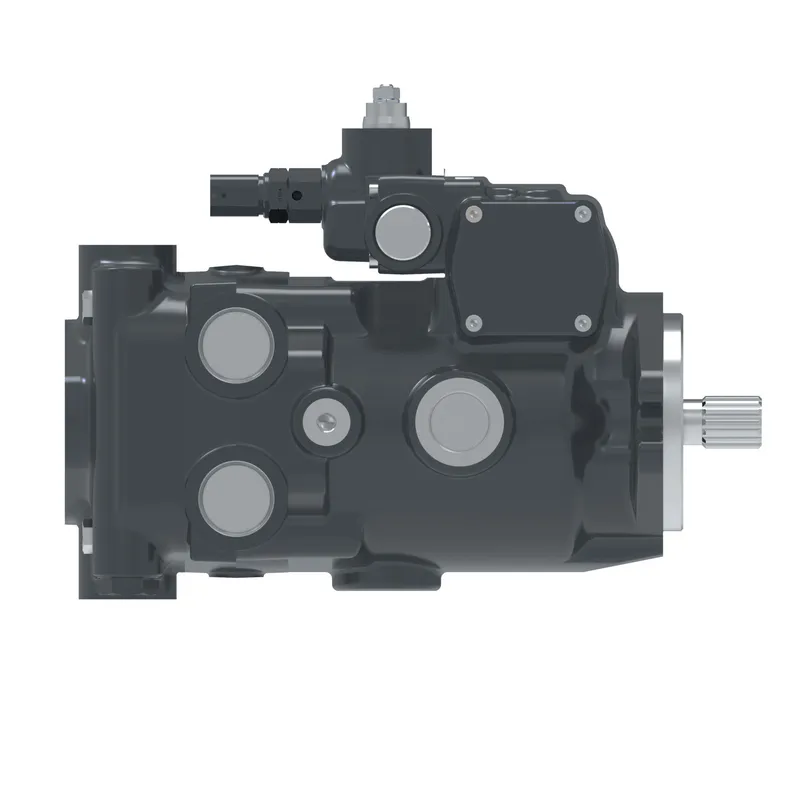

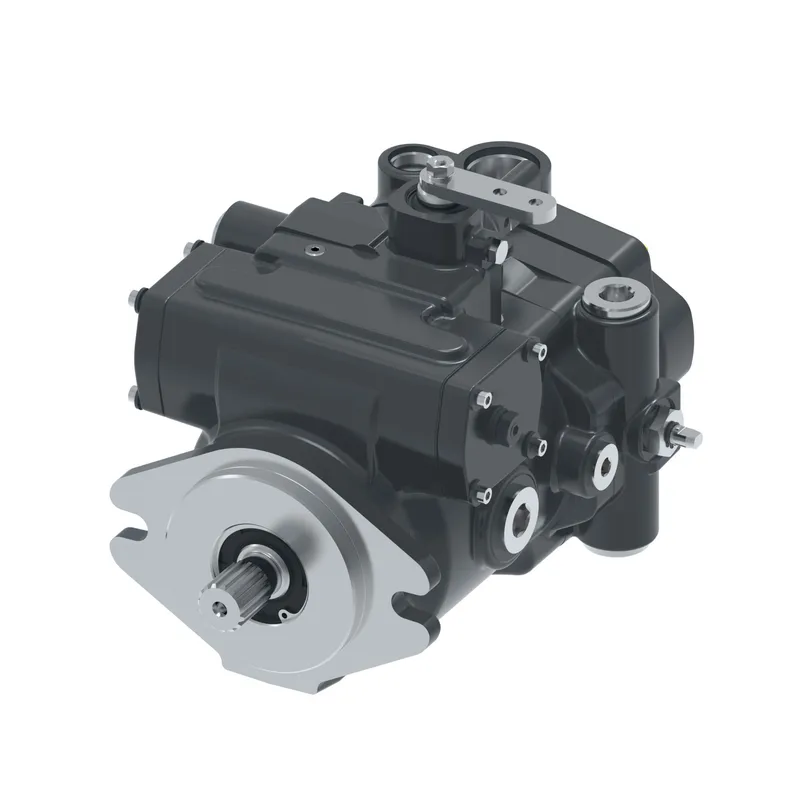

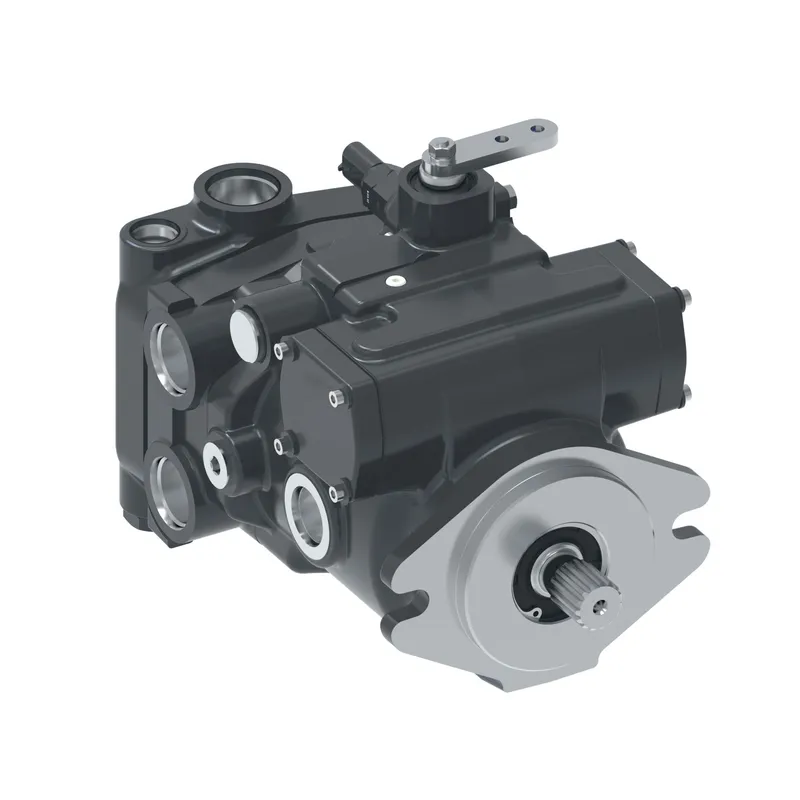

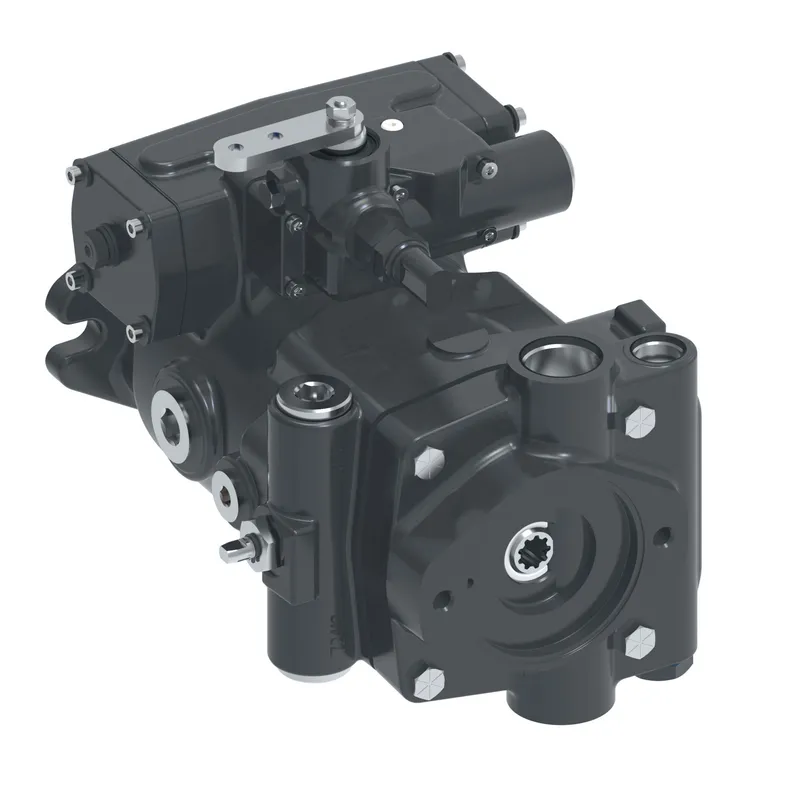

2.48 CID Servo Controlle, AAELABB00DE2HH0SL00000ABB0D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mobile closed-circuit piston pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 72400-LKT-04 be shipped?
72400-LKT-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 72400-LKT-04 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 72400-LKT-04 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 72400-LKT-04, subject to availability and destination.
Danfoss 2.48 CID Servo Controlle, AAELABB00DE2HH0SL00000ABB0D, manufacturer part number 72400-LKT-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Additional functions | No additional functions |
| Aux mounting features (rear) | [2-bolt B] SAE flange series 101-2 |
| Auxiliary port size & location | .750-16 UNF-2B SAE o-ring port - left (C1)& right (C2) sides (housing), left side plugged |
| Brand | Danfoss |
| Charge pump | No charge pump |
| CODE TITLE | 40.6 cm3/r [2.48 in3/r] servo controlled variable displacement pump (front tandem) |
| Control assembly | 3 POS (FNR) 24 VDC solenoids with din connectors (solenoid location S1S2) |
| Control servo orifice S1S2 | No control servo orifice |
| Control supply orifice (P) | No control supply orifice |
| CPRV setting & routing | No charge pump |
| Design code | D |
| Destroke valve | Not required |
| Drain port size & location | 1.0625-12 UN-2B SAE o-ring port - left (D1) & right (D2) sides, left side plugged, thru drain into rear auxiliary flange (D3) |
| Flow rate gpm | 38.6 |
| Flow rate lpm | 146.3 |
| Identification | Standard |
| Input shaft | 15 tooth 16/32 external, diameter 24.98 [.984], shaft extension 46 [1.81] |
| Input shaft rotation | Lefthand rotation (CCW) |
| Main ports size & location | 1.3125-12 UN-2B SAE o-ring port (A & B) - left side |
| Maximum output speed | 3600 |
| Maximum temperature C | 107.00 |
| Maximum temperature F | 225.00 |
| Model Code 1 | AAELABB00DE2HH0SL00000ABB0D |
| Mounting flange | 2-bolt-B |
| Note | For more info, contact Danfoss |
| Output shaft | 41 tooth 48/96 external, diameter 22.22 [.875] accepts shaft extension 24.4 [.96] |
| Output torque lbf-in2 | 1184.1 |
| Output torque Nm | 133.8 |
| Paint | Primer per spec 209-13A |
| Product height in | 7.850 |
| Product height mm | 199.390 |
| Product length in | 11.240 |
| Product length mm | 285.496 |
| Product width in | 8.020 |
| Relief valve setting port A | 206.8 bar [3000 lbf/in2] |
| Relief valve setting port B | 206.8 bar [3000 lbf/in2] |
| Special control options | No special control options |
| Special features | Adjustable servo stop, both sides |
| Working pressure bar | 207 |
| Working pressure psi | 3000 |
