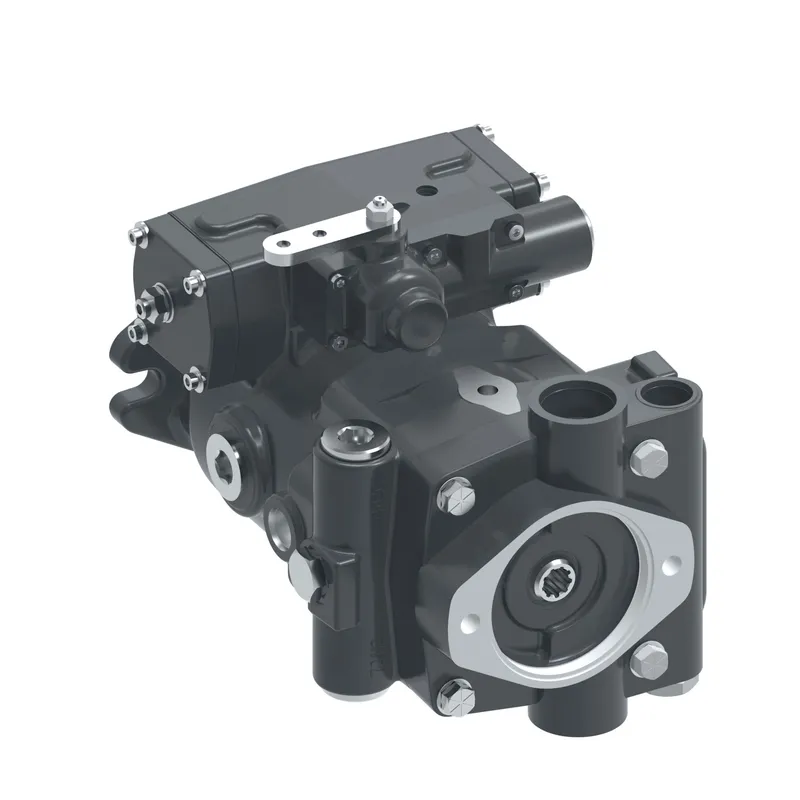

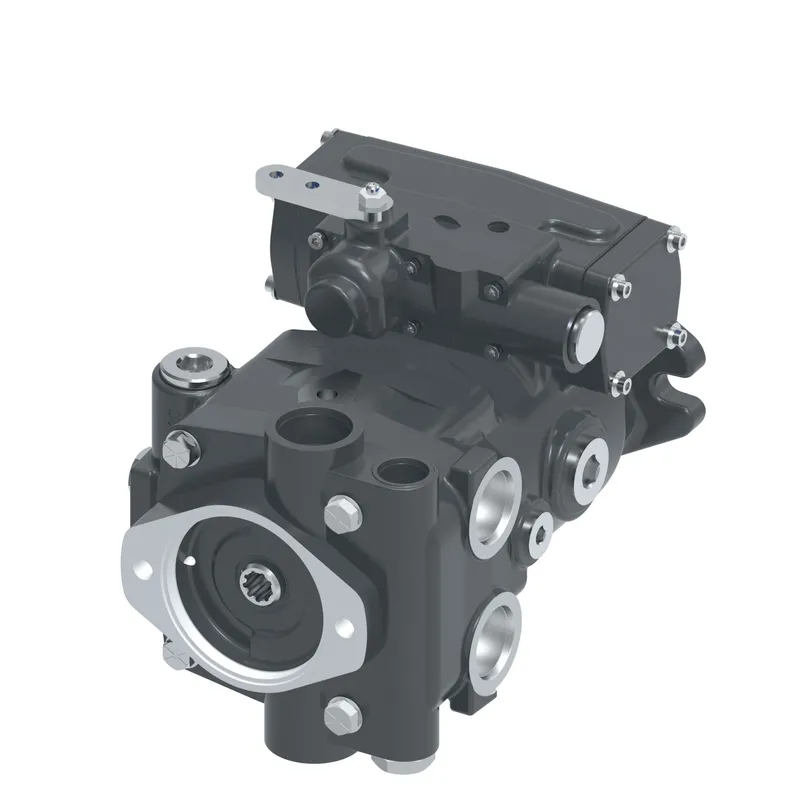

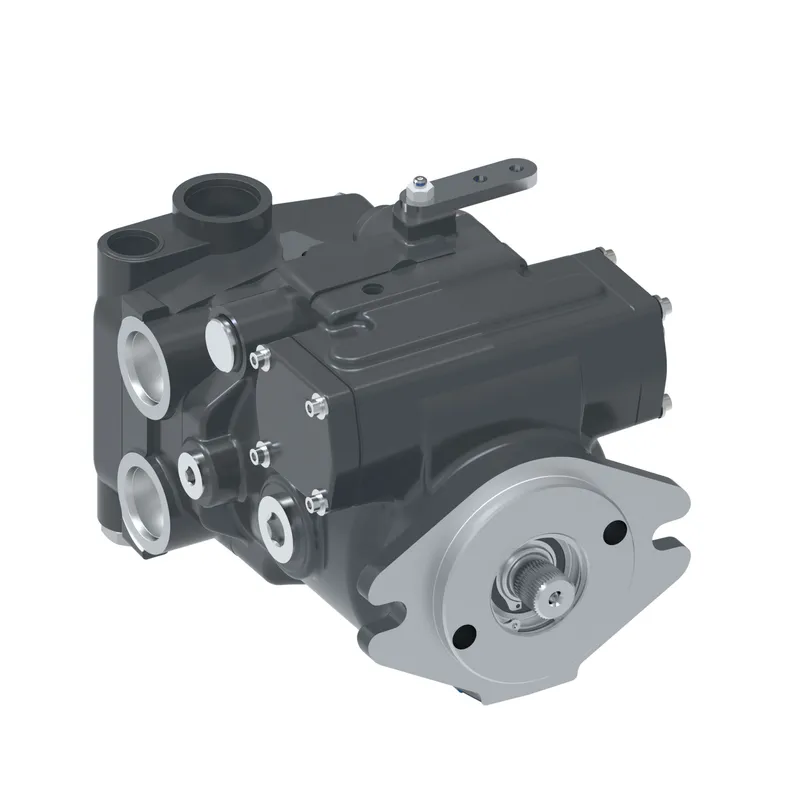

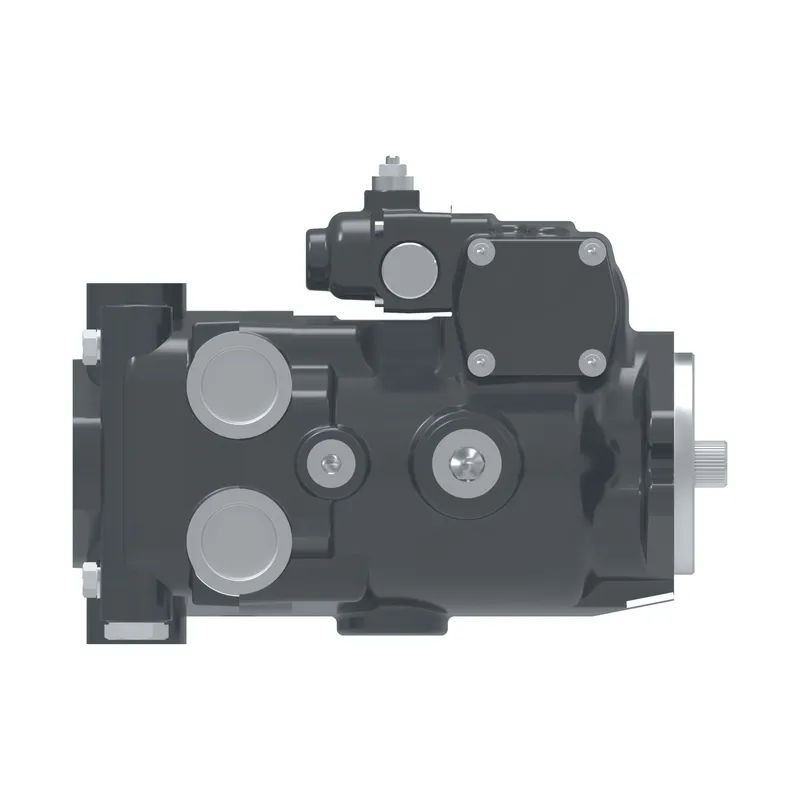

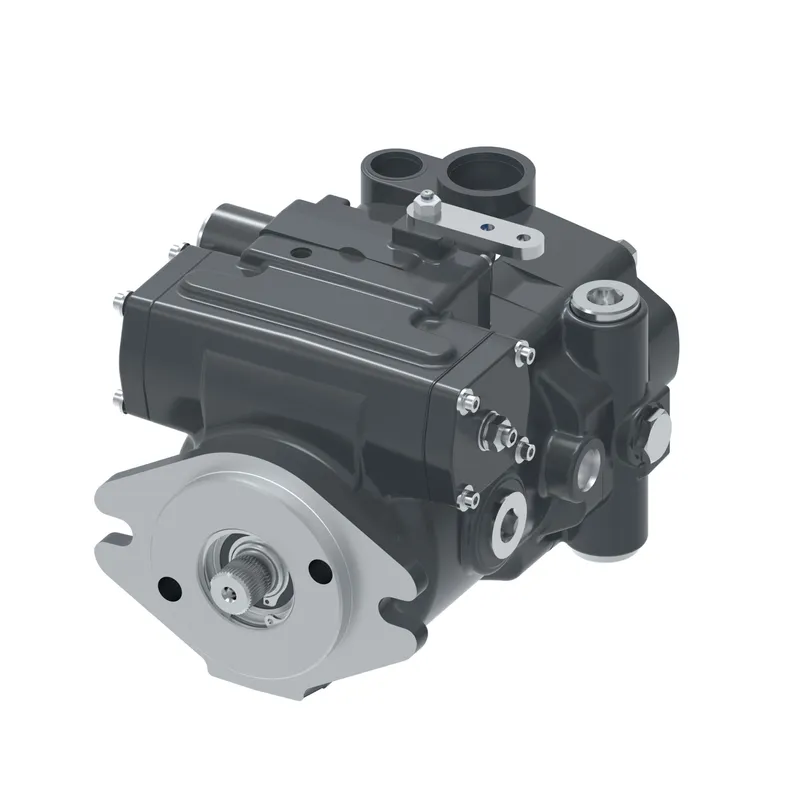

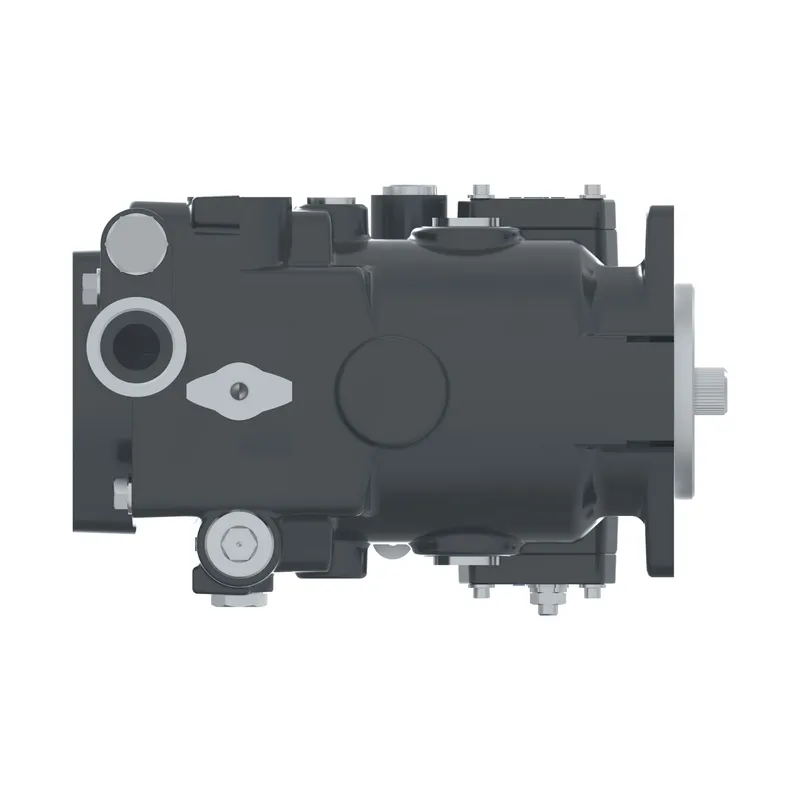

2.48CID Servo Control Variable Disp Pump, AAFLBAE23DS1TT0MA0C000AAF0D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mobile closed-circuit piston pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 72400-LFC-04 be shipped?
72400-LFC-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 72400-LFC-04 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 72400-LFC-04 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 72400-LFC-04, subject to availability and destination.
Danfoss 2.48CID Servo Control Variable Disp Pump, AAFLBAE23DS1TT0MA0C000AAF0D, manufacturer part number 72400-LFC-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Additional functions | No additional functions |
| Aux mount features (rear) | [2-bolt A] SAE flange series 82-2, with mounting holes |
| Auxiliary port size & location | .750-16 UNF-2B SAE o-ring port - left (C1) & right (C2) sides (housing), left side plugged |
| Brand | Danfoss |
| Charge pump | 13.8 cm3/r [.84 in3/r] with 1.3125-12 UN-2B SAE o-ring port for suction inlet (S) |
| CODE TITLE | 40.6 cm3/r [2.48 in3/r] servo controlled variable displacement pump (rear tandem) |
| Control assembly | Manual control, wide band neutral, neutral lockout switch |
| Control servo orifice S1 & S2 | No control supply orifice |
| Control supply orifice (P) | Dia 0.91 [.036] |
| CPRV setting & routing | 17.24-20.68 bar [250-300 lbf/in2] relieved to case |
| Design code | D |
| Destroke valve | Not required |
| Drain port size & location | 1.0625-12 UN-2B SAE o-ring port - left (D1) & right (D2) sides, right & left sides plugged, thru drain into front mount (D4) |
| Flow rate gpm | 38.6 |
| Flow rate lpm | 146.3 |
| Identification | Standard |
| Input shaft | 41 tooth 48/96 ext, dia 22.22 [.875], shaft ext 24.4 [.96] |
| Input shaft rotation | Left hand rotation (ccw) |
| Main ports size & location | 1.3125-12 UN-2B SAE o-ring port (A & B) - right side |
| Maximum output speed | 3600 |
| Maximum temperature C | 107.00 |
| Maximum temperature F | 225.00 |
| Model Code 1 | AAFLBAE23DS1TT0MA0C000AAF0D |
| Mounting flange | 2-bolt-B |
| Note | For more info, contact Danfoss |
| Output shaft | 9 tooth 16/32 internal dia 15.88 [.625], accepts shaft ext 31.8 [1.25] |
| Output torque lbf-in2 | 1973.5 |
| Output torque Nm | 223.0 |
| Paint | Primer per spec 209-13A |
| Relief valve setting port A | 344.7 bar [5000 lbf/in2] |
| Relief valve setting port B | 344.7 bar [5000 lbf/in2] |
| Special control options | No special control options |
| Special features | Diagnostic ports 2X .5625-18 UNF-2B SAE o-ring ports (backplate) |
| Working pressure bar | 345 |
| Working pressure psi | 5000 |
