VMQ3352525125010010A01AA AAANR00A032, VMQ3352525125010010A01AA AAANR00A032
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial vane pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 716-0101-032 be shipped?
716-0101-032 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 716-0101-032 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 716-0101-032 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 716-0101-032, subject to availability and destination.

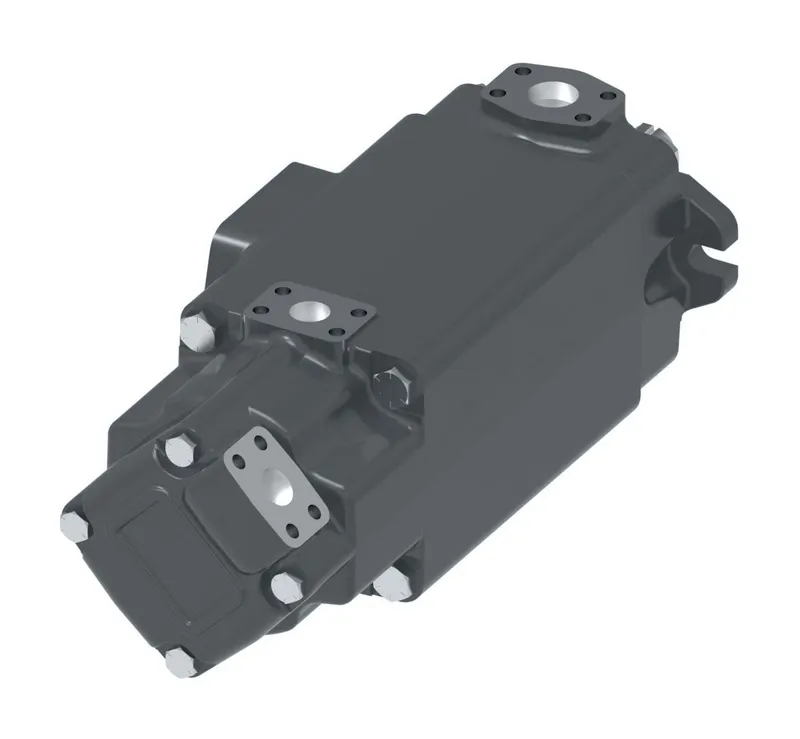

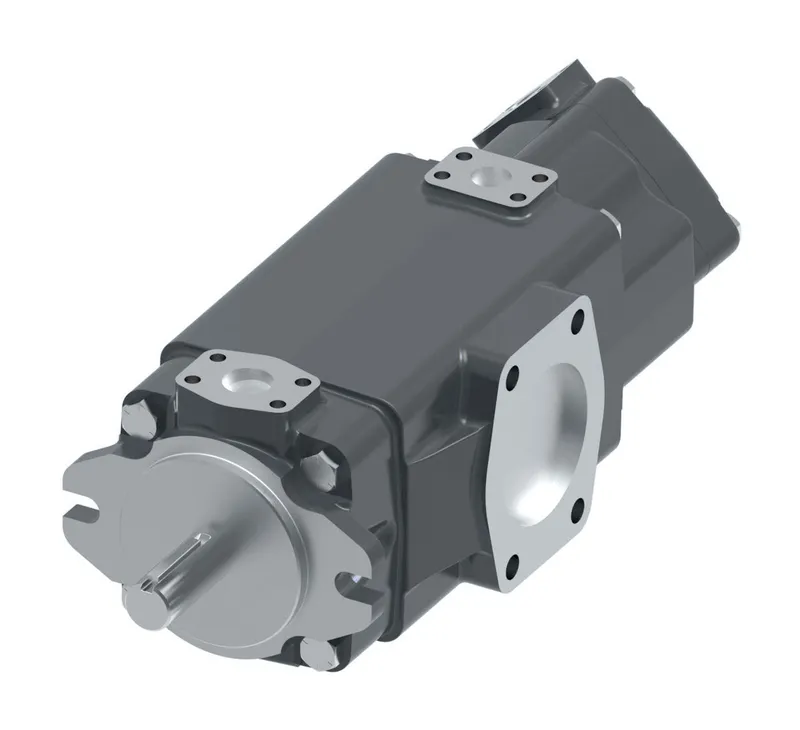

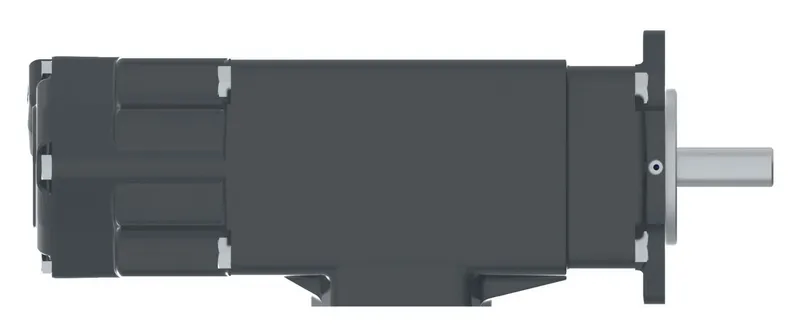

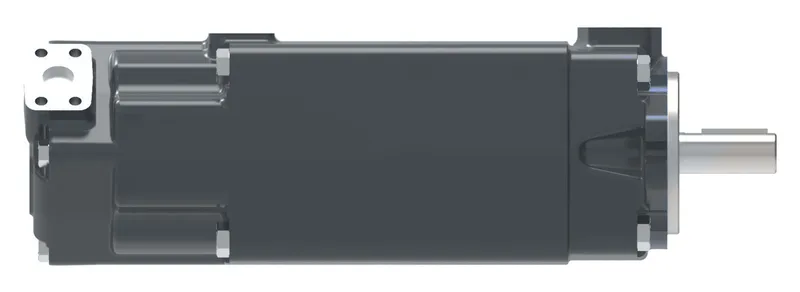

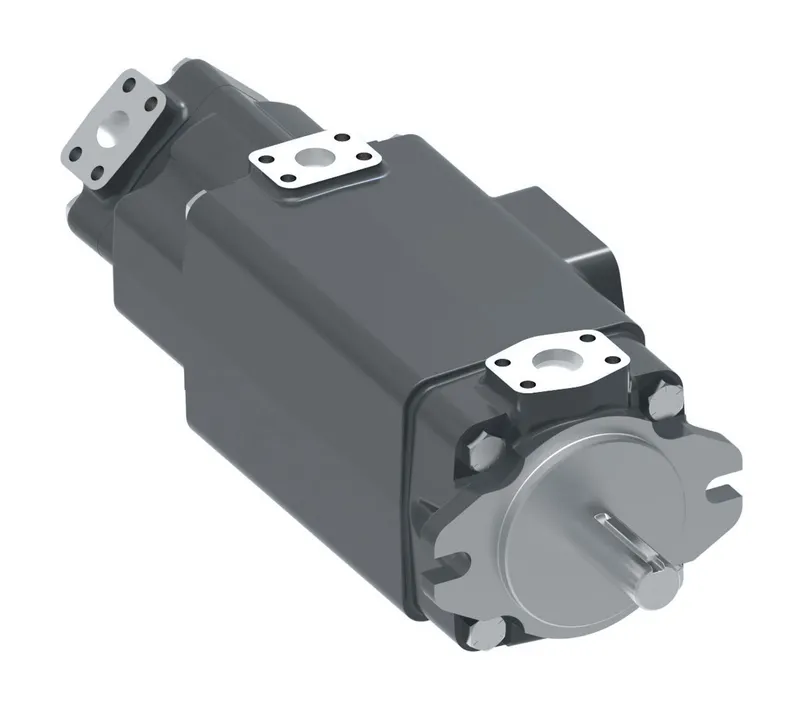

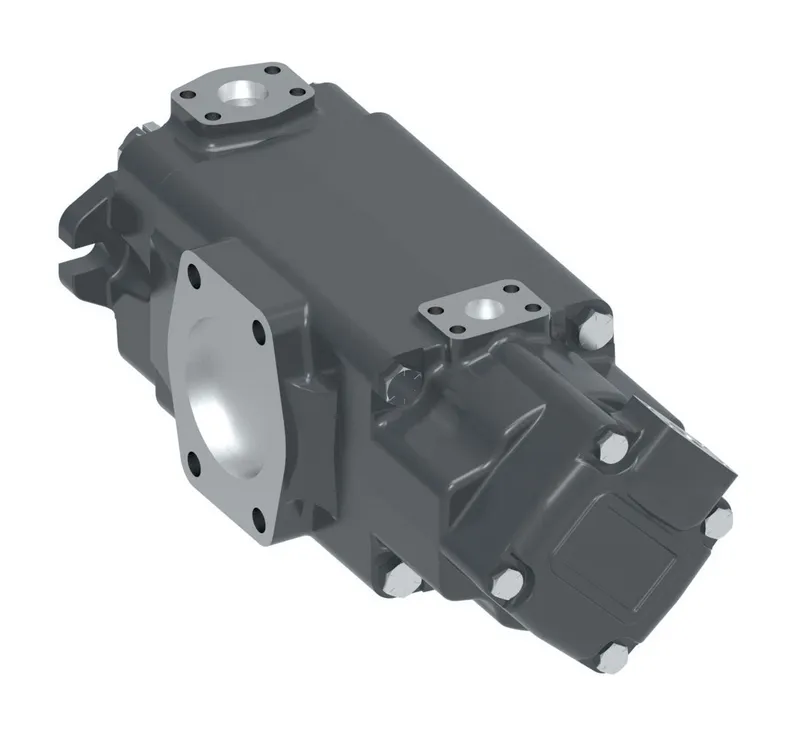

Danfoss VMQ3352525125010010A01AA AAANR00A032, VMQ3352525125010010A01AA AAANR00A032, manufacturer part number 716-0101-032. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| PRODUCT | VMQ VANE PUMP TRIPLE SERIES |
| FRAME SIZE FRONT SECTION | 90-140 cm3/r [5.49-8.54 in3/r] |
| FRAME SIZE MIDDLE SECTION | 10-80 cm3/r [.62-4.88 in3/r] |
| FRAME SIZE REAR SECTION | 10-80 cm3/r [.62-4.88 in3/r] |
| DISPLACEMENT FRONT SECTION | 125.0 cm3/r [7.63 in3/r] 35 FRAME SIZE |
| DISPLACEMENT MIDDLE SECTION | 10.0 cm3/r [.62 in3/r] 25 FRAME SIZE |
| DISPLACEMENT REAR SECTION | 10.0 cm3/r [.62 in3/r] 25 FRAME SIZE |
| FRONT MOUNTING FLANGE TYPE | SAE J744 127-2 (SAE C) 2 BOLT: 127.00 [5.000] DIA. X 12.4 [.49] PILOT, 17.6 [.69]DIA. SLOTS ON 181.0 [7.13] DIA BOLT CIRCLE |
| INPUT SHAFT TYPE | KEYED SHAFT PER SAE J744 (31.75 [1.250]DIA. FOR 35 FRAME, 38.10 [1.500] DIA. FOR45 FRAME) |
| Port Type | 4-BOLT FLANGE PER SAE J518 WITH ENGLISHTHREADS-INLET, 4-BOLT FLANGE PER SAE J518WITH ENGLISH THREADS-FRONT OUTLET,4-BOLTFLANGE PER SAE J518 WITH ENGLISH THREADS MIDDLE OUTLET, 4-BOLT FLANGE PER SAE J518 WITH ENGLISH THREADS-REAR OUTLET |
| FRONT OUTLET PORT POS COVEREND | FRONT OUTLET PORT OPPOSITE INLET PORT |
| MIDLE OUTLET PORT POS COVEREND | MIDDLE OUTLET PORT OPPOSITE INLET PORT |
| REAR OUTLET PORT POS COVER END | REAR OUTLET PORT 135 DEG. COUNTERCLOCKWISE FROM INLET PORT (NOT AVAILABLE WITH45,35,25) |
| SHAFT SEAL | SINGLE, PRIMARY |
| Seal type | BUNA N |
| PUMP ROTATION SHAFT END VIEW | RIGHT HAND (CLOCKWISE) |
| SPECIAL FEATURES | NONE |
| Paint | PAINTED BLUE |
| Customer identification | NONE |
| DESIGN CODE | THIRTY-SECOND |
| Brand | Vickers by Danfoss |
| IPM FRAME SIZE | 352525VMQ Tripple Pump |
| Model Code 1 | VMQ3352525125010010A01AA AAANR |
| Model Code 2 | 00A032 |
