VMQ22525S071032A00500BBB CGANR00A032, VMQ22525S071032A00500BBB CGANR00A032
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial vane pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 711-0076-032 be shipped?
711-0076-032 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 711-0076-032 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 711-0076-032 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 711-0076-032, subject to availability and destination.

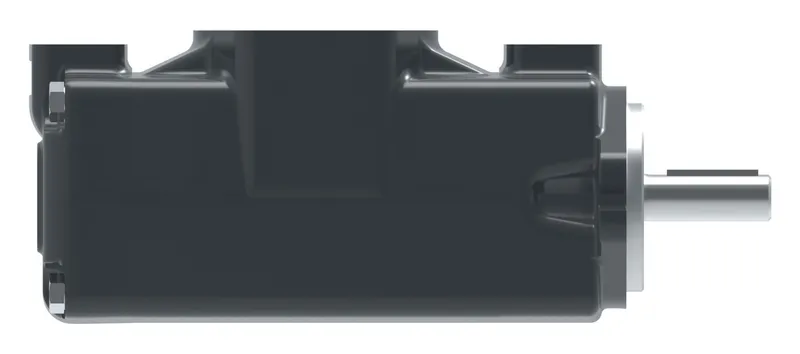

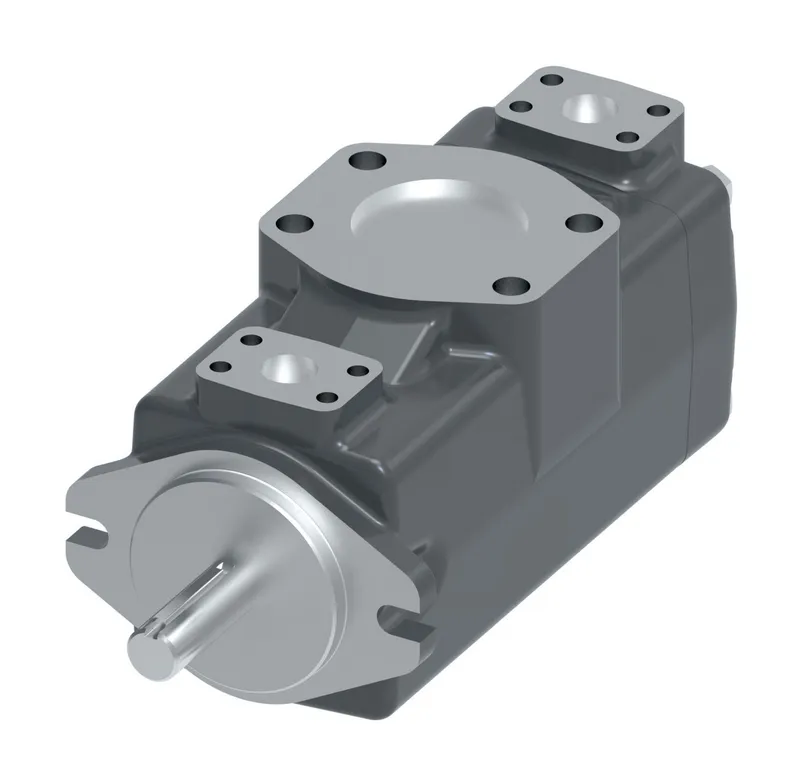

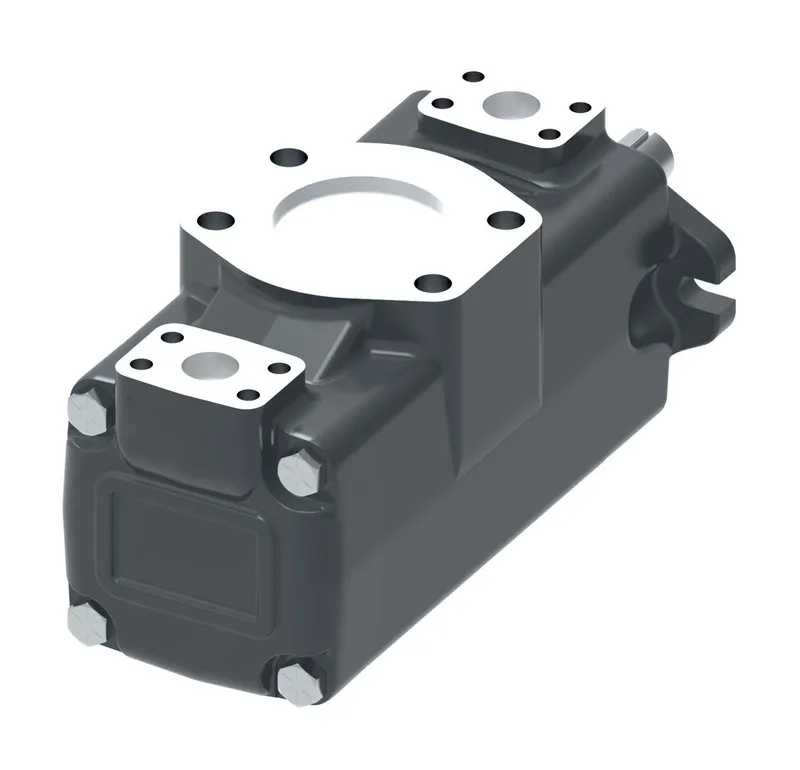

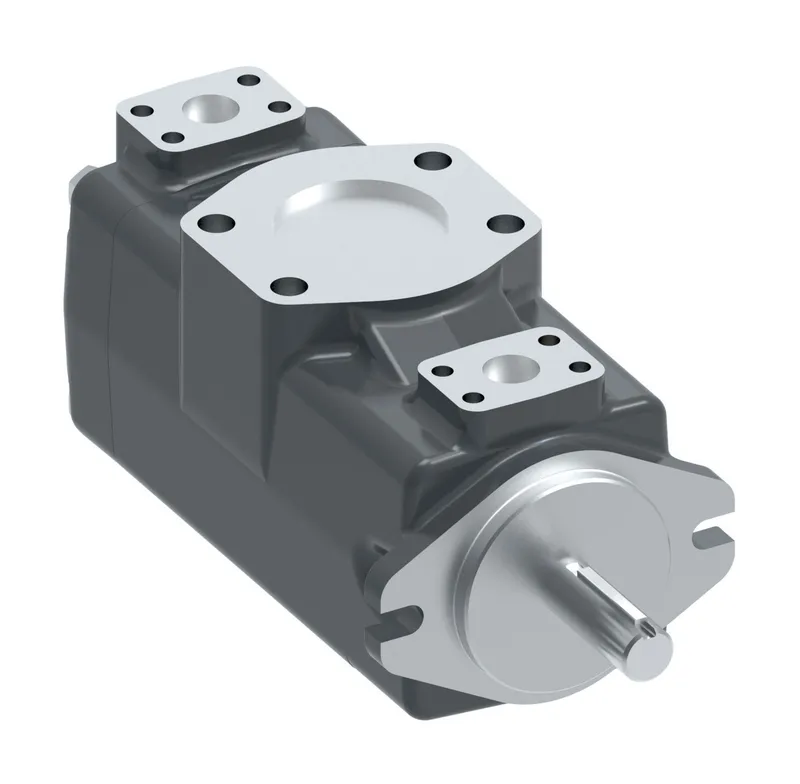

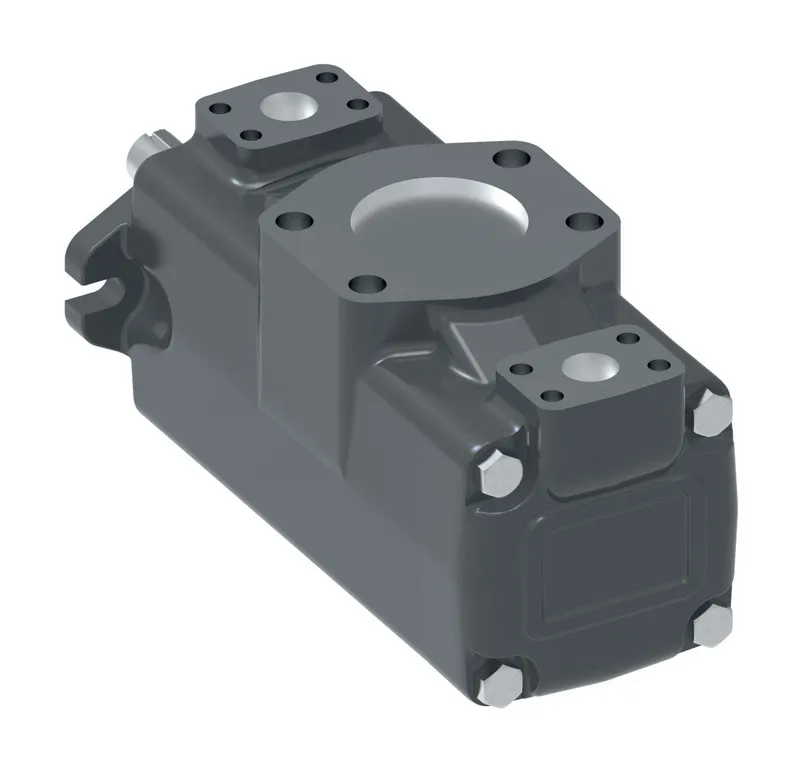

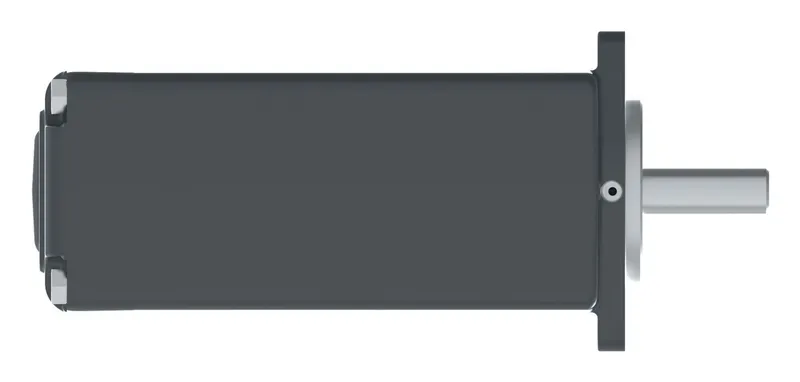

Danfoss VMQ22525S071032A00500BBB CGANR00A032, VMQ22525S071032A00500BBB CGANR00A032, manufacturer part number 711-0076-032. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| PRODUCT | VMQ VANE PUMP DOUBLE SERIES |
| FRAME SIZE FRONT SECTION | 10-90 cm3/r [.62-5.49 in3/r] |
| FRAME SIZE REAR SECTION | 10-90 cm3/r [.62-5.49 in3/r] |
| DISPLACEMENT FRONT SECTION | 71.0 cm3/r [4.33 in3/r] 25 FRAME SIZE |
| DISPLACEMENT REAR SECTION | 32.0 cm3/r [1.96 in3/r] 25 FRAME SIZE |
| FRONT MOUNTING FLANGE TYPE | SAE J744 101-2 (SAE B) 2 BOLT: 101.60 ,[4.000] DIA. X 9.4 [.37] PILOT, 14.4 [.57] DIA. SLOTS ON 146.0 [5.75] DIA. BOLT CIRCLE -25 ONLY |
| INPUT SHAFT TYPE | KEYED SHAFT PER SAE J744 (31.75 [1.250]DIA. FOR 25 FRAME, 38.10 [1.500] DIA. FOR35 FRAME, 44.45 [1.750] FOR 45 FRAME) |
| INLET PORT TYPE | 4-BOLT FLANGE PER SAE J518 WITH METRICTHREADS |
| FRONT OUTLET PORT TYPE | 4-BOLT FLANGE PER SAE J518 WITH METRICTHREADS |
| FRONT OUTLET PORT POS COVEREND | OUTLET PORT IN-LINE WITH INLET PORT |
| REAR OUTLET PORT TYPE | 4-BOLT FLANGE PER SAE J518 WITH METRICTHREADS |
| REAR OUTLET PORT POS COVER END | REAR OUTLET PORT IN-LINE WITH INLET PORT (AVAILABLE WITH 25,25 ONLY) |
| SHAFT SEAL | SINGLE, PRIMARY |
| Seal type | BUNA N |
| PUMP ROTATION SHAFT END VIEW | RIGHT HAND (CLOCKWISE) |
| SPECIAL FEATURES | NONE |
| Paint | PAINTED BLUE |
| Customer identification | NONE |
| DESIGN CODE | THIRTY-SECOND |
| ADAPTER MOUNT ORIENT COVER END | NONE-STANDARD DOUBLE PUMP |
| OUTPUT SHAFT COUPLING | NONE-STANDARD DOUBLE PUMP |
| PUMP TYPE | STANDARD DOUBLE PUMP |
| Brand | Vickers by Danfoss |
| IPM FRAME SIZE | 2525VMQ Double Pump |
| Model Code 1 | VMQ22525S071032A00500BBB CGANR |
| Model Code 2 | 00A032 |
