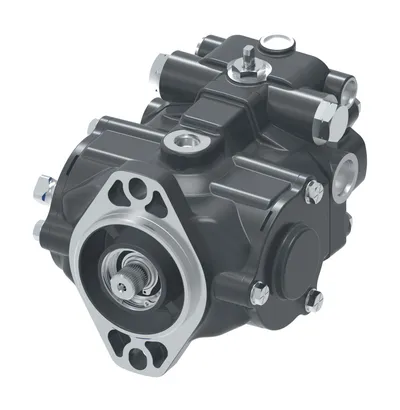

PISTON PUMP ASSY, ACV2VRBK1UUB8C524200U0B0B
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mobile closed-circuit piston pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 70360-RKU-02 be shipped?
70360-RKU-02 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 70360-RKU-02 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 70360-RKU-02 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 70360-RKU-02, subject to availability and destination.
Danfoss PISTON PUMP ASSY, ACV2VRBK1UUB8C524200U0B0B, manufacturer part number 70360-RKU-02. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Additional functions | none |
| AUXILIARY MOUNT OUTPUT SHAFT | dual SAE J744 flange 101-2 (2-bolt b); accepts 13 tooth 16/32 pitch spline with 41.2 [1.62] shaft ext, (no coupler required) |
| AUXILIARY PORT & DUMP VALVE | .750-16 UNF-2B SAE o-ring port, top-rearward (C2); top dump valve (installed in port c1) |
| Brand | Danfoss |
| Charge pump | 17.2 cm3/r [1.05 in3/r] w/ 1.3125-12 UN-2B SAE o-ring port for suction inlet (S) (B-PAD ONLY) |
| CHARGE RELIEF SETTING ROUTING | 17.24-20.68 bar [250-300 lbf/in2]; relieved to case |
| CODE TITLE | Medium duty manually variable displacement axial piston pump with SAE J744 flange 101-2 (2 BOLT B) |
| Control shaft | left; 19.1 [.75] square shaft with bolt groove; 128 [5.04] from centerline to control shaft end |
| DESIGN CODE | B |
| DISPLACEMENT & VALVE PLATE | 40.6 cm3/r [2.48 in3/r]; RKS; VPT 12 |
| Drain port size & location | .750-16 UNF-2B SAE o-ring port, top, plugged (D1); .750-16 UNF-2B SAE o-ring port, bottom (D2); thru drain into front mountingflange (D4) |
| Flow rate gpm | 38.6 |
| Flow rate lpm | 146.3 |
| IDENTIFICATION | Standard nameplate |
| INPUT SHAFT | 41 tooth external spline, 48/96 pitch, 22.225 [.8750] major dia; 24.4 [.96] shaft ext |
| Input shaft rotation | right hand rotation (cw) |
| Input torque lbf-in2 | 2170.9 |
| Input torque Nm | 245.3 |
| MAIN PORTS (A & B) | 1.0625-12 UN-2B SAE o-ring ports, opposite sides |
| Maximum output speed | 3600 |
| Maximum temperature C | 107.00 |
| Maximum temperature F | 225.00 |
| Model Code 1 | ACV2VRBK1UUB8C524200U0B0B |
| Mounting Flange | 2-bolt-B |
| Paint | Black per spec 209-13B |
| RELIEF VLV SET MAIN PORT A | 379.2 bar [5500 lbf/in2] |
| RELIEF VLV SET MAIN PORT B | 379.2 bar [5500 lbf/in2] |
| SPECIAL FEATURES | higher charge pump performance |
| Working pressure bar | 379 |
| Working pressure psi | 5500 |
