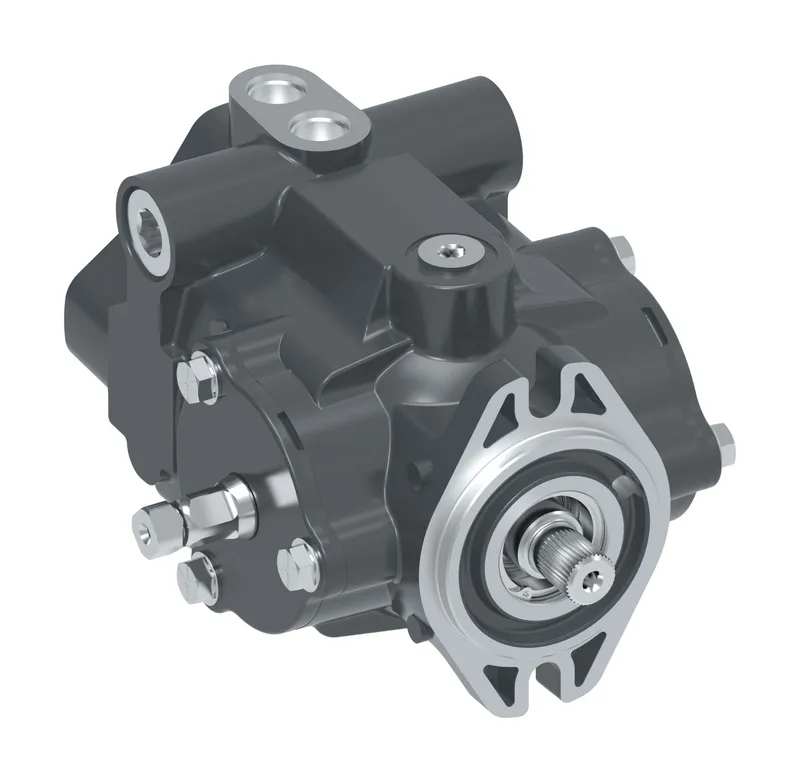

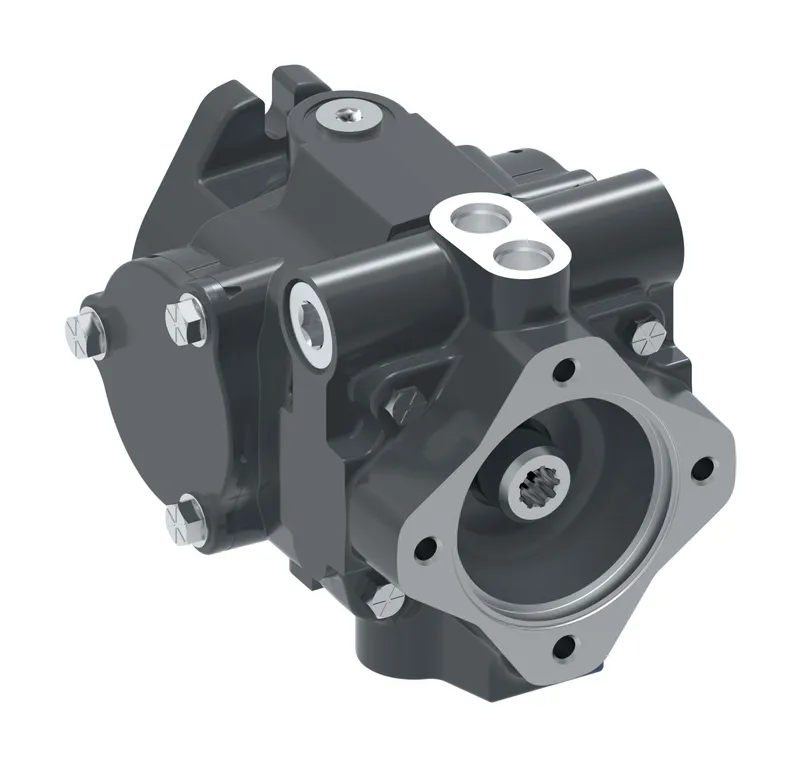

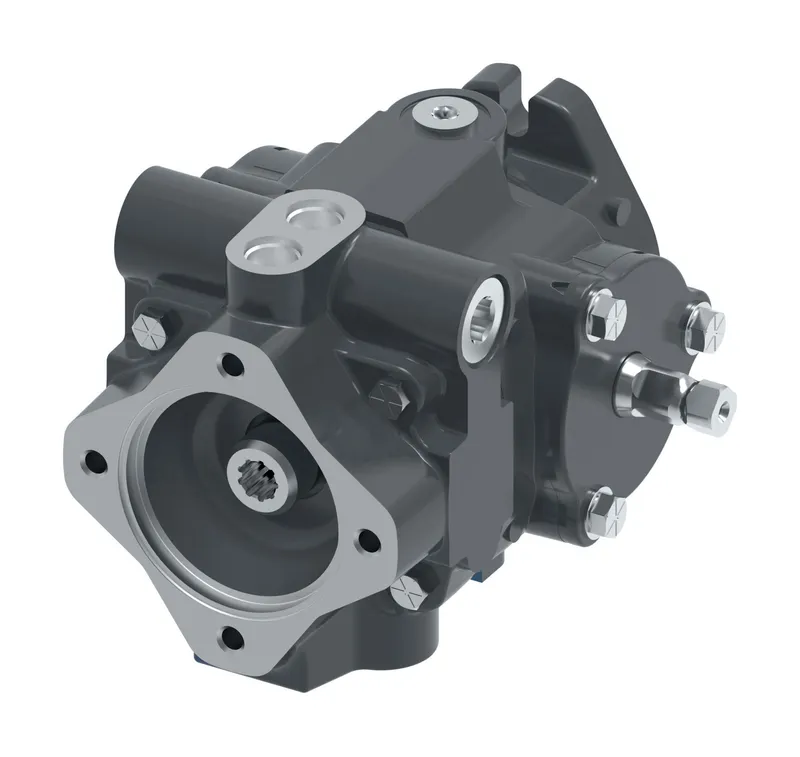

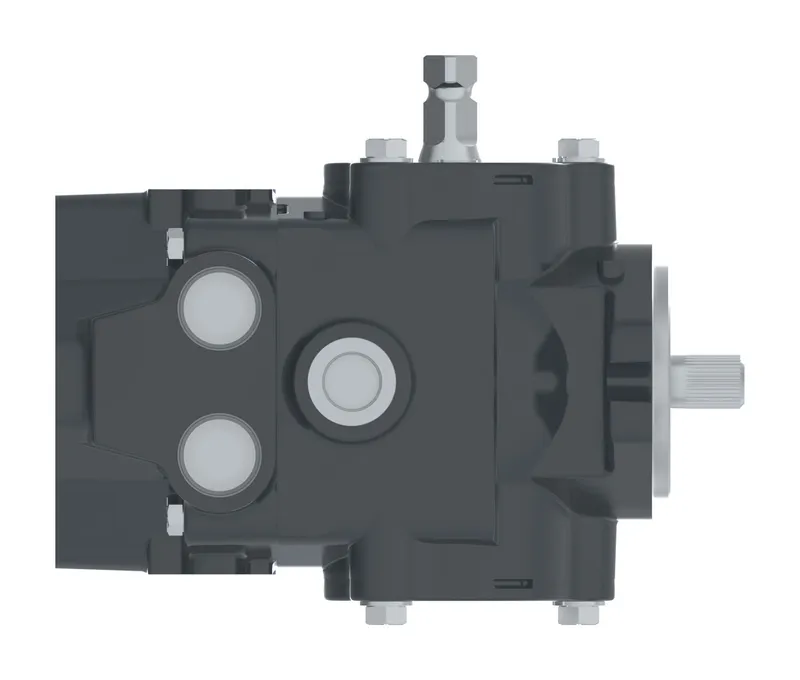

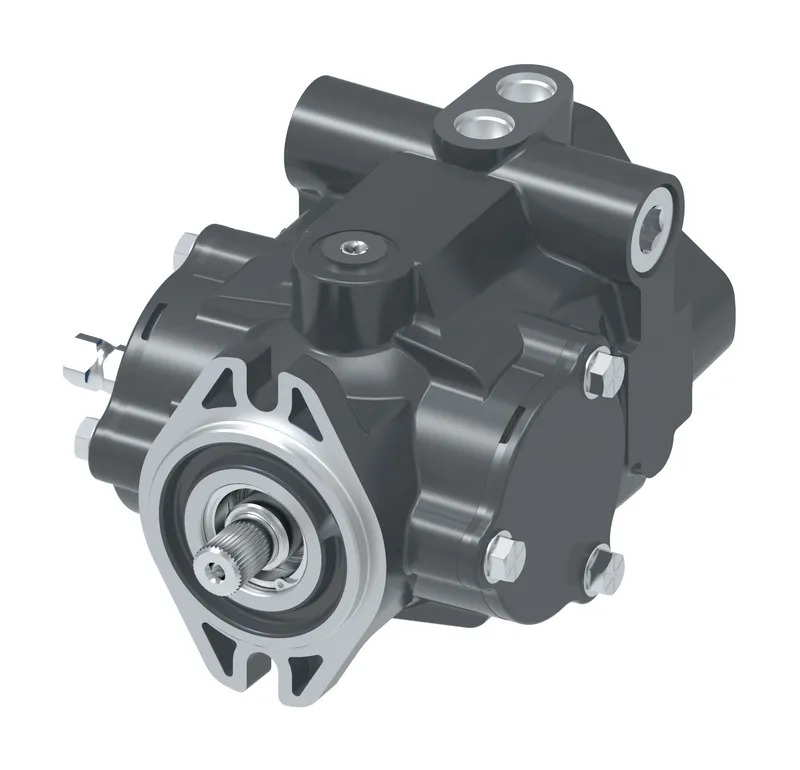

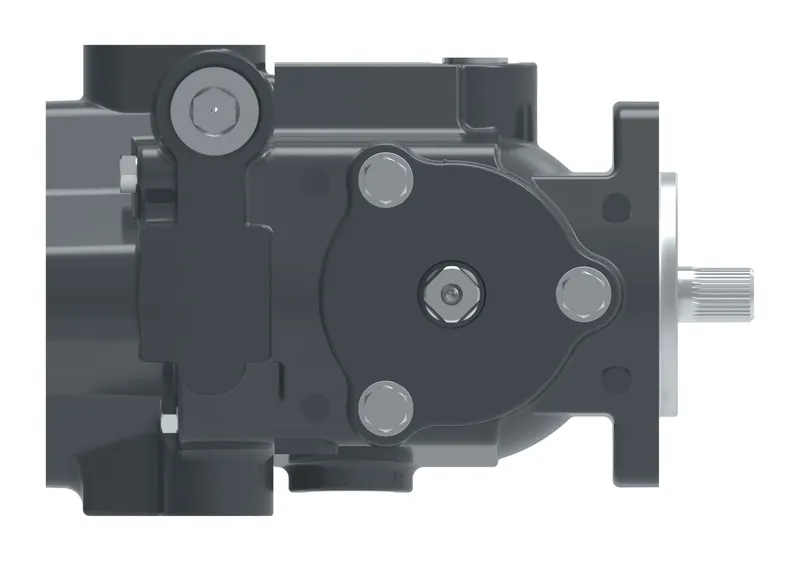

PUMP-VAR DISP, 70160PV24 CW, ADB14R1DLC11QQ000D00310D0B0M0B0C

Name: PUMP-VAR DISP, 70160PV24 CW, ADB14R1DLC11QQ000D00310D0B0M0B0C
Brand: Danfoss (Drives)
SKU: 70160-RDL-03

MPN: 70160-RDL-03 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mobile closed-circuit piston pumps
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 70160-RDL-03 be shipped?

70160-RDL-03 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 70160-RDL-03 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 70160-RDL-03 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 70160-RDL-03, subject to availability and destination.

Danfoss PUMP-VAR DISP, 70160PV24 CW, ADB14R1DLC11QQ000D00310D0B0M0B0C, manufacturer part number 70160-RDL-03. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Additional functions	Bleed-off in control shaft position b 13.79-17.24 bar [200-250 lbf/in2]
Aux mount and output shaft	No integral charge: horizontal / vertical SAE J744 flange 82-2 (2 bolt A) 35 tooth external 48/96 pitch spline with 32 [1.26]shaft extension (coupler required)
Aux port side C4 or C5 CHG	No auxiliary port
Aux port top front C1 or BPV	Bypass valve installed
Auxiliary port top-rear C2	.750-16 UNF-2B SAE o-ring port
Brand	Danfoss
Case drain D1 and D2	.750-16 UNF-2B SAE o-ring port D1-top and .750-16 UNF-2B SAE o-ring port D2-bottom
Charge disp and suction port S	No charge pump
Charge special feature	No special charge feature
CODE TITLE	Medium duty manually variable displacement axial piston pump with SAE J744 flange 82-2 (2 bolt A)
Control shaft	With keyway 4.78 X 16.3 [.188 X .64], arm diameter 19 [.748] (square key included); 113 [4.45] from unit centerline to controlshaft end
Control shaft location	Left side
CPRV setting and routing	No charge relief (requires external relief set between 6.89 bar [100 lbf/in2] and 20.68 bar [300 lbf/in2]
Design code	Design code C
Displacement	23.6 cm3/r [1.44 in3/r]
Flow rate gpm	22.4
Flow rate lpm	85.0
Identification	Eaton identification label
Input shaft	15 tooth 16/32 pitch spline, shaft extension 41.1 [1.62]
Input shaft rotation	Righthand rotation (cw)
Main port location A and B	Opposite sides
Main port size A and B	1.0625-12 UN-2B SAE o-ring ports
Maximum output speed	3600
Maximum temperature C	107.00
Maximum temperature F	225.00
Model Code 1	ADB14R1DLC11QQ000D00310D0B0M0B
Model Code 2	0C
Mounting Flange	2-bolt-A
Note	For additional application details contact Danfoss Representative
Output torque lbf*in	1031.3
Output torque n*m	116.5
Paint	Black per spec 209-13B
Product height in	6.530
Product height mm	165.862
Product length in	9.950
Product length mm	252.730
Product width in	6.530
Rel_valve_set_main_port_A	RVS A, 4500 psi (310.3 bar)
Rel_valve_set_main_port_B	RVS B, 4500 psi (310.3 bar)
Special features	Offset swashplate; 0.75 bar [10.9 lbf/in2] CVS, main port high pressure relief valve
Special features aux mounting	No special features
Thru drain front D4	No thru drain (d4)-front
Valve plate	Valve plate - type 1
Working pressure bar	310
Working pressure psi	4500
