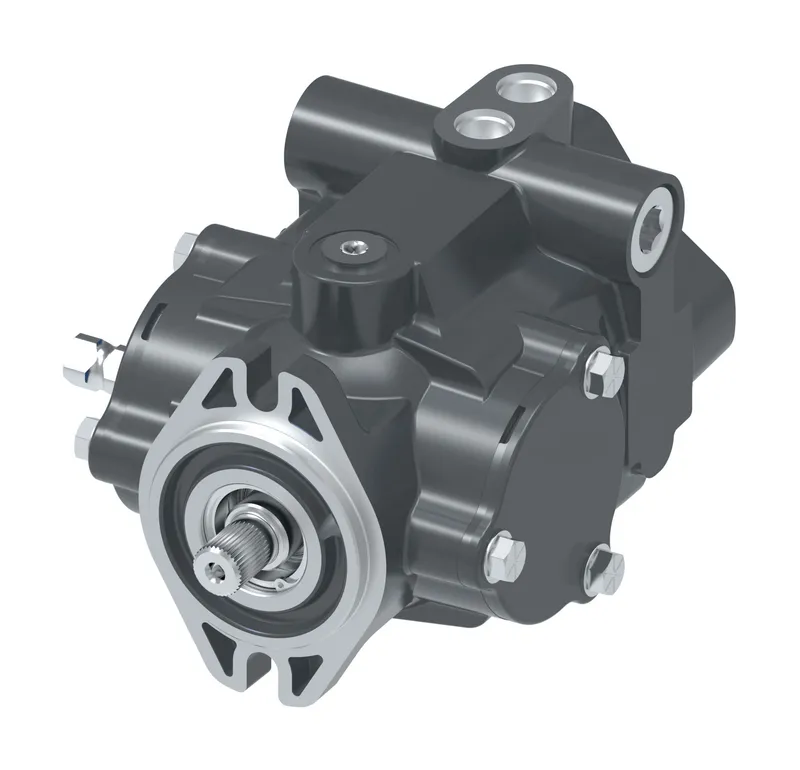

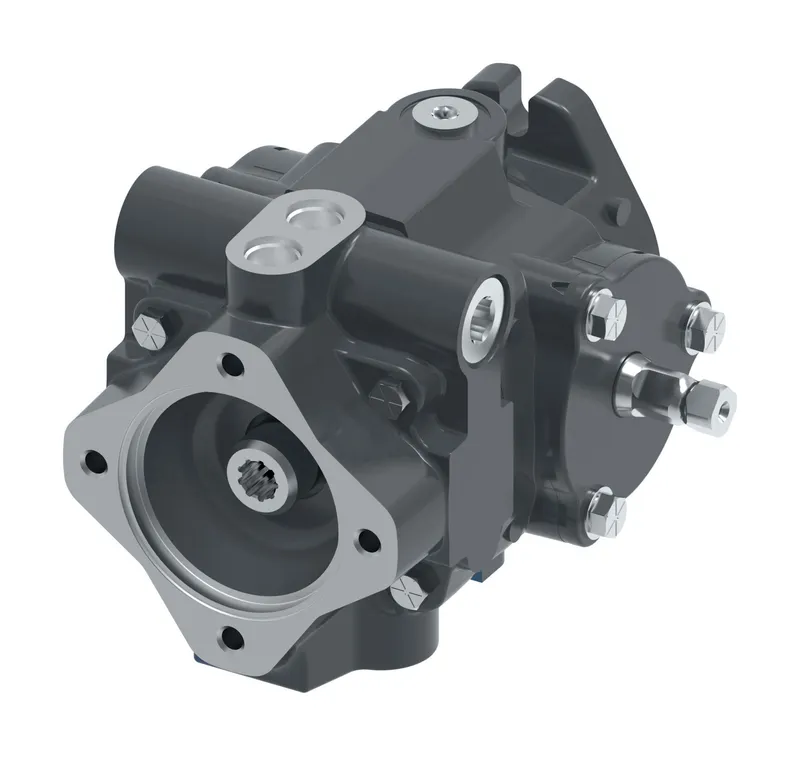

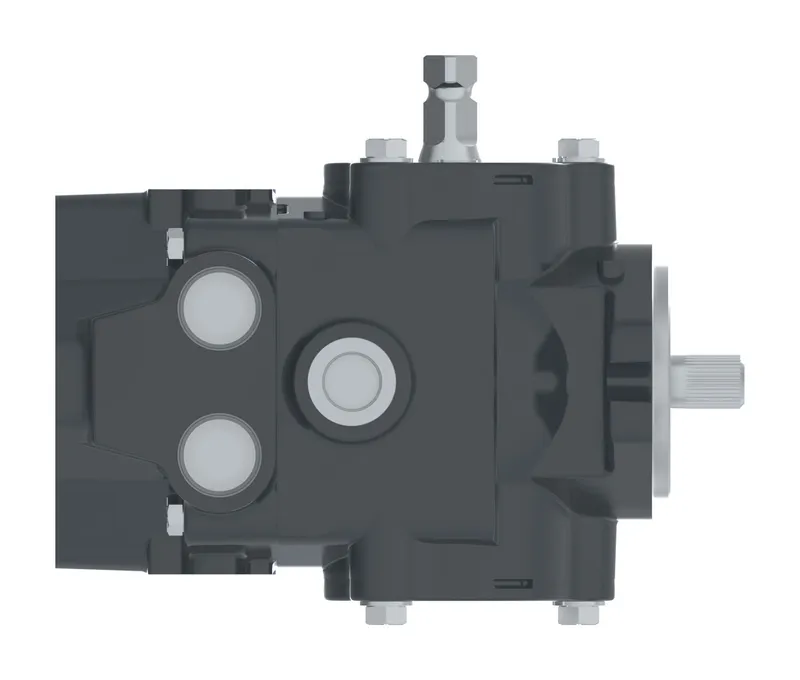

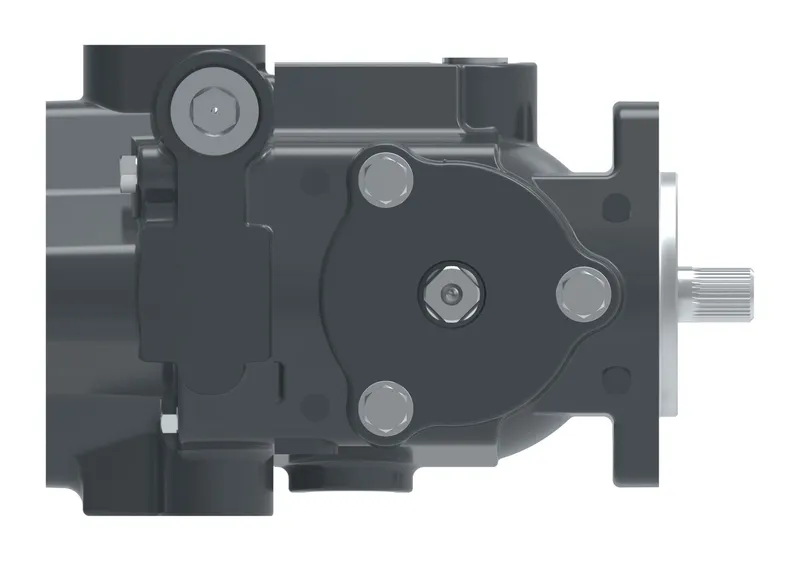

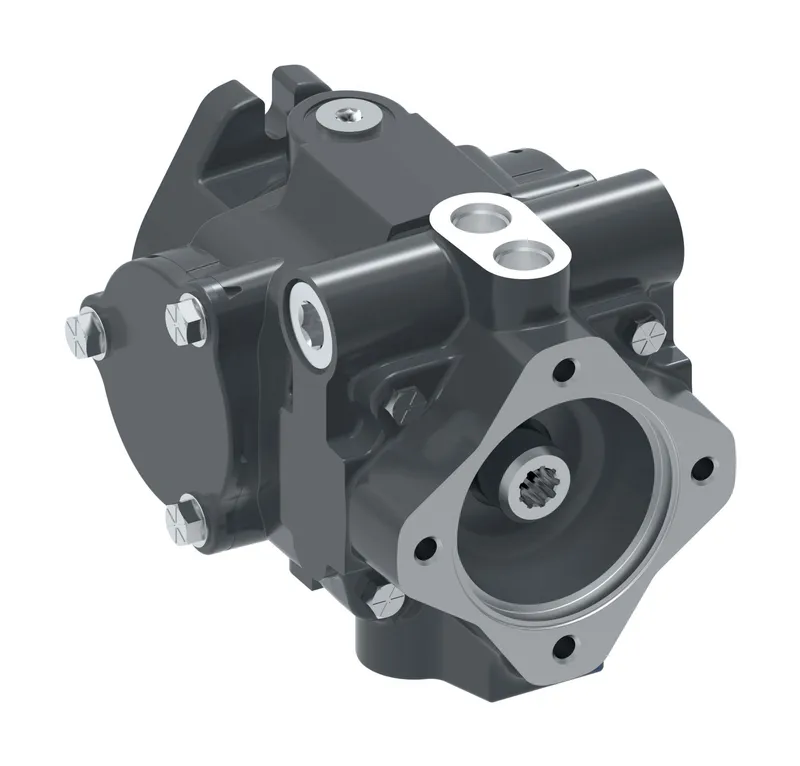

PUMP-VAR DISP, 70160PV20 CCW, ADB12L5NRG21NN0E0HAE100A000BAF0C
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mobile closed-circuit piston pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 70160-LBW-03 be shipped?
70160-LBW-03 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 70160-LBW-03 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 70160-LBW-03 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 70160-LBW-03, subject to availability and destination.
Danfoss PUMP-VAR DISP, 70160PV20 CCW, ADB12L5NRG21NN0E0HAE100A000BAF0C, manufacturer part number 70160-LBW-03. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Additional functions | No additional functions |
| Aux mount and output shaft | No integral charge: horizontal / vertical SAE J744 flange 82-2 (2 bolt A) 35 tooth 48/96 pitch spline, with 18.3 [.72] shaftextension (coupler required) |
| Aux port side C4 or C5 CHG | No auxiliary port |
| Aux port top front C1 or BPV | .750-16 UNF-2B SAE o-ring port |
| Auxiliary port top-rear C2 | No auxiliary port or bypass valve (special short pump) |
| Brand | Danfoss |
| Case drain D1 and D2 | .750-16 UNF-2B SAE o-ring port D1-top (D2- bottom plugged) |
| Charge disp and suction port S | No charge pump |
| Charge special feature | No special charge feature |
| CODE TITLE | Medium duty manually variable displacement axial piston pump with SAE J744 flange 82-2 (2 bolt A) |
| Control shaft | With 15.7 [.62] square arm, and radius 4.83 [.190] locking bolt groove; M8 X 1.25-6H 12.2 [.48] min full thread; 113 [4.45] fromunit centerline to control shaft end |
| Control shaft location | Right side |
| CPRV setting and routing | 20.68-24.13 bar [300-350 lbf/in2] relieved to case |
| Design code | Design code C |
| Displacement | 20.3 cm3/r [1.24 in3/r] |
| Flow rate gpm | 19.3 |
| Flow rate lpm | 73.2 |
| Identification | Eaton identification label |
| Input shaft | .125:1 taper, 25.4 [1.000] dia shaft w/6.35 X 15.88 [.250 X .625] key (included); M8 X 1-6H, 12.2 [.48] min thread; 33.3 [1.31]shaft extension |
| Input shaft rotation | Lefthand rotation (ccw) |
| Main port location A and B | Same side (bottom) |
| Main port size A and B | 1.0625-12 UN-2B SAE o-ring ports |
| Maximum output speed | 3600 |
| Maximum temperature C | 107.00 |
| Maximum temperature F | 225.00 |
| Model Code 1 | ADB12L5NRG21NN0E0HAE100A000BAF |
| Model Code 2 | 0C |
| Mounting Flange | 2-bolt-A |
| Note | For additional application details contact Danfoss Representative |
| Output torque lbf*in | 789.4 |
| Output torque n*m | 89.2 |
| Paint | White per spec 209-13AF |
| Rel_valve_set_main_port_A | RVS A, 4000 psi (275.8 bar) |
| Rel_valve_set_main_port_B | RVS B, 4000 psi (275.8 bar) |
| Special features | Special short pump |
| Special features aux mounting | Supply shaft coupler 35 tooth 48/96 pitch |
| Thru drain front D4 | No thru drain (d4)-front |
| Valve plate | Valve plate - type 5 |
| Working pressure bar | 276 |
| Working pressure psi | 4000 |
