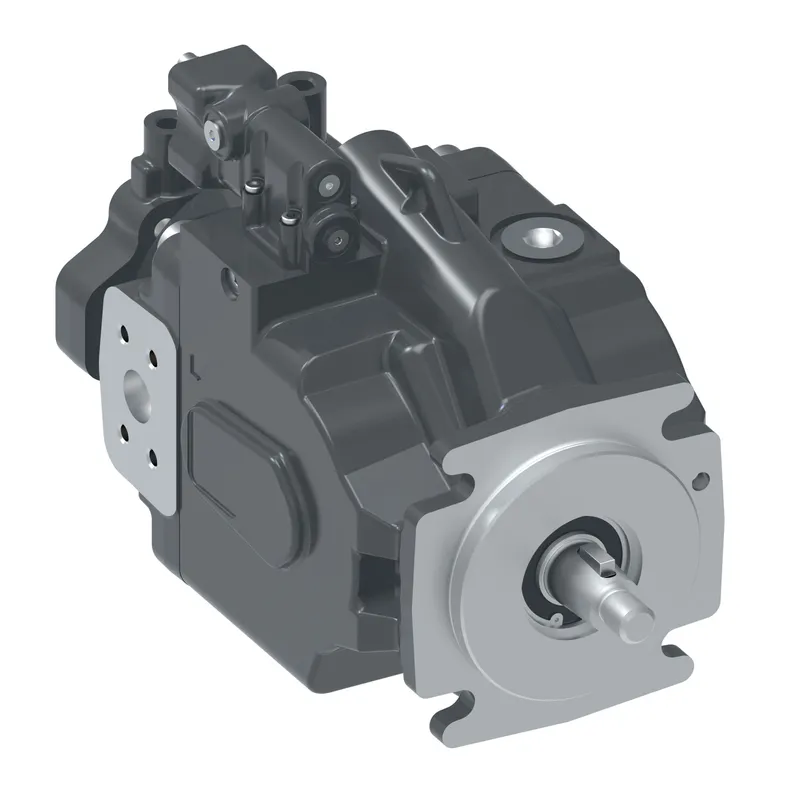

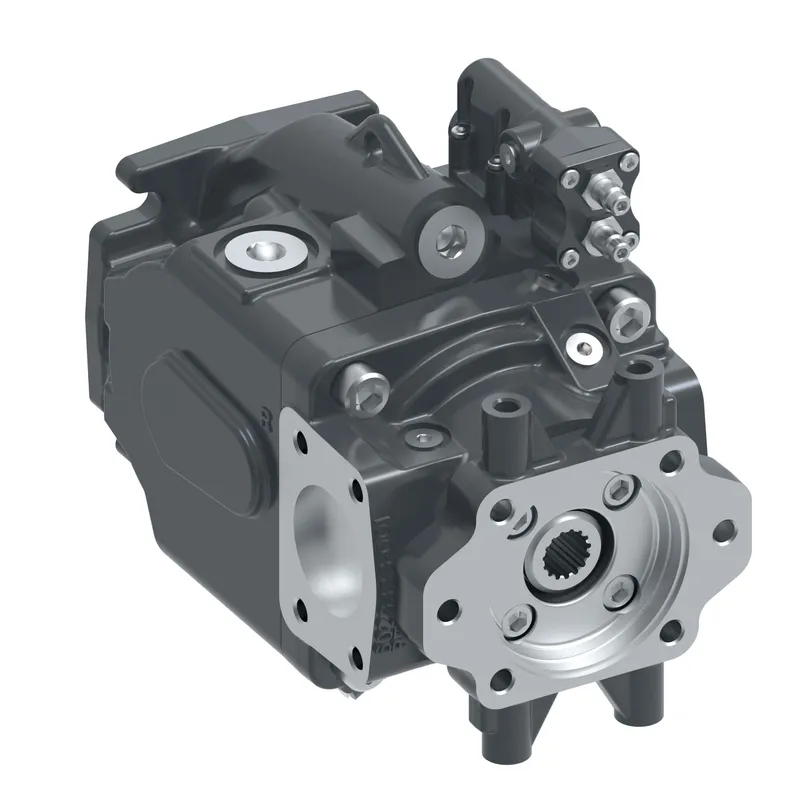

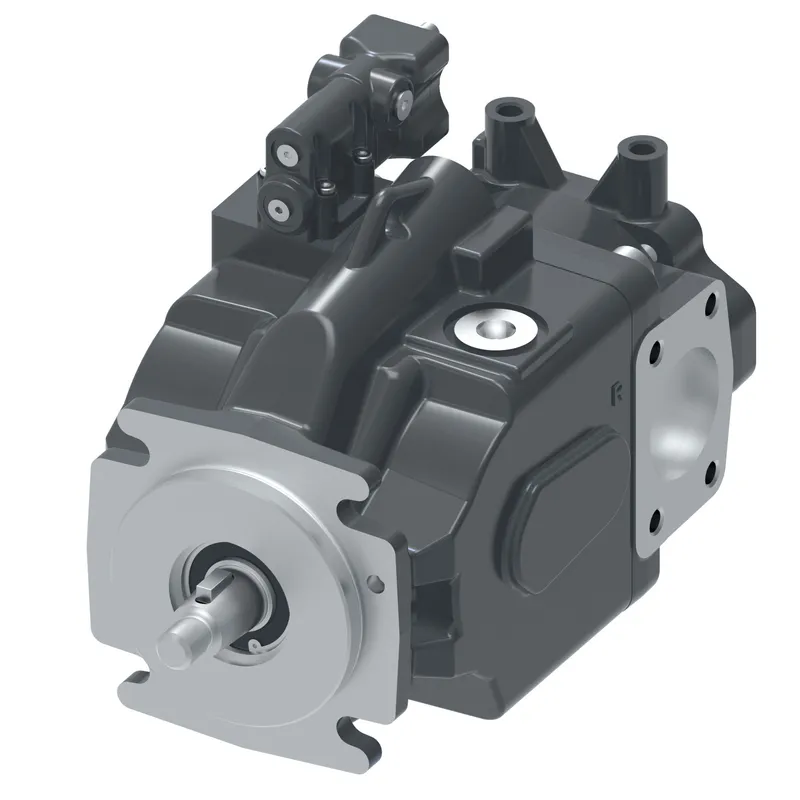

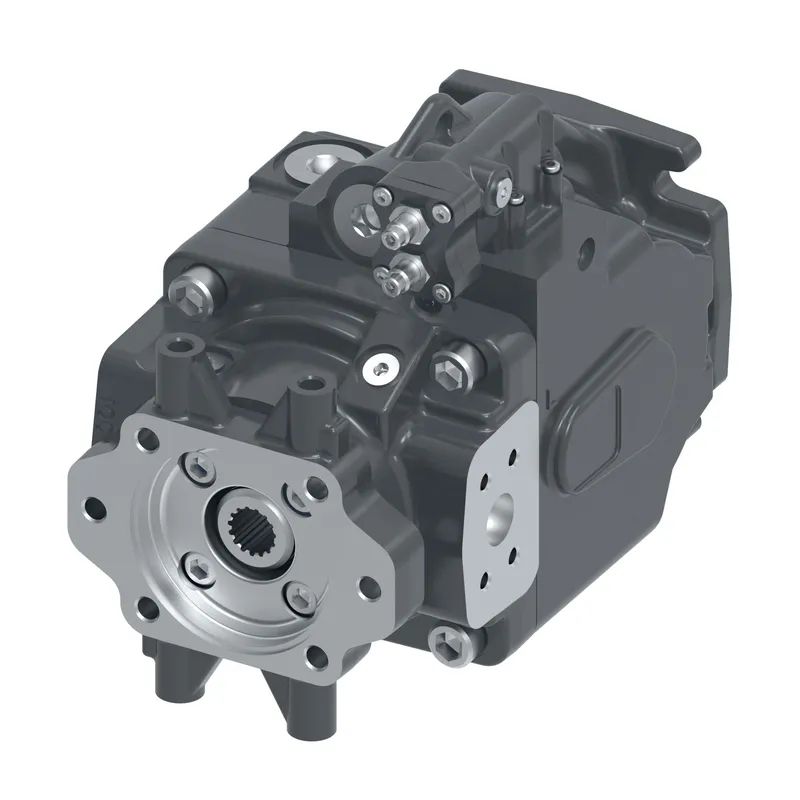

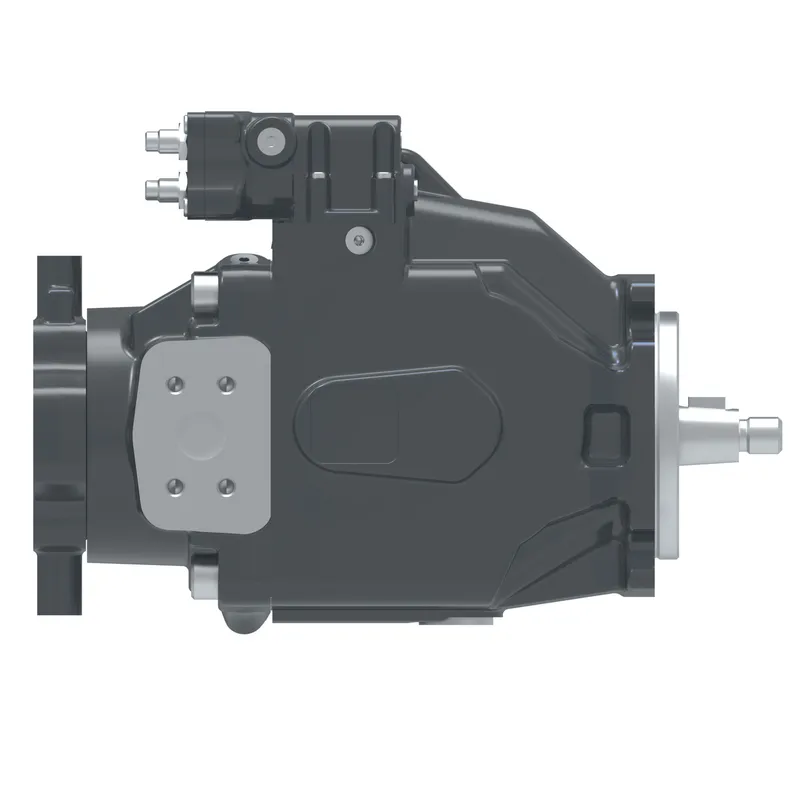

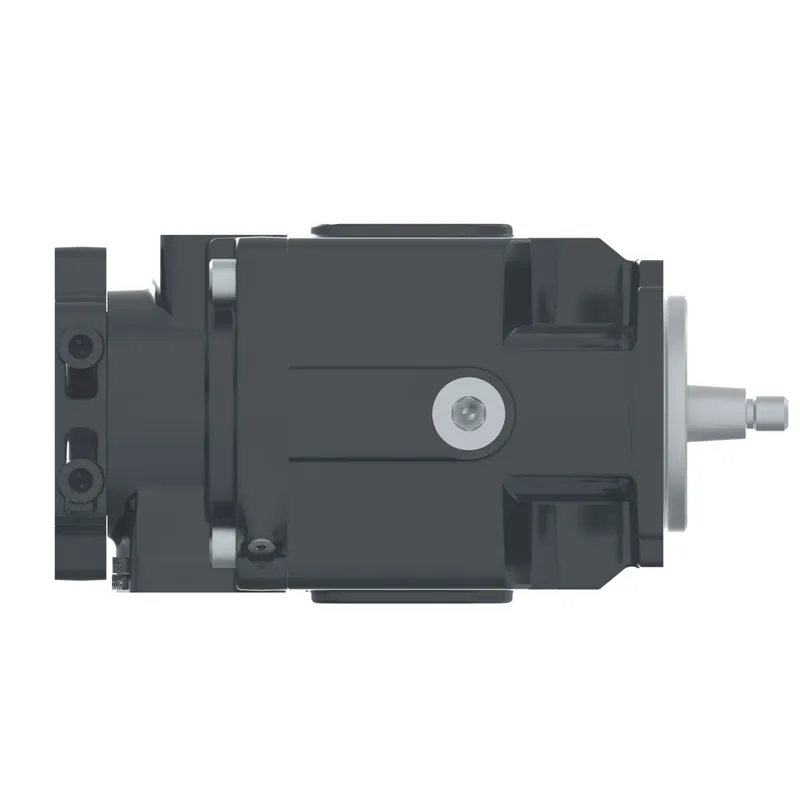

ADY098R06AB10AA4432000001AC100CD00B

Name: ADY098R06AB10AA4432000001AC100CD00B
Brand: Danfoss (Drives)
SKU: 622AK00435B

MPN: 622AK00435B · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	X20 series piston pumps
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 622AK00435B be shipped?

622AK00435B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 622AK00435B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 622AK00435B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 622AK00435B, subject to availability and destination.

Danfoss ADY098R06AB10AA4432000001AC100CD00B, manufacturer part number 622AK00435B. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Aux mount output shaft	SAE J744 FLANGE 101-2/4 (2/4 BOLT B); ACCEPTS 13T 16/32 SPLINE WITH 41.0 (1.61) SHAFT EXT. (COUPLER INCLUDED)
Brand	Danfoss
CODE TITLE	PRESSURE COMPENSATED/PRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP
Control special feature	NO CONTROL SPECIAL FEATURES
Controller type	PRESSURE & FLOW COMPENSATOR WITH .4375-20 SAE O-RING LOAD SENSE PORT (LEFT SIDE)
Design code	SECOND DESIGN
Diagnostic pressure ports	NO DIAGNOSTIC PRESSURE PORTS
Displacement	98.0 cm3/r [5.98 in3/r]
Drain port size location	1.3125-12 UNF-2B O-RING PORT – TOP
Flow comp rpc setting	19.0-21.0 bar [276-305 lbf/in2]
Front mounting input shaft	4 BOLT C (SAE J744-127-4) WITH 14 TOOTH 12/24 PITCH SPLINE SHAFT (SAE J744-32-4)
Identification packaging	MARK EATON PRODUCT NUMBER AND FULL MODEL CODE ON LABEL
Input shaft rotation	RIGHT-HAND ROTATION (CW) RIGHT SIDE SUCTION PORT LEFT SIDE PRESSURE PORT
Main ports size location	SIDE PORTS; SUCTION: 2.50 SAE J518 4-BOLT SPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61); PRESSURE: 1.00 SAE J518 4-BOLTSPLIT FLANGE PORT STANDARD PRESSURE SERIES (CODE 61)
Maximum displacement option	STANDARD DISPLACEMENT (AS GIVEN IN CODE TITLE)
Paint	BLUE PRIMER
PRESSURE COMP SETTING	286.1-293.0 bar [4150-4250 lbf/in2]
PUMP SPECIAL FEATURES	NO PUMP SPECIAL FEATURES
Shaft seal	STANDARD FLUOROCARBON SHAFT SEAL
Torque control setting	NO TORQUE CONTROL
