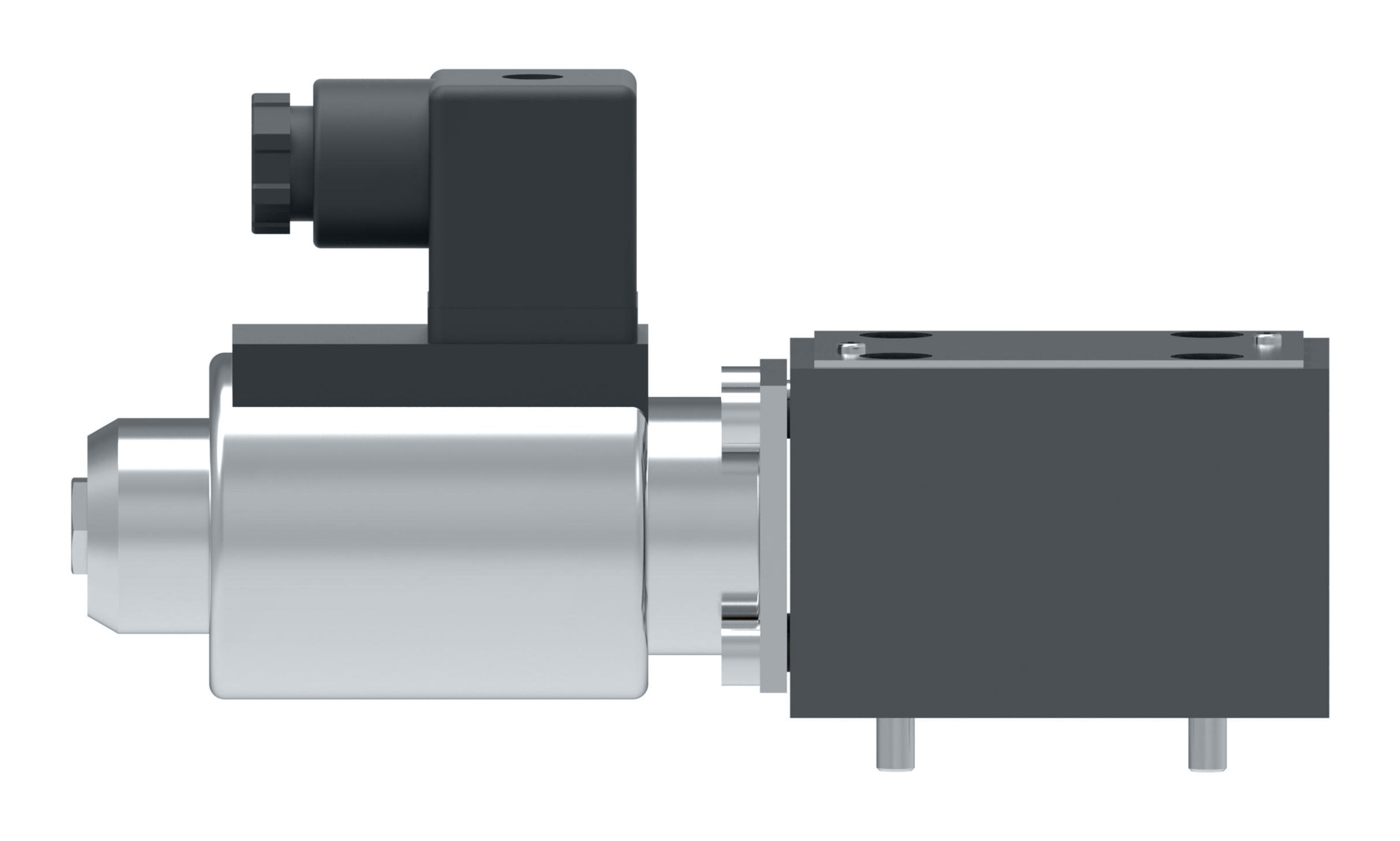

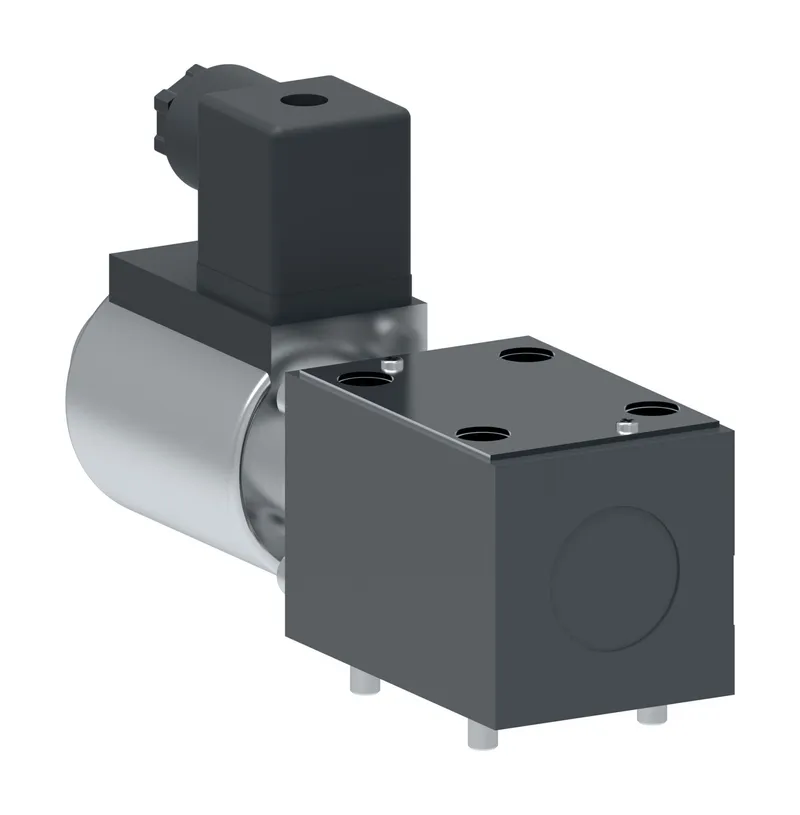

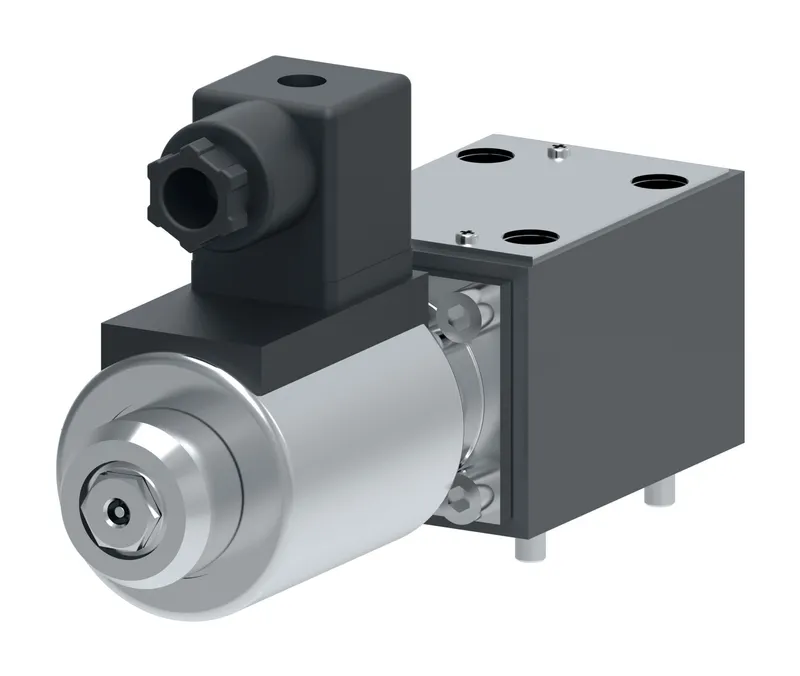

DG3VP-3-103A-VM-U-P-20, DG3VP3103AVMUP20

Name: DG3VP-3-103A-VM-U-P-20, DG3VP3103AVMUP20
Brand: Danfoss (Drives)
SKU: 6042893-037

MPN: 6042893-037 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Industrial valves
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 6042893-037 be shipped?

6042893-037 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6042893-037 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6042893-037 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6042893-037, subject to availability and destination.

DG3VP-3-103A-VM-U-P-20, DG3VP3103AVMUP20 - 6042893-037

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	110 VDC
Design Series	20 Series
Electrical Connection	ISO 4400 (Din 43650) connector
Flow rate upto GPM	5.3
Flow rate upto LPM	20.0
Fluid Cleanliness	20/18/15 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-03
Manual override	Plain
Model Code 1	DG3VP3103AVMUP20
Performance	High performance
Power Consumption	38 watt
Pressure rating BAR	315
Pressure rating PSI	4500
Product height in	3.230
Product length in	6.430
Product length mm	163.322
Product width in	1.810
Product width mm	45.974
Seal type	Buna-N
Solenoid Energising ID	Solenoid A at port A end
Special features	None
Spool Position Monitor	No
Spool Type	Spool 103
Spring Arrangement	Spring offset end to end
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
