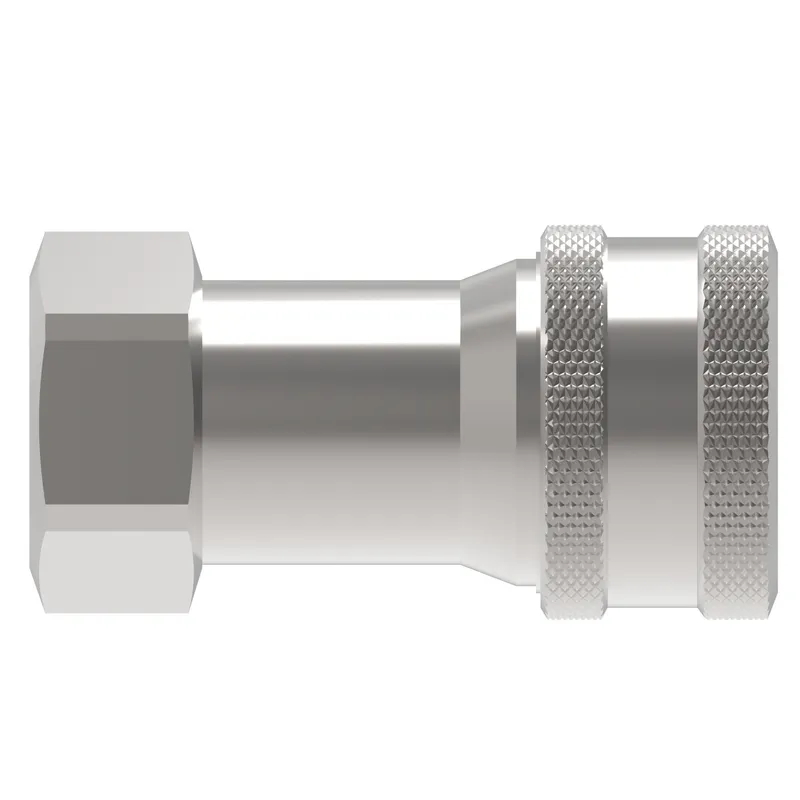

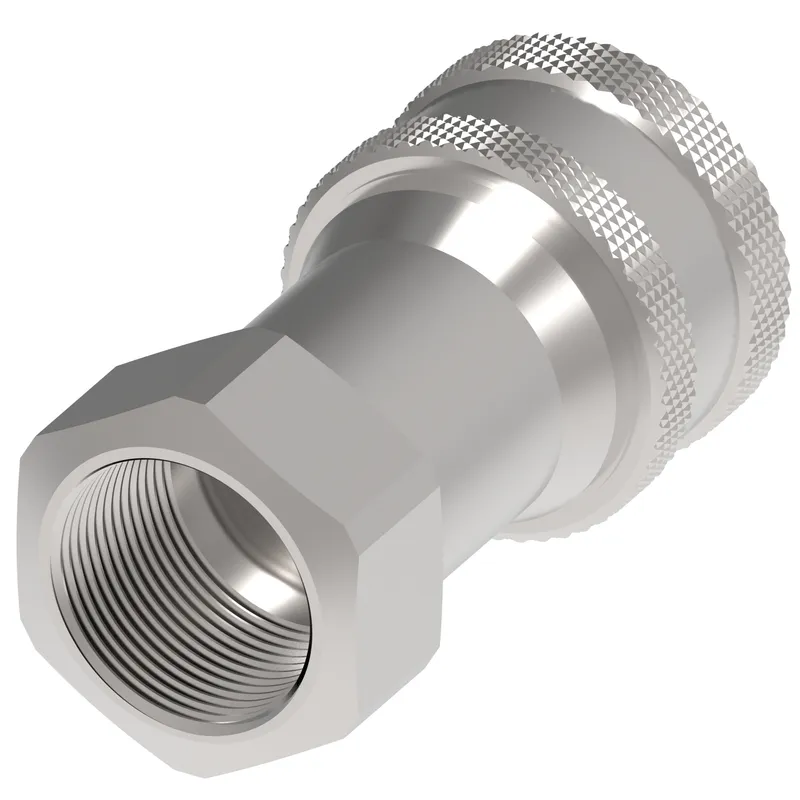

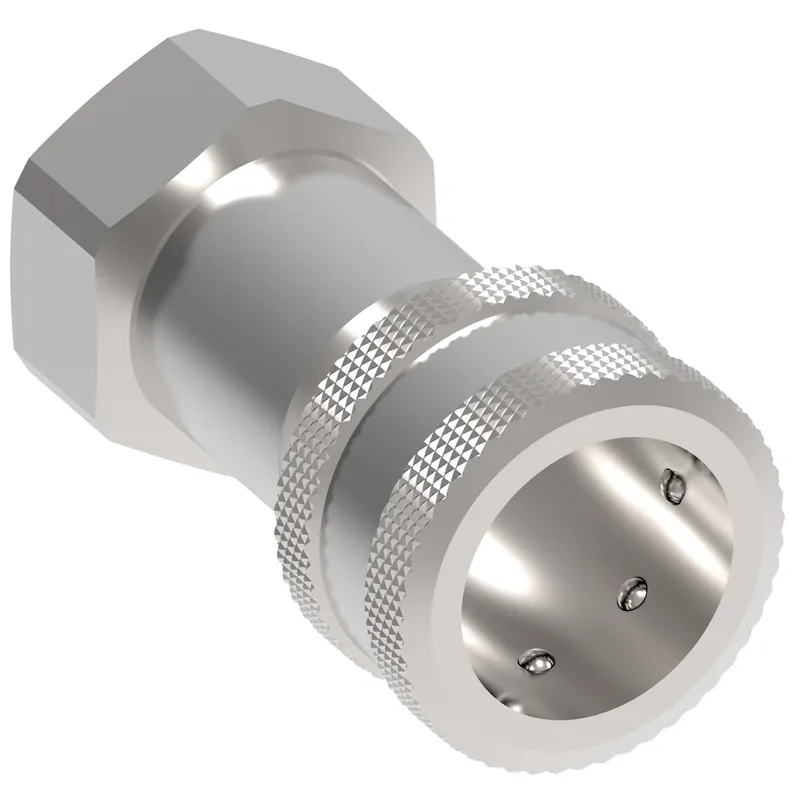

COUPLING,5600,F,1/4,CS,-4NPT,EPDM
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss Hansen® quick disconnect couplings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 5643-4-4S be shipped?
5643-4-4S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5643-4-4S in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5643-4-4S and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5643-4-4S, subject to availability and destination.
Danfoss COUPLING,5600,F,1/4,CS,-4NPT,EPDM, manufacturer part number 5643-4-4S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146036575 |
| Angle shape | Straight |
| Body size | 1/4 |
| Certifications | ISO 7241-1 Series A |
| End size 1 | -4 |
| End type 1 | Female pipe (NPTF) |
| Finish plating | Zinc trivalent |
| Hex size 1 IN | 0.880 |
| Item type | Female half |
| Latch type | Push/pull |
| Product length in | 1.810 |
| Product material | Carbon steel |
| Seal material | Ethylene propylene (EPDM) |
| Thread size 1 | 1/4-18 NPT |
| Valve type | 2 way |
| Working pressure max psi | 5000 |
| Working temperature max F | 250 |
| Working temperature min F | -40 |
