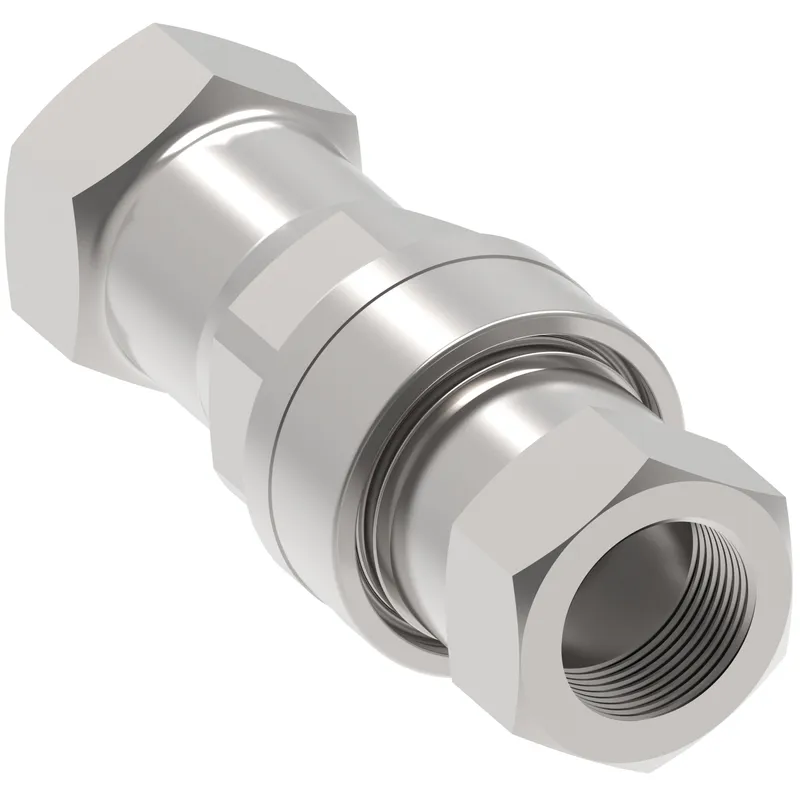

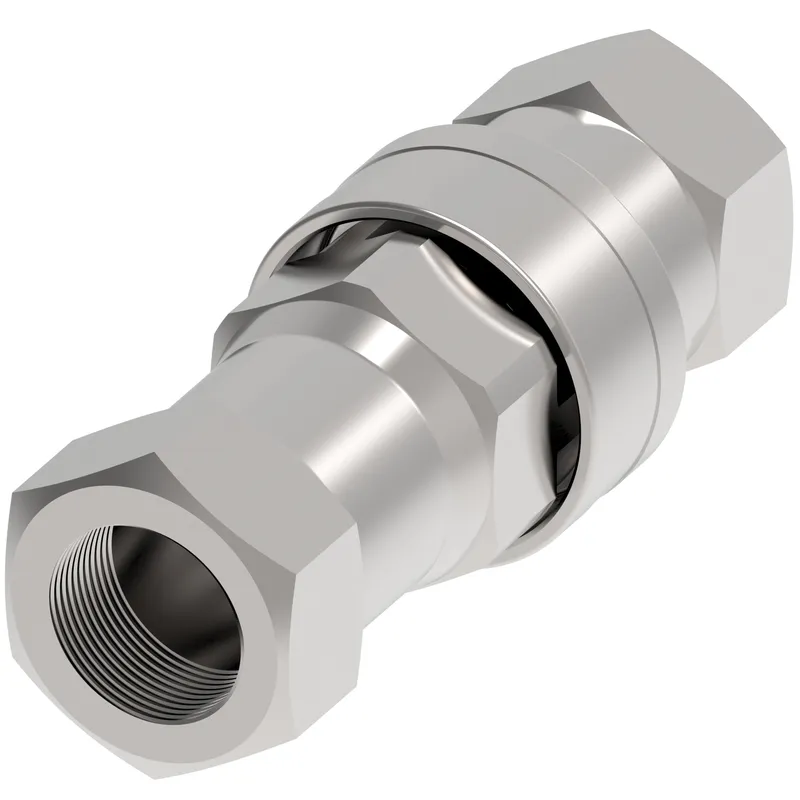

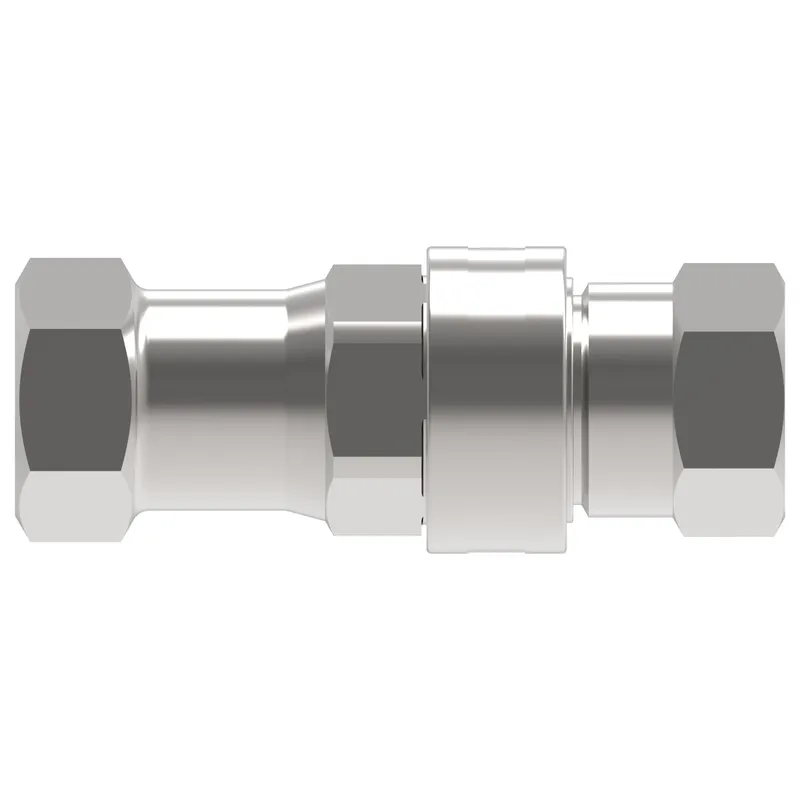

Cplng, 5600 SERIES complete
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss Hansen® quick disconnect couplings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 5606-6-6S be shipped?
5606-6-6S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5606-6-6S in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5606-6-6S and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5606-6-6S, subject to availability and destination.
Danfoss Cplng, 5600 SERIES complete, manufacturer part number 5606-6-6S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146036490 |
| Air inclusion max cc | 1.50 |
| Air inclusion max in3 | 0.09 |
| Angle shape | Straight |
| Body size | 3/8 |
| Brand | Danfoss |
| Burst pressure min bar | 827 |
| Burst pressure min psi | 12000 |
| Connection style | Manual connect |
| End size 2 | 9/16" |
| End type 1 | Female Push to Connect |
| Finish plating | Zinc |
| Flow rate GPM | 6.00 |
| Flow rate LPM | 22.71 |
| Fluid loss cc | 1.30000 |
| Fluid loss in3 | 0.07900 |
| Hex size 1 IN | 1.150 |
| Hex size 1 MM | 29.210 |
| Item type | Complete |
| Latch type | Push/pull |
| Product length in | 2.840 |
| Product material | Carbon steel |
| Seal material | Nitrile (NBR) |
| Sub brand | Hansen |
| Valve type | 2 way |
| Working pressure max psi | 4000 |
| Working pressure max BAR | 276 |
| Working temperature max C | 121 |
| Working temperature max F | 250 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
