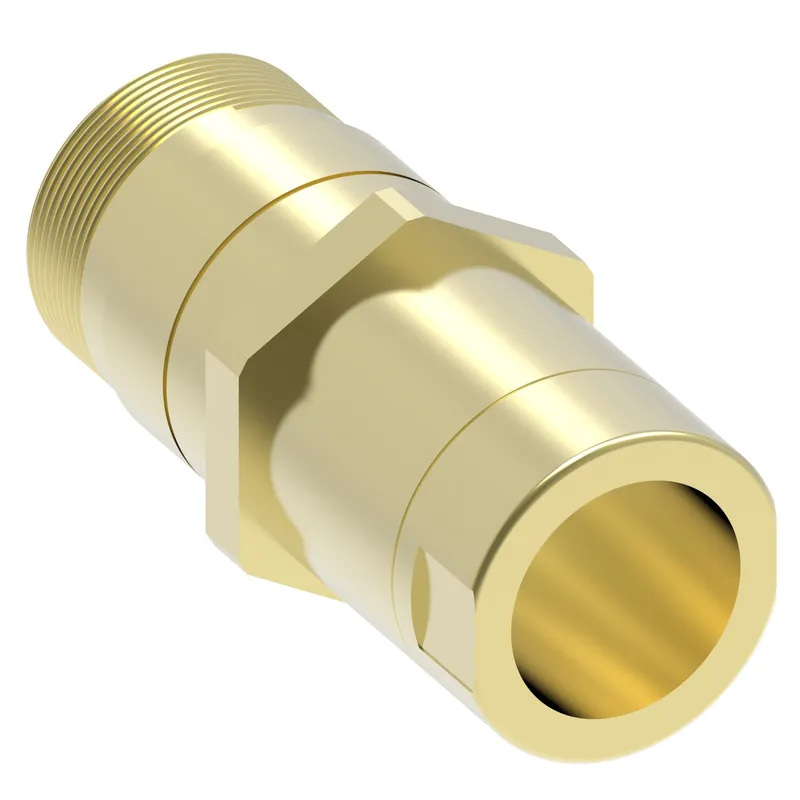

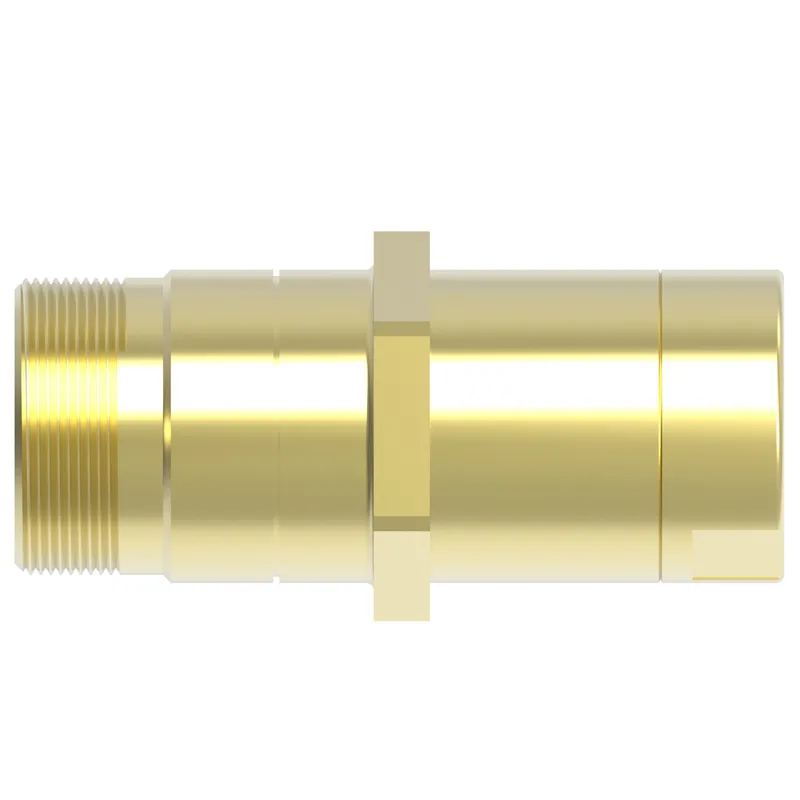

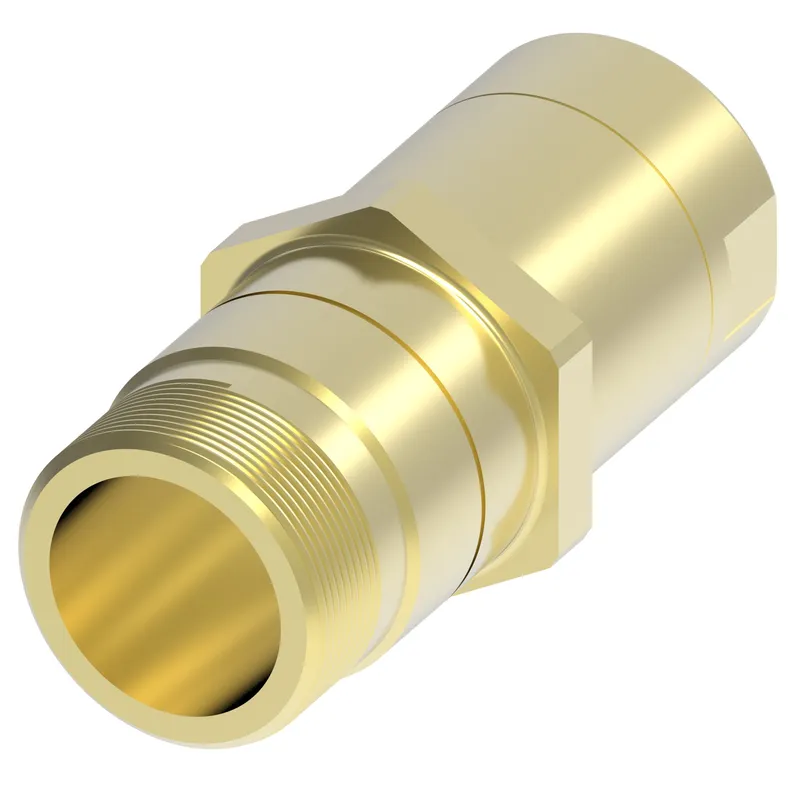

COUPLING,5100,M,3/4,B,-12NPT,NBR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss Hansen® quick disconnect couplings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 5100-S2-12B be shipped?
5100-S2-12B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5100-S2-12B in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5100-S2-12B and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5100-S2-12B, subject to availability and destination.
Danfoss COUPLING,5100,M,3/4,B,-12NPT,NBR, manufacturer part number 5100-S2-12B. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146015587 |
| Air inclusion max cc | 0.34 |
| Angle shape | Straight |
| Application | Bulk liquid transfer, Fluid transfer, Highway water lines, Hydraulics, Landfill and refuse |
| Body size | 3/4 |
| Connection style | Manual connect |
| End size 1 | -12 |
| End type 1 | Female Pipe (NPT) |
| Flow rate GPM | 17.96 |
| Fluid compatibility | Hydraulic fluid |
| Fluid loss cc | 0.26000 |
| Hex size 1 IN | 1.820 |
| Item type | Male half |
| Latch type | Screw to connect |
| Product material | Brass |
| Seal material | Nitrile (NBR) |
| Thread size 1 | 3/4-14 NPTF |
| Thread size 2 | 3/4-14 NPTF |
| Valve type | 2 way |
| Working pressure max psi | 3000 |
| Working temperature max F | 250 |
| Working temperature min F | -40 |
