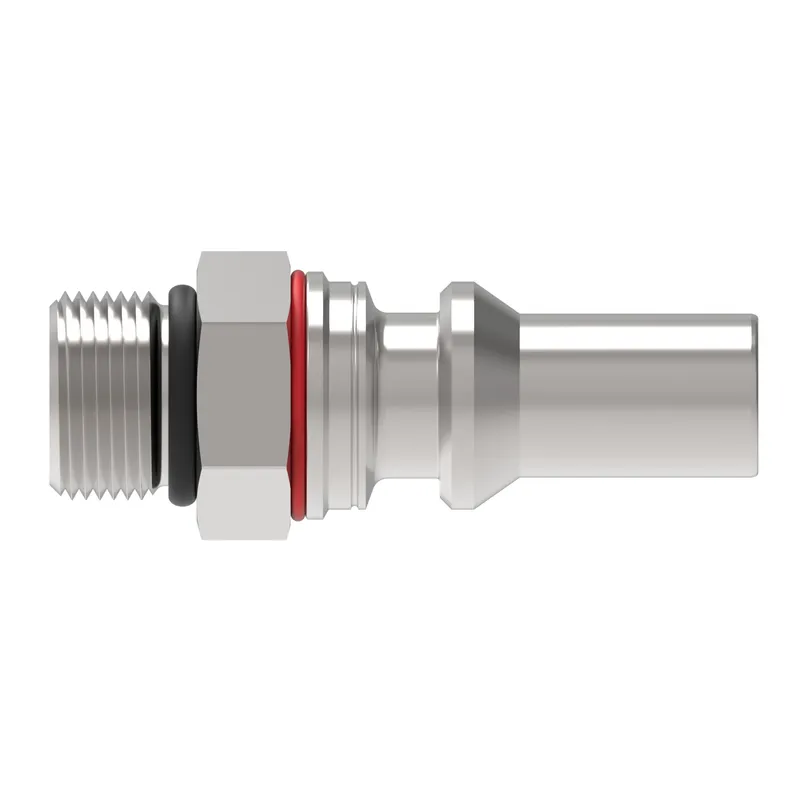

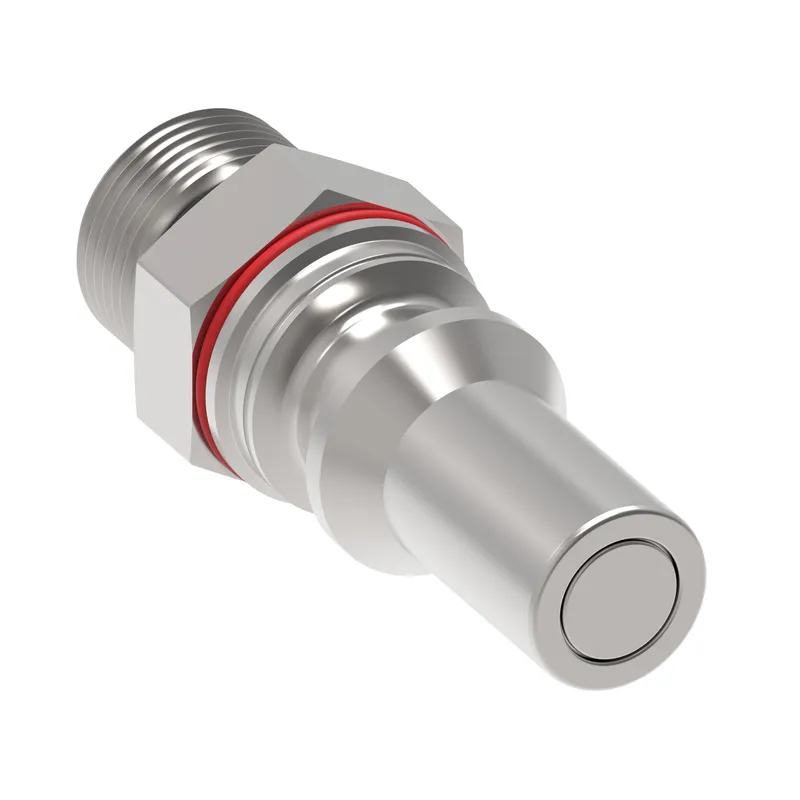

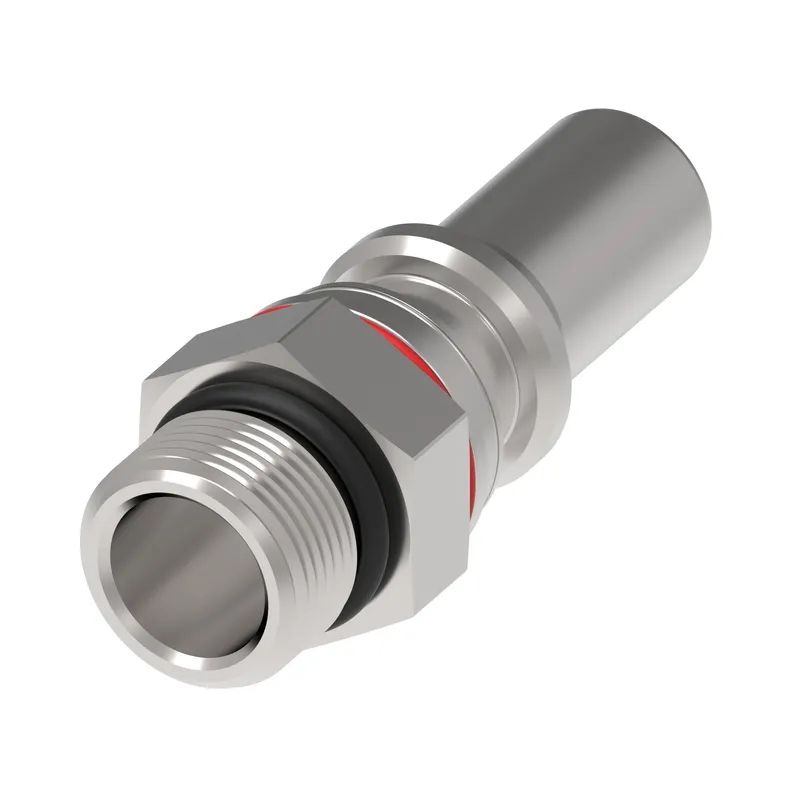

COUPLING,UQD,M,1/4,303,-6MUNF,EPDM
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss Hansen® quick disconnect couplings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 4UQP56ORMRD be shipped?
4UQP56ORMRD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4UQP56ORMRD in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4UQP56ORMRD and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4UQP56ORMRD, subject to availability and destination.
Danfoss COUPLING,UQD,M,1/4,303,-6MUNF,EPDM, manufacturer part number 4UQP56ORMRD. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 639789271136 |
| Air inclusion max cc | 0.02 |
| Angle shape | Straight |
| Application | Cooling applications, Data centers, Electronics |
| Body size | 1/4 |
| Brand | Danfoss |
| Burst pressure min bar | 48 |
| Burst pressure min psi | 696 |
| Connection style | Manual connect |
| End size 1 | -6 |
| End Type 1 | Male ORB ISO 11926-3 |
| Flow rate GPM | 1.70 |
| Flow rate LPM | 6.40 |
| Fluid loss cc | 0.01000 |
| Hex size 1 IN | 0.670 |
| Hex size 1 MM | 17.000 |
| Item type | Male half |
| Latch type | Push to connect |
| Product material | 303 Stainless steel |
| Seal material | Ethylene propylene (EPDM) |
| Sub brand | Hansen |
| Thread size 1 | 9/16-18 UNF |
| Valve type | 2 way |
| Working pressure max psi | 232 |
| Working pressure max BAR | 16.00 |
| Working temperature max C | 150 |
| Working temperature max F | 302 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
