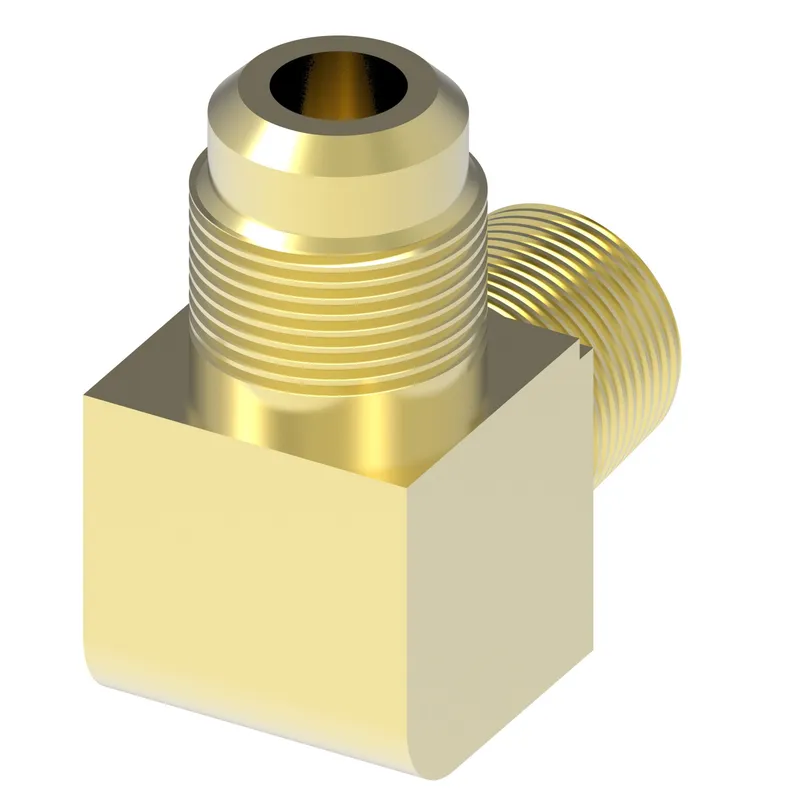

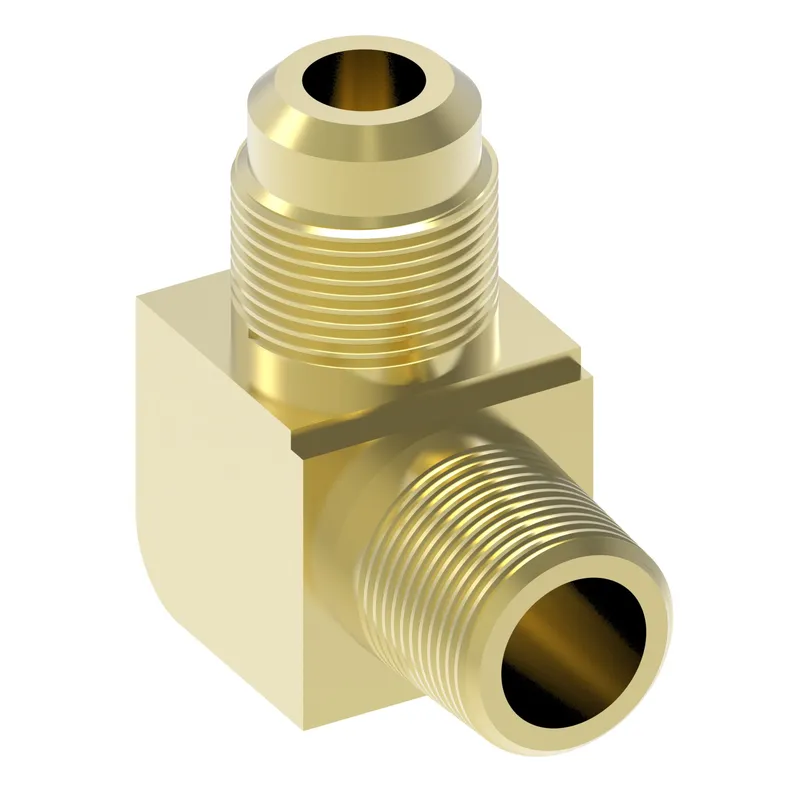

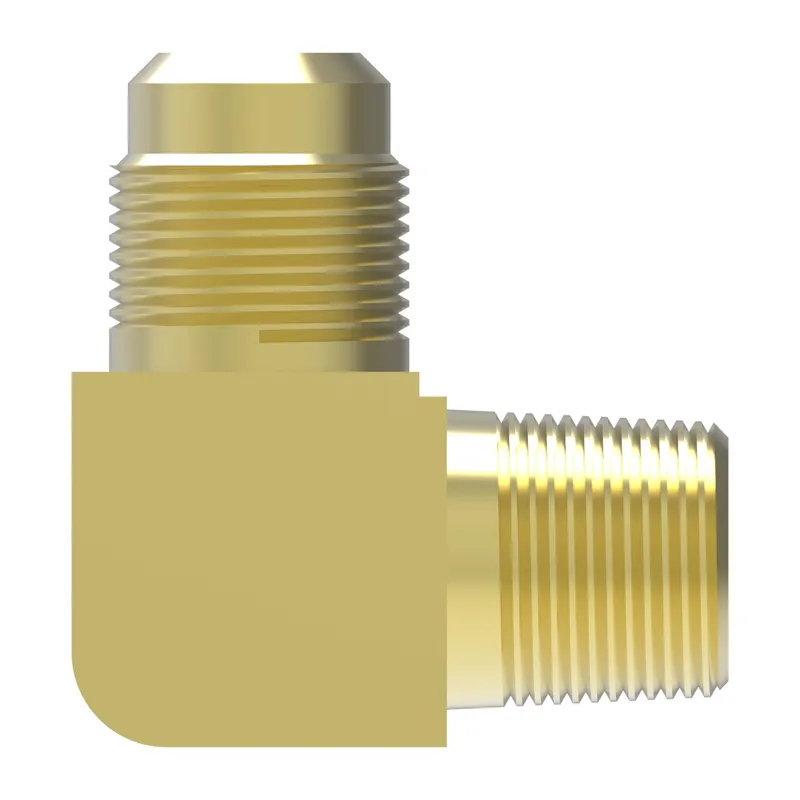

Adapter Brass SAE45 90 D 12 T X 12 MP

Name: Adapter Brass SAE45 90 D 12 T X 12 MP
Brand: Danfoss (Drives)
SKU: 49X12X12

MPN: 49X12X12 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Adapters and swivel joints
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 49X12X12 be shipped?

49X12X12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 49X12X12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 49X12X12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 49X12X12, subject to availability and destination.

Danfoss Adapter Brass SAE45 90 D 12 T X 12 MP, manufacturer part number 49X12X12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975708101
Angle shape	90 Degree
Brand	Danfoss
Drop dimension IN	1.500
Drop dimension MM	38.10
End Type 1	Male pipe (NPTF)
End Type 2	Male 37 degree
Hex size 1 IN	1.100
Hex size 1 MM	27.900
Item type	Adapter-elbow
Product material	Brass
Thread sealant	No
Thread size 2	1 1/16-14 UN
Tube outside diameter 1 IN	0.750
Tube outside diameter 1 MM	19.1
Tube outside diameter 2 IN	0.630
Tube outside diameter 2 MM	16.0
Working pressure bar	138.0
Working pressure psi	2000
Working temp max C	121
Working temp max F	250
Working temp min C	-54
Working temp min F	-65
