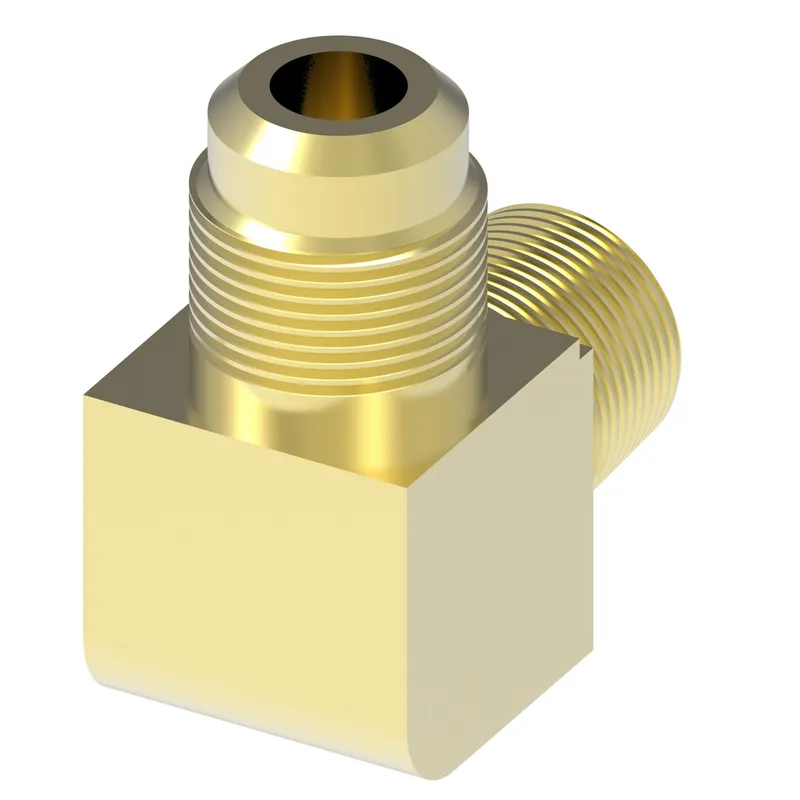

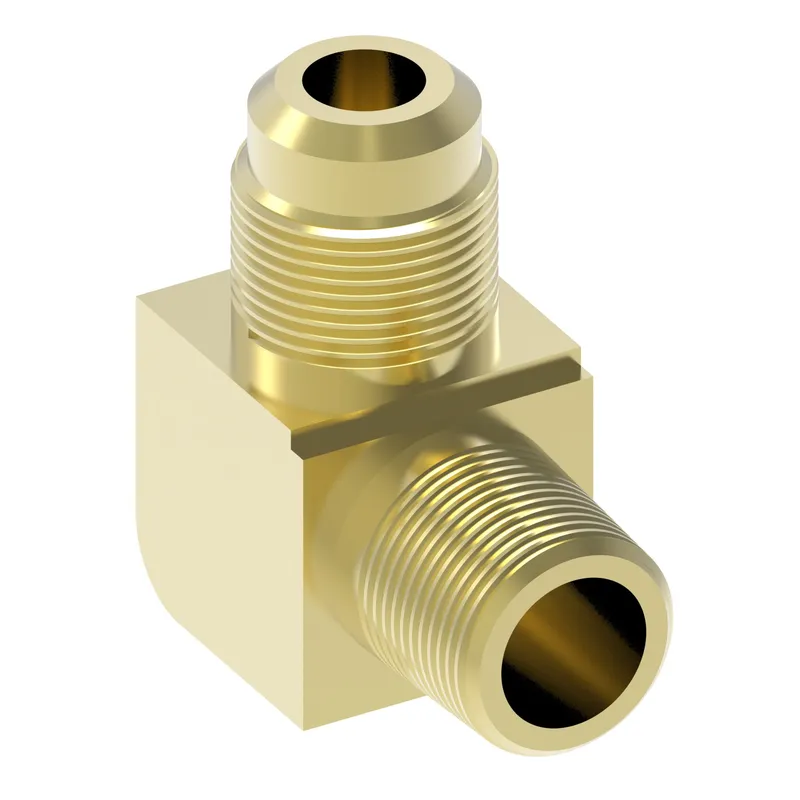

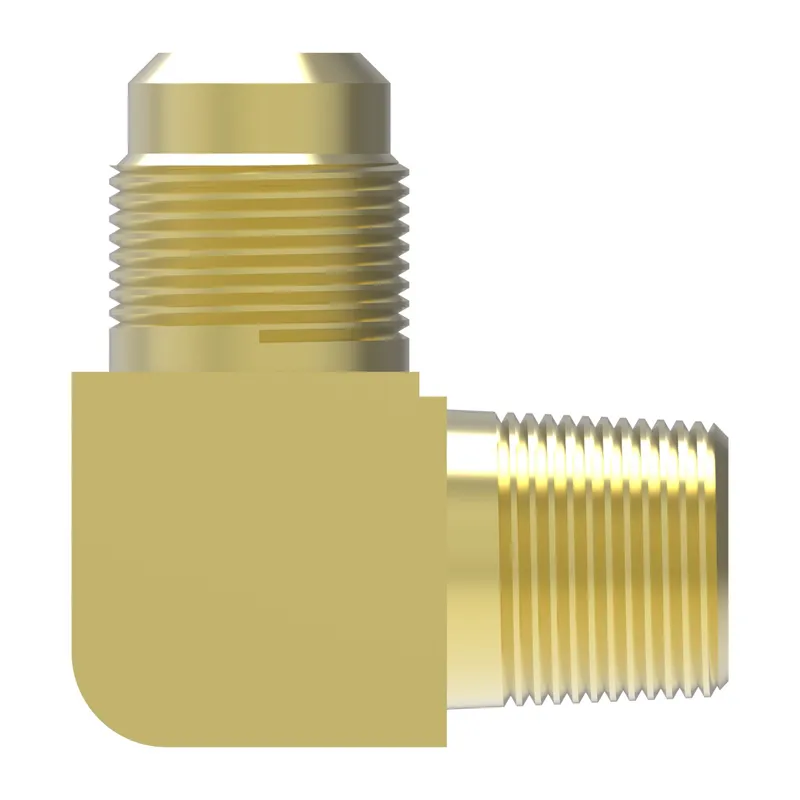

101-43610 SAE MALE ELBOW 5/8

Name: 101-43610 SAE MALE ELBOW 5/8
Brand: Danfoss (Drives)
SKU: 49X10X6

MPN: 49X10X6 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Adapters and swivel joints
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 49X10X6 be shipped?

49X10X6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 49X10X6 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 49X10X6 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 49X10X6, subject to availability and destination.

Danfoss 101-43610 SAE MALE ELBOW 5/8, manufacturer part number 49X10X6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975752272
Angle shape	90 Degree
Brand	Danfoss
Drop dimension IN	1.230
Drop dimension MM	31.20
End Type 1	Male pipe (NPTF)
End Type 2	Male 37 degree
Hex size 1 IN	0.920
Hex size 1 MM	23.400
Item type	Adapter-elbow
Product material	Brass
Thread sealant	No
Thread size 2	7/8-14 UNF
Tube outside diameter 1 IN	0.410
Tube outside diameter 1 MM	10.4
Tube outside diameter 2 IN	0.500
Tube outside diameter 2 MM	12.7
Working pressure bar	138.0
Working pressure psi	2000
Working temp max C	121
Working temp max F	250
Working temp min C	-54
Working temp min F	-65
