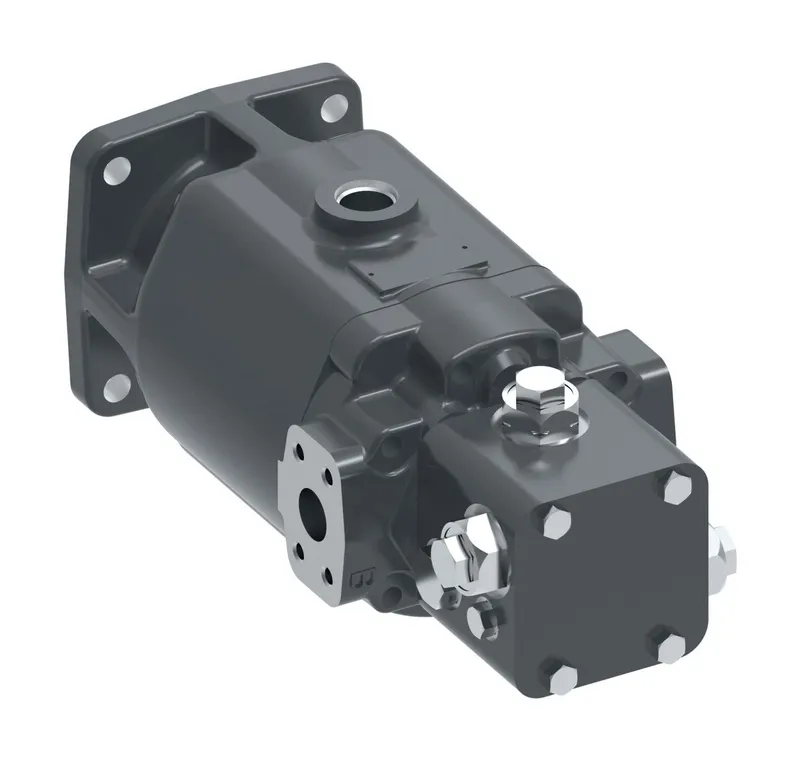

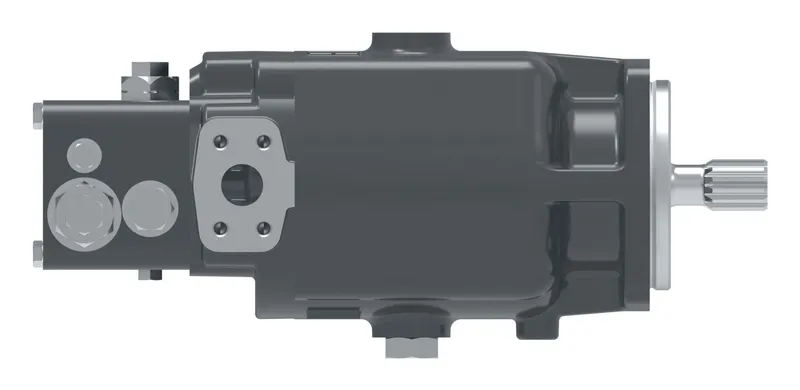

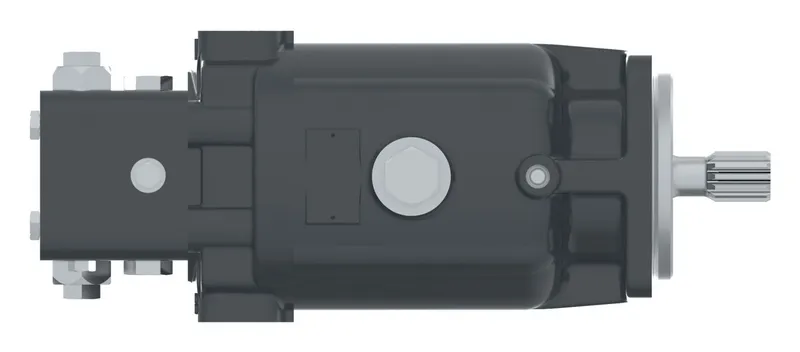

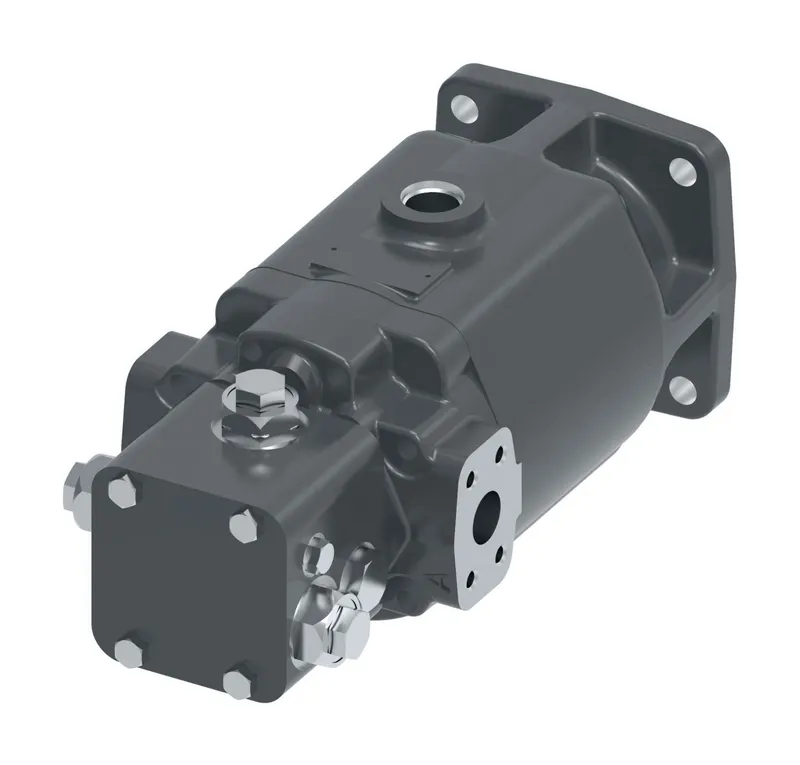

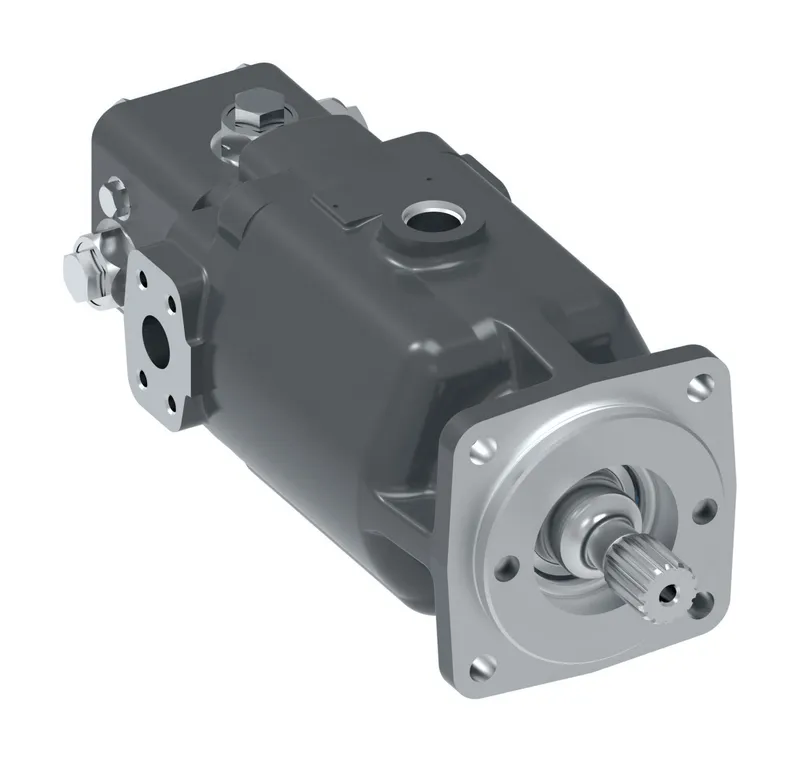

MOTOR-FIXED DISPL, S1MF075, HHD463314AC00000000000B
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Fixed displacement axial piston motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 4633-029 be shipped?
4633-029 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4633-029 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4633-029 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4633-029, subject to availability and destination.
Danfoss MOTOR-FIXED DISPL, S1MF075, HHD463314AC00000000000B, manufacturer part number 4633-029. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| CPRV setting | No charge pressure relief valve setting |
| CPRV type | No charge pressure relief valve |
| Design code | Design code B |
| Design type | Fixed clearance with lip seal (33/39/46/54/64 only) |
| Displacement | 4.594 cid (75.33 cc) |
| End cover and comp valve block | No valve block, with cover plate |
| Flow rate gpm | 82.7 |
| Flow rate lpm | 313.2 |
| High pres relief valve port A | No HPRV in port-A |
| High pres relief valve port B | No HPRV in port-B |
| HPRV setting port A | HPRV Setting Port A, None |
| HPRV setting port B | HPRV Setting Port B, None |
| Identification | Standard |
| Main ports | 1.00 code 61 opposite side ports (not for new applications) |
| Maximum output speed | 4160 |
| Maximum temperature C | 82.20 |
| Maximum temperature F | 180.00 |
| Model Code 1 | HHD463314AC00000000000B |
| Mounting Flange | 4-BOLT-C |
| Output shaft | 14 tooth 12/24 pitch spline (33/39/46/54/64 only) |
| Output torque lbf-in2 | 4386.9 |
| Output torque Nm | 495.7 |
| Paint | Standard, primer blue |
| Product height in | 6.000 |
| Product height mm | 152.400 |
| Product length in | 14.680 |
| Product length mm | 372.872 |
| Product Series | Heavy duty hydrostatic fixed displacement motor |
| Product type | Fixed displacement motor |
| Product width in | 6.000 |
| Product width mm | 152.4 |
| Special features | No special features |
| Speed sensor | No speed sensor |
| Working pressure psi | 6000 |
