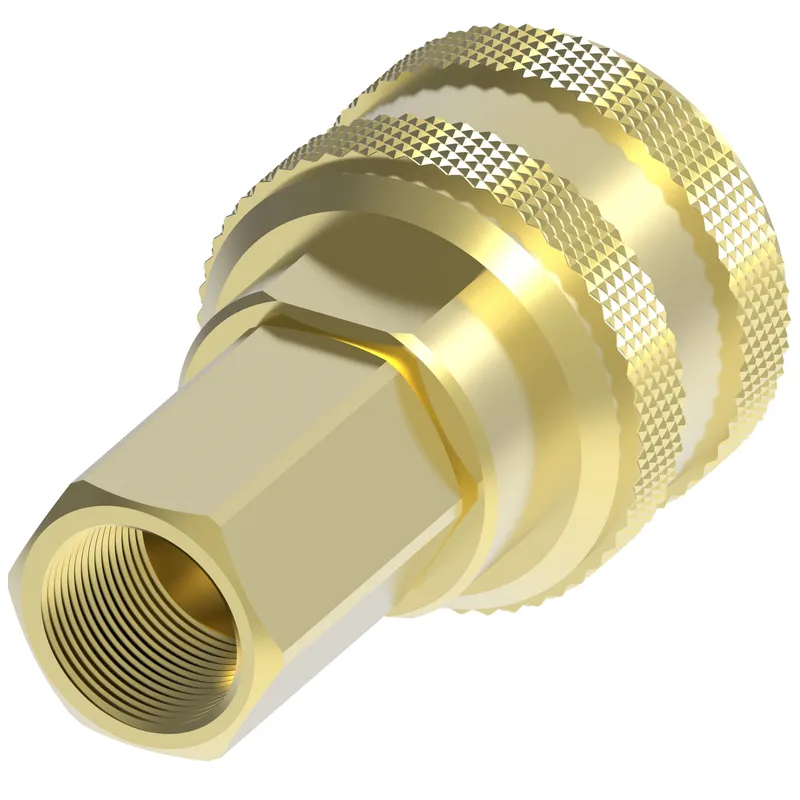

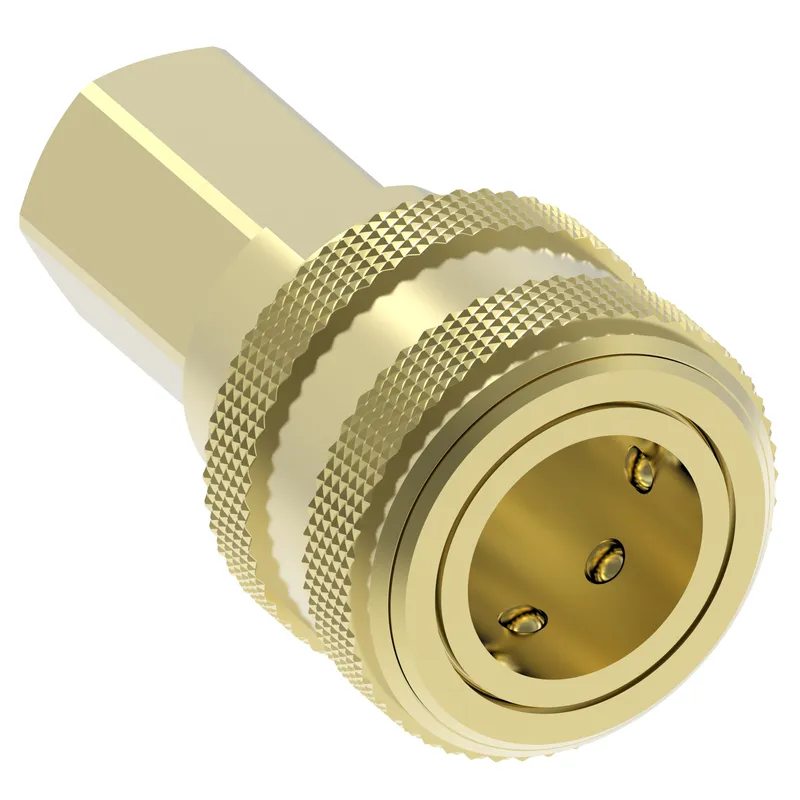

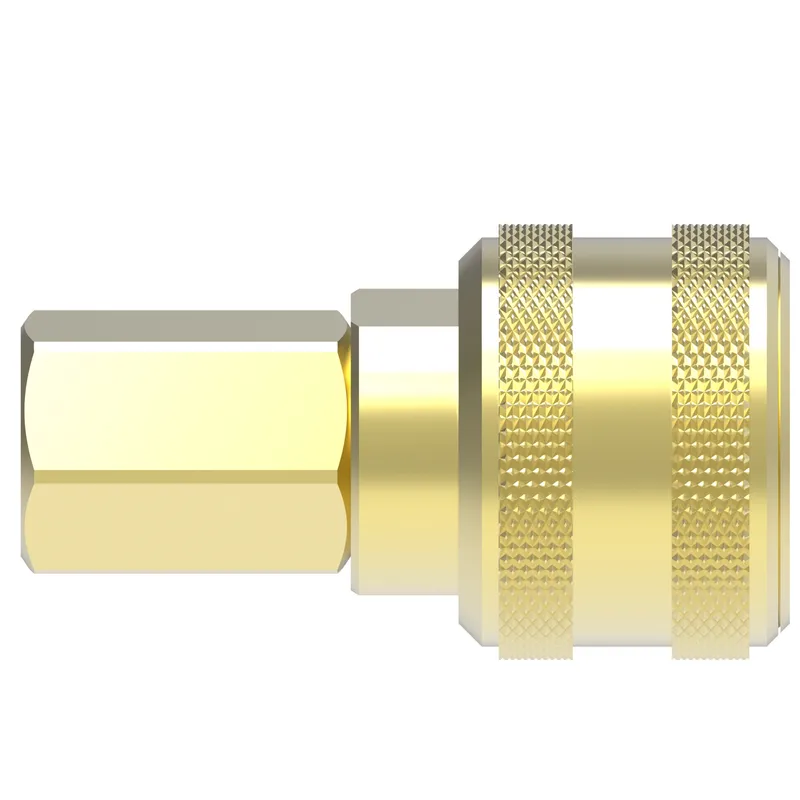

Cplng, 4000 SERIES FEMALE, BRASS

Name: Cplng, 4000 SERIES FEMALE, BRASS
Brand: Danfoss (Drives)
SKU: 4200BVSL143

MPN: 4200BVSL143 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 4200BVSL143 be shipped?

4200BVSL143 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4200BVSL143 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4200BVSL143 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4200BVSL143, subject to availability and destination.

Danfoss Cplng, 4000 SERIES FEMALE, BRASS, manufacturer part number 4200BVSL143. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146102249
Angle shape	Straight
Body size	3/8
Brand	Danfoss
Burst pressure min bar	276
Burst pressure min psi	4000
Connection style	Manual connect
End size 2	-6
End type 1	Female Push to Connect
End type 2	Female pipe (NPTF)
Flow rate GPM	336.00
Flow rate LPM	1271.90
Fluid compatibility	Air, Gases and liquids
Hex size 1 IN	0.880
Hex size 1 MM	22.352
Item type	Female half
Product length in	2.350
Product material	Brass
Safety locking mechanism	Pin lock
Seal material	Fluorocarbon (FKM)
Sub brand	Hansen
Valve type	1 way
Working pressure max psi	1000
Working pressure max BAR	69
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
