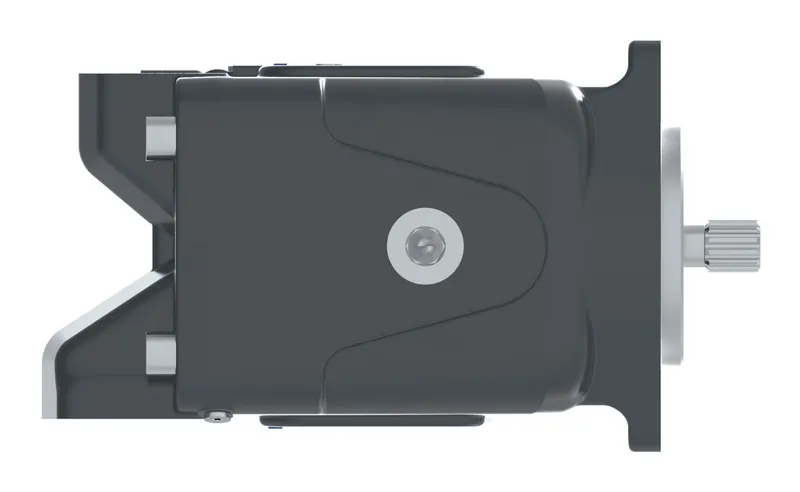

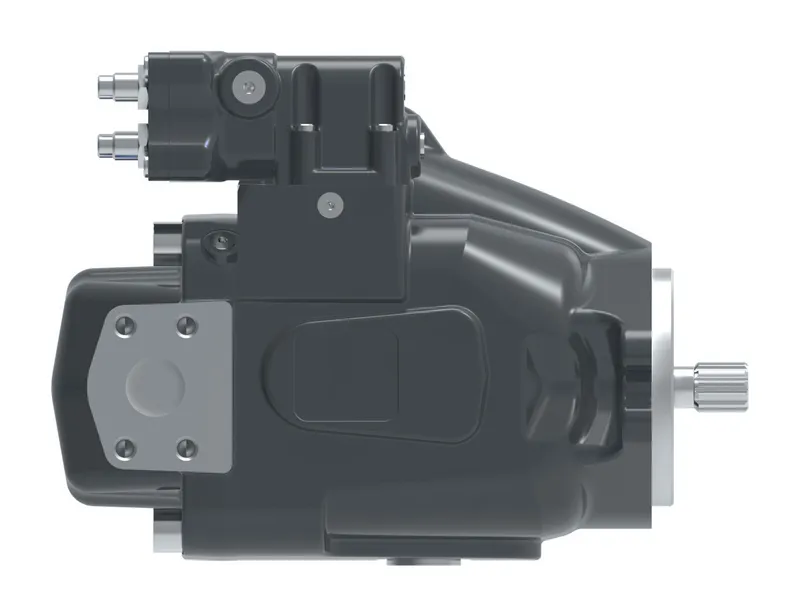

DUAL SERVO CONTROLLED VARIABLE DISP, ADVRE1AMLNNB2A011AMLNN0C0UB0000B0A

Name: DUAL SERVO CONTROLLED VARIABLE DISP, ADVRE1AMLNNB2A011AMLNN0C0UB0000B0A
Brand: Danfoss (Drives)
SKU: 358AK00043A

MPN: 358AK00043A · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mobile closed-circuit piston pumps
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 358AK00043A be shipped?

358AK00043A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 358AK00043A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 358AK00043A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 358AK00043A, subject to availability and destination.

Danfoss DUAL SERVO CONTROLLED VARIABLE DISP, ADVRE1AMLNNB2A011AMLNN0C0UB0000B0A, manufacturer part number 358AK00043A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Additional functions	Diameter 0.91 [.036] orifice (P,S1 & S2)
Aux port and bypass valve	.750-16 UNF-2B SAE o-ring ports - left (C1) and right (C2) sides, right side plugged; no bypass valve
Auxiliary mount features	Dual SAE J744 flange 101-2 (2-bolt B) with cover plate
Auxiliary pump number	None
Brand	Danfoss
Charge pump	No charge pump
Charge relief set and routing	17.24-20.68 bar [250-300 lbf/in2]; relieved to case
CODE TITLE	Dual servo controlled variable displacement axial piston pump with SAE J744 flange 101-2 (2 bolt B)
Control assembly front	Manual control, high gain, shortened input control shaft(+/- 17 degree active control shaft rot) with control handle and key;.750-16 UNF-2B SAE o-ring port - plugged; external supply port (p) - .4375-20 UNF-2B SAE o-ring port
Control assembly rear	Manual control, high gain, shortened input control shaft(+/- 17 degree active control shaft rot) with control handle and key;.750-16 UNF-2B SAE o-ring port - plugged; external supply port (P) - .4375-20 UNF-2B SAE o-ring port
Design code	A
Disp and rotating kit front	40.6 cm3/r [2.48 in3/r]; rotating kit-standard
Disp and rotating kit rear	40.6 cm3/r [2.48 in3/r]; rotating kit-standard
Drain port size location front	1.0625-12 UN-2B SAE o-ring port - right side housing (D2)
Drain port size location rear	None
Flow rate gpm	38.6
Flow rate lpm	146.3
Identification	Standard
Input shaft	15 tooth external spline, 16/32 pitch, 24.981 [.9835] major diameter; 57.4 [2.26] shaft extension; modified 2 bolt C mount
Input shaft rotation	Righthand rotation (CW)
Main ports (A and B)	4x 1.0625-12 UN-2B SAE o-ring ports; front ports right, rear ports left
Maximum output speed	3600
Maximum temperature C	107.00
Maximum temperature F	225.00
Model Code 1	ADVRE1AMLNNB2A011AMLNN0C0UB000
Model Code 2	0B0A
Mounting flange	2-bolt-B
Note	For more info, contact Danfoss
Output torque lbf-in2	1776.2
Output torque Nm	200.7
Paint	Black per spec 209-13B
Product height in	10.450
Product height mm	265.430
Product length in	20.940
Product length mm	531.876
Product width in	10.980
Relief set main port A front	310.3 bar [4500 lbf/in2]
Relief set main port A rear	310.3 bar [4500 lbf/in2]
Relief set main port B front	310.3 bar [4500 lbf/in2]
Relief set main port B rear	310.3 bar [4500 lbf/in2]
Special features	ADJ servo stop, both sides; port setting all ports A1,A2, B1,B2 -40.6 cm3/r[2.48 in3/r](32 gal/min) at 3000 r/min (full flow);MTG holes-2x M10 x 1.5-6H rear HSG; DIAG ports 4x .4375-20 UNF-2B SAE o-ring ports & MTG holes- 2x M10 x 1.5-6H CTR manifold
Valve plate front	Type 1
Valve plate rear	Type 1
Working pressure bar	310
Working pressure psi	4500
