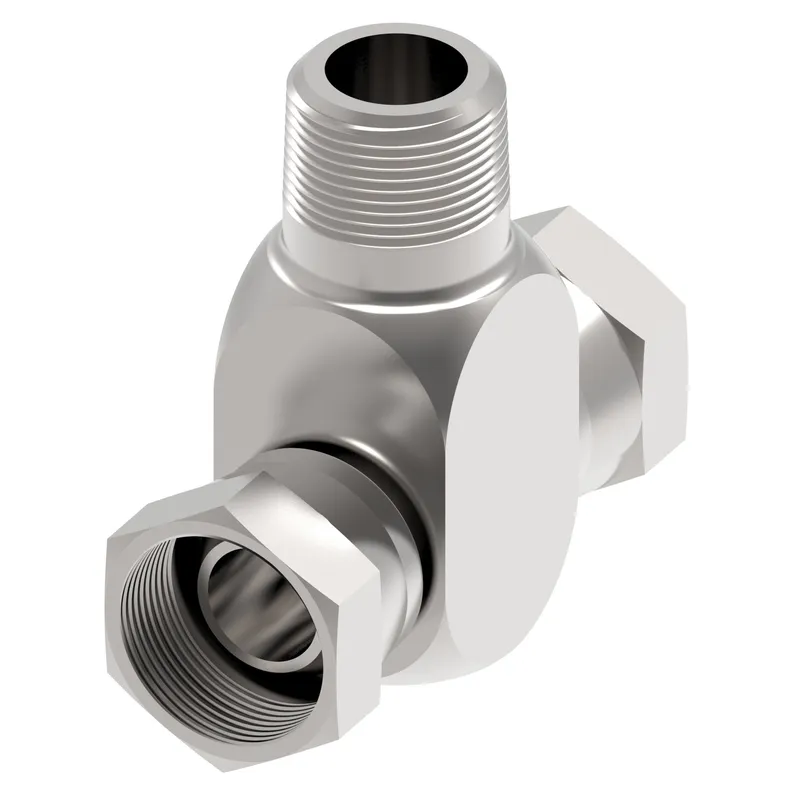

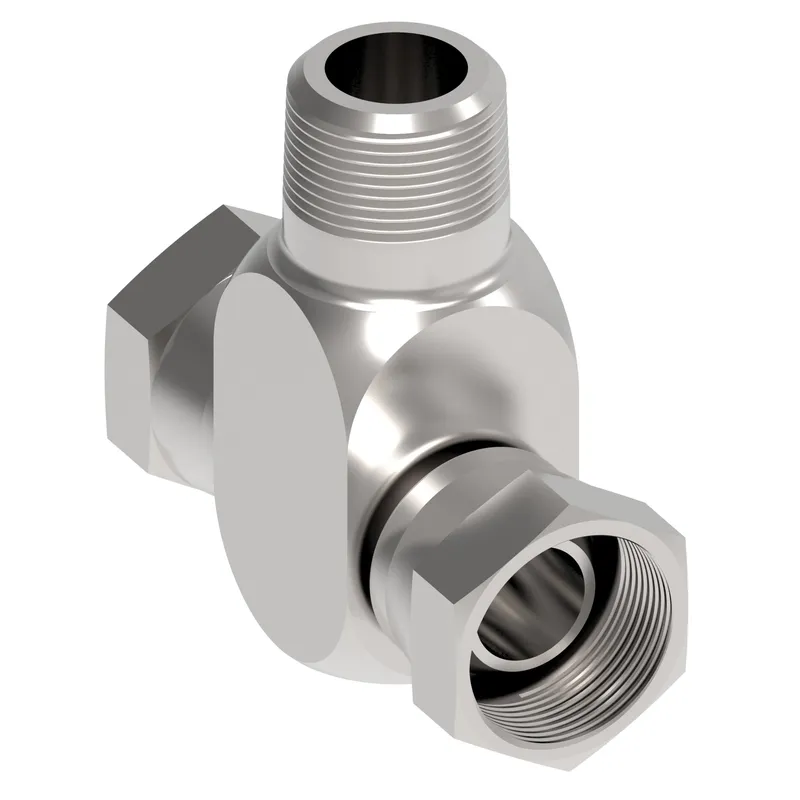

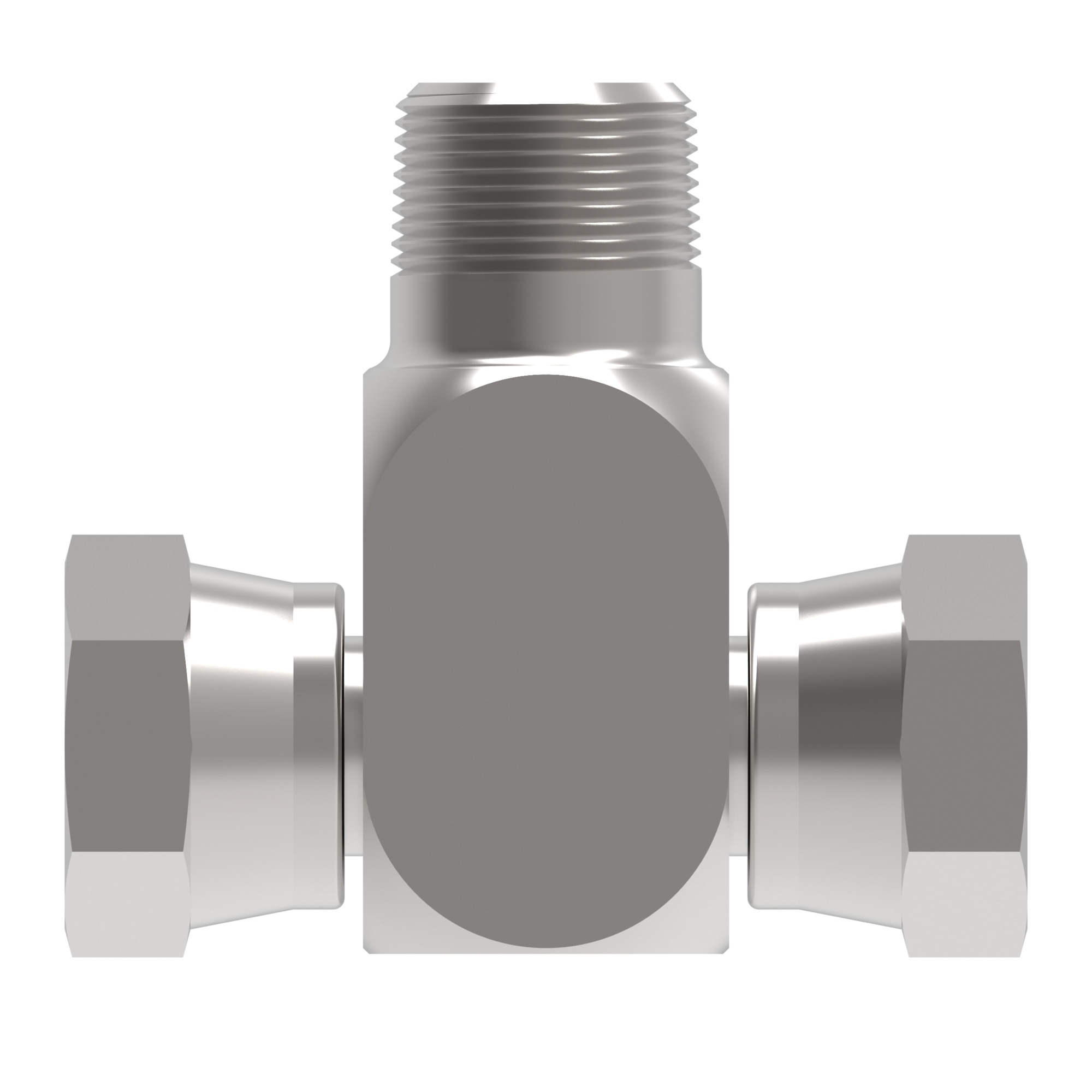

Adptr NPTF/NPSM TEE -6F NPSM-6F NPSM-8MP

Name: Adptr NPTF/NPSM TEE -6F NPSM-6F NPSM-8MP
Brand: Danfoss (Drives)
SKU: 2254-6-8S

MPN: 2254-6-8S · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Adapters and swivel joints
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 2254-6-8S be shipped?

2254-6-8S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 2254-6-8S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 2254-6-8S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2254-6-8S, subject to availability and destination.

Danfoss Adptr NPTF/NPSM TEE -6F NPSM-6F NPSM-8MP, manufacturer part number 2254-6-8S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146188212
Brand	Danfoss
Drop dimension IN	1.470
Drop dimension MM	37.30
End Type 1	Female pipe swivel (NPSM)
End Type 2	Female pipe swivel (NPSM)
End type 3	Male pipe (NPTF)
Finish plating	Dura-Kote
Hex size 1 IN	0.875
Hex size 1 MM	22.200
Hex size 2 IN	0.875
Hex size 2 MM	22.200
Hex size 3 IN	0.875
Hex size 3 MM	22.2
Item type	Adapter-tee
Product material	Carbon steel
Thread sealant	No
Tube outside diameter 1 IN	0.375
Tube outside diameter 1 MM	9.5
Tube outside diameter 2 IN	0.375
Tube outside diameter 2 MM	9.5
Tube outside diameter 3 IN	0.500
Tube outside diameter 3 MM	12.7
Working temp max C	204
Working temp max F	400
Working temp min C	-54
Working temp min F	-65
