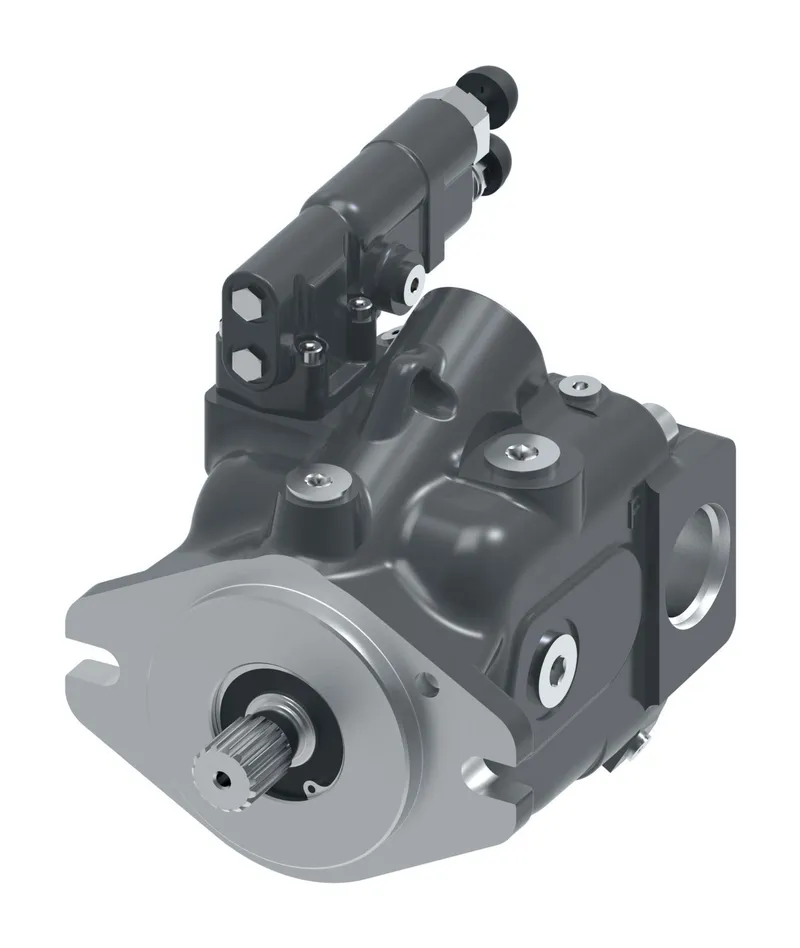

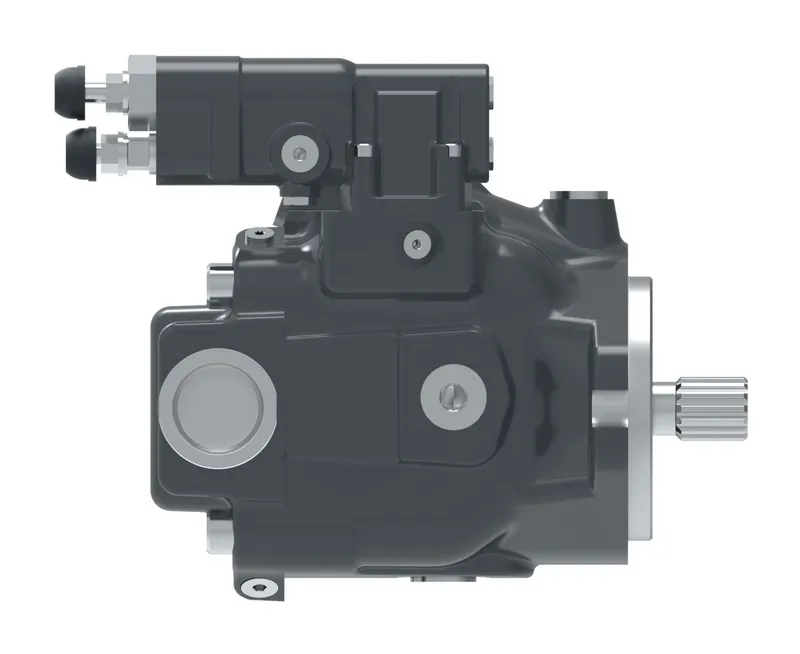

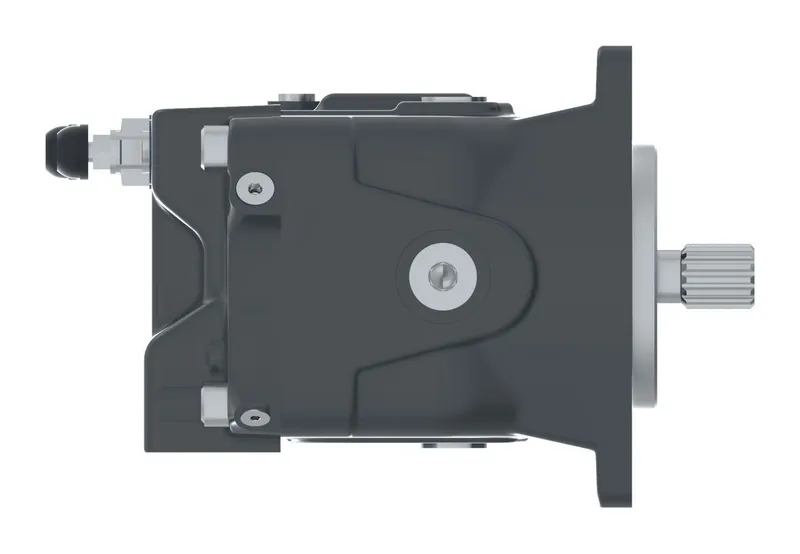

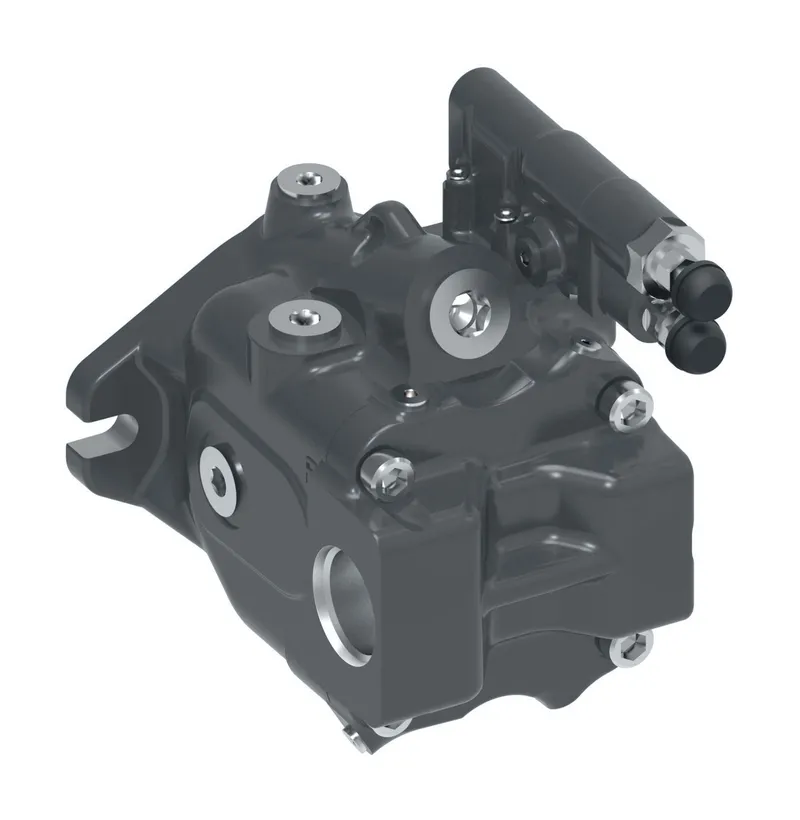

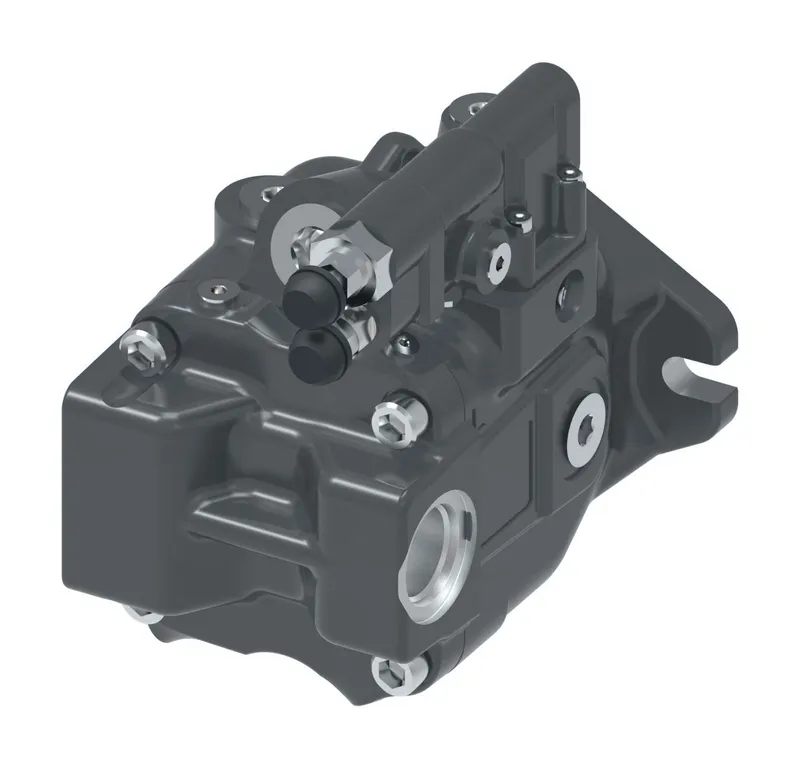

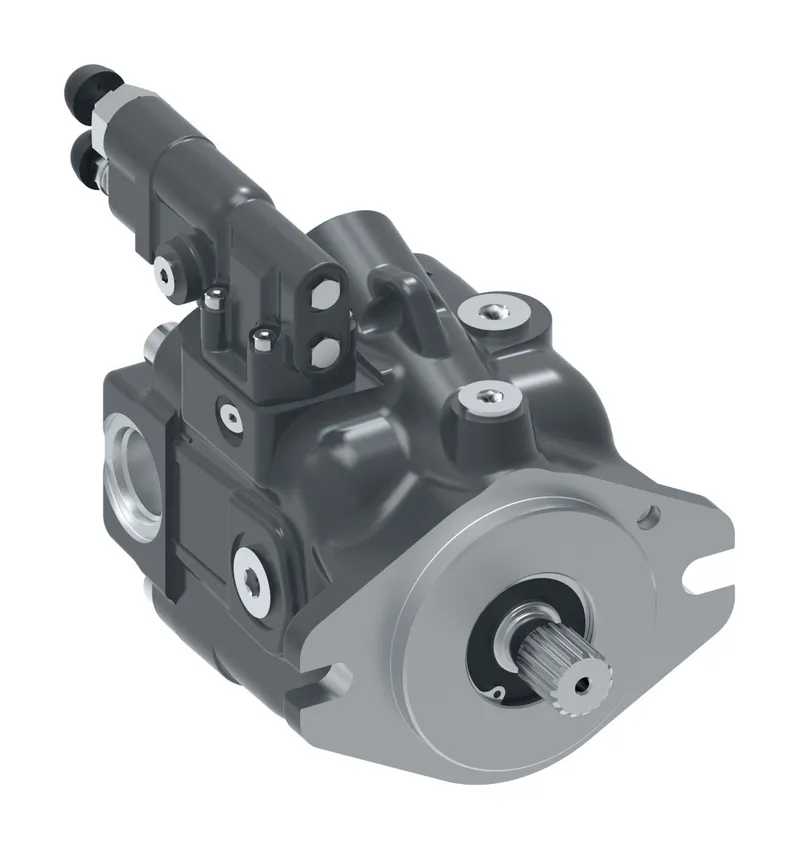

220 SERIES MOBILE PISTON PUMP

Name: 220 SERIES MOBILE PISTON PUMP
Brand: Danfoss (Drives)
SKU: 222AK00162B

MPN: 222AK00162B · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	X20 series piston pumps
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 222AK00162B be shipped?

222AK00162B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 222AK00162B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 222AK00162B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 222AK00162B, subject to availability and destination.

Danfoss 220 SERIES MOBILE PISTON PUMP, manufacturer part number 222AK00162B. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Aux mount output shaft	NO AUXILIARY MOUNT
Brand	Danfoss
CODE TITLE	PRESSURE COMPENSATEDPRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP
Control special features	NO CONTROL SPECIAL FEATURES
Controller type	PRESSURE COMPENSATOR
Design code	SECOND DESIGN
Diagnostic pressure ports	.4375 20 UNF 2B SAE O RING PORTS SUCTION AND PRESSURE PLUGGED
Displacement	28.0 CM3R [1.71 IN3R]
Drain port size location	.875-14 UNF 2B O-RING PORT-TOP
Flow comp rpc setting	NO FLOW COMPENSATOR SETTING
Front mounting input shaft	2 BOLT B (SAE J744 101 2) WITH 22.2[.88] DIASTRAIGHT KEYED SHAFT (SAE J744 22 1 B
Identification packaging	MARK EATON PRODUCT NUMBER AND FULL MODEL CODE ON LABEL
Input shaft rotation	RIGHT HAND ROTATION (CW) RIGHT SIDE SUCTIONPORT LEFT SIDE PRESSURE PORT
Main ports size location	REAR PORT; SUCTION: 1.625 12 UN 2B SAE O RING;PRESSURE: 1.0625 12 UN 2B SAE O RING
Maximum displacement option	EXTERNAL MANUAL STROKE ADJUSTMENT (SET AT MAX]
Paint	BLUE PRIMER PER SPEC 209-13CD (STANDARD)
PRESSURE COMP SETTING	275.8-282.7 bar [4000-4100 lbf/in2]
PUMP SPECIAL FEATURES	NO PUMP SPECIAL FEATURES
Secondary comp setting	NO SECONDARY COMPENSATOR SETTING
Shaft seal	FLUOROCARBON RUBBER SHAFT SEAL
