AEC028L09ADC2AV3600000T0100100CD01B
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | X20 series piston pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 222AK00096B be shipped?
222AK00096B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 222AK00096B in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 222AK00096B and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 222AK00096B, subject to availability and destination.

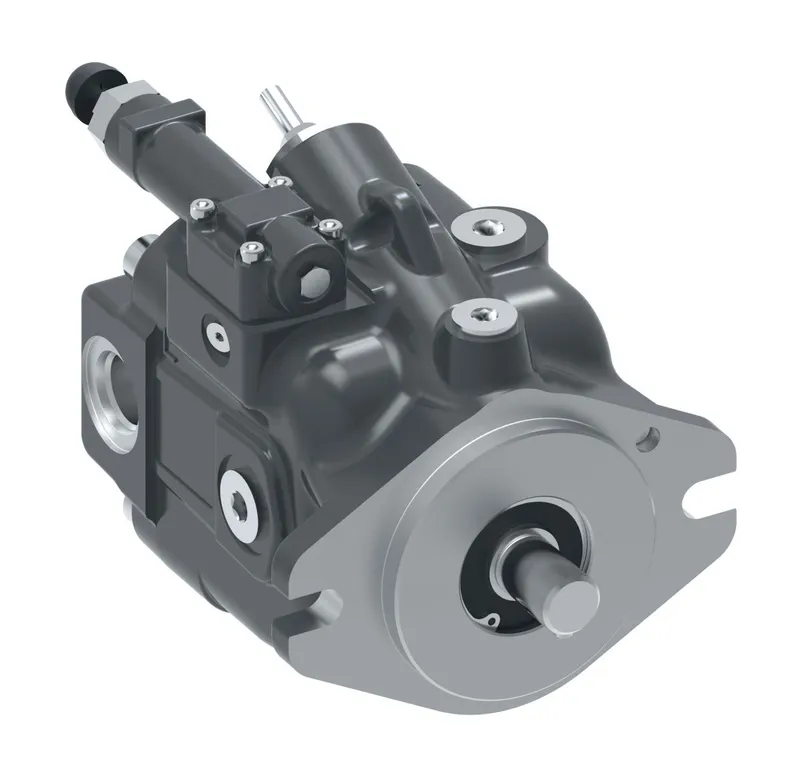

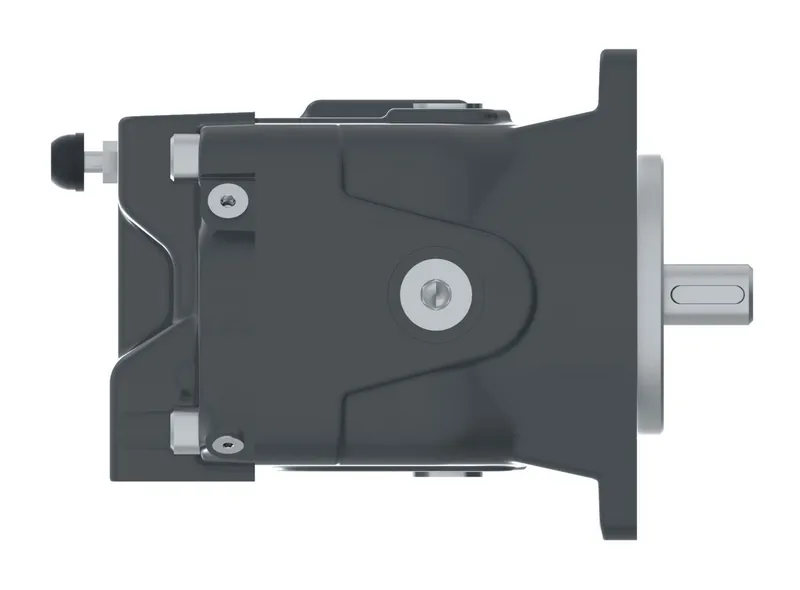

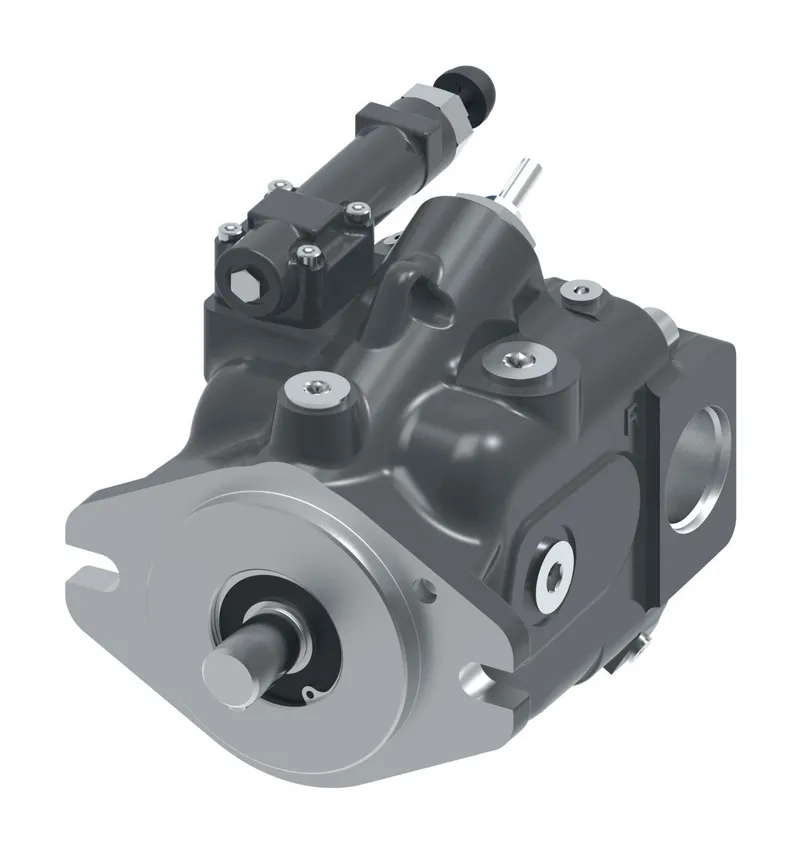

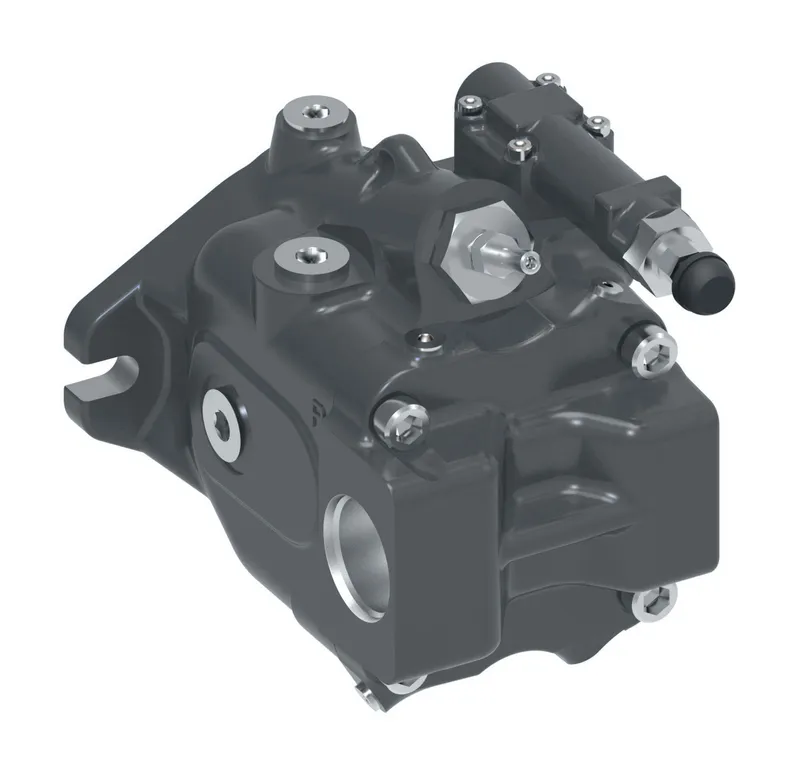

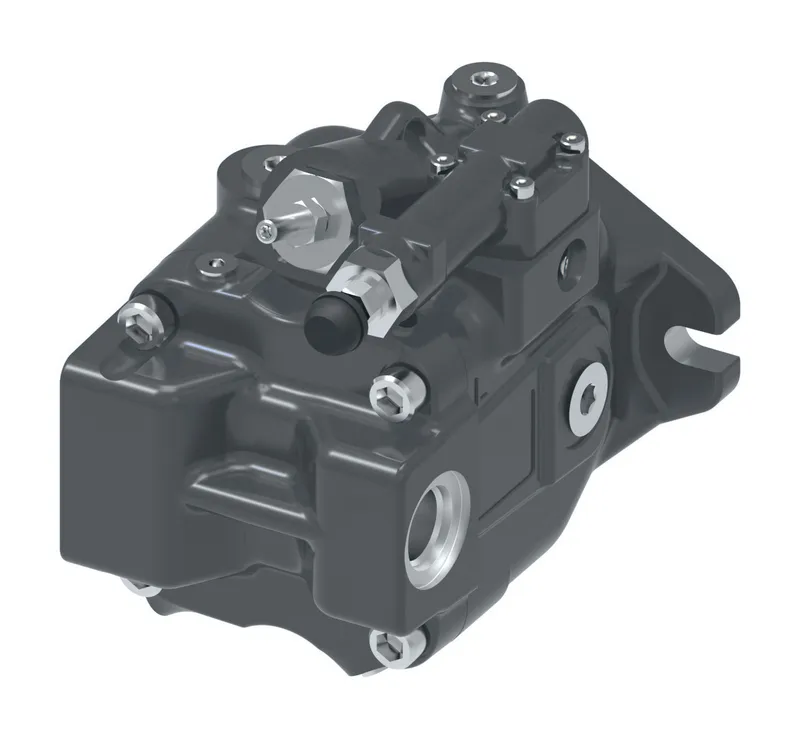

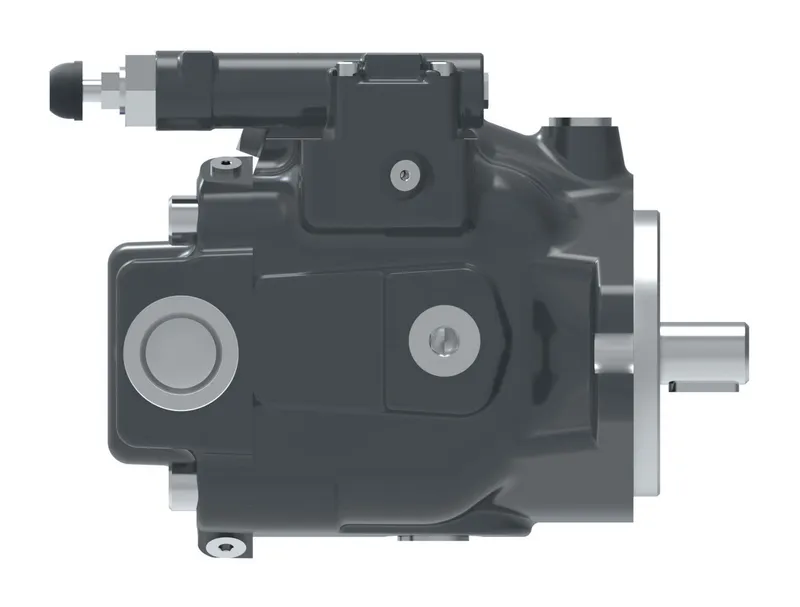

Danfoss AEC028L09ADC2AV3600000T0100100CD01B, manufacturer part number 222AK00096B. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Brand | Danfoss |
| CODE TITLE | PRESSURE COMPENSATEDPRESSURE FLOW COMPENSATED OPEN CIRCUIT PISTON PUMP |
| Control special features | 24 V DC SOLENOID WITH AMP JR CONNECTOR |
| Controller type | EH PROPORTIONAL PRESSURE CONTROL(INVERSE CONTROL)VERTICAL MOUNTING |
| Design code | SECOND DESIGN |
| Diagnostic pressure ports | M12 X 1.5 METRIC O RING PORTS SUCTION AND PRESSURE – PLUGGED |
| Drain port size location | M22 X 1.5 METRIC O-RING PORT-TOP |
| Input shaft rotation | LEFT HAND ROTATION (CCW) LEFT SIDE SUCTIONPORT RIGHT SIDE PRESSURE PORT |
| Main ports size location | SIDE PORT; SUCTION: M42 X 2 ISO METRIC;PRESSURE: M27 X 2 ISO METRIC |
| Paint | BLUE PRIMER PER SPEC 209-13CD (STANDARD) |
| PRESSURE COMP SETTING | 246.5-253.4 bar [3575-3675 lbf/in2] |
| Shaft seal | FLUOROCARBON RUBBER SHAFT SEAL |
