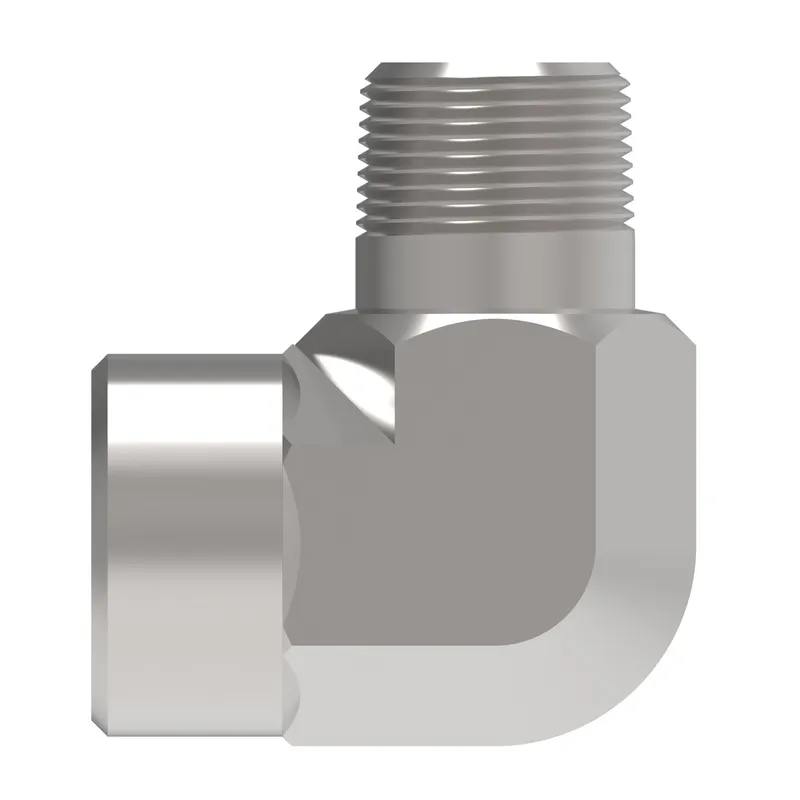

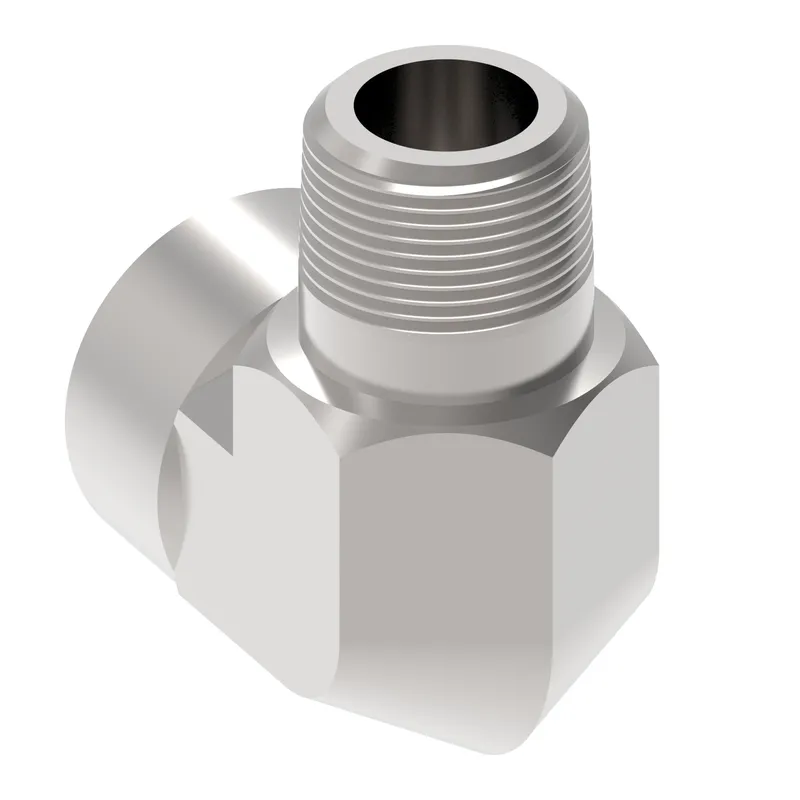

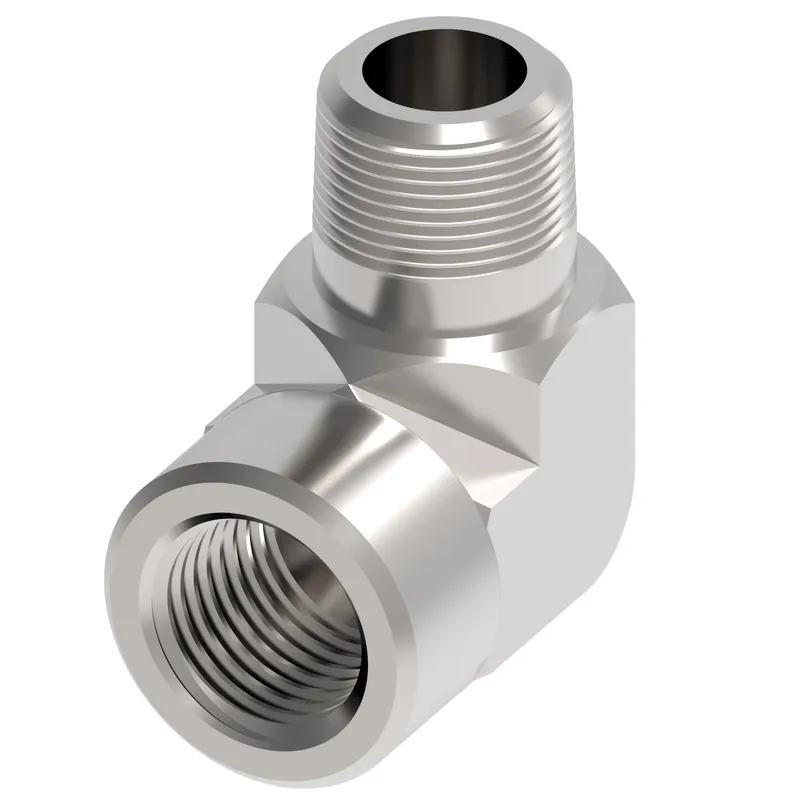

Adapter NPTF /NPTF 90D 32MP x 32 FP
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Adapters and swivel joints |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 2089-32-32S be shipped?
2089-32-32S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 2089-32-32S in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 2089-32-32S and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2089-32-32S, subject to availability and destination.
Danfoss Adapter NPTF /NPTF 90D 32MP x 32 FP, manufacturer part number 2089-32-32S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146187420 |
| Angle shape | 90 Degree |
| Brand | Danfoss |
| Drop dimension IN | 2.390 |
| Drop dimension MM | 60.70 |
| End Type 1 | Male pipe (NPTF) |
| End Type 2 | Female pipe (NPTF) |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 2.560 |
| Hex size 1 MM | 65.000 |
| Product material | Carbon steel |
| Thread sealant | No |
| Tube outside diameter 1 IN | 1.930 |
| Tube outside diameter 1 MM | 49.0 |
| Tube outside diameter 2 IN | 2.190 |
| Tube outside diameter 2 MM | 55.6 |
| Working temp max C | 204 |
| Working temp max F | 400 |
| Working temp min C | -54 |
| Working temp min F | -65 |
