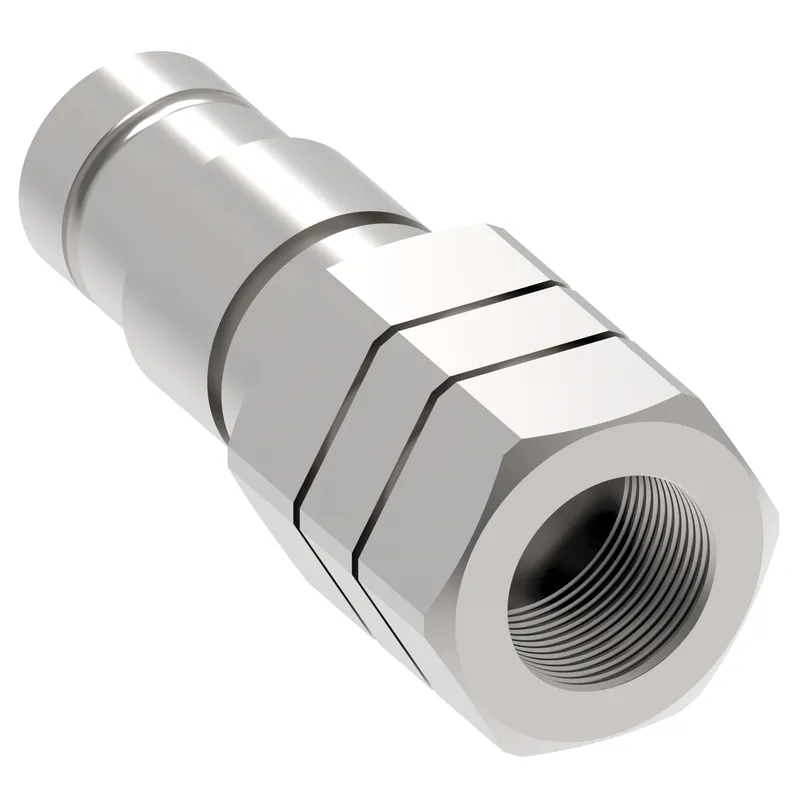

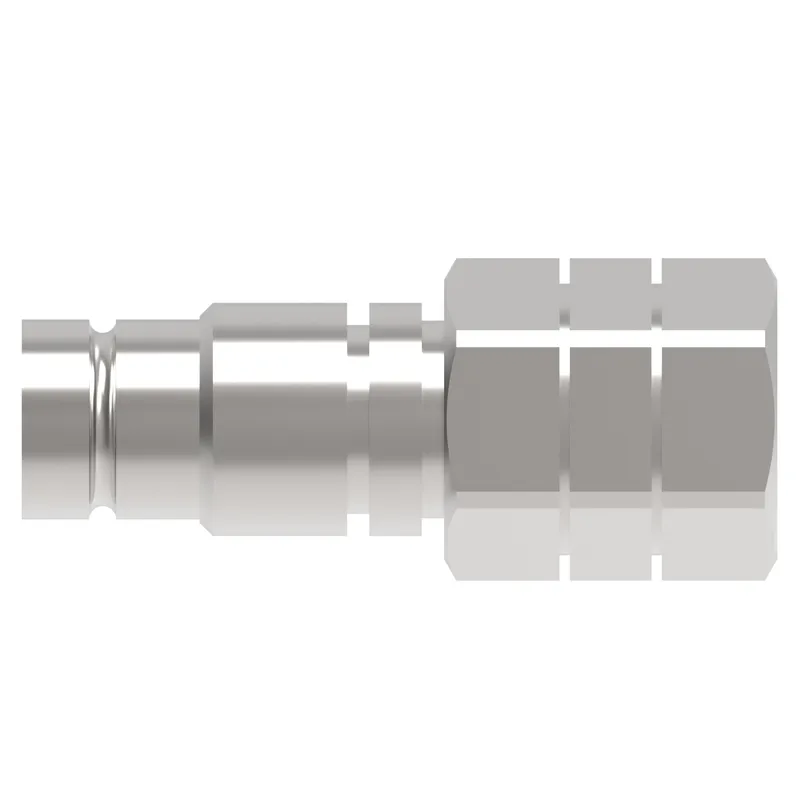

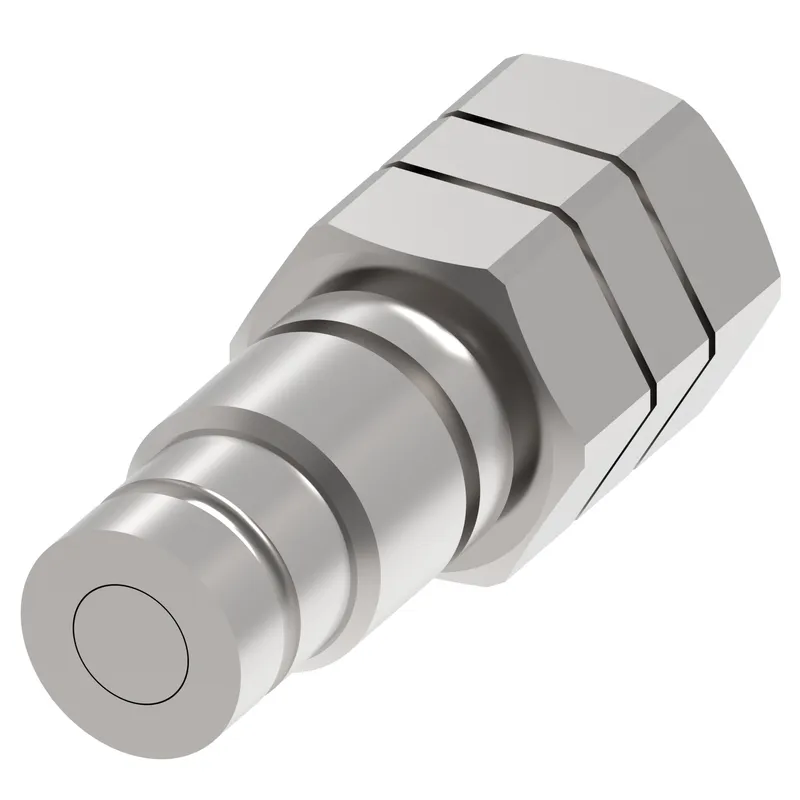

COUPLING,FF,M,3/4,CS,-12UNF,NBR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss Hansen® quick disconnect couplings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 19FFP131UN be shipped?
19FFP131UN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 19FFP131UN in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 19FFP131UN and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 19FFP131UN, subject to availability and destination.
Danfoss COUPLING,FF,M,3/4,CS,-12UNF,NBR, manufacturer part number 19FFP131UN. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146097408 |
| Air inclusion max cc | 0.02 |
| Angle shape | Straight |
| Application | Agriculture, Building material, Commercial vehicles, Fluid transfer, Hydraulics, Road vehicles |
| Body size | 3/4 |
| Brand | Danfoss |
| Burst pressure min psi | 18850 |
| Certifications | ISO 16028 |
| Compliances | PED 2014/68 EU Article 4.3, REACH, RoHS Compliant |
| Connection style | Manual connect |
| End size 1 | -12 |
| End type 1 | Female ORB port ISO 11926-1 |
| Finish plating | Guardian sealtm |
| Flow rate GPM | 30.10 |
| Fluid compatibility | Hydraulic fluid |
| Fluid loss cc | 0.03400 |
| Hex size 1 IN | 1.650 |
| Item type | Male half |
| Latch type | Push to connect |
| Product material | Carbon steel |
| Safety locking mechanism | Sleeve lock |
| Seal material | Nitrile(NBR)+Polyurethane(AU) |
| Sub brand | Hansen |
| Thread size 1 | 1 1/16-12 UN |
| Torque lbs-ft | 48.30 |
| Valve type | 2 way |
| Working pressure max psi | 5800 |
| Working temperature max F | 212 |
| Working temperature min F | -13 |
