PVMX028R07B2C0B100AA-00000000
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Medium-duty open-circuit piston pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 11341150 be shipped?
11341150 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 11341150 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 11341150 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11341150, subject to availability and destination.

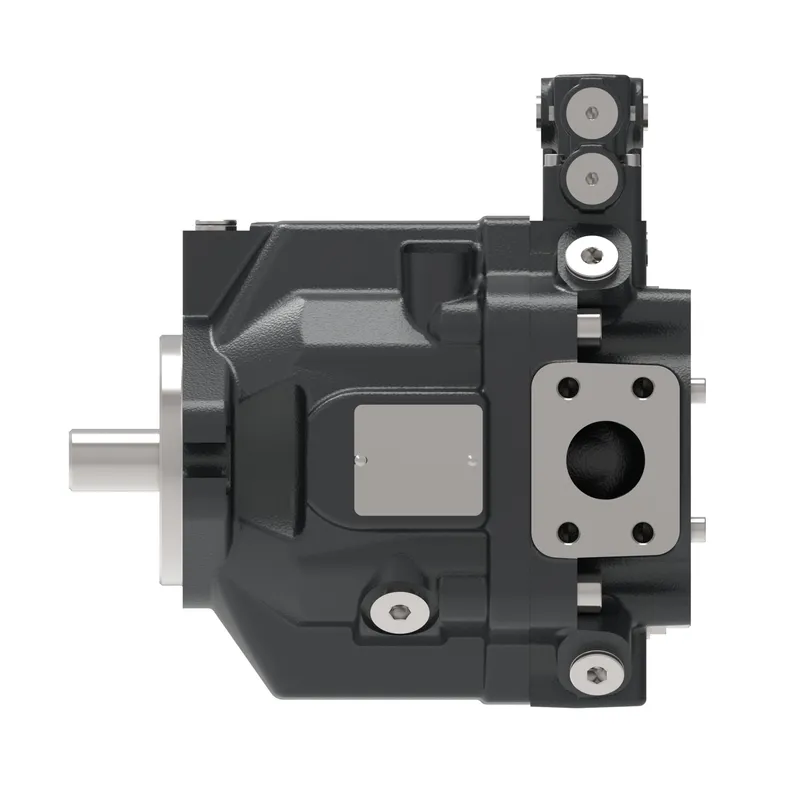

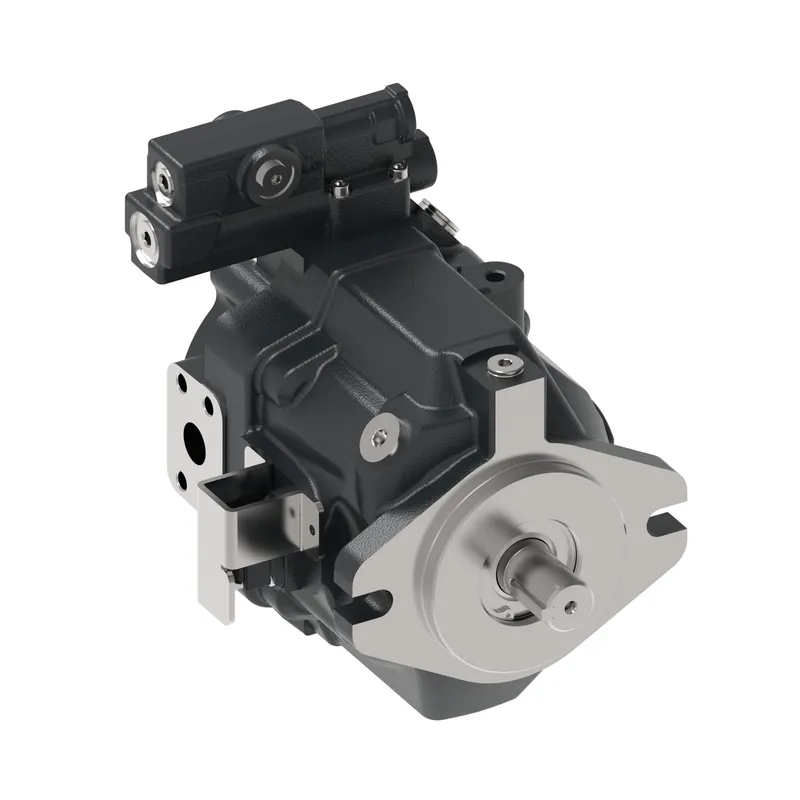

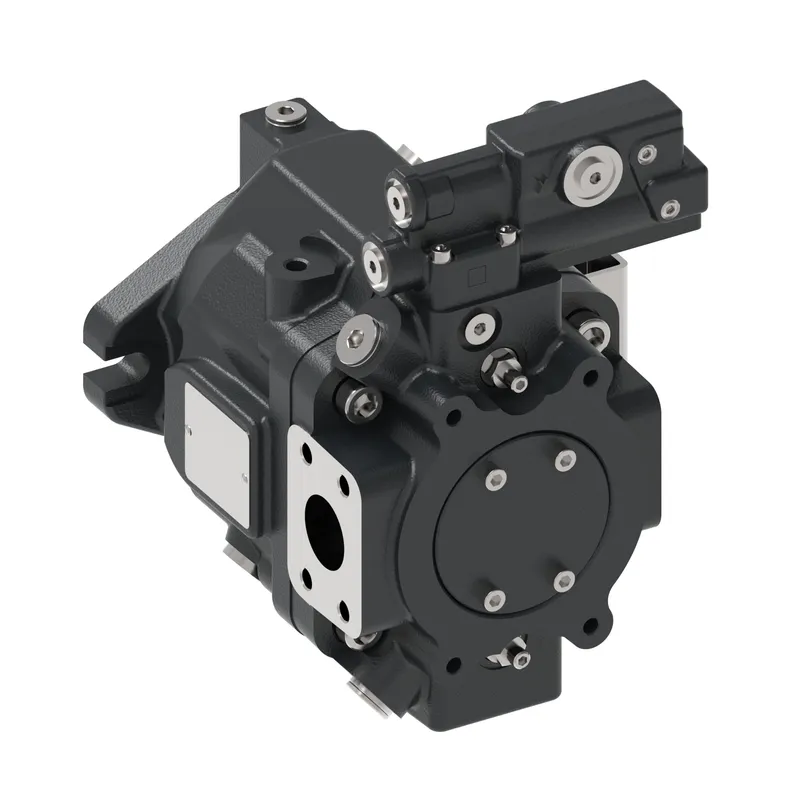

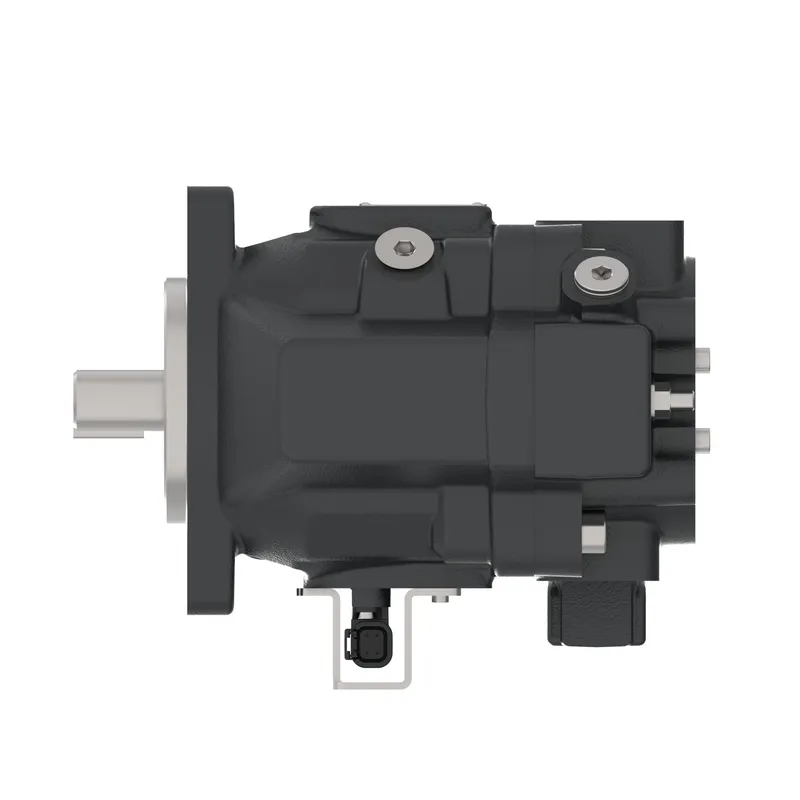

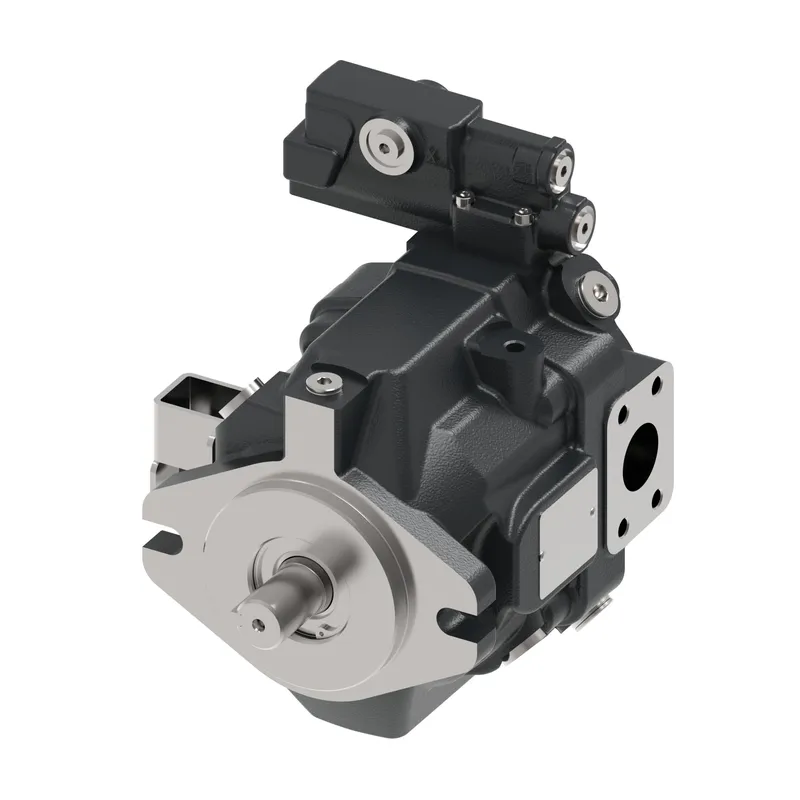

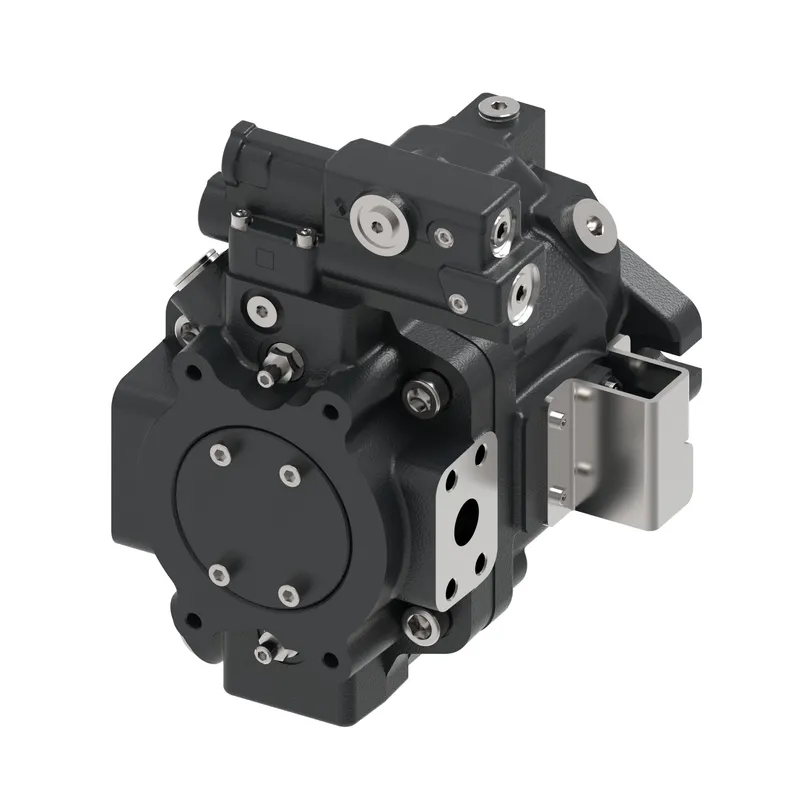

Danfoss PVMX028R07B2C0B100AA-00000000, manufacturer part number 11341150. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| CODE TITLE | Variable displacement open circuit piston pumps |
| Displacement | 28 cm3/r [1.7 in3/r] |
| Input rotation | Clockwise (right-hand) |
| Input shaft | SAE J744-22-4, SAE B, 13T spline (model 28) |
| Mounting flange | SAE B 2-Bolt (J744-101-2)(MODEL 28) |
| Port options | Main ports - SAE J518 FLANGE PORTS (DRAIN PORT – SAE J1926-1, LOAD SENSE PORT – SAE J1926-1) |
| Control | Pressure and flow compensator without bleed down |
| Pressure comp setting | 100-280bar range 250±4 bar [1015±58 lbf/in2]- Default setting |
| Flow comp setting | 10bar-40bar (DEFAULT 20±1bar [290±14.5 lbf/in2]) |
| Power control setting | None |
| Auxiliary mounting | None (non-through drive) |
| Paint | Black [Default] |
| Design code | DESIGN VERSION A |
| Differentiator | - |
| Max displacement setting | No max displacement setting (default) |
| Min displacement setting | No min displacement setting (default zero swash) |
| Pump special features | No pump special feature |
| Control special features | None |
| Pump certification | No certification |
| Customer identification | None |
| Proposition 65 | Cancer and Reproductive Harm |
