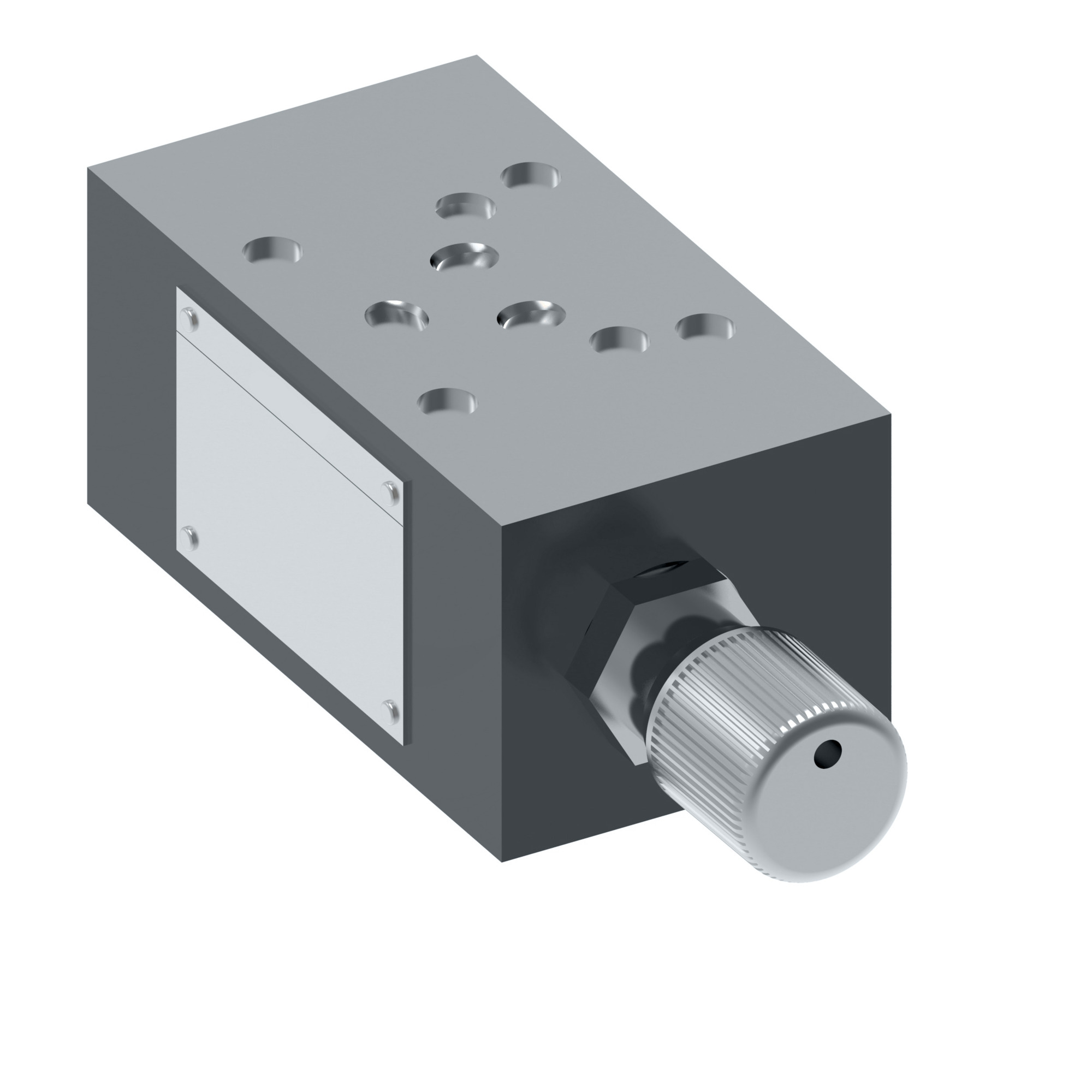

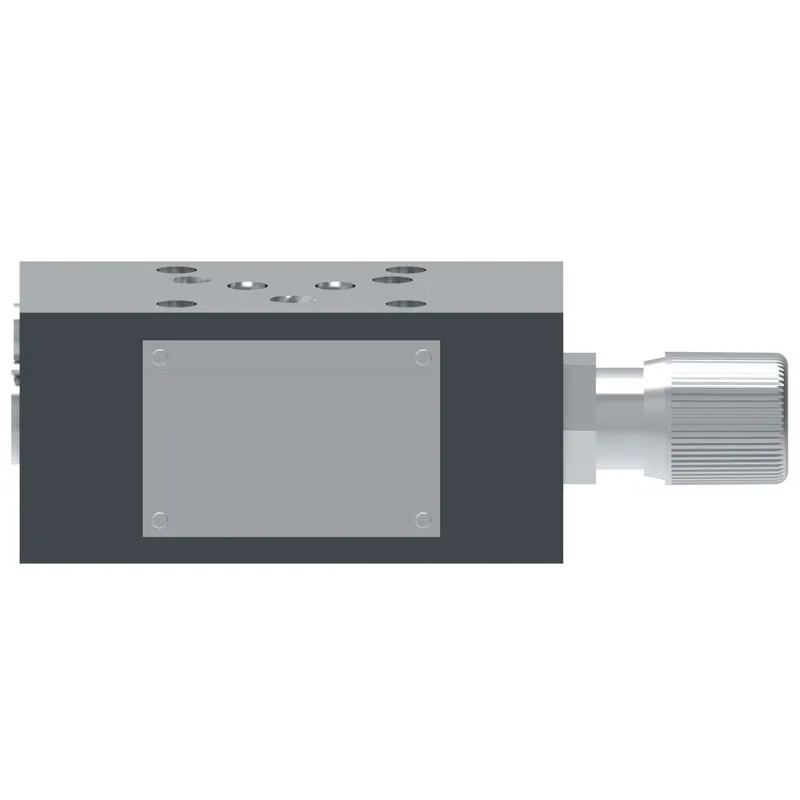

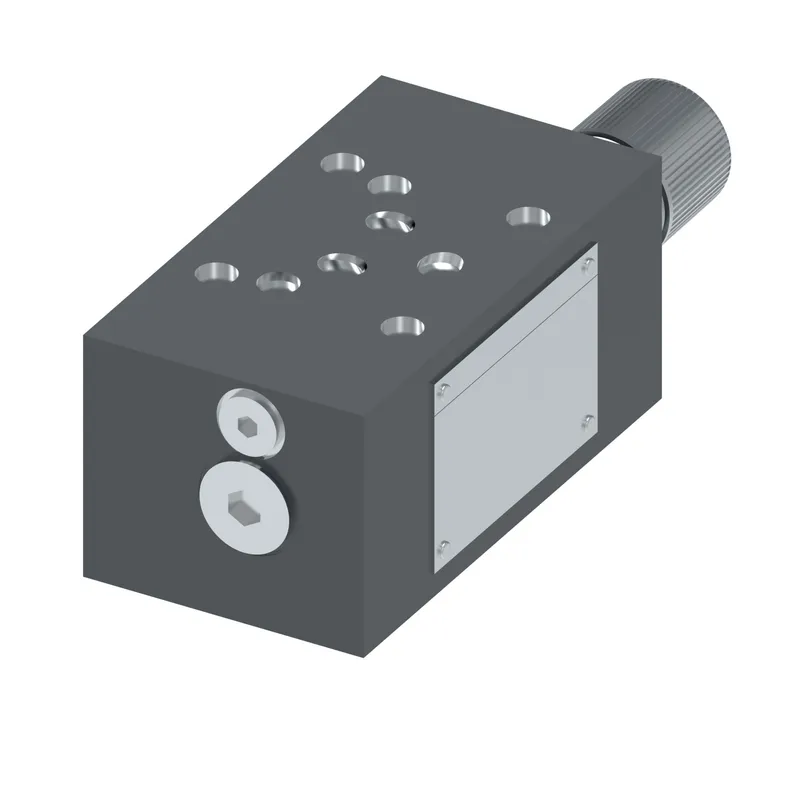

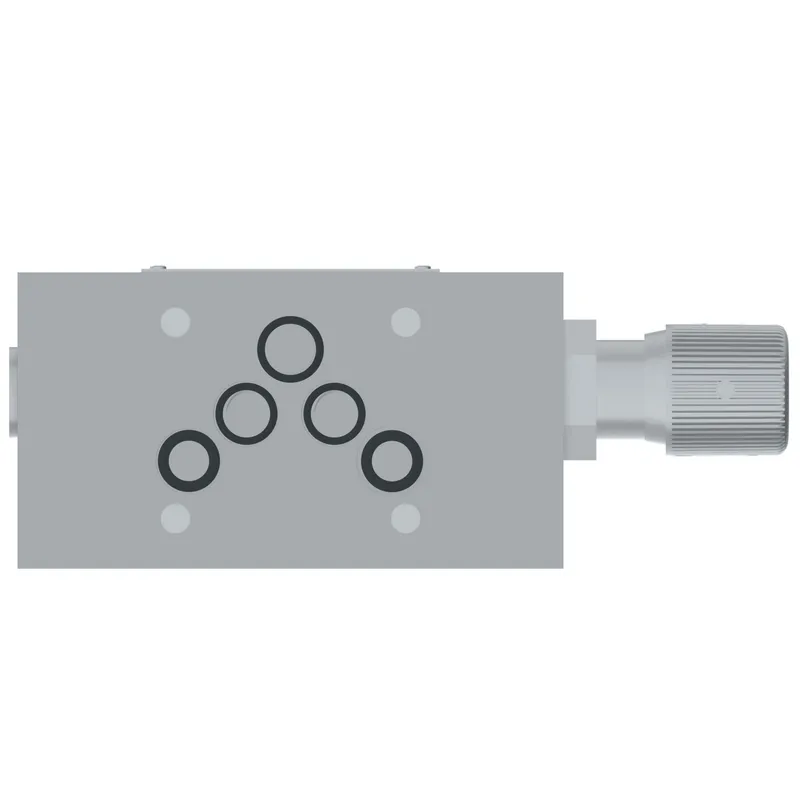

F3 DGMX 7 PP G H 20, F3DGMX7PPGH20
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-414445 be shipped?
02-414445 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-414445 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-414445 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-414445, subject to availability and destination.
Danfoss F3 DGMX 7 PP G H 20, F3DGMX7PPGH20, manufacturer part number 02-414445. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Actuation Type | Pressure operated |
| Adjustment type | Handwheel with locknut |
| Brand | Vickers by Danfoss |
| Design Series | 20 Series |
| Flow rate upto LPM | 250 |
| Flow rate upto USGPM | 66.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid compatibility | Anti-wear hydraulic oil |
| Function ports | Reducing line P, pilot line P |
| Interface | ISO4401-07 |
| Maximum pressure upto bar | 350 |
| Maximum pressure upto psi | 5000 |
| Model Code | F3DGMX7PPGH20 |
| Performance | Standard |
| Pressure adjustment range | 10-350 bar (145-5000 psi) |
| Product height in | 3.150 |
| Product height mm | 80.010 |
| Product length in | 9.130 |
| Product length mm | 231.902 |
| Product width in | 3.660 |
| Product width mm | 92.964 |
| Seal type | Viton |
| Special features | None |
| Valve Mount Type | Subplate/manifold mounted |
| Valve type | Reducing/relieving valve |
| Working temp max C | 80 |
| Working temp max F | 176 |
| Working temp min C | -25 |
| Working temp min F | -13 |
