Home / Danfoss (Drives) / KDG5V-10-33C550N-X-T-H-M-U-H1-11, KDG5V1033C550NXTHMUH111

Available on request

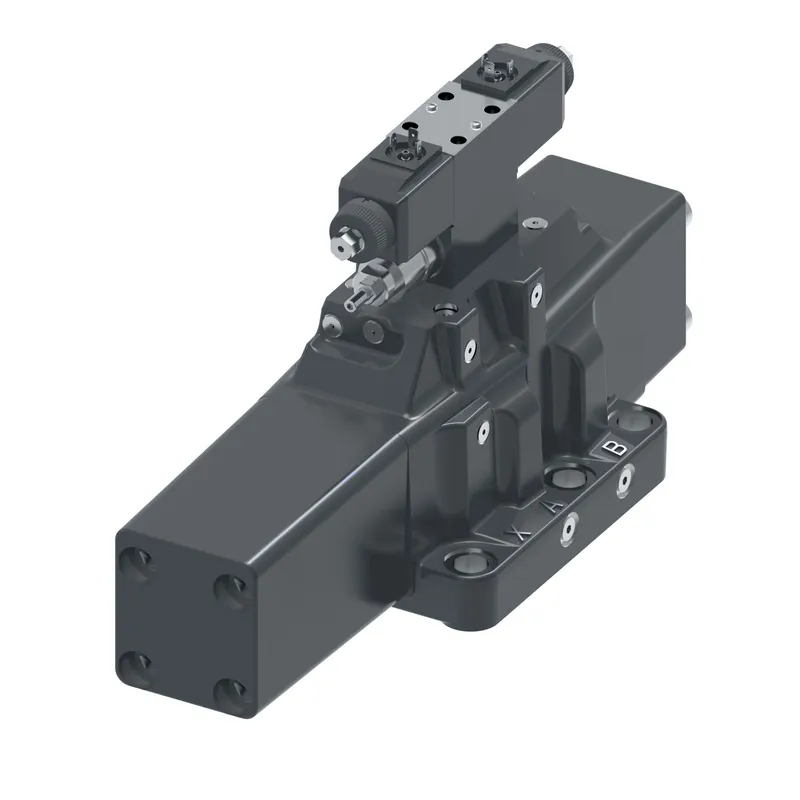

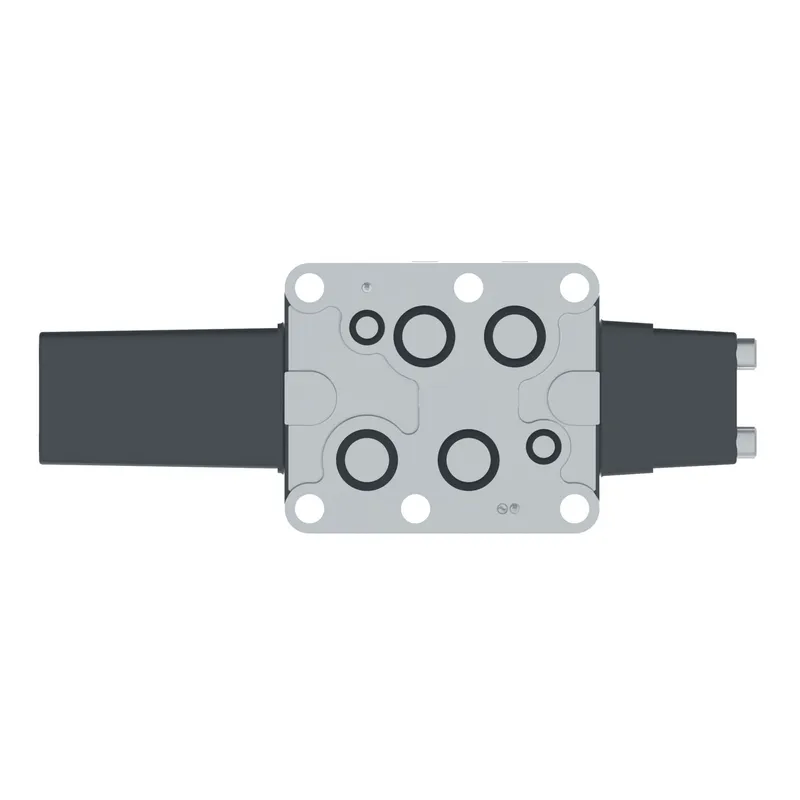

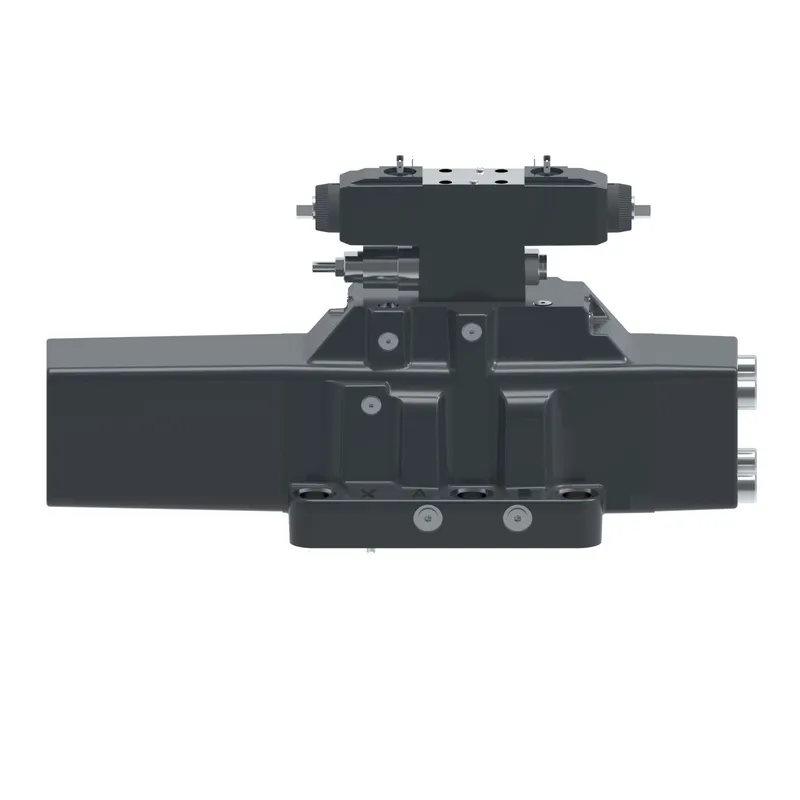

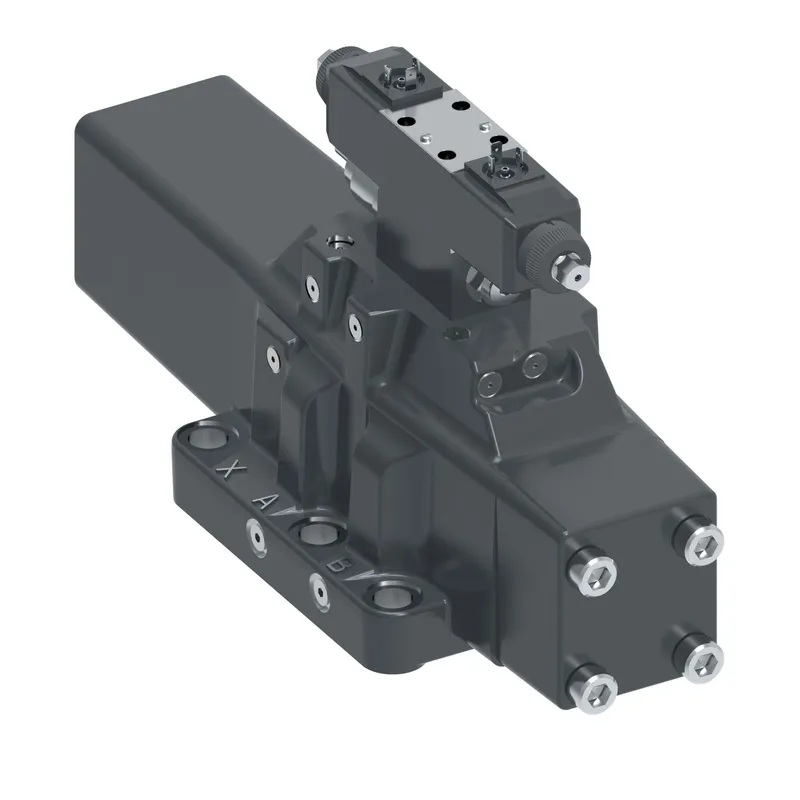

KDG5V-10-33C550N-X-T-H-M-U-H1-11, KDG5V1033C550NXTHMUH111

Name: KDG5V-10-33C550N-X-T-H-M-U-H1-11, KDG5V1033C550NXTHMUH111
Brand: Danfoss (Drives)
SKU: 02-396733

MPN: 02-396733 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Manifold directional control valves
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 02-396733 be shipped?

02-396733 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-396733 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-396733 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-396733, subject to availability and destination.

KDG5V-10-33C550N-X-T-H-M-U-H1-11, KDG5V1033C550NXTHMUH111 - 02-396733

Specifications

A Port flow LPM	550.00
A Port flow USGPM	145.00
Actuation Type	Solenoid controlled pilot operated
B Port flow LPM	550.00
B Port flow USGPM	145.00
Brand	Vickers by Danfoss
Build orientation	Standard as per ANSI B93 9
Build type	Spring centered
Coil voltage	24 Volt DC
Command input	None
Communication protocol	None
Design Series	11 Series
Electrical Connection	ISO 4400 (DIN 43650) connector
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-10/NFPA D10/CETOP 10
Manual override	Water-resistant
Maximum pressure BAR	315
Maximum pressure PSI	4500
Metering	Meter in / meter out
Model Code 1	KDG5V1033C550NXTHMUH111
On board electronics	No
Performance	Standard
Pilot drain	Internal
Pilot supply	Internal
Product height in	11.200
Product height mm	284.480
Product length in	20.350
Product length mm	516.890
Product width in	7.750
Product width mm	196.85
ProFX compatible	No
Reducer module	Yes
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	Bleed A and B to T
Stage	Two stage
Symmetric flow	Yes
Tank port rating BAR	350.0
Tank port rating PSI	5000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
