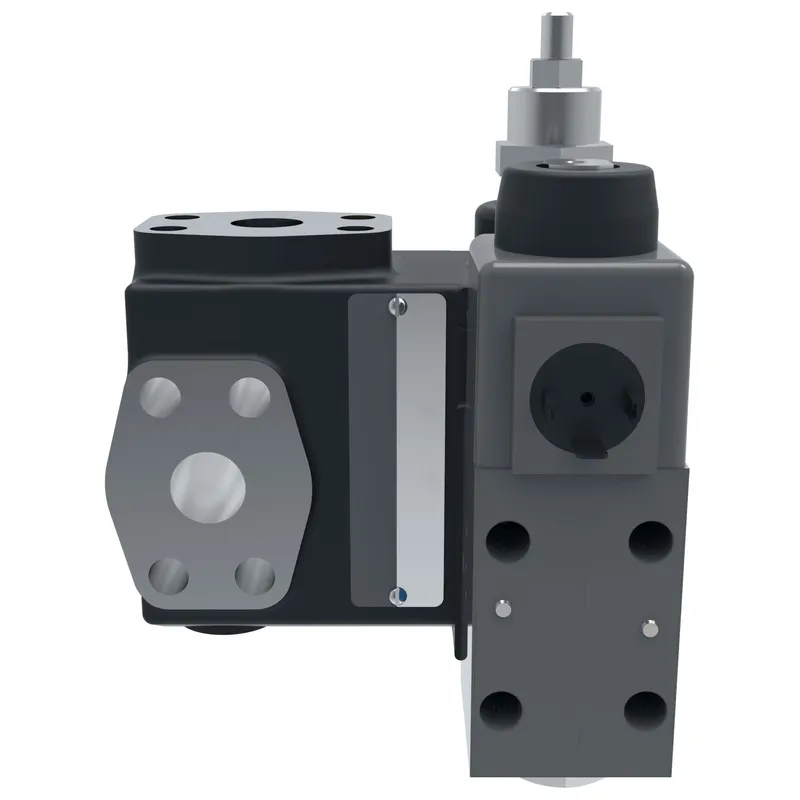

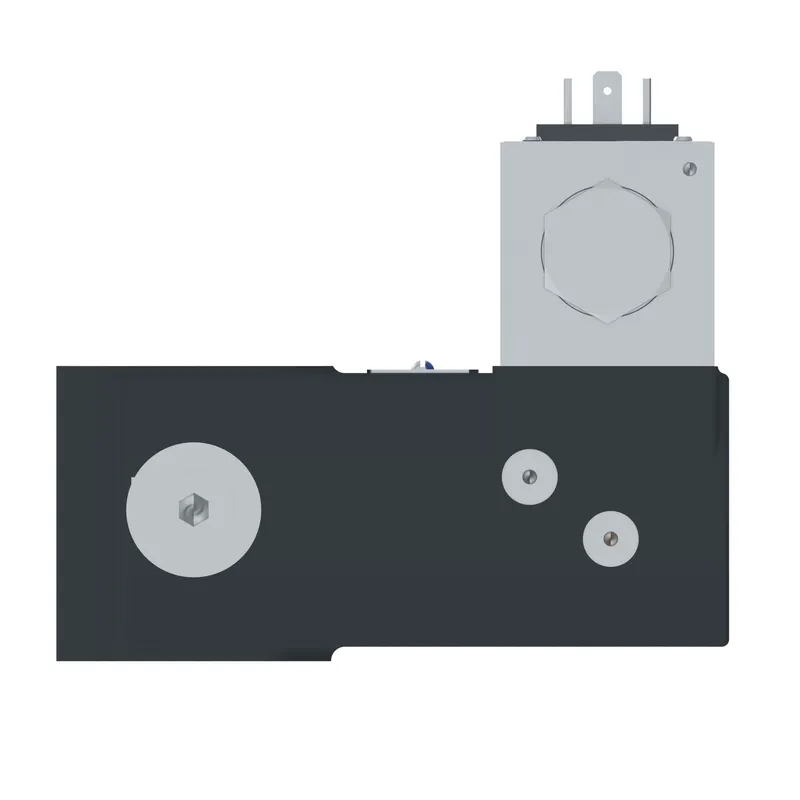

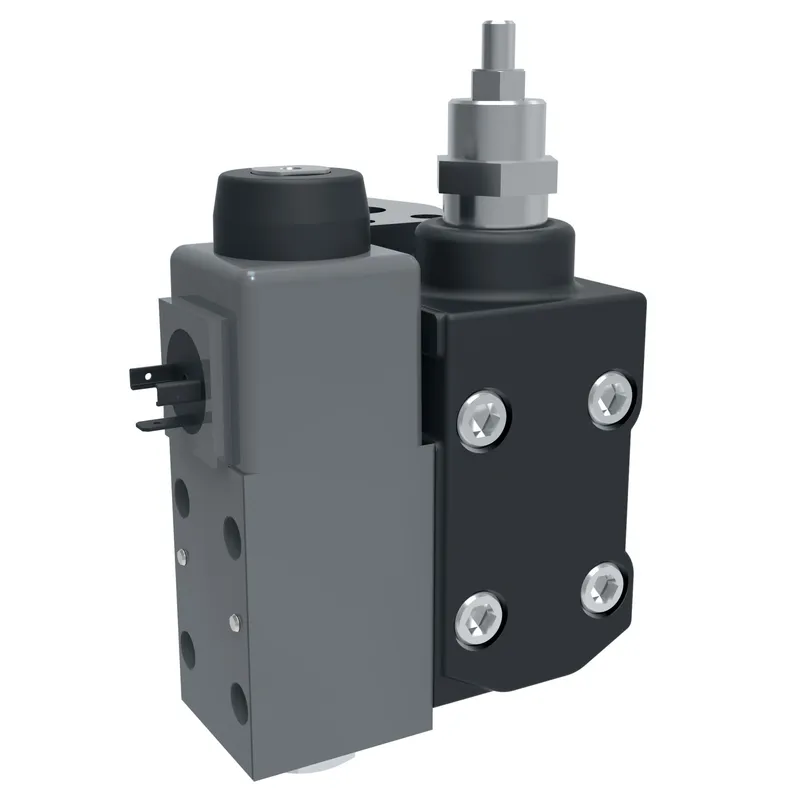

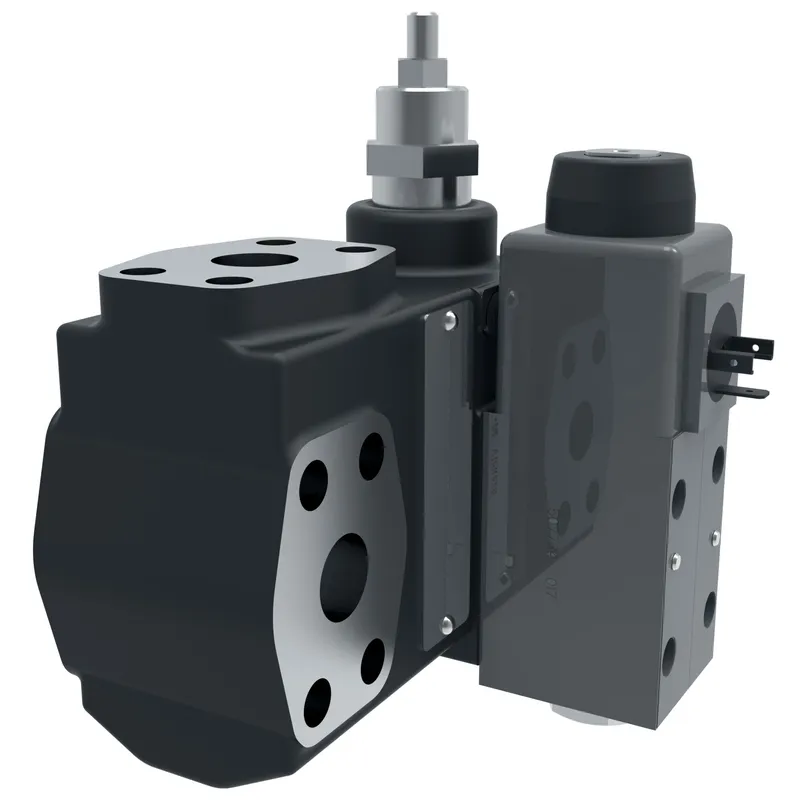

CPF4V-12-GGG-W-3S-M-U-H5 -20, CPF4V12GGGW3SMUH520
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 02-363751 be shipped?
02-363751 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 02-363751 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 02-363751 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-363751, subject to availability and destination.
Danfoss CPF4V-12-GGG-W-3S-M-U-H5 -20, CPF4V12GGGW3SMUH520, manufacturer part number 02-363751. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Actuation Type | Solenoid operated |
| Adjustment range | 10-275 bar (145-4000 psi) |
| Adjustment type | Screw with locknut |
| Brand | Vickers by Danfoss |
| Coil voltage | 24 VDC |
| Design Series | 20 Series |
| Drain | Internal |
| Electrical connection | ISO4400 (Din 43650) Connector |
| Flow rate lpm | 600.0 |
| Flow rate USGPM | 160.0 |
| Fluid Cleanliness | 19/17/14 Micron |
| Fluid compatibility | Petroleum oils |
| Gauge port thread | 0.5625-18 UNF-2B |
| Interface | SAE 1 1/2 in. |
| Leakage | Standard |
| Manual override | Plain |
| Maximum pressure BAR | 350 |
| Maximum pressure PSI | 4000 |
| Model Code | CPF4V12GGGW3SMUH520 |
| Performance | Standard |
| Power Consumption | 30 watt |
| Product height in | 8.920 |
| Product height mm | 226.568 |
| Product length in | 7.550 |
| Product length mm | 191.770 |
| Product width in | 8.390 |
| Product width mm | 213.106 |
| Seal material | Nitrile |
| Special feature | None |
| Stage | Two stage |
| Tank pressure bar | 100 |
| Tank pressure PSI | 1450 |
| Valve Mount Type | Flange mounting |
| Valve type | Relief valve |
| Working temperature max C | 70 |
| Working temperature max F | 158 |
| Working temperature min C | -20 |
| Working temperature min F | -4 |
